HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114005

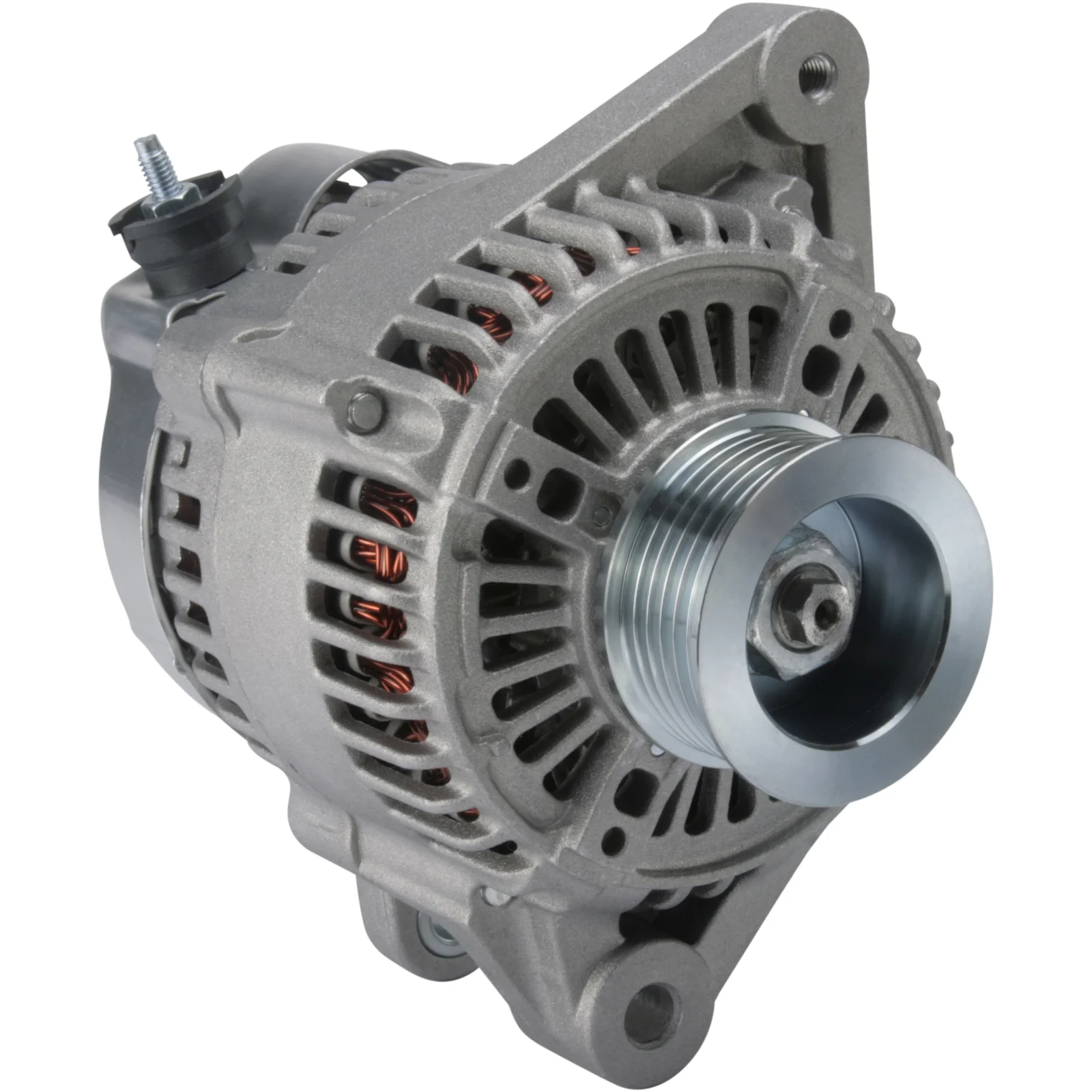

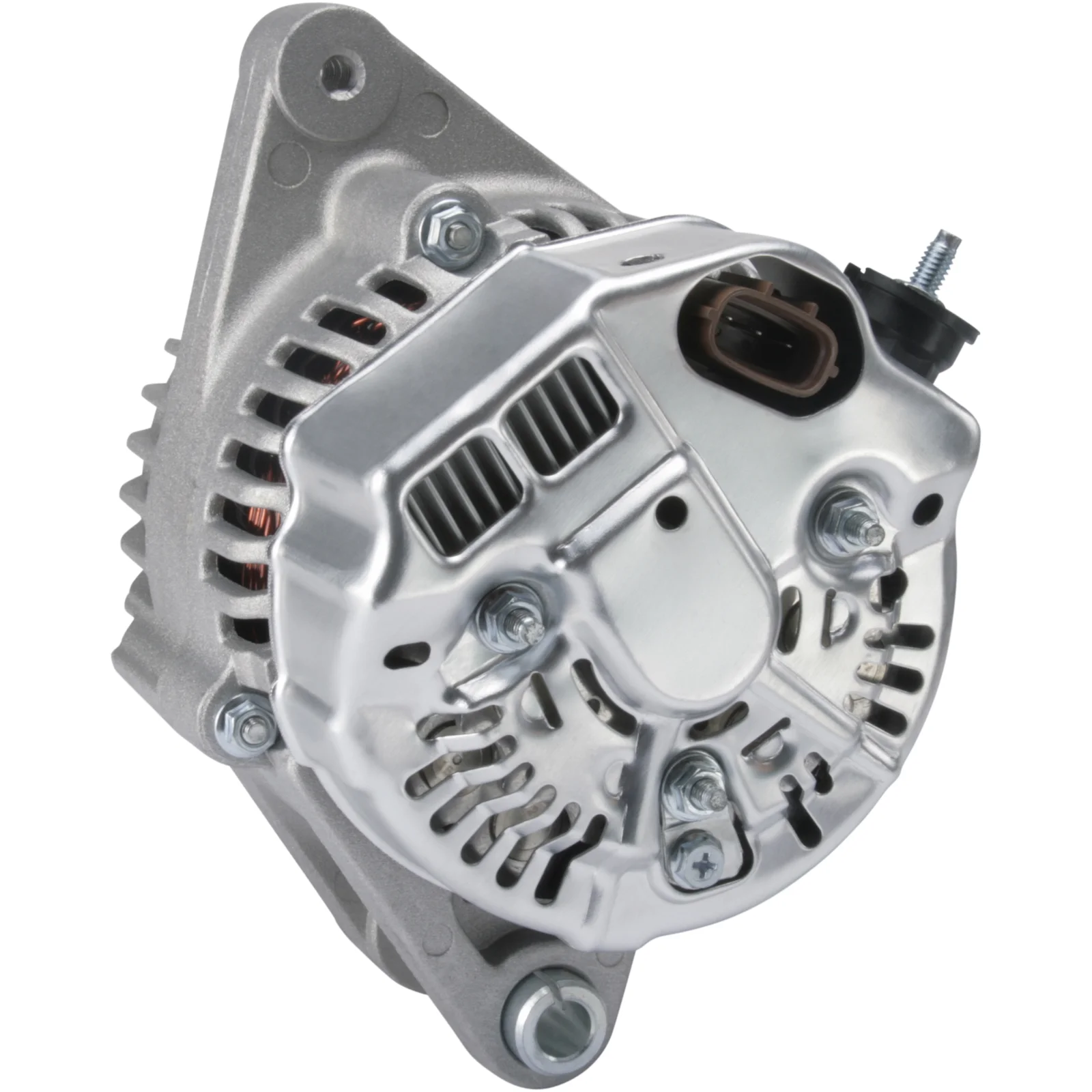

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 70, Rotation: CW, Mounting bracket distributor: 39.00

Description

Voltage: 14
Amperage: 70
Pulley distance: 48.00
Width/holder arm: 27.00
Mounting bracket distance: 39.00
Bracket hole: 10.00
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in minutes: 5
D+ size: Plug
Rotation: CW
Plug number: PL67
Total length mm: 166.00
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

  • Normalised article numbler
    a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010
  • Description
    Voltage: 14
    Amperage: 70
    Pulley distance: 48.00
    Width/holder arm: 27.00
    Mounting bracket distance: 39.00
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in minutes: 5
    D+ size: Plug
    Rotation: CW
    Plug number: PL67
    Total length mm: 166.00
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

    • Normalised article numbler
      a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010
