Article no.: F032114724

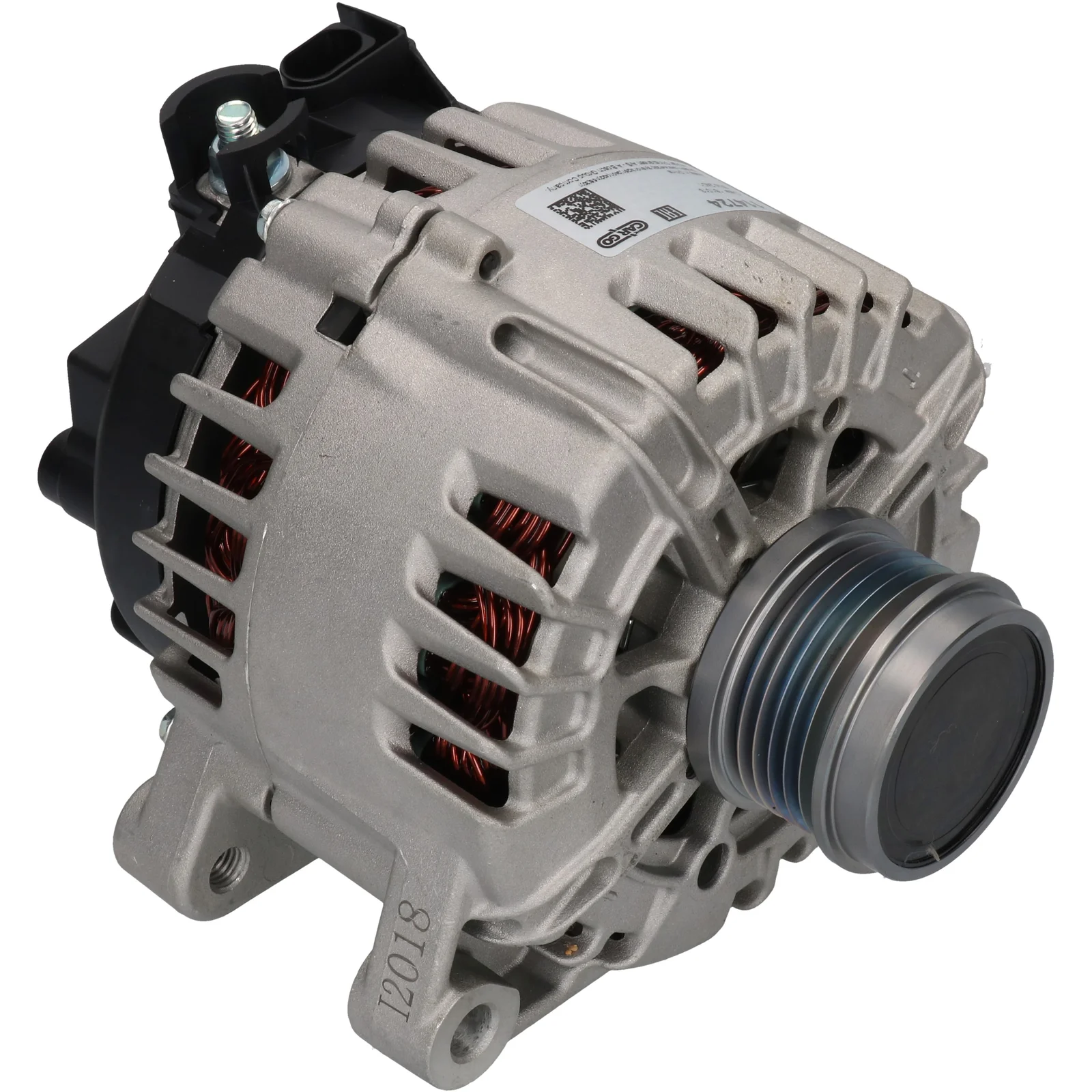

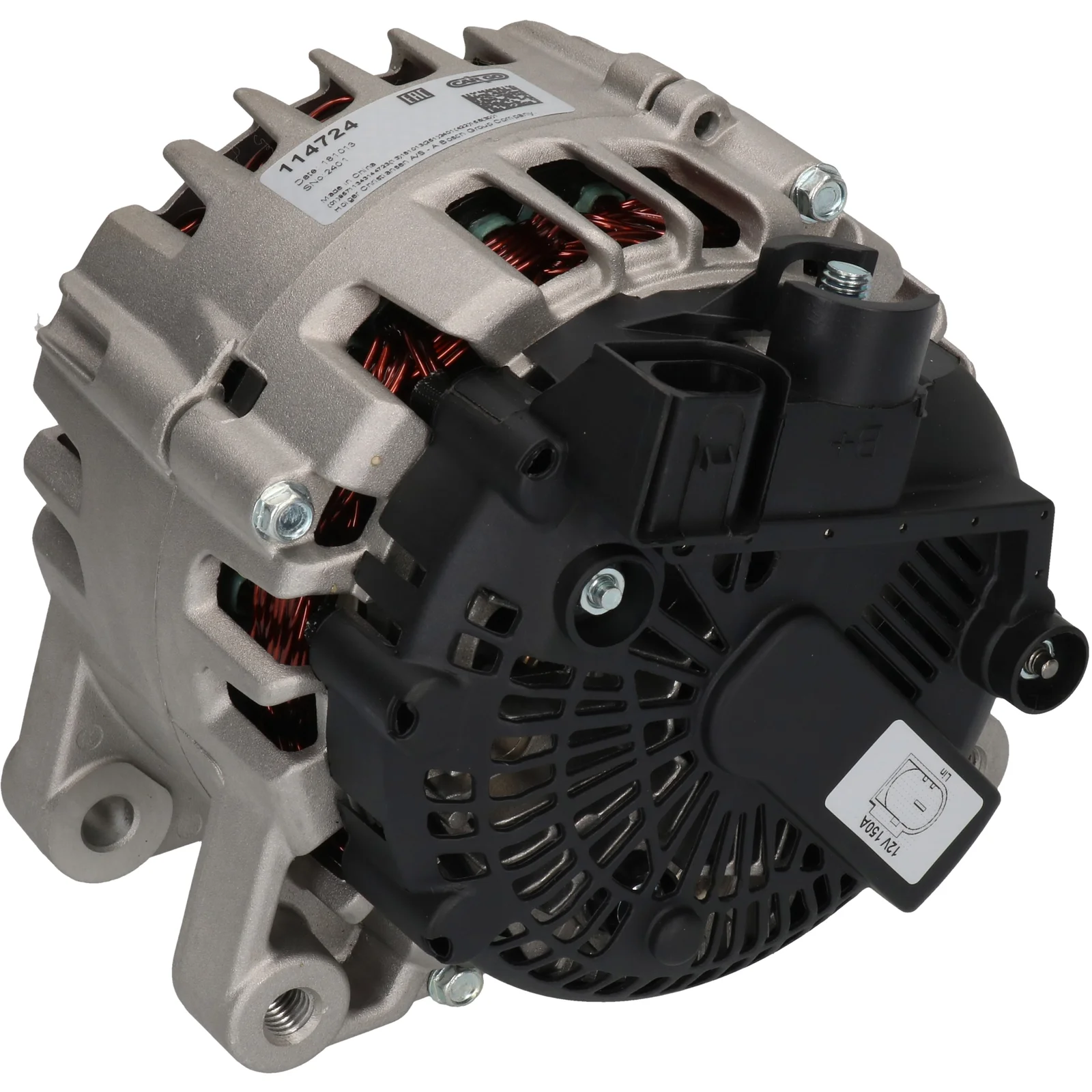

HC-Cargo Alternator
Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 46.50
Description
Generator 12V-150A fits Volvo 12V - 150A, 6-pole connector, (LIN) ID code: 88 180A see 90-600-2929, For Yourex product order 90-600-7316
Voltage: 14
Amp: 150
Pulley diameter: 43.00
Width/holder arm: 21.00
Mounting bracket diameter: 46.50
Bracket hole: 10.20
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL137
Total length mm: 170.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Files
-
OEM
A 003 420 71 83, A0284, A3267S, AG9T-10300-CA, AG9T10300AA, AG9T10300CB, AG9TAA, AG9TCA, AV6N-10300GB, AV6N-10300GC, AV6N10300GB, av6n10300gc, AV6N10300GD, AV6N10300GE, AV6N10300MB, AV6N10300MD, AV6NMB, AV6NMD, CAL15462, CAL15480, CSJ65, DRA0527, DRA0783, F032114724, F032116441, F8RU11000AA, F8RUAA, FG15C074, FG18D129, FO 1506300, FO 1685793, FO 1704769, FO 1707065, FO 1857696, K68019136AA, M002T54571, M002T54572, M002T87271, M002T87271AM, M002T87271ZC, M002T87271ZT, M002T87272, M002T87281, M003T40771, M003T67171, M003T67172, M005T22171, M005T22173, M005T22175, M005T22176, M2T54571, M2T54572, M2T87271, M2T87271AM, M2T87271ZC, M2T87271ZT, M2T87272, M2T87281, M3T40771, M3T67171, M3T67172, M5T22171, M5T22173, M5T22175, M5T22176, MQ905794, MW30638577, MW31216373, RAV6N10300GC, RE6G9N10300XC, REAG9T10300AA, REAV6N10300GC, REAV6N10300MD, RM6G9N10300XC, TG15C 103, TG15C 183, TG15C 186, TG15C103, TG15C152, TG15C169, tg15c183, TG15C186, TG15C214, TG15C228, TG15C234, TG15S205, WL0218400, WL0218400A, WL8118400, WL9118400, XM3411002CA, XM34CA, y406-18-300, Y406-18-300, Y666-18-300A, YM2110300AA, 2E0 615 405B, 2E0 615 423, 2S6T10300BA, 2S6T10300BB, 003 420 71 83, 03C 903 023 G, 03C 903 025 D, 03D 903 025 D, 03D 903 025 E, 03D 903 025 H, 03D 903 025 J, 03L 903 023 E, 03L 903 023 F, 3S5T10300AA, 3S5T10300AB, 4S5T10300AA, 4S5T10300AB, 4Z7903015, 06A903023, 06B 903 016 AD, 06B 903 016 AE, 06B 903 016 E, 06B 903 016 F, 06B 903 016 S, 06C 903 016 J, 06E903016P, 06F 903 023 B, 06F 903 023 C, 06F 903 023 H, 06F 903 023 P, 6G9N10300XA, 6G9N10300XB, 6G9N10300XC, 6G9NXA, 6G9NXB, 6G9NXC, 7 521 178, 7 525 376, 8V2110300AB, 8V2110300BB, 8Y0418400, 9G9N10300CA, 9G9NCA, 12 31 2 246 070, 12 31 7 792 092, 021 903 026 L, 028 903 029 D, 028 903 029 R, 028 903 029 T, 28-5825, 28-6580, 030 903 023 J, 030 903 023 M, 036 903 024 H, 036 903 028 A, 037 903 025 S, 037 903 025 T, 038 903 023 R, 038 903 024 E, 059 903 015 R, 059 903 016 G, 059 903 023 A, 77 00 436 671, 078 903 016 AC, 82 00 193 100, 96 385 437 80, 96 441 035 80, 96 463 217 80, 96 503 585 80, 96 552 492 80, 0121 615 009, 219.306.1502, 219.312.1502, 595.584.150, 815.533.150, 0986 047 960, 1800A138, 1800A350, 1986A01210, 4728, 20214N, 21214 3701010, 24053N, 31100R3LG01, 37300 02550, 37300 02551, 37300 03100, 37300 03300, 37300 03500, 37300 2A010, 37300 2A100, 37300 2A850, 37300 2B600, 37300 37800, 37300 38400, 57052V, 112662, 112706, 114724, 116441, 128179, 200211, 200259, 210420, 210420A, 210437, 210437A, 210877, 210877A, 439906, 439926, 440478, 440576, 553279RIV, 570286, 570288, 570516, 570550, 570551, 570552, 570553, 570577, 570578, 570586, 1074769, 1110413, 1140136, 1229424, 1376501, 1387927, 1450644, 1451865, 1486810, 1506300, 1678607, 1678608, 1685793, 1704769, 1707065, 1756803, 1762377, 1762869, 1791839, 1857695, 1857696, 2021166, 2032603, 2099445, 2260730, 2321305, 2543428, 2543428A, 2609244, 2612673, 2612673B, 3003782, 3068346, 3114994, 3601369, 4348654, 4785540, 6211871, 6906234, 6906286, 9090581, 12090246, 12090857, 12091009, 14381520, 14389250, 14389260, 14406470, 30285659, 30644628, 30659390, 31266149, 31285659, 31285808, 31419219, 32047960, 32084230, 36000909, 36001117, 36001501, 36002816, 36012505, 51944878, 059903016J, 059903016JX, 059903019CX, 68019136AA, 71732307, 91273204, 91273204N, 91273207, 95612088, 110016789, 150022506, 150022514, 150123451, 150123452, 314192219, 440090942, 484018400, 484018400A, 484018400B, 485418400, 485418400A, 746160782, 900560840, 901098890, 901098891, 903468600, 0986084230, 2810087106, 2810087107, 2810087715, 2810087730, 2810087730B, 7700855154, 9151589980, 9561208880, 9561208980, 9639396480, 9655296080, 9664074280, 9665580680, 9665617780, 9670899580, 9678048880, 9678049480, 9688085380, 9803049980, 9803750980, 9809391880, 9810971880, 9818677980, 9826573480, 2810087715000, 2810087715100, 2810087730000 -
Normalised article numbler
a0034207183, a0284, a3267s, ag9t10300aa, ag9t10300ca, ag9t10300cb, ag9taa, ag9tca, av6n10300gb, av6n10300gc, av6n10300gd, av6n10300ge, av6n10300mb, av6n10300md, av6nmb, av6nmd, cal15462, cal15480, csj65, dra0527, dra0783, f032114724, f032116441, f8ru11000aa, f8ruaa, fg15c074, fg18d129, fo1506300, fo1685793, fo1704769, fo1707065, fo1857696, k68019136aa, m002t54571, m002t54572, m002t87271, m002t87271am, m002t87271zc, m002t87271zt, m002t87272, m002t87281, m003t40771, m003t67171, m003t67172, m005t22171, m005t22173, m005t22175, m005t22176, m2t54571, m2t54572, m2t87271, m2t87271am, m2t87271zc, m2t87271zt, m2t87272, m2t87281, m3t40771, m3t67171, m3t67172, m5t22171, m5t22173, m5t22175, m5t22176, mq905794, mw30638577, mw31216373, rav6n10300gc, re6g9n10300xc, reag9t10300aa, reav6n10300gc, reav6n10300md, rm6g9n10300xc, tg15c103, tg15c152, tg15c169, tg15c183, tg15c186, tg15c214, tg15c228, tg15c234, tg15s205, wl0218400, wl0218400a, wl8118400, wl9118400, xm3411002ca, xm34ca, y40618300, y66618300a, ym2110300aa, 2e0615405b, 2e0615423, 2s6t10300ba, 2s6t10300bb, 03c903023g, 03c903025d, 03d903025d, 03d903025e, 03d903025h, 03d903025j, 03l903023e, 03l903023f, 3s5t10300aa, 3s5t10300ab, 4s5t10300aa, 4s5t10300ab, 4z7903015, 06a903023, 06b903016ad, 06b903016ae, 06b903016e, 06b903016f, 06b903016s, 06c903016j, 06e903016p, 06f903023b, 06f903023c, 06f903023h, 06f903023p, 6g9n10300xa, 6g9n10300xb, 6g9n10300xc, 6g9nxa, 6g9nxb, 6g9nxc, 8v2110300ab, 8v2110300bb, 8y0418400, 9g9n10300ca, 9g9nca, 1800a138, 1800a350, 1986a01210, 4728, 20214n, 24053n, 31100r3lg01, 57052v, 112662, 112706, 114724, 116441, 128179, 200211, 200259, 210420, 210420a, 210437, 210437a, 210877, 210877a, 285825, 286580, 373002a010, 373002a100, 373002a850, 373002b600, 439906, 439926, 440478, 440576, 553279riv, 570286, 570288, 570516, 570550, 570551, 570552, 570553, 570577, 570578, 570586, 1074769, 1110413, 1140136, 1229424, 1376501, 1387927, 1450644, 1451865, 1486810, 1506300, 1678607, 1678608, 1685793, 1704769, 1707065, 1756803, 1762377, 1762869, 1791839, 1857695, 1857696, 2021166, 2032603, 2099445, 2260730, 2321305, 2543428, 2543428a, 2609244, 2612673, 2612673b, 3003782, 3068346, 3114994, 3601369, 4348654, 4785540, 6211871, 6906234, 6906286, 7521178, 7525376, 9090581, 12090246, 12090857, 12091009, 14381520, 14389250, 14389260, 14406470, 021903026l, 028903029d, 028903029r, 028903029t, 30285659, 30644628, 30659390, 030903023j, 030903023m, 31266149, 31285659, 31285808, 31419219, 32047960, 32084230, 0034207183, 36000909, 36001117, 36001501, 36002816, 36012505, 036903024h, 036903028a, 037903025s, 037903025t, 038903023r, 038903024e, 51944878, 059903015r, 059903016g, 059903016j, 059903016jx, 059903019cx, 059903023a, 68019136aa, 71732307, 078903016ac, 91273204, 91273204n, 91273207, 95612088, 110016789, 0121615009, 150022506, 150022514, 150123451, 150123452, 314192219, 440090942, 484018400, 484018400a, 484018400b, 485418400, 485418400a, 595584150, 746160782, 815533150, 900560840, 901098890, 901098891, 903468600, 0986047960, 0986084230, 2193061502, 2193121502, 2810087106, 2810087107, 2810087715, 2810087730, 2810087730b, 3730002550, 3730002551, 3730003100, 3730003300, 3730003500, 3730037800, 3730038400, 7700436671, 7700855154, 8200193100, 9151589980, 9561208880, 9561208980, 9638543780, 9639396480, 9644103580, 9646321780, 9650358580, 9655249280, 9655296080, 9664074280, 9665580680, 9665617780, 9670899580, 9678048880, 9678049480, 9688085380, 9803049980, 9803750980, 9809391880, 9810971880, 9818677980, 9826573480, 12312246070, 12317792092, 212143701010, 2810087715000, 2810087715100, 2810087730000
-
Description
Generator 12V-150A fits Volvo 12V - 150A, 6-pole connector, (LIN) ID code: 88 180A see 90-600-2929, For Yourex product order 90-600-7316 Voltage: 14 Amp: 150 Pulley diameter: 43.00 Width/holder arm: 21.00 Mounting bracket diameter: 46.50 Bracket hole: 10.20 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 10.50 Pulley diameter: 54.50 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 Rotation: CW Plug no.: PL137 Total length mm: 170.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Files
-
Suitable for these vehicles
-
OEM
A 003 420 71 83, A0284, A3267S, AG9T-10300-CA, AG9T10300AA, AG9T10300CB, AG9TAA, AG9TCA, AV6N-10300GB, AV6N-10300GC, AV6N10300GB, av6n10300gc, AV6N10300GD, AV6N10300GE, AV6N10300MB, AV6N10300MD, AV6NMB, AV6NMD, CAL15462, CAL15480, CSJ65, DRA0527, DRA0783, F032114724, F032116441, F8RU11000AA, F8RUAA, FG15C074, FG18D129, FO 1506300, FO 1685793, FO 1704769, FO 1707065, FO 1857696, K68019136AA, M002T54571, M002T54572, M002T87271, M002T87271AM, M002T87271ZC, M002T87271ZT, M002T87272, M002T87281, M003T40771, M003T67171, M003T67172, M005T22171, M005T22173, M005T22175, M005T22176, M2T54571, M2T54572, M2T87271, M2T87271AM, M2T87271ZC, M2T87271ZT, M2T87272, M2T87281, M3T40771, M3T67171, M3T67172, M5T22171, M5T22173, M5T22175, M5T22176, MQ905794, MW30638577, MW31216373, RAV6N10300GC, RE6G9N10300XC, REAG9T10300AA, REAV6N10300GC, REAV6N10300MD, RM6G9N10300XC, TG15C 103, TG15C 183, TG15C 186, TG15C103, TG15C152, TG15C169, tg15c183, TG15C186, TG15C214, TG15C228, TG15C234, TG15S205, WL0218400, WL0218400A, WL8118400, WL9118400, XM3411002CA, XM34CA, y406-18-300, Y406-18-300, Y666-18-300A, YM2110300AA, 2E0 615 405B, 2E0 615 423, 2S6T10300BA, 2S6T10300BB, 003 420 71 83, 03C 903 023 G, 03C 903 025 D, 03D 903 025 D, 03D 903 025 E, 03D 903 025 H, 03D 903 025 J, 03L 903 023 E, 03L 903 023 F, 3S5T10300AA, 3S5T10300AB, 4S5T10300AA, 4S5T10300AB, 4Z7903015, 06A903023, 06B 903 016 AD, 06B 903 016 AE, 06B 903 016 E, 06B 903 016 F, 06B 903 016 S, 06C 903 016 J, 06E903016P, 06F 903 023 B, 06F 903 023 C, 06F 903 023 H, 06F 903 023 P, 6G9N10300XA, 6G9N10300XB, 6G9N10300XC, 6G9NXA, 6G9NXB, 6G9NXC, 7 521 178, 7 525 376, 8V2110300AB, 8V2110300BB, 8Y0418400, 9G9N10300CA, 9G9NCA, 12 31 2 246 070, 12 31 7 792 092, 021 903 026 L, 028 903 029 D, 028 903 029 R, 028 903 029 T, 28-5825, 28-6580, 030 903 023 J, 030 903 023 M, 036 903 024 H, 036 903 028 A, 037 903 025 S, 037 903 025 T, 038 903 023 R, 038 903 024 E, 059 903 015 R, 059 903 016 G, 059 903 023 A, 77 00 436 671, 078 903 016 AC, 82 00 193 100, 96 385 437 80, 96 441 035 80, 96 463 217 80, 96 503 585 80, 96 552 492 80, 0121 615 009, 219.306.1502, 219.312.1502, 595.584.150, 815.533.150, 0986 047 960, 1800A138, 1800A350, 1986A01210, 4728, 20214N, 21214 3701010, 24053N, 31100R3LG01, 37300 02550, 37300 02551, 37300 03100, 37300 03300, 37300 03500, 37300 2A010, 37300 2A100, 37300 2A850, 37300 2B600, 37300 37800, 37300 38400, 57052V, 112662, 112706, 114724, 116441, 128179, 200211, 200259, 210420, 210420A, 210437, 210437A, 210877, 210877A, 439906, 439926, 440478, 440576, 553279RIV, 570286, 570288, 570516, 570550, 570551, 570552, 570553, 570577, 570578, 570586, 1074769, 1110413, 1140136, 1229424, 1376501, 1387927, 1450644, 1451865, 1486810, 1506300, 1678607, 1678608, 1685793, 1704769, 1707065, 1756803, 1762377, 1762869, 1791839, 1857695, 1857696, 2021166, 2032603, 2099445, 2260730, 2321305, 2543428, 2543428A, 2609244, 2612673, 2612673B, 3003782, 3068346, 3114994, 3601369, 4348654, 4785540, 6211871, 6906234, 6906286, 9090581, 12090246, 12090857, 12091009, 14381520, 14389250, 14389260, 14406470, 30285659, 30644628, 30659390, 31266149, 31285659, 31285808, 31419219, 32047960, 32084230, 36000909, 36001117, 36001501, 36002816, 36012505, 51944878, 059903016J, 059903016JX, 059903019CX, 68019136AA, 71732307, 91273204, 91273204N, 91273207, 95612088, 110016789, 150022506, 150022514, 150123451, 150123452, 314192219, 440090942, 484018400, 484018400A, 484018400B, 485418400, 485418400A, 746160782, 900560840, 901098890, 901098891, 903468600, 0986084230, 2810087106, 2810087107, 2810087715, 2810087730, 2810087730B, 7700855154, 9151589980, 9561208880, 9561208980, 9639396480, 9655296080, 9664074280, 9665580680, 9665617780, 9670899580, 9678048880, 9678049480, 9688085380, 9803049980, 9803750980, 9809391880, 9810971880, 9818677980, 9826573480, 2810087715000, 2810087715100, 2810087730000 -
Normalised article numbler
a0034207183, a0284, a3267s, ag9t10300aa, ag9t10300ca, ag9t10300cb, ag9taa, ag9tca, av6n10300gb, av6n10300gc, av6n10300gd, av6n10300ge, av6n10300mb, av6n10300md, av6nmb, av6nmd, cal15462, cal15480, csj65, dra0527, dra0783, f032114724, f032116441, f8ru11000aa, f8ruaa, fg15c074, fg18d129, fo1506300, fo1685793, fo1704769, fo1707065, fo1857696, k68019136aa, m002t54571, m002t54572, m002t87271, m002t87271am, m002t87271zc, m002t87271zt, m002t87272, m002t87281, m003t40771, m003t67171, m003t67172, m005t22171, m005t22173, m005t22175, m005t22176, m2t54571, m2t54572, m2t87271, m2t87271am, m2t87271zc, m2t87271zt, m2t87272, m2t87281, m3t40771, m3t67171, m3t67172, m5t22171, m5t22173, m5t22175, m5t22176, mq905794, mw30638577, mw31216373, rav6n10300gc, re6g9n10300xc, reag9t10300aa, reav6n10300gc, reav6n10300md, rm6g9n10300xc, tg15c103, tg15c152, tg15c169, tg15c183, tg15c186, tg15c214, tg15c228, tg15c234, tg15s205, wl0218400, wl0218400a, wl8118400, wl9118400, xm3411002ca, xm34ca, y40618300, y66618300a, ym2110300aa, 2e0615405b, 2e0615423, 2s6t10300ba, 2s6t10300bb, 03c903023g, 03c903025d, 03d903025d, 03d903025e, 03d903025h, 03d903025j, 03l903023e, 03l903023f, 3s5t10300aa, 3s5t10300ab, 4s5t10300aa, 4s5t10300ab, 4z7903015, 06a903023, 06b903016ad, 06b903016ae, 06b903016e, 06b903016f, 06b903016s, 06c903016j, 06e903016p, 06f903023b, 06f903023c, 06f903023h, 06f903023p, 6g9n10300xa, 6g9n10300xb, 6g9n10300xc, 6g9nxa, 6g9nxb, 6g9nxc, 8v2110300ab, 8v2110300bb, 8y0418400, 9g9n10300ca, 9g9nca, 1800a138, 1800a350, 1986a01210, 4728, 20214n, 24053n, 31100r3lg01, 57052v, 112662, 112706, 114724, 116441, 128179, 200211, 200259, 210420, 210420a, 210437, 210437a, 210877, 210877a, 285825, 286580, 373002a010, 373002a100, 373002a850, 373002b600, 439906, 439926, 440478, 440576, 553279riv, 570286, 570288, 570516, 570550, 570551, 570552, 570553, 570577, 570578, 570586, 1074769, 1110413, 1140136, 1229424, 1376501, 1387927, 1450644, 1451865, 1486810, 1506300, 1678607, 1678608, 1685793, 1704769, 1707065, 1756803, 1762377, 1762869, 1791839, 1857695, 1857696, 2021166, 2032603, 2099445, 2260730, 2321305, 2543428, 2543428a, 2609244, 2612673, 2612673b, 3003782, 3068346, 3114994, 3601369, 4348654, 4785540, 6211871, 6906234, 6906286, 7521178, 7525376, 9090581, 12090246, 12090857, 12091009, 14381520, 14389250, 14389260, 14406470, 021903026l, 028903029d, 028903029r, 028903029t, 30285659, 30644628, 30659390, 030903023j, 030903023m, 31266149, 31285659, 31285808, 31419219, 32047960, 32084230, 0034207183, 36000909, 36001117, 36001501, 36002816, 36012505, 036903024h, 036903028a, 037903025s, 037903025t, 038903023r, 038903024e, 51944878, 059903015r, 059903016g, 059903016j, 059903016jx, 059903019cx, 059903023a, 68019136aa, 71732307, 078903016ac, 91273204, 91273204n, 91273207, 95612088, 110016789, 0121615009, 150022506, 150022514, 150123451, 150123452, 314192219, 440090942, 484018400, 484018400a, 484018400b, 485418400, 485418400a, 595584150, 746160782, 815533150, 900560840, 901098890, 901098891, 903468600, 0986047960, 0986084230, 2193061502, 2193121502, 2810087106, 2810087107, 2810087715, 2810087730, 2810087730b, 3730002550, 3730002551, 3730003100, 3730003300, 3730003500, 3730037800, 3730038400, 7700436671, 7700855154, 8200193100, 9151589980, 9561208880, 9561208980, 9638543780, 9639396480, 9644103580, 9646321780, 9650358580, 9655249280, 9655296080, 9664074280, 9665580680, 9665617780, 9670899580, 9678048880, 9678049480, 9688085380, 9803049980, 9803750980, 9809391880, 9810971880, 9818677980, 9826573480, 12312246070, 12317792092, 212143701010, 2810087715000, 2810087715100, 2810087730000
-
