HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116195

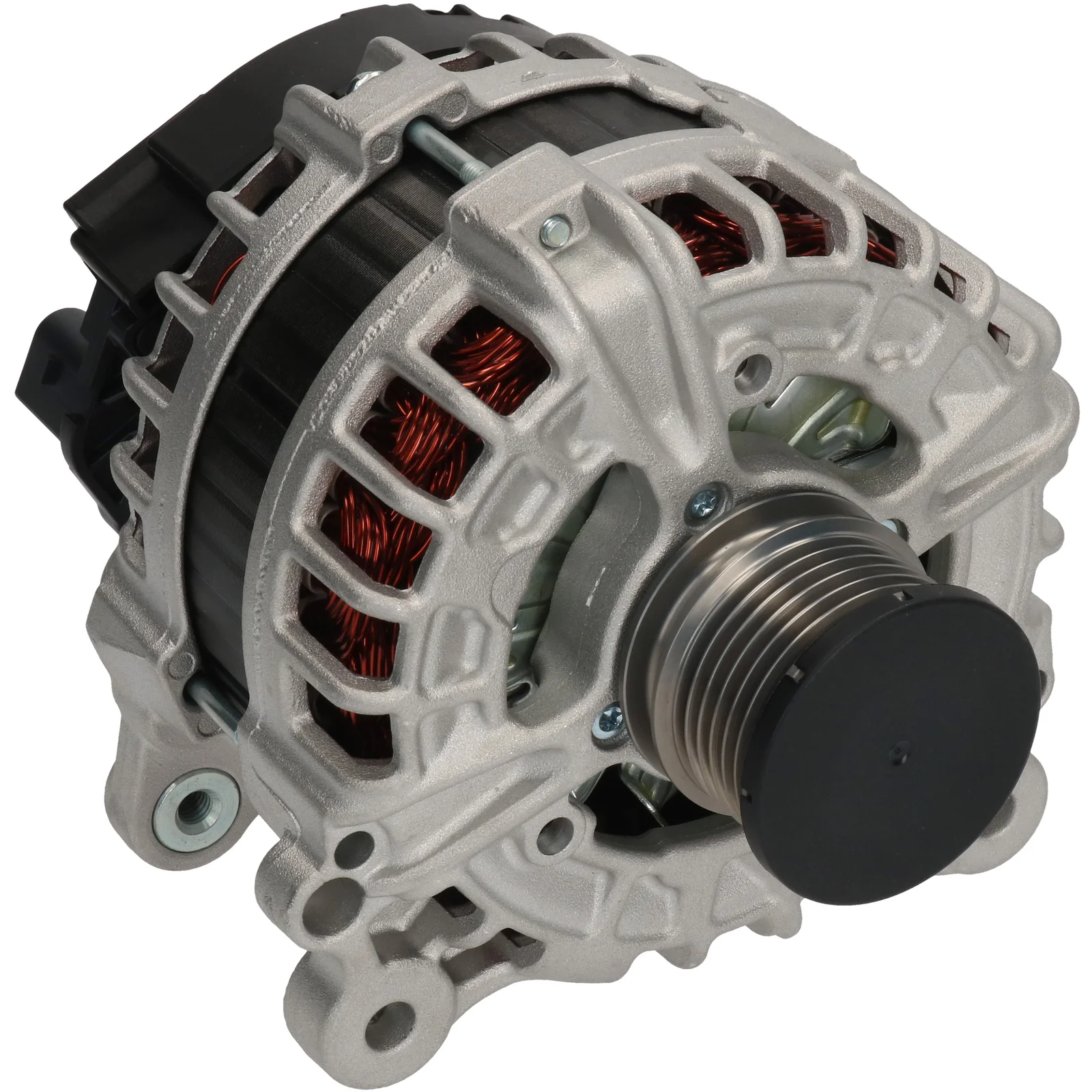

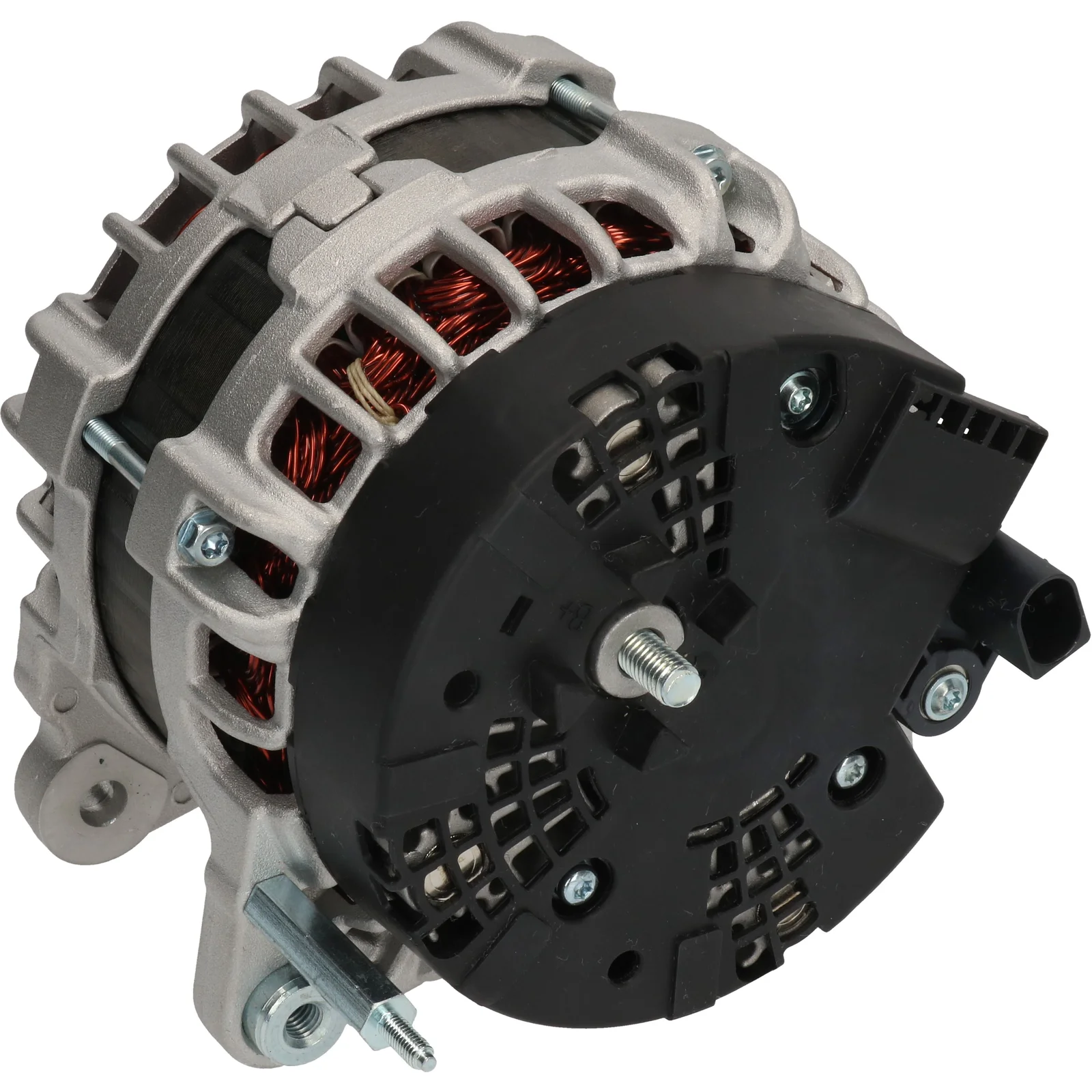

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Alternator 12V-180A 12V - 180A, 6 poles, (LIN) for Yourex product order 90-620-8331 Voltage: 14 Amperage: 180 Pulley diameter: 39.30 Width / holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.60 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.60 Pulley diameter: 50.00 Grooves / pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 43 Rotation: CW Plug no.: PL125 Total length mm: 193.00 Terminal type: COM ID Code: 40 Pulley: SP / FW Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116195, FG18T103, FG18T123, FG18T124, 03L 903 023M, 03L903023M, 03L903023MX, 03L903024L, 03L903024N, 0125 811 008, 0125 811 035, 0986 083 310, 1986A00564, 1986A01050, 116195, 2617865B, 2617866A, 2620000B, 0125811008, 0125811035, 0125811178

  • Normalised article numbler
    a0492, a0492pr, a0561s, a0607pr, a3308pr, a3308s, dra0674, f032116195, fg18t103, fg18t123, fg18t124, 03l903023m, 03l903023mx, 03l903024l, 03l903024n, 8el012241091, 8el012430311, 8el015637101, 1986a00564, 1986a01050, 20017r, 20666n, 20798n, 116195, 200217, 209270, 209270a, 286818, 439783, 2617865b, 2617866a, 2620000b, 12090437, 32439783, 0125811008, 0125811035, 0125811178, 305970180, 0986083310, 0986083850
  • Description
    Alternator 12V-180A 12V - 180A, 6 poles, (LIN) for Yourex product order 90-620-8331 Voltage: 14 Amperage: 180 Pulley diameter: 39.30 Width / holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.60 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.60 Pulley diameter: 50.00 Grooves / pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 43 Rotation: CW Plug no.: PL125 Total length mm: 193.00 Terminal type: COM ID Code: 40 Pulley: SP / FW Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116195, FG18T103, FG18T123, FG18T124, 03L 903 023M, 03L903023M, 03L903023MX, 03L903024L, 03L903024N, 0125 811 008, 0125 811 035, 0986 083 310, 1986A00564, 1986A01050, 116195, 2617865B, 2617866A, 2620000B, 0125811008, 0125811035, 0125811178

    • Normalised article numbler
      a0492, a0492pr, a0561s, a0607pr, a3308pr, a3308s, dra0674, f032116195, fg18t103, fg18t123, fg18t124, 03l903023m, 03l903023mx, 03l903024l, 03l903024n, 8el012241091, 8el012430311, 8el015637101, 1986a00564, 1986a01050, 20017r, 20666n, 20798n, 116195, 200217, 209270, 209270a, 286818, 439783, 2617865b, 2617866a, 2620000b, 12090437, 32439783, 0125811008, 0125811035, 0125811178, 305970180, 0986083310, 0986083850
