HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116191

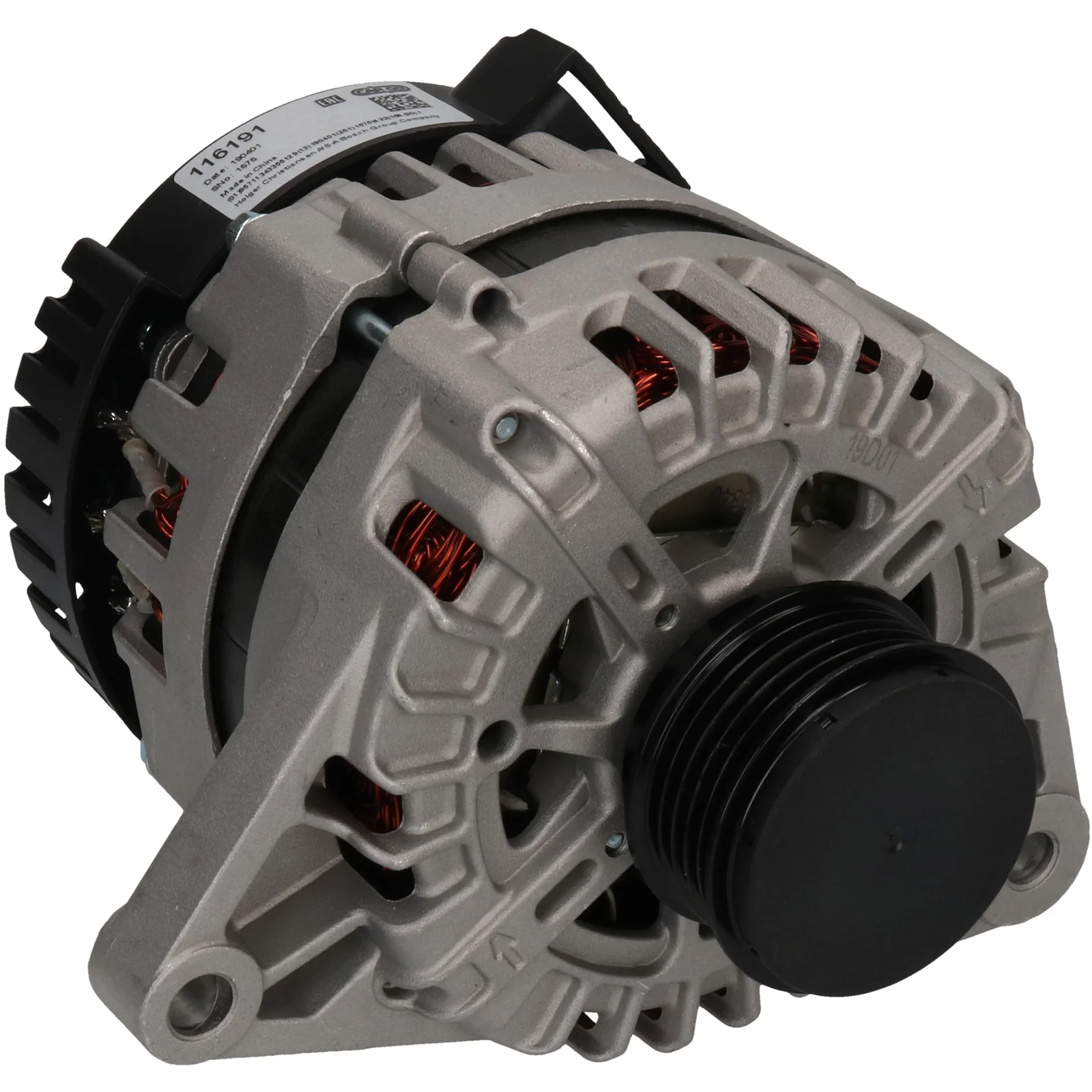

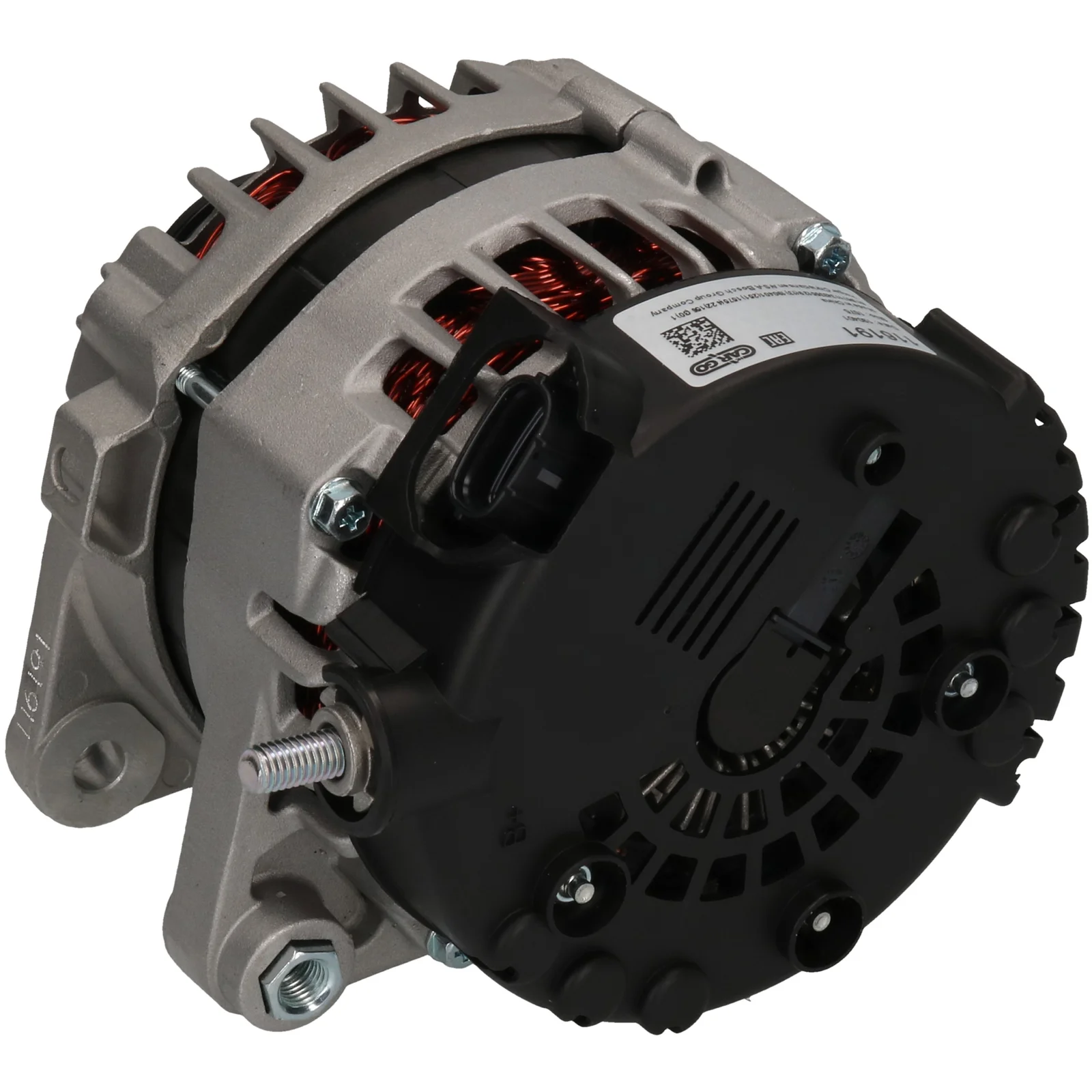

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Mounting bracket distributor: 50.30

Description

Hyundai/Kia Alternator 12V-130A, 5gr 12V - 130A, 5gr.frg, (C, L, FR) For Yourex product order 90-228-1067

Voltage: 14
Amp: 130
Pulley dist.: 33.40
Width/holder arm: 50.30
Mount. bracket dist.: 50.30
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 57.00
Grooves/pulley: 5
Radius: 86.00
Radius 2: 97.00
B+: M8
Position/B+ in min.: 38
Rotation: clockwise
Plug no.: PL176
Total length mm: 175.50
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A0002609674, A0002611067, A0002621365, A3316(VALEO), A3316S, DRA0997, DRA0997N, F032116191, 8EL011713-401, 28-6720, 226.310.1302, 1986A01278, 20655n, 20655N, 20655R, 37300-2A800, 37300-2A805, 37300-2A850, 116191, 210942, 210942A, 373002A400, 373002A401, 373002A450, 373002A460, 373002A600, 373002A601, 373002A650, 373002A651, 443242, 600780, 608369, 608383, 2609674, 2611067, 2621365, 12090766, 0986082820

  • Normalised article numbler
    a0002609674, a0002611067, a0002621365, a3316s, a3316valeo, dra0997, dra0997n, f032116191, 8el011713401, 1986a01278, 20655n, 20655r, 116191, 210942, 210942a, 286720, 373002a400, 373002a401, 373002a450, 373002a460, 373002a600, 373002a601, 373002a650, 373002a651, 373002a800, 373002a805, 373002a850, 443242, 600780, 608369, 608383, 2609674, 2611067, 2621365, 12090766, 0986082820, 2263101302
  • Description
    Hyundai/Kia Alternator 12V-130A, 5gr 12V - 130A, 5gr.frg, (C, L, FR) For Yourex product order 90-228-1067

    Voltage: 14
    Amp: 130
    Pulley dist.: 33.40
    Width/holder arm: 50.30
    Mount. bracket dist.: 50.30
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 57.00
    Grooves/pulley: 5
    Radius: 86.00
    Radius 2: 97.00
    B+: M8
    Position/B+ in min.: 38
    Rotation: clockwise
    Plug no.: PL176
    Total length mm: 175.50
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0002609674, A0002611067, A0002621365, A3316(VALEO), A3316S, DRA0997, DRA0997N, F032116191, 8EL011713-401, 28-6720, 226.310.1302, 1986A01278, 20655n, 20655N, 20655R, 37300-2A800, 37300-2A805, 37300-2A850, 116191, 210942, 210942A, 373002A400, 373002A401, 373002A450, 373002A460, 373002A600, 373002A601, 373002A650, 373002A651, 443242, 600780, 608369, 608383, 2609674, 2611067, 2621365, 12090766, 0986082820

    • Normalised article numbler
      a0002609674, a0002611067, a0002621365, a3316s, a3316valeo, dra0997, dra0997n, f032116191, 8el011713401, 1986a01278, 20655n, 20655r, 116191, 210942, 210942a, 286720, 373002a400, 373002a401, 373002a450, 373002a460, 373002a600, 373002a601, 373002a650, 373002a651, 373002a800, 373002a805, 373002a850, 443242, 600780, 608369, 608383, 2609674, 2611067, 2621365, 12090766, 0986082820, 2263101302
