HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115521

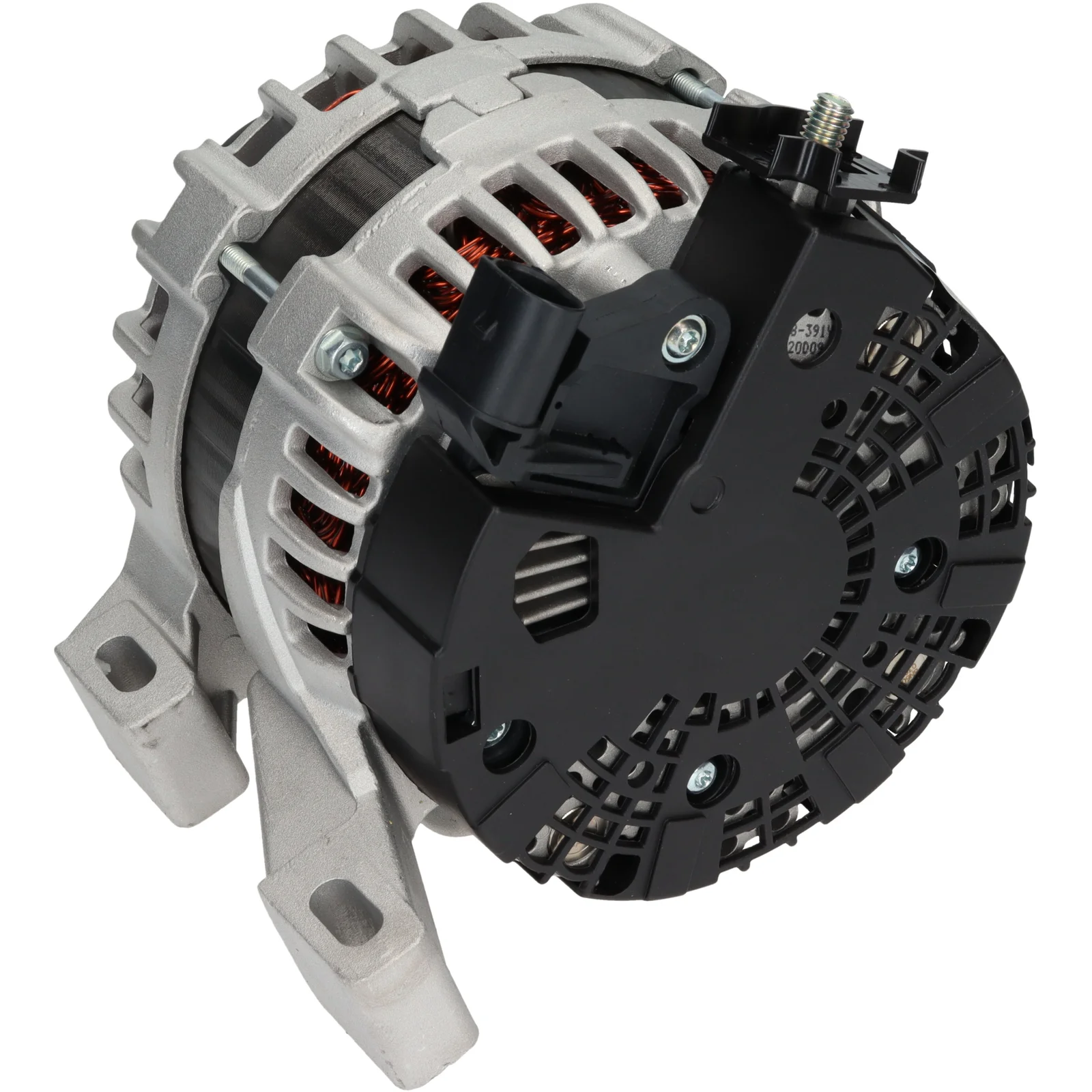

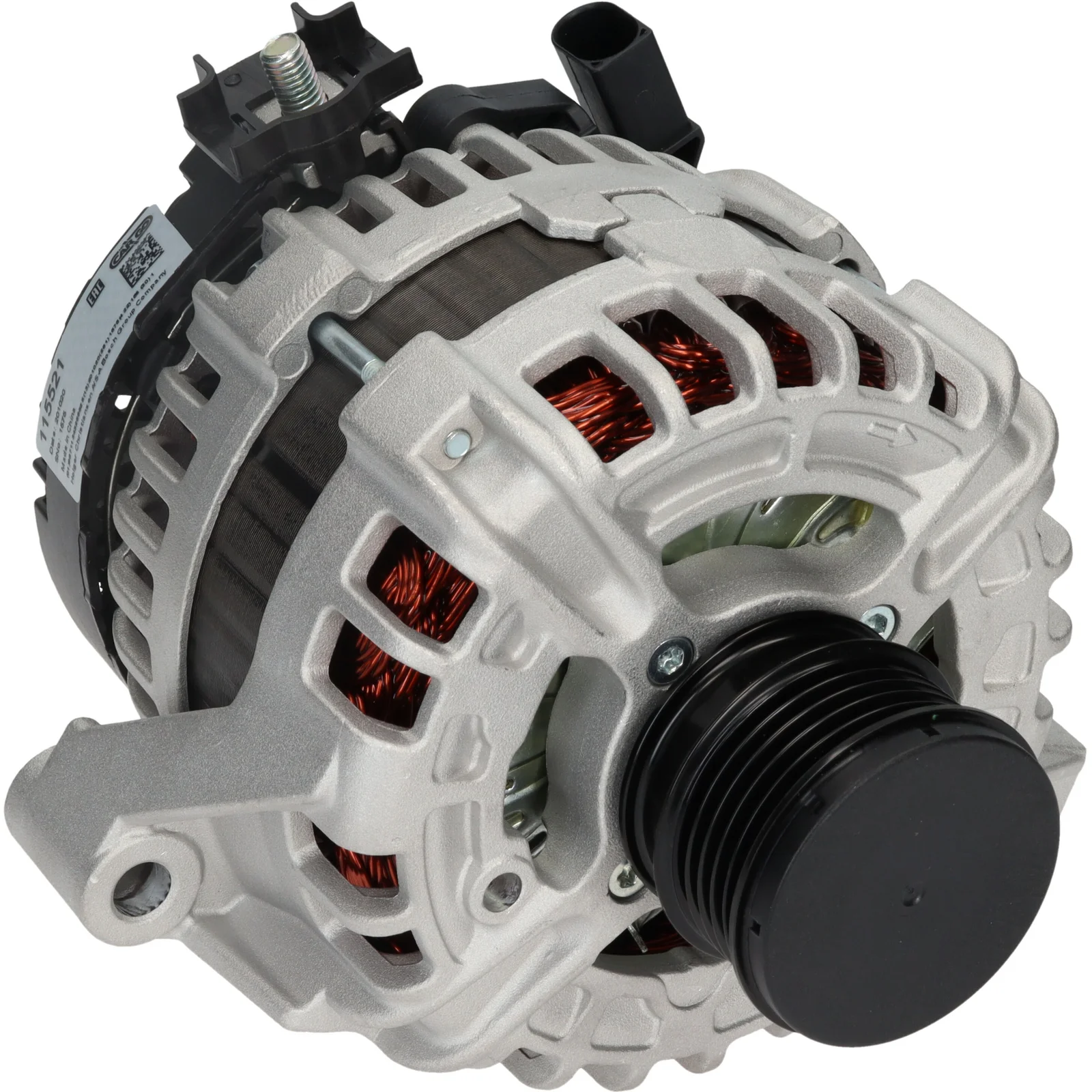

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 90.00

Description

Generator 12V-150A fits Volvo 12V - 150A, 5pole (LIN, Dummy) ID code: 88 (COM / LIN1-D) Note! chassis number! For Yourrex product order 90-600-8261 Voltage: 14 Amps: 150 Pulley distance: 61.00 Width/holder arm: 31.70 Mounting bracket distance: 90.00 Bracket hole: 17.70x9.00 Belt adjustment bracket hole 1: 10.20 Pulley diameter: 54.00 Grooves/pulley: 5 Radius: 92.50 Radius 2: 90.00 B+: M8 Rotation: CW Plug number: PL137 Total length mm: 182.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0487, A0487S, CAL10477, DRA1033, F032115521, LRA03571, 6G9J10300HA, 6G9N10300HA, 6G9N10300HB, 6G9N10300HC, 6G9N10300HD, 6G9N10399HB, 28-6681, 0125 711 002, 0125 711 047, 0125 711 079, 0125 711 158, 0125 711 179, 238.159.1502, 815.535.150, 1986A01675, 24142N, 115521, 210852, 210852A, 443581, 444297, 554183RI, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 360001105, 0986082610, 0986082613, 0986082617

  • Normalised article numbler
    a0487, a0487s, cal10477, dra1033, f032115521, lra03571, 6g9j10300ha, 6g9n10300ha, 6g9n10300hb, 6g9n10300hc, 6g9n10300hd, 6g9n10399hb, 1986a01675, 24142n, 115521, 210852, 210852a, 286681, 443581, 444297, 554183ri, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 0125711158, 0125711179, 360001105, 815535150, 0986082610, 0986082613, 0986082617, 2381591502
  • Description
    Generator 12V-150A fits Volvo 12V - 150A, 5pole (LIN, Dummy) ID code: 88 (COM / LIN1-D) Note! chassis number! For Yourrex product order 90-600-8261 Voltage: 14 Amps: 150 Pulley distance: 61.00 Width/holder arm: 31.70 Mounting bracket distance: 90.00 Bracket hole: 17.70x9.00 Belt adjustment bracket hole 1: 10.20 Pulley diameter: 54.00 Grooves/pulley: 5 Radius: 92.50 Radius 2: 90.00 B+: M8 Rotation: CW Plug number: PL137 Total length mm: 182.00 Terminal type: COM Communication: LIN Pulley: SP/FW Fan: IF Regulator type: IR Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0487, A0487S, CAL10477, DRA1033, F032115521, LRA03571, 6G9J10300HA, 6G9N10300HA, 6G9N10300HB, 6G9N10300HC, 6G9N10300HD, 6G9N10399HB, 28-6681, 0125 711 002, 0125 711 047, 0125 711 079, 0125 711 158, 0125 711 179, 238.159.1502, 815.535.150, 1986A01675, 24142N, 115521, 210852, 210852A, 443581, 444297, 554183RI, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 360001105, 0986082610, 0986082613, 0986082617

    • Normalised article numbler
      a0487, a0487s, cal10477, dra1033, f032115521, lra03571, 6g9j10300ha, 6g9n10300ha, 6g9n10300hb, 6g9n10300hc, 6g9n10300hd, 6g9n10399hb, 1986a01675, 24142n, 115521, 210852, 210852a, 286681, 443581, 444297, 554183ri, 1379701, 1388004, 1425016, 2099442, 12090535, 30667118, 31285627, 31419555, 36000037, 36001105, 36012618, 0125711002, 0125711047, 0125711079, 0125711158, 0125711179, 360001105, 815535150, 0986082610, 0986082613, 0986082617, 2381591502
