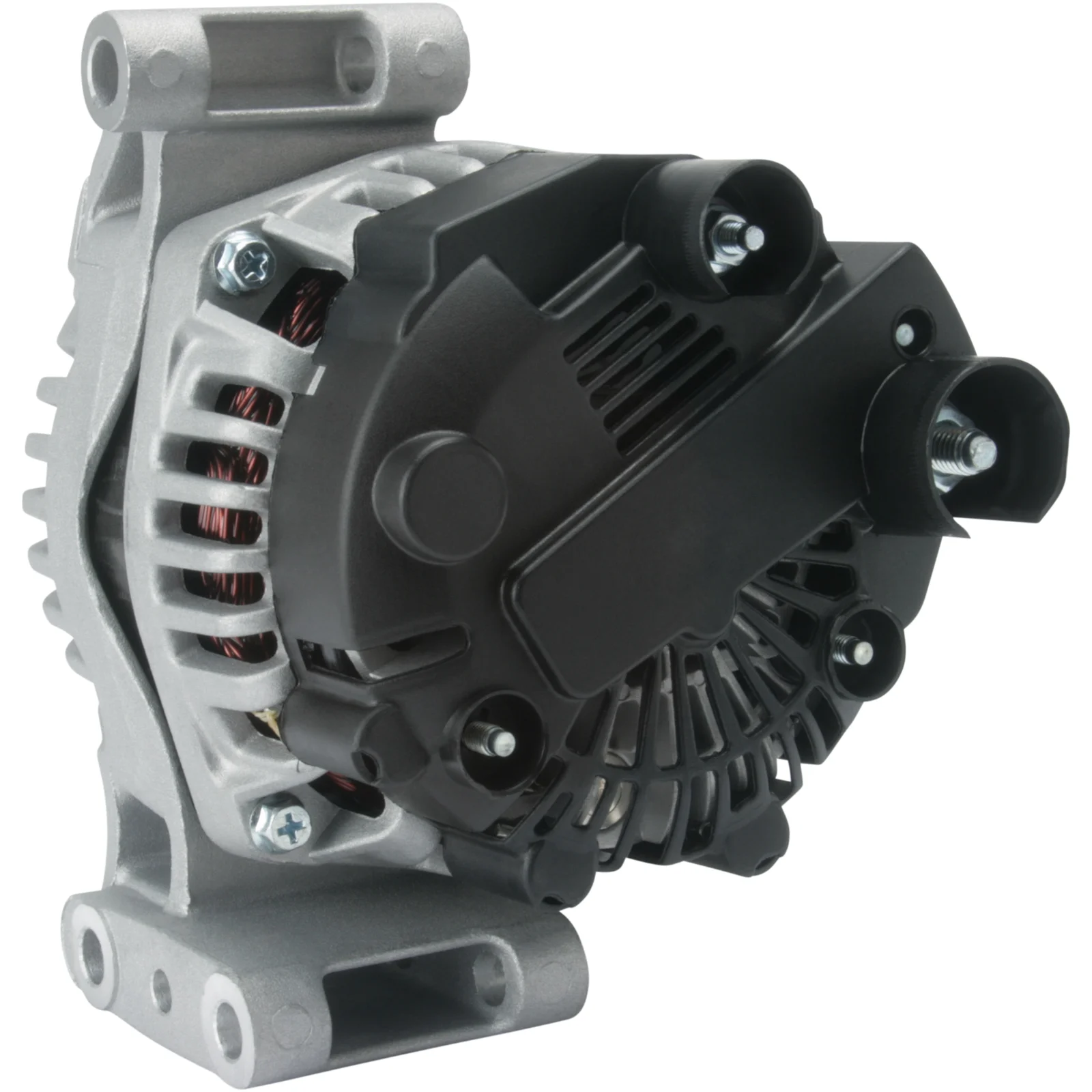

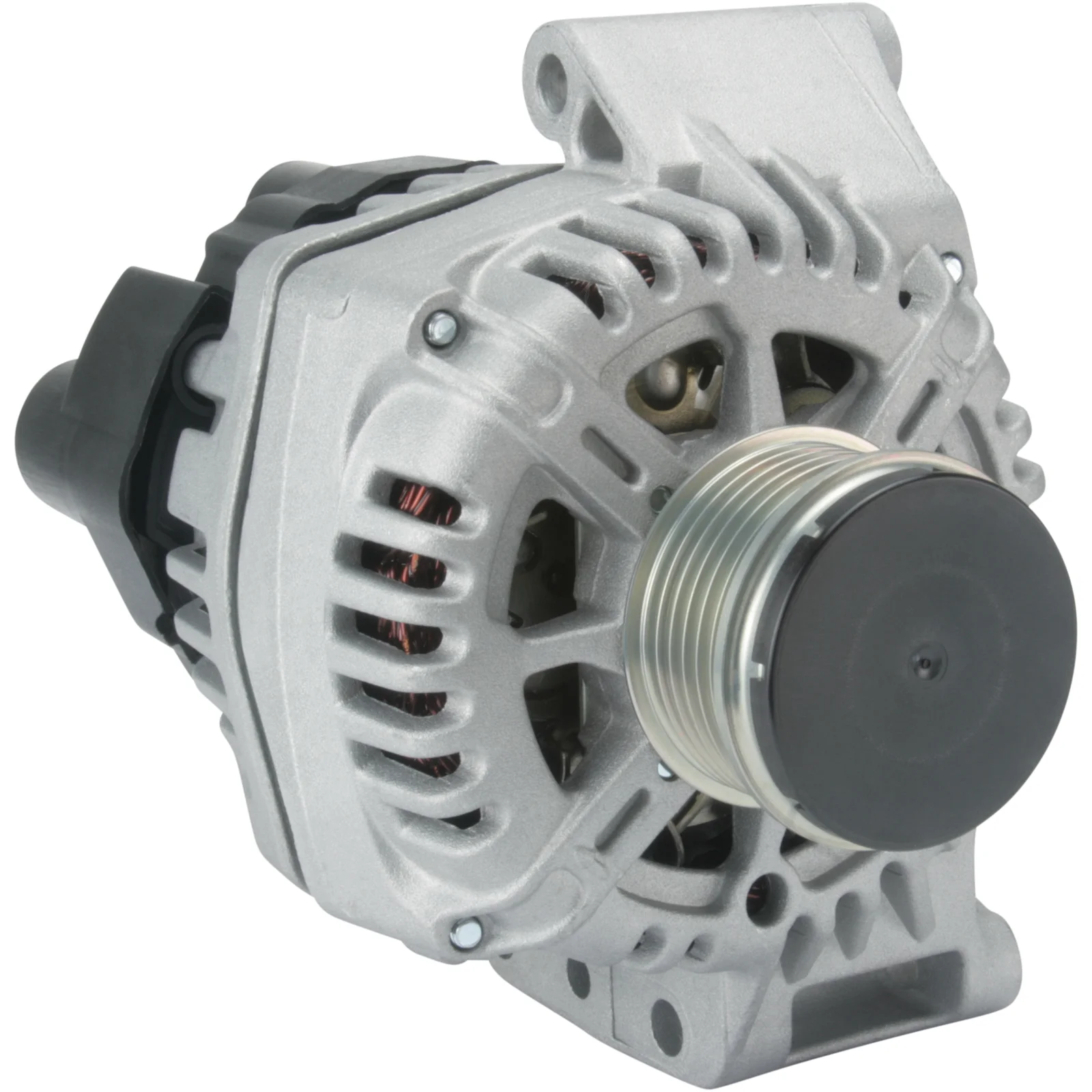

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115384

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 120
Pulley distance: 41.00
Width/holder arm: 64.00
Mounting bracket distance: 55.00
Bracket hole: 9.30
Belt adjustment bracket hole 1: 9.30
Belt adjustment bracket hole 2: 9.30
Pulley diameter: 54.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 14
D+ Size: M5
Rotation: CW
Total length mm: 194.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115384, TG12S101, TG12S220, TG12S322, 2132ir, 2608893, 2608893A, 2623615A, 51854103, 51944878, 52092132, 52092134, 1606439580

  • Normalised article numbler
    a3219, cal15489, dra0796, f032115384, lra03301, tg12s101, tg12s220, tg12s322, 8el015630111, 2132ir, 22796n, 200225, 209225, 209225a, 285913, 439707, 440298, 747053, 2608893, 2608893a, 2623615a, 9090633, 12090568, 51854103, 51944878, 52092132, 52092134, 505564120, 0986083250, 1606439580, 2281511202
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 41.00
    Width/holder arm: 64.00
    Mounting bracket distance: 55.00
    Bracket hole: 9.30
    Belt adjustment bracket hole 1: 9.30
    Belt adjustment bracket hole 2: 9.30
    Pulley diameter: 54.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 14
    D+ Size: M5
    Rotation: CW
    Total length mm: 194.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115384, TG12S101, TG12S220, TG12S322, 2132ir, 2608893, 2608893A, 2623615A, 51854103, 51944878, 52092132, 52092134, 1606439580

    • Normalised article numbler
      a3219, cal15489, dra0796, f032115384, lra03301, tg12s101, tg12s220, tg12s322, 8el015630111, 2132ir, 22796n, 200225, 209225, 209225a, 285913, 439707, 440298, 747053, 2608893, 2608893a, 2623615a, 9090633, 12090568, 51854103, 51944878, 52092132, 52092134, 505564120, 0986083250, 1606439580, 2281511202
