HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115435

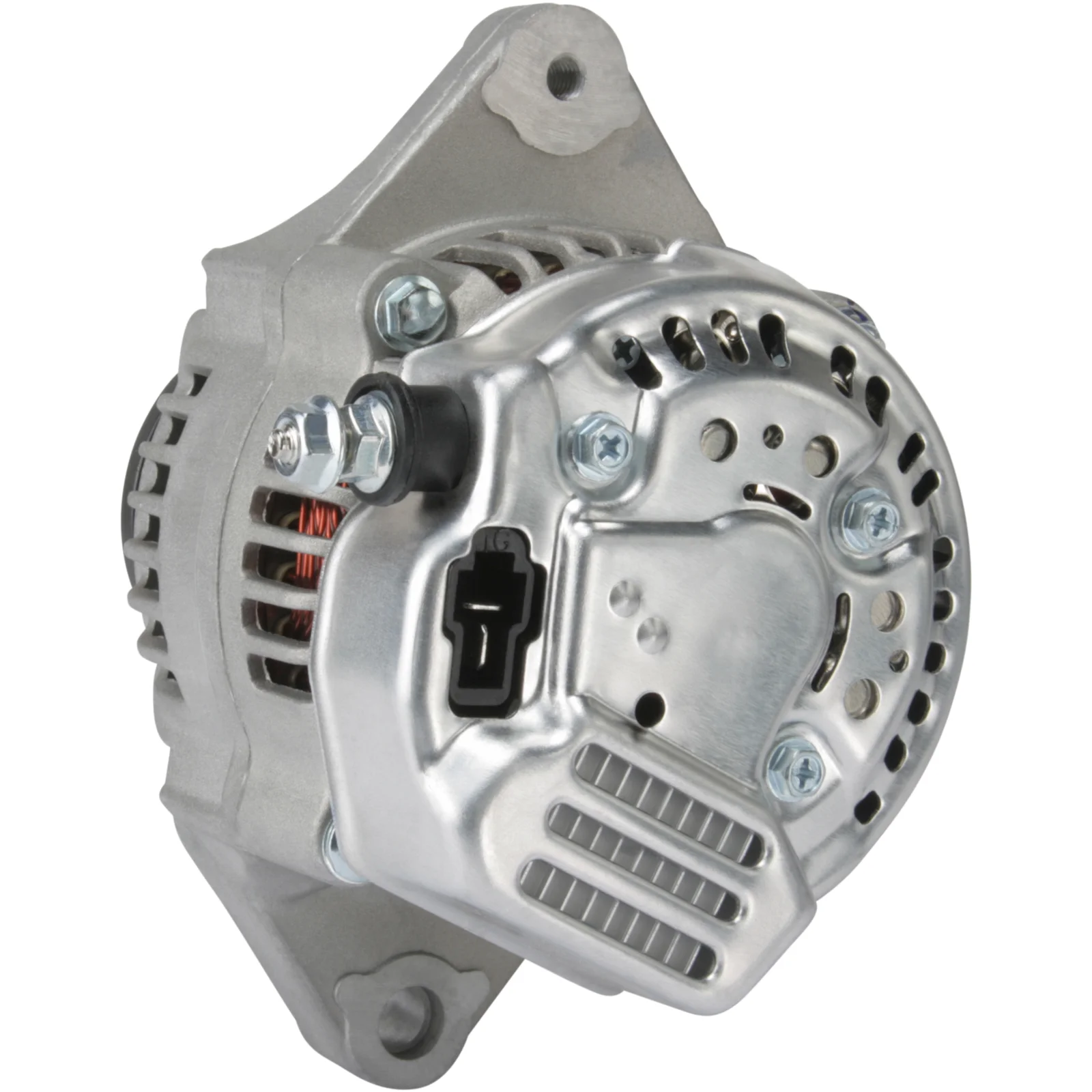

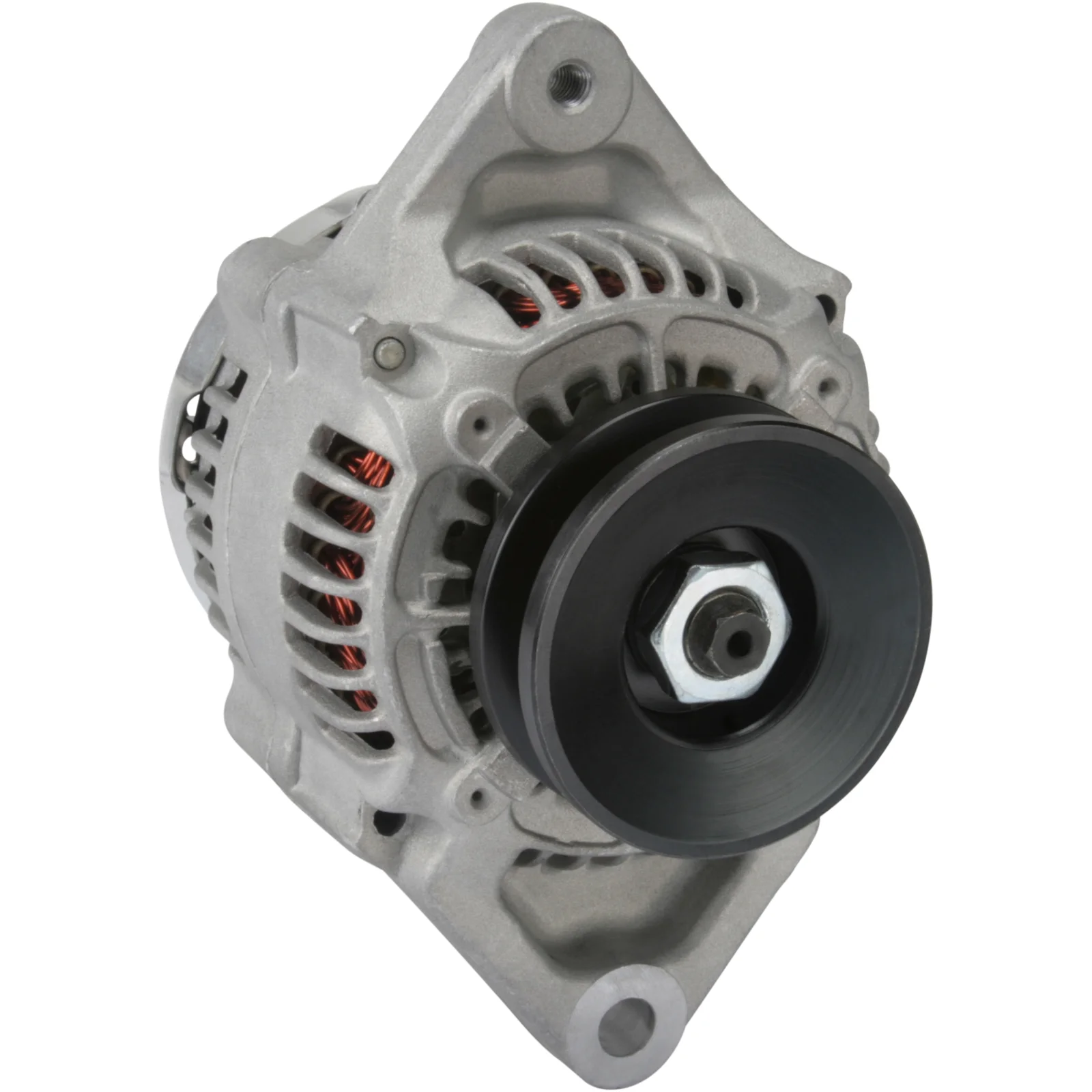

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 50, Rotation: CW, Pulley diameter: 69.00

Description

Voltage: 14
Amp: 50
Pulley distributor: 42.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adjustment bracket hole position: 60
Belt. adjustment bracket hole 1: M8
Pulley diameter: 69.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Position/B+ in min.: 48
D+ size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 145.00
Pulley: P
Regulator type: IR
Product info: BN

Files

  • Description
    Voltage: 14
    Amp: 50
    Pulley distributor: 42.00
    Width/holder arm: 21.00
    Bracket hole: 10.20
    Belt. adjustment bracket hole position: 60
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 69.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 75.00
    B+: M6
    Position/B+ in min.: 48
    D+ size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 145.00
    Pulley: P
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles
