HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115476

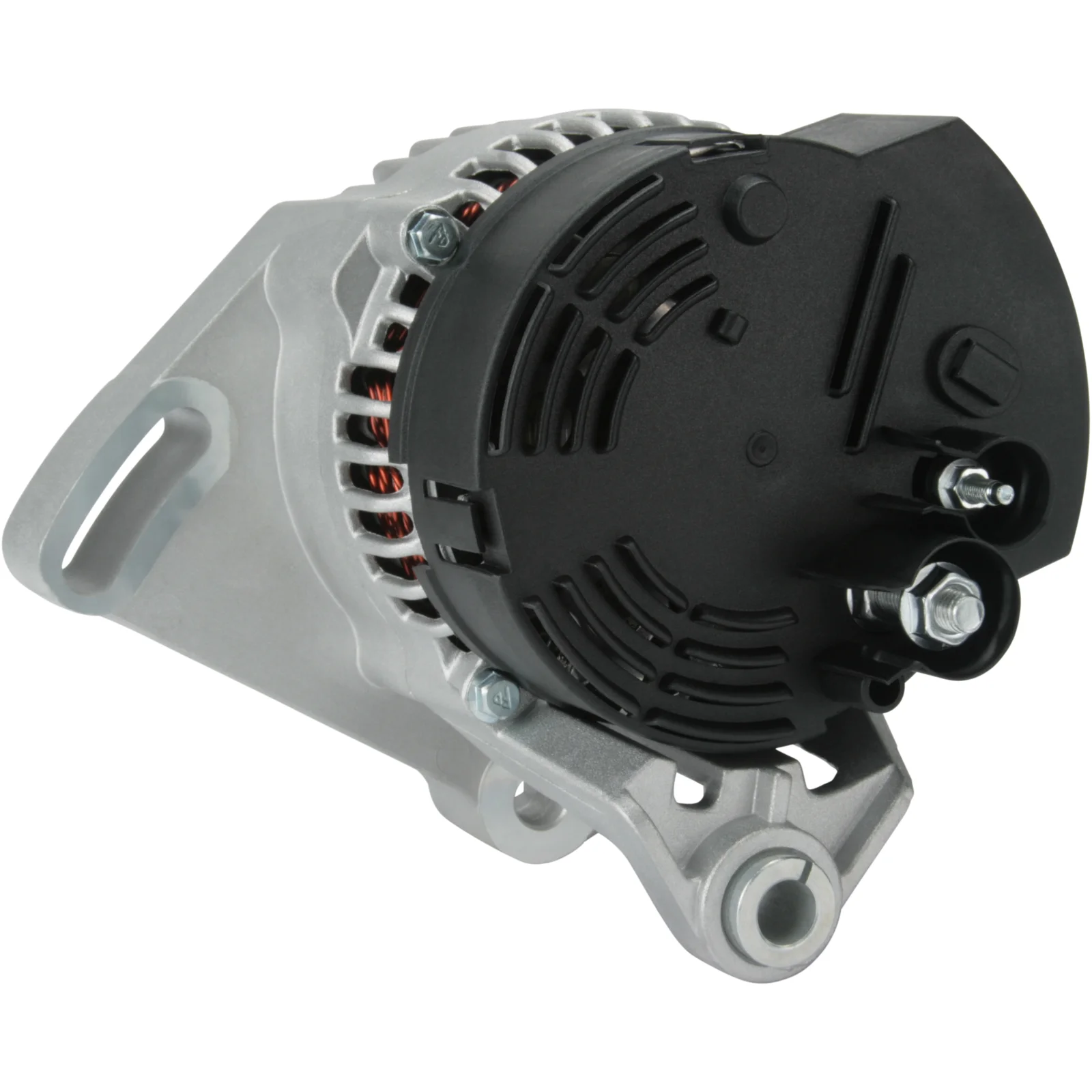

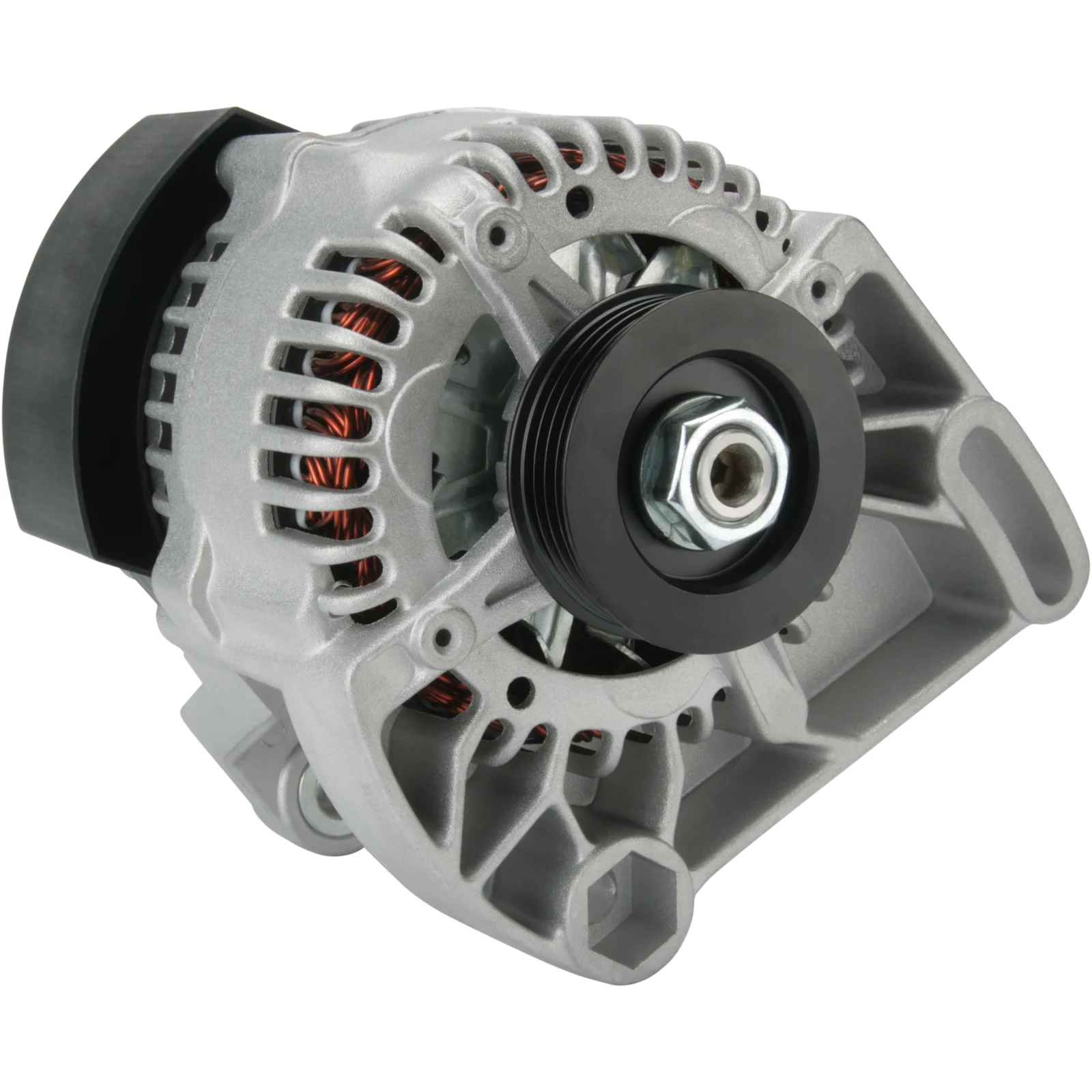

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 85, Rotation: CW, Mounting bracket distance: 83.50

Description

Voltage: 14
Amp: 85
Pulley distance: 44.00
Width/holder arm: 32.00
Mounting bracket distance: 83.50
Bracket hole: 12.20
Belt adjustment bracket hole position: 20
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 60.00
Grooves/pulley: 4
Radius: 83.50
Radius 2: 107.00
B+: M8
Position/B+ in min.: 23
D+ size: M5
Rotation: CW
Total length mm: 184.00
Pulley: SP
Regulator type: IR
Product information: BN

Files

  • OEM
    F032115476, 1350ir, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791

  • Normalised article numbler
    a4095, a4095pr, cal30151, dan629, dendan629, dra3644, f032115476, 8el012240801, 8el737552001, 1350ir, 6014, 20574n, 22885r, 209386, 209386a, 210086, 210086a, 283748, 301350ri, 443122, 446773, 12090040, 32080550, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791, 0986080550
  • Description
    Voltage: 14
    Amp: 85
    Pulley distance: 44.00
    Width/holder arm: 32.00
    Mounting bracket distance: 83.50
    Bracket hole: 12.20
    Belt adjustment bracket hole position: 20
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 60.00
    Grooves/pulley: 4
    Radius: 83.50
    Radius 2: 107.00
    B+: M8
    Position/B+ in min.: 23
    D+ size: M5
    Rotation: CW
    Total length mm: 184.00
    Pulley: SP
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115476, 1350ir, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791

    • Normalised article numbler
      a4095, a4095pr, cal30151, dan629, dendan629, dra3644, f032115476, 8el012240801, 8el737552001, 1350ir, 6014, 20574n, 22885r, 209386, 209386a, 210086, 210086a, 283748, 301350ri, 443122, 446773, 12090040, 32080550, 46231696, 46437413, 46516740, 46758245, 46769375, 63321629, 63321715, 63321782, 63321791, 0986080550
