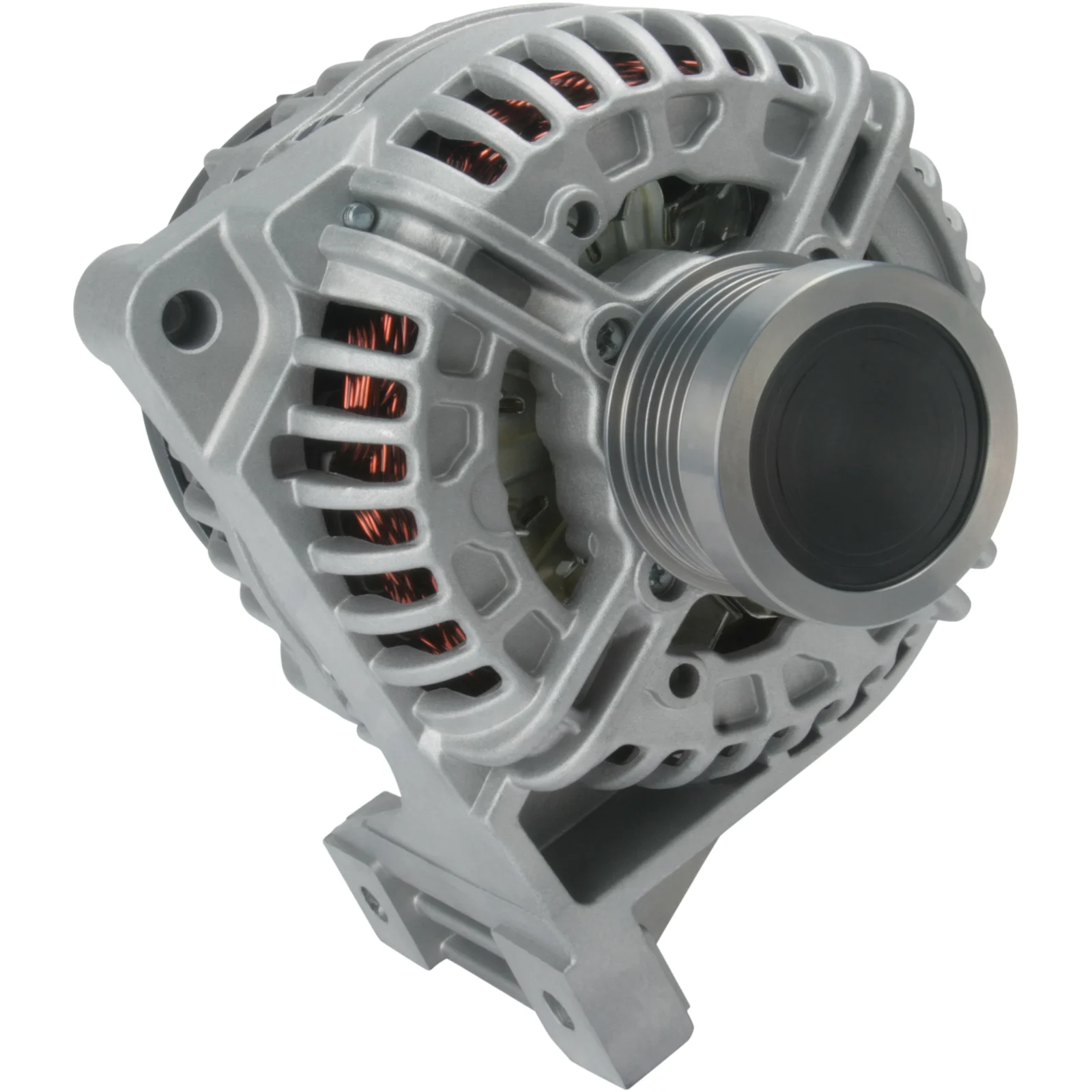

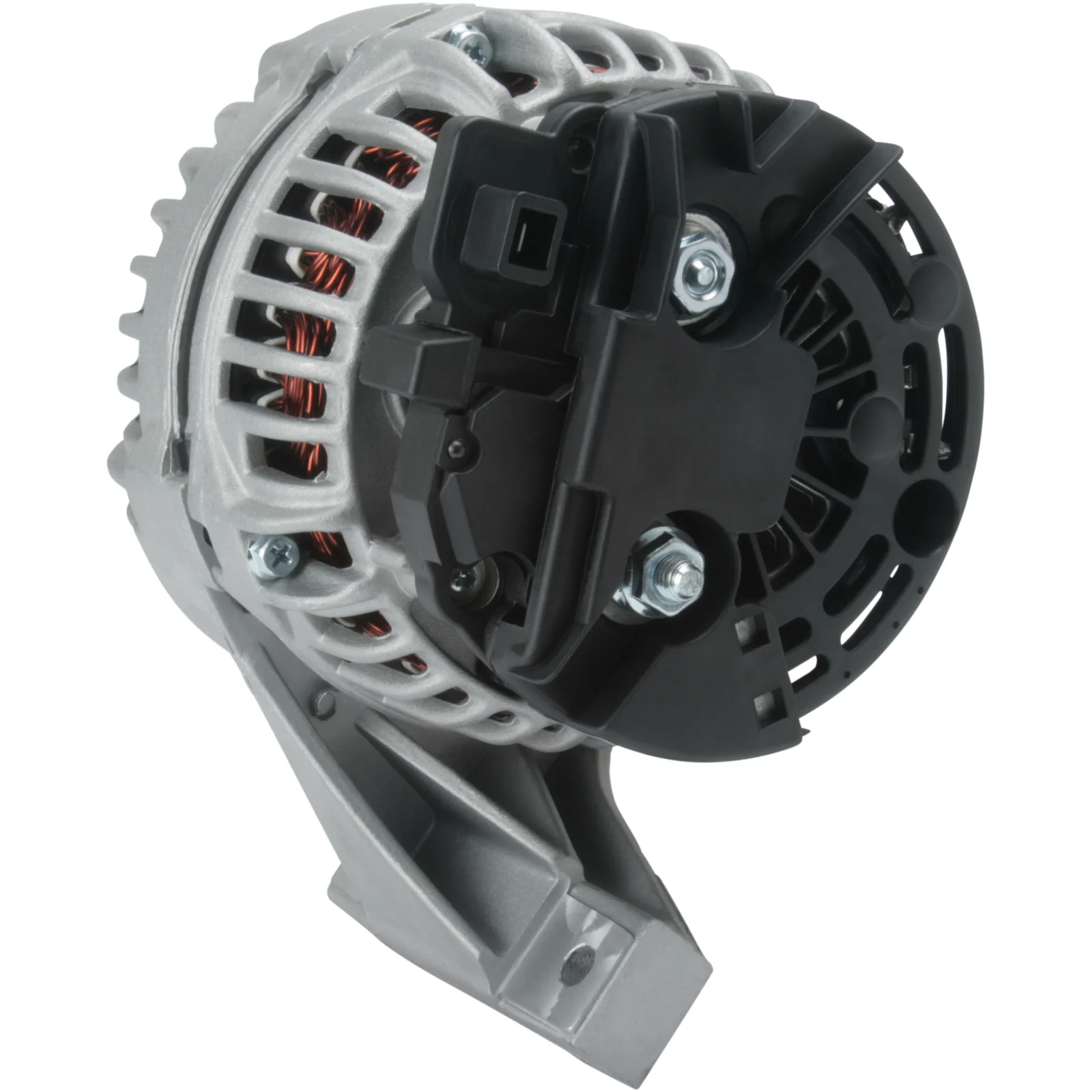

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114312

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 140, Rotation: CCW, Mounting bracket distance: 82.00

Description

Generator 12V-140A suitable for Volvo LIN 12V - 140A, 6-pin connector, (LIN), CCW ID code: 88 LIN type 6-pin connector, CCW. From 08/2004>! For Yourrex product order 90-600-4738 Voltage: 14 Amperage: 140 Pulley diameter: 45.00 Width/holder arm: 20.00 Mounting bracket distance: 82.00 Bracket hole: 8.50 Belt adjustment bracket hole 1: M8 Pulley diameter: 56.00 Grooves/pulley: 6 B+: M8 Position/B+ in minutes: 30 Rotation: CCW Plug no.: PL150 Total length mm: 195.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A0275, A0275PR, BM5G-12A366-CA, BM5G-12A366-DA, BM5G-12A366-DB, CAL10418, DRB7380, DRB7380X, F032114312, LRA02924, 8EL012428-431, 8EL738212-171, 28-5539, 0124 525 060, 0124 525 521, 238.144.1402, 815.512.140, 815.521.140, 0986 047 380, 1986A00890, 1988ir, 9364, 11091N, 111823, 114312, 209074, 209074A, 301988RI, 440822, 1700610, 1762724, 1832313, 3803645, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622786, 8637848, 8676489, 8676496, 8676498, 9047380, 9212203, 12047380, 30658065, 30658084, 30658085, 30667787, 30667892, 30667894, 32047380, 36012358, 36050262, 36050263, 36050270, 86032620, 0124525060, 0124525061, 0124525521, 0124525522, 0986047380, 0986047383, 0986047387, 0986048853

  • Normalised article numbler
    a0275, a0275pr, bm5g12a366ca, bm5g12a366da, bm5g12a366db, cal10418, drb7380, drb7380x, f032114312, lra02924, 8el012428431, 8el738212171, 1986a00890, 1988ir, 9364, 11091n, 111823, 114312, 209074, 209074a, 285539, 301988ri, 440822, 1700610, 1762724, 1832313, 3803645, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622786, 8637848, 8676489, 8676496, 8676498, 9047380, 9212203, 12047380, 30658065, 30658084, 30658085, 30667787, 30667892, 30667894, 32047380, 36012358, 36050262, 36050263, 36050270, 86032620, 0124525060, 0124525061, 0124525521, 0124525522, 815512140, 815521140, 0986047380, 0986047383, 0986047387, 0986048853, 2381441402
  • Description
    Generator 12V-140A suitable for Volvo LIN 12V - 140A, 6-pin connector, (LIN), CCW ID code: 88 LIN type 6-pin connector, CCW. From 08/2004>! For Yourrex product order 90-600-4738 Voltage: 14 Amperage: 140 Pulley diameter: 45.00 Width/holder arm: 20.00 Mounting bracket distance: 82.00 Bracket hole: 8.50 Belt adjustment bracket hole 1: M8 Pulley diameter: 56.00 Grooves/pulley: 6 B+: M8 Position/B+ in minutes: 30 Rotation: CCW Plug no.: PL150 Total length mm: 195.00 Terminal type: COM Communication: LIN Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A0275, A0275PR, BM5G-12A366-CA, BM5G-12A366-DA, BM5G-12A366-DB, CAL10418, DRB7380, DRB7380X, F032114312, LRA02924, 8EL012428-431, 8EL738212-171, 28-5539, 0124 525 060, 0124 525 521, 238.144.1402, 815.512.140, 815.521.140, 0986 047 380, 1986A00890, 1988ir, 9364, 11091N, 111823, 114312, 209074, 209074A, 301988RI, 440822, 1700610, 1762724, 1832313, 3803645, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622786, 8637848, 8676489, 8676496, 8676498, 9047380, 9212203, 12047380, 30658065, 30658084, 30658085, 30667787, 30667892, 30667894, 32047380, 36012358, 36050262, 36050263, 36050270, 86032620, 0124525060, 0124525061, 0124525521, 0124525522, 0986047380, 0986047383, 0986047387, 0986048853

    • Normalised article numbler
      a0275, a0275pr, bm5g12a366ca, bm5g12a366da, bm5g12a366db, cal10418, drb7380, drb7380x, f032114312, lra02924, 8el012428431, 8el738212171, 1986a00890, 1988ir, 9364, 11091n, 111823, 114312, 209074, 209074a, 285539, 301988ri, 440822, 1700610, 1762724, 1832313, 3803645, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622786, 8637848, 8676489, 8676496, 8676498, 9047380, 9212203, 12047380, 30658065, 30658084, 30658085, 30667787, 30667892, 30667894, 32047380, 36012358, 36050262, 36050263, 36050270, 86032620, 0124525060, 0124525061, 0124525521, 0124525522, 815512140, 815521140, 0986047380, 0986047383, 0986047387, 0986048853, 2381441402
