HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116225

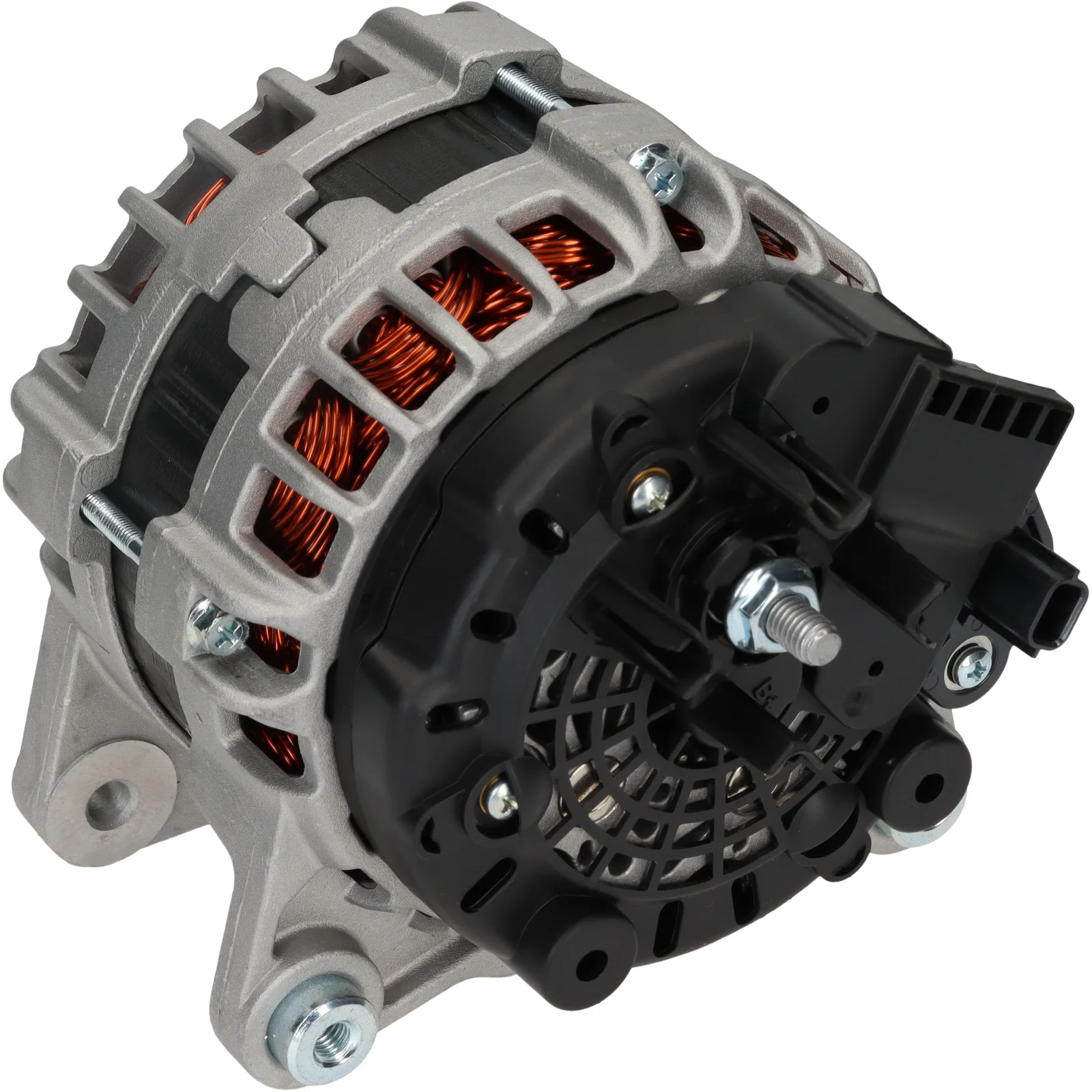

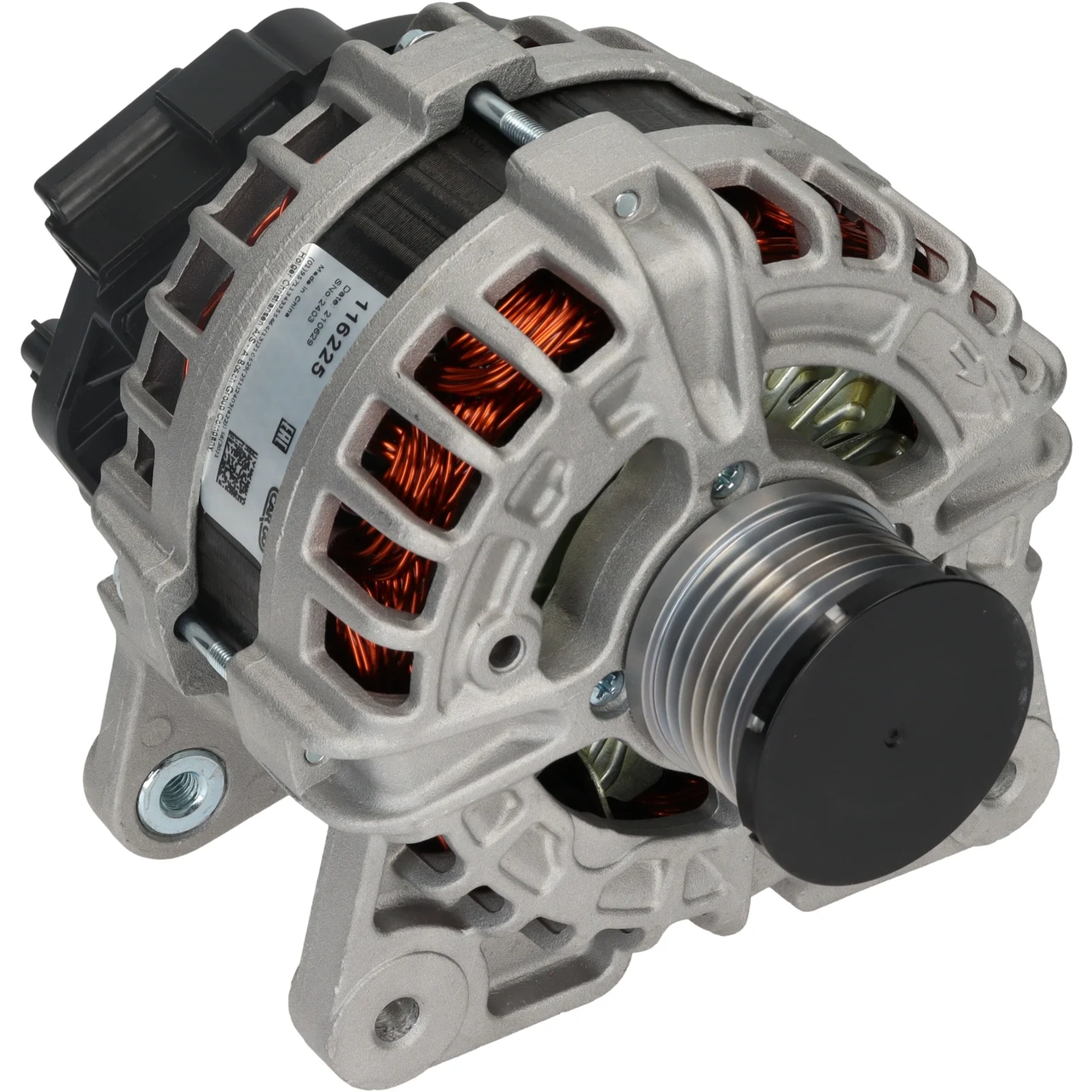

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Alternator 12V-150A 12V - 150A, 7 teeth, (LIN) ID code. 17 For Yourex product order 90-480-8633

Voltage: 14
Amperage: 150
Pulley diameter: 32.40
Width/holder arm: 14.40
Mounting bracket separation: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 50.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug number: PL131
Total length mm: 193.00
Terminal type: COM
ID Code: 48
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 814, F000 BL0 841, F000BL0814, F000BL0841, F000BL08A5, F000BL08A7, F000BL08A8, F000BL08D0, F032116225, FG15T 071, GM 93868641, GM 95519888, 1986A00686, 23100-4BE0A, 23100-4BE0B, 23100-4BE0BRP, 23100-8633R, 116225, 231004BE0B, 439923, 440663, 1202452, 2616927, 4407989, 231009362R

  • Normalised article numbler
    a3565s, cal10546, cal15017, dra1534, f000bl0814, f000bl0841, f000bl08a5, f000bl08a7, f000bl08a8, f000bl08d0, f032116225, fg15t071, gm93868641, gm95519888, 8el015630661, 1986a00686, 4471, 20552, 20552n, 20552noe, 116225, 209292, 209292a, 231004be0a, 231004be0b, 231004be0brp, 439923, 440663, 1202452, 2616927, 4407989, 12090739, 231008633r, 231009362r, 0986084690, 2303591502
  • Description
    Alternator 12V-150A 12V - 150A, 7 teeth, (LIN) ID code. 17 For Yourex product order 90-480-8633

    Voltage: 14
    Amperage: 150
    Pulley diameter: 32.40
    Width/holder arm: 14.40
    Mounting bracket separation: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug number: PL131
    Total length mm: 193.00
    Terminal type: COM
    ID Code: 48
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000 BL0 814, F000 BL0 841, F000BL0814, F000BL0841, F000BL08A5, F000BL08A7, F000BL08A8, F000BL08D0, F032116225, FG15T 071, GM 93868641, GM 95519888, 1986A00686, 23100-4BE0A, 23100-4BE0B, 23100-4BE0BRP, 23100-8633R, 116225, 231004BE0B, 439923, 440663, 1202452, 2616927, 4407989, 231009362R

    • Normalised article numbler
      a3565s, cal10546, cal15017, dra1534, f000bl0814, f000bl0841, f000bl08a5, f000bl08a7, f000bl08a8, f000bl08d0, f032116225, fg15t071, gm93868641, gm95519888, 8el015630661, 1986a00686, 4471, 20552, 20552n, 20552noe, 116225, 209292, 209292a, 231004be0a, 231004be0b, 231004be0brp, 439923, 440663, 1202452, 2616927, 4407989, 12090739, 231008633r, 231009362r, 0986084690, 2303591502
