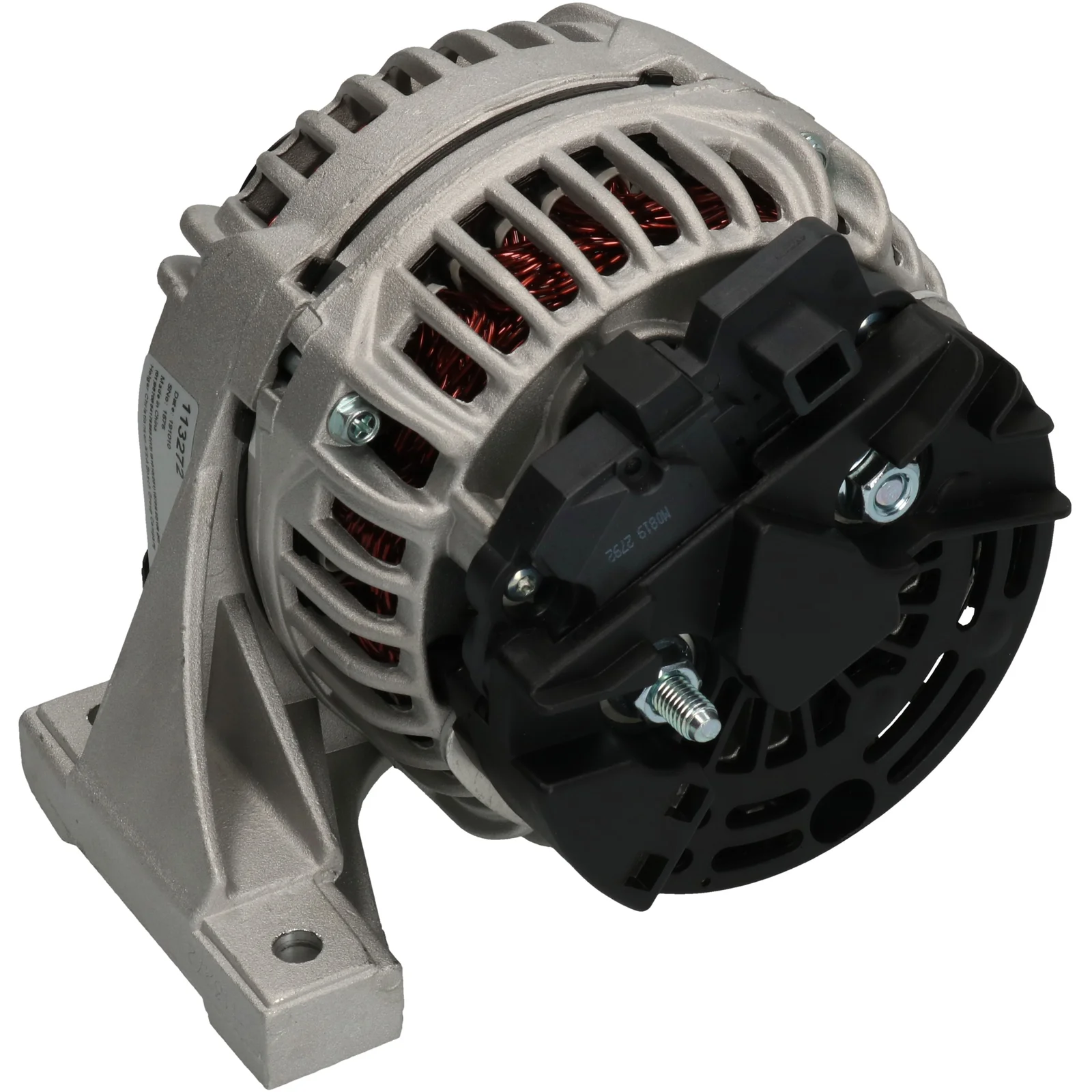

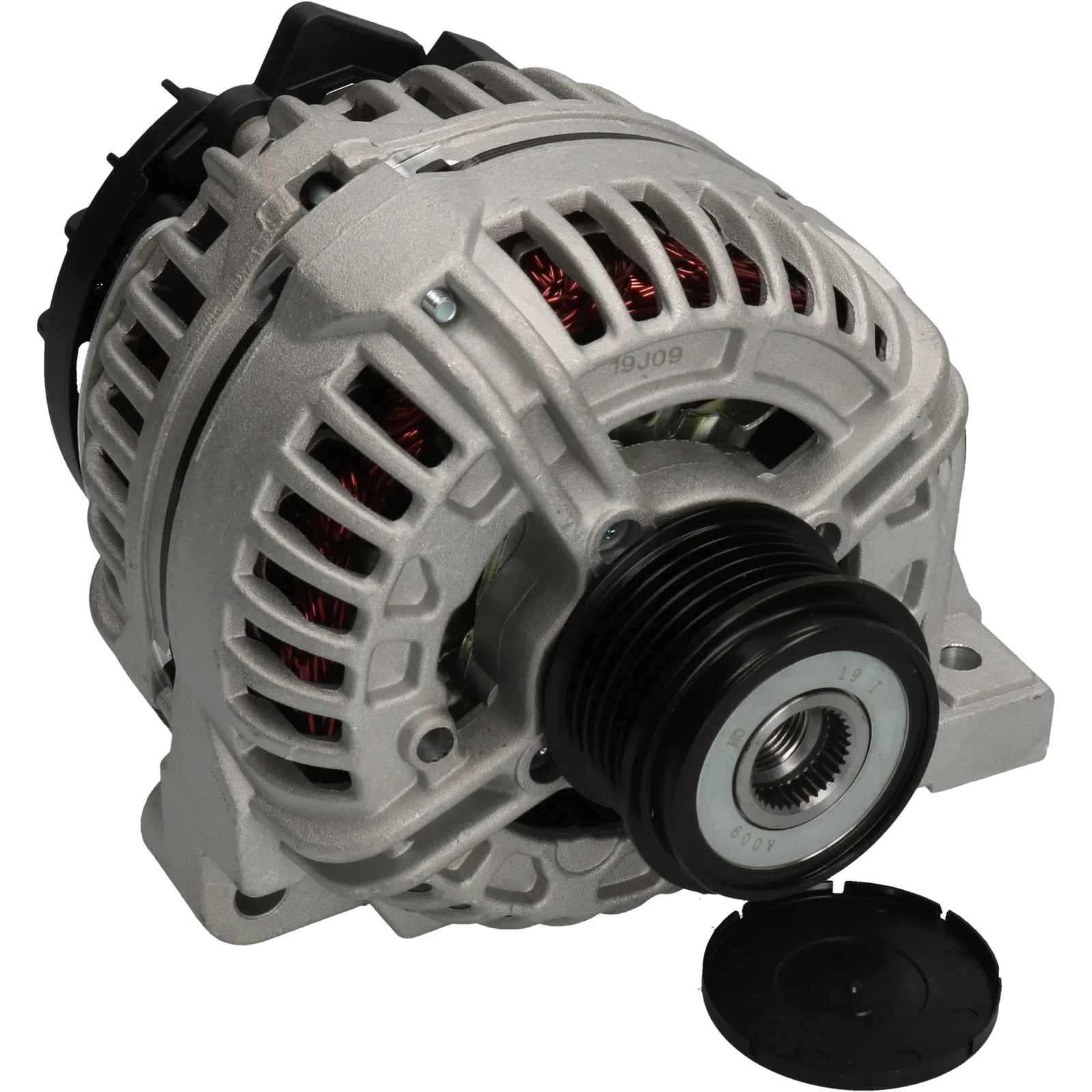

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113272

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 140, Rotation: CCW, Mounting bracket distance: 82.00

Description

Alternator 12V-140A suitable for Volvo 12V - 140A, 6-pin terminal, (L), CCW S60, S80, V70 up to 07.2004 S40 & V40:10.99>(+/- 2 months) Ch.nr:415000> Alternative: 90-600-4747 (160A) Note! Engine code! For Yourex product order 90-600-5029 120A = F032112072

Voltage: 14
Amp: 140
Pulley distance: 45.00
Width/holder arm: 30.00
Mounting bracket distance: 82.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Belt adjustment bracket hole position: 52
Belt adjustment bracket hole 1: M8
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 92.50
Radius 2: 87.00
B+: M8
Position/B+ in minutes: 38
D+ size: 6.30
Rotation: CCW
Plug number: PL149
Total length mm: 191.00
Terminal type: L
Pulley: SP/FW
Fan: IF
Regulator type: IR
Product info: BN
Servicing: Volvo

Files

  • OEM
    A0049, A0049PR, A0049S, ALT-2089A, ALT10379, ALT10381, CAL10294, CAL10350, DRB2840, F032112072, F032113272, F042205121, F042208004, F042A01181, LEA0670, LRA02182, LRA02227, 8EL011711-591, 28-4641, 28-4701, 0124 525 014, 0124 525 029, 238.135.1402, 238.136.1402, 0986 042 840, 1673ir, 1986A00864, 1986A00895, 1986A01154, 4836, 13997, 13997N, 13997R, 13998N, 13998R, 112072, 113272, 119926, 200168, 210528, 210528A, 301673RI, 443181, 747905, 3803645, 8251071, 8251655, 8601699, 8601841, 8602275, 8602276, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622186, 8622786, 8637847, 8637848, 8676489, 8676496, 8676498, 9042840, 9044900, 9459077, 9459092, 9472908, 9489312, 12042840, 12044900, 30658084, 30658085, 30667787, 30667892, 30667894, 32042840, 32044900, 36012358, 36050262, 36050263, 36050264, 36050270, 36050282, 82510710, 86018413, 86023430, 86027100, 86027109, 86027120, 86027125, 0124525001, 0124525014, 0124525029, 0124525529, 360502620, 0986042840, 0986042843, 0986042847, 0986044900, 0986044903, 0986044907, 944390428400, 944390449000

  • Normalised article numbler
    a0049, a0049pr, a0049s, alt10379, alt10381, alt2089a, cal10294, cal10350, drb2840, f032112072, f032113272, f042205121, f042208004, f042a01181, lea0670, lra02182, lra02227, 8el011711591, 1673ir, 1986a00864, 1986a00895, 1986a01154, 4836, 13997, 13997n, 13997r, 13998n, 13998r, 112072, 113272, 119926, 200168, 210528, 210528a, 284641, 284701, 301673ri, 443181, 747905, 3803645, 8251071, 8251655, 8601699, 8601841, 8602275, 8602276, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622186, 8622786, 8637847, 8637848, 8676489, 8676496, 8676498, 9042840, 9044900, 9459077, 9459092, 9472908, 9489312, 12042840, 12044900, 30658084, 30658085, 30667787, 30667892, 30667894, 32042840, 32044900, 36012358, 36050262, 36050263, 36050264, 36050270, 36050282, 82510710, 86018413, 86023430, 86027100, 86027109, 86027120, 86027125, 0124525001, 0124525014, 0124525029, 0124525529, 360502620, 0986042840, 0986042843, 0986042847, 0986044900, 0986044903, 0986044907, 2381351402, 2381361402, 944390428400, 944390449000
  • Description
    Alternator 12V-140A suitable for Volvo 12V - 140A, 6-pin terminal, (L), CCW S60, S80, V70 up to 07.2004 S40 & V40:10.99>(+/- 2 months) Ch.nr:415000> Alternative: 90-600-4747 (160A) Note! Engine code! For Yourex product order 90-600-5029 120A = F032112072

    Voltage: 14
    Amp: 140
    Pulley distance: 45.00
    Width/holder arm: 30.00
    Mounting bracket distance: 82.00
    Bracket hole: 8.50
    Bracket hole 2: 8.50
    Belt adjustment bracket hole position: 52
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 92.50
    Radius 2: 87.00
    B+: M8
    Position/B+ in minutes: 38
    D+ size: 6.30
    Rotation: CCW
    Plug number: PL149
    Total length mm: 191.00
    Terminal type: L
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Product info: BN
    Servicing: Volvo

    Files

  • Suitable for these vehicles

    • OEM
      A0049, A0049PR, A0049S, ALT-2089A, ALT10379, ALT10381, CAL10294, CAL10350, DRB2840, F032112072, F032113272, F042205121, F042208004, F042A01181, LEA0670, LRA02182, LRA02227, 8EL011711-591, 28-4641, 28-4701, 0124 525 014, 0124 525 029, 238.135.1402, 238.136.1402, 0986 042 840, 1673ir, 1986A00864, 1986A00895, 1986A01154, 4836, 13997, 13997N, 13997R, 13998N, 13998R, 112072, 113272, 119926, 200168, 210528, 210528A, 301673RI, 443181, 747905, 3803645, 8251071, 8251655, 8601699, 8601841, 8602275, 8602276, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622186, 8622786, 8637847, 8637848, 8676489, 8676496, 8676498, 9042840, 9044900, 9459077, 9459092, 9472908, 9489312, 12042840, 12044900, 30658084, 30658085, 30667787, 30667892, 30667894, 32042840, 32044900, 36012358, 36050262, 36050263, 36050264, 36050270, 36050282, 82510710, 86018413, 86023430, 86027100, 86027109, 86027120, 86027125, 0124525001, 0124525014, 0124525029, 0124525529, 360502620, 0986042840, 0986042843, 0986042847, 0986044900, 0986044903, 0986044907, 944390428400, 944390449000

    • Normalised article numbler
      a0049, a0049pr, a0049s, alt10379, alt10381, alt2089a, cal10294, cal10350, drb2840, f032112072, f032113272, f042205121, f042208004, f042a01181, lea0670, lra02182, lra02227, 8el011711591, 1673ir, 1986a00864, 1986a00895, 1986a01154, 4836, 13997, 13997n, 13997r, 13998n, 13998r, 112072, 113272, 119926, 200168, 210528, 210528a, 284641, 284701, 301673ri, 443181, 747905, 3803645, 8251071, 8251655, 8601699, 8601841, 8602275, 8602276, 8602343, 8602629, 8602710, 8602712, 8603262, 8603263, 8622186, 8622786, 8637847, 8637848, 8676489, 8676496, 8676498, 9042840, 9044900, 9459077, 9459092, 9472908, 9489312, 12042840, 12044900, 30658084, 30658085, 30667787, 30667892, 30667894, 32042840, 32044900, 36012358, 36050262, 36050263, 36050264, 36050270, 36050282, 82510710, 86018413, 86023430, 86027100, 86027109, 86027120, 86027125, 0124525001, 0124525014, 0124525029, 0124525529, 360502620, 0986042840, 0986042843, 0986042847, 0986044900, 0986044903, 0986044907, 2381351402, 2381361402, 944390428400, 944390449000
