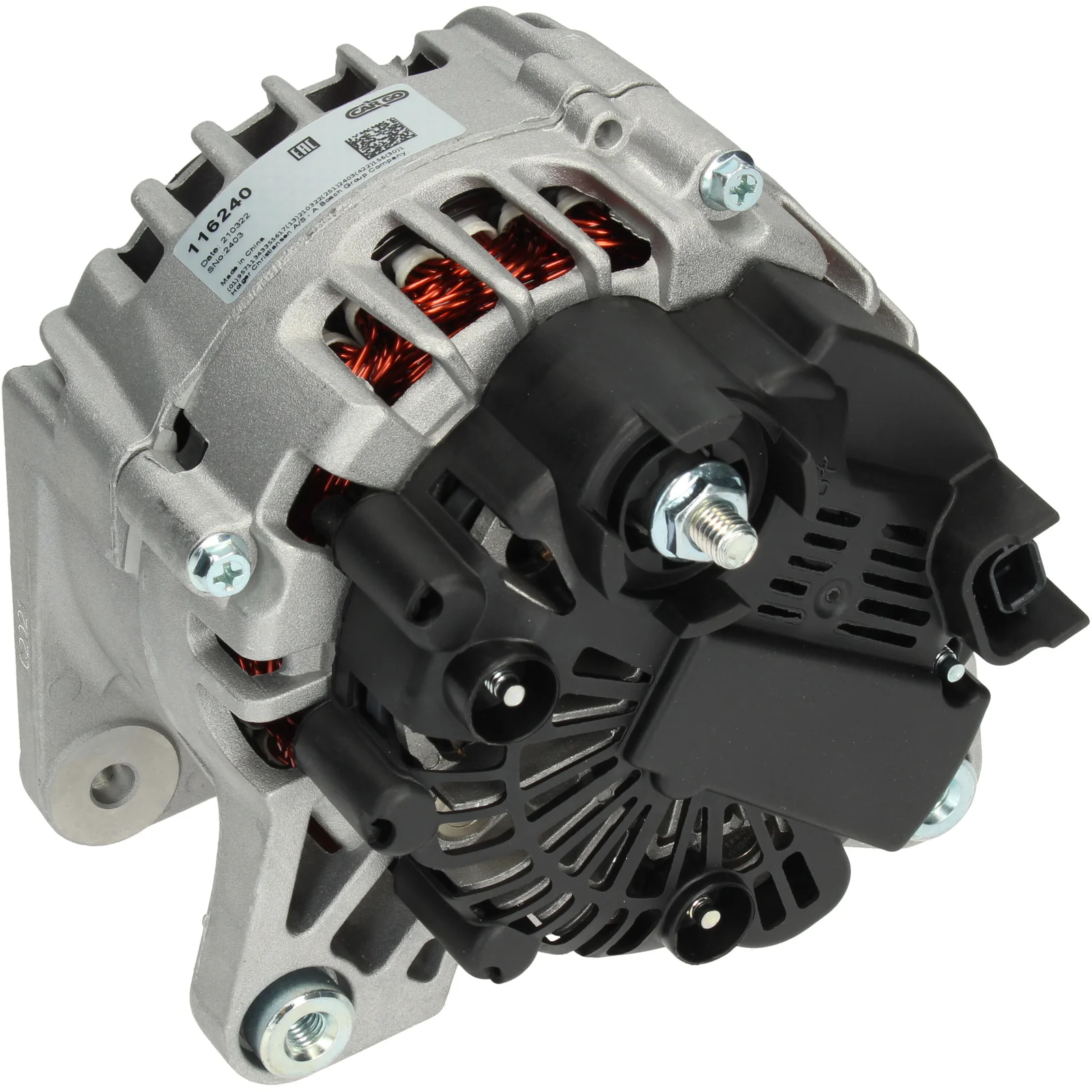

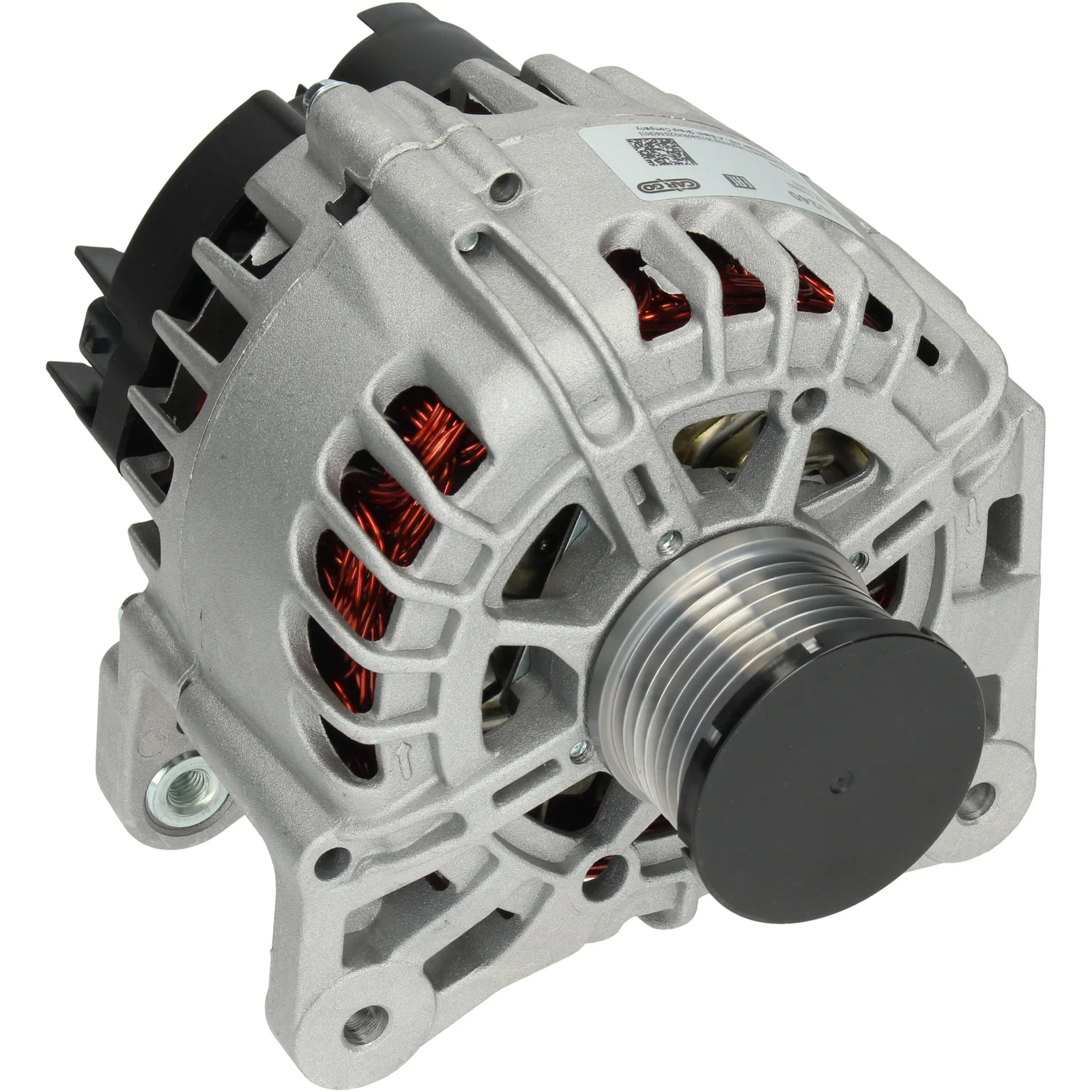

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116240

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 125, Rotation: CW, Mounting bracket distributor: 60.80

Description

Generator 12V-120A 12V - 120A, 7 groove fork, (LIN) For Yourex product order 90-480-8400 Voltage: 14 Amp: 125 Pulley distance: 32.70 Width/holder arm: 13.70 Mounting bracket distance: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 Rotation: CW Plug number: PL131 Total length mm: 187.00 Terminal type: COM ID Code: 17 Communication: LIN Pulley: SP/FW Voltage regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A4539064100, F000 BL0 7AU, F000 BL0 7AV, F000BL07AS, F000BL07AT, F032116240, TG12C 125, TG12C125, TG12C164, TG12C166, TG12S 272, TG12S272, TG12S328, 0986 084 000, 1986A01568, 23100-0643R, 23100-1568R, 23100-1910R, 23100-4ED0A, 23100-6677R, 23100-7842R, 116240, 439815, 2612719, 2612719A, 2619146A, 2714143, 231000643R, 231001568, 231003101R, 231003240R, 231006677R, 231007842R, 4539064100

  • Normalised article numbler
    a3563s, a4539064100, cal15019, dra1361, dra1757, f000bl07as, f000bl07at, f000bl07au, f000bl07av, f032116240, lra03740, lra04448, tg12c125, tg12c164, tg12c166, tg12s272, tg12s328, 8el011713111, 1986a01568, 20609n, 116240, 231004ed0a, 286850, 288557, 439815, 439925, 439935, 440669, 440679, 554106ri, 2612719, 2612719a, 2619146a, 2714143, 12090495, 32005017, 231000643r, 231001568, 231001568r, 231001910r, 231003101r, 231003240r, 231006677r, 231007842r, 575948120, 575960120, 575974125, 0986084000, 0986086280, 2303591202, 4539064100
  • Description
    Generator 12V-120A 12V - 120A, 7 groove fork, (LIN) For Yourex product order 90-480-8400 Voltage: 14 Amp: 125 Pulley distance: 32.70 Width/holder arm: 13.70 Mounting bracket distance: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in min.: 50 Rotation: CW Plug number: PL131 Total length mm: 187.00 Terminal type: COM ID Code: 17 Communication: LIN Pulley: SP/FW Voltage regulator type: IR Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A4539064100, F000 BL0 7AU, F000 BL0 7AV, F000BL07AS, F000BL07AT, F032116240, TG12C 125, TG12C125, TG12C164, TG12C166, TG12S 272, TG12S272, TG12S328, 0986 084 000, 1986A01568, 23100-0643R, 23100-1568R, 23100-1910R, 23100-4ED0A, 23100-6677R, 23100-7842R, 116240, 439815, 2612719, 2612719A, 2619146A, 2714143, 231000643R, 231001568, 231003101R, 231003240R, 231006677R, 231007842R, 4539064100

    • Normalised article numbler
      a3563s, a4539064100, cal15019, dra1361, dra1757, f000bl07as, f000bl07at, f000bl07au, f000bl07av, f032116240, lra03740, lra04448, tg12c125, tg12c164, tg12c166, tg12s272, tg12s328, 8el011713111, 1986a01568, 20609n, 116240, 231004ed0a, 286850, 288557, 439815, 439925, 439935, 440669, 440679, 554106ri, 2612719, 2612719a, 2619146a, 2714143, 12090495, 32005017, 231000643r, 231001568, 231001568r, 231001910r, 231003101r, 231003240r, 231006677r, 231007842r, 575948120, 575960120, 575974125, 0986084000, 0986086280, 2303591202, 4539064100
