HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116359

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Mount. bracket dist.: 61.00, Pulley diam.: 49.50

Description

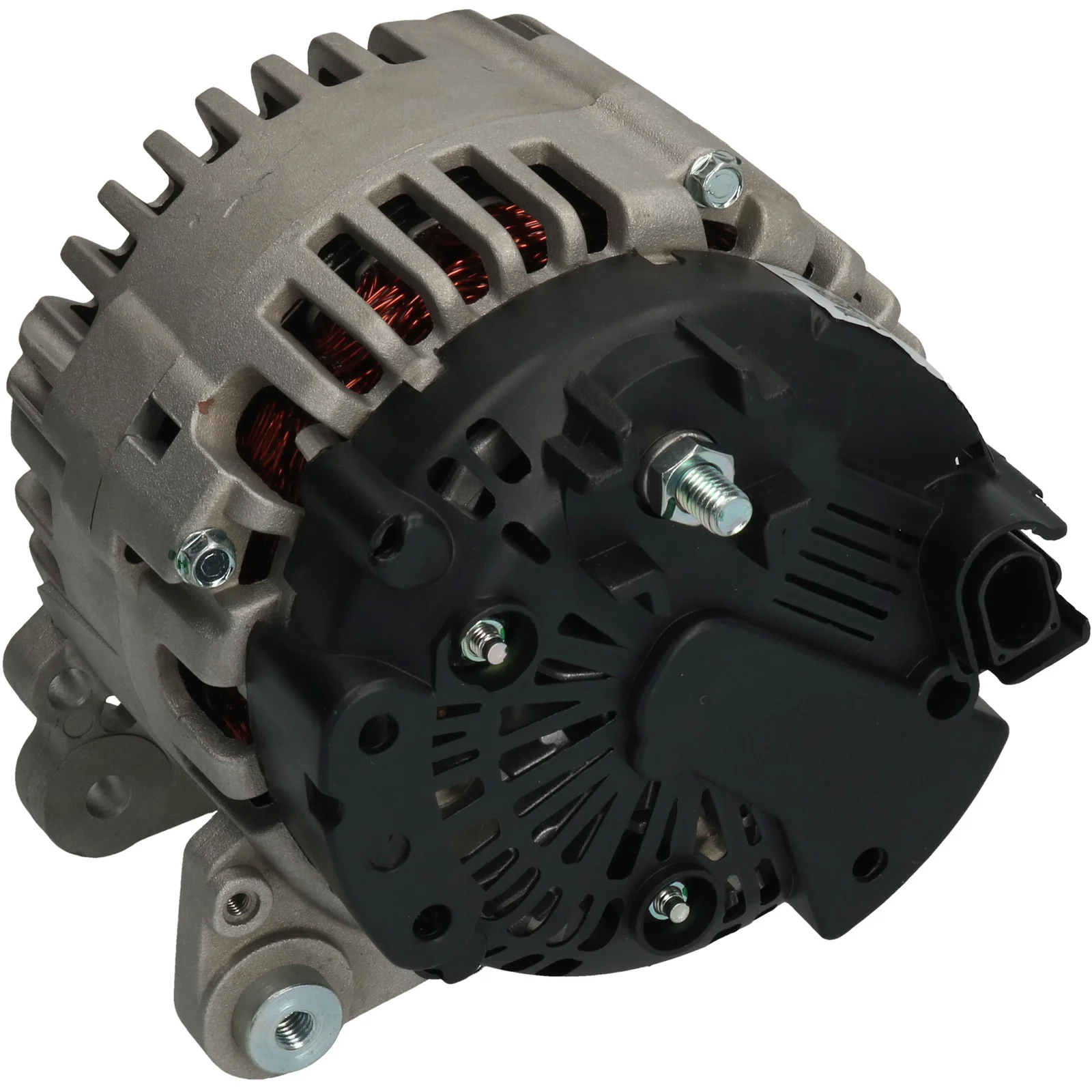

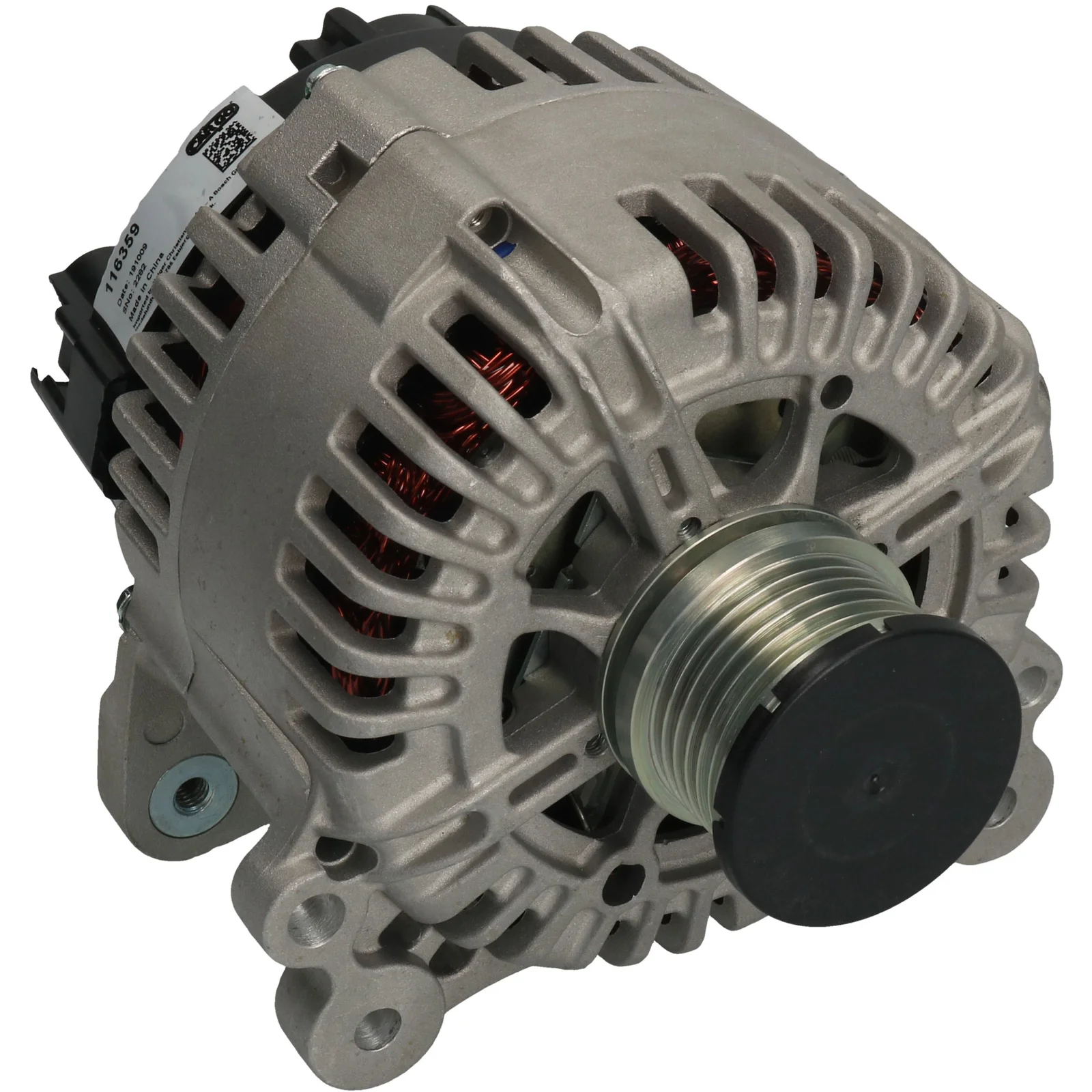

Alternator 12V-140A (LIN) 12V - 140A, 6-pin connector, (LIN) Amarok, Caddy with Stop/Start

Voltage: 14
Amps: 140
Pulley distance: 39.00
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Plug number: PL181
Total length mm: 191.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 800, F000 BL0 8A0, F000 BL0 8J7, F000 BL0 8J8, F032115898, F032116359, TG14C 043, TG14C 051, TG14C 095, TG14C043, TG14C051, TG14C095, 03H903023E, 03L 903 023K, 03L 903 023L, 03L 903 024D, 03L903023L, 03L903023LX, 03L903024D, 04L 903 021A, 04L 903 024S, 04L903021A, 65.26101-6003, 65.26101-6009, 0986 083 130, 0986 083 160, 1986 A01 092, 115898, 116359, 439791, 440428, 2612004, 2612004E, 2616269, 2715269, 2715269C

  • Normalised article numbler
    a0429, a3299, a3299pr, a3299pr2, cal15567, dra1212, f000bl0800, f000bl08a0, f000bl08j7, f000bl08j8, f032115898, f032116359, tg14c043, tg14c051, tg14c095, 03h903023e, 03l903023k, 03l903023l, 03l903023lx, 03l903024d, 04l903021a, 04l903024s, 1986a01092, 115898, 116359, 200238, 209287, 209287a, 285797, 439791, 440428, 440864, 443152, 747137, 2612004, 2612004e, 2616269, 2715269, 2715269c, 9090704, 305922140, 0986083130, 0986083160, 65261016003, 65261016009
  • Description
    Alternator 12V-140A (LIN) 12V - 140A, 6-pin connector, (LIN) Amarok, Caddy with Stop/Start

    Voltage: 14
    Amps: 140
    Pulley distance: 39.00
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Plug number: PL181
    Total length mm: 191.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000 BL0 800, F000 BL0 8A0, F000 BL0 8J7, F000 BL0 8J8, F032115898, F032116359, TG14C 043, TG14C 051, TG14C 095, TG14C043, TG14C051, TG14C095, 03H903023E, 03L 903 023K, 03L 903 023L, 03L 903 024D, 03L903023L, 03L903023LX, 03L903024D, 04L 903 021A, 04L 903 024S, 04L903021A, 65.26101-6003, 65.26101-6009, 0986 083 130, 0986 083 160, 1986 A01 092, 115898, 116359, 439791, 440428, 2612004, 2612004E, 2616269, 2715269, 2715269C

    • Normalised article numbler
      a0429, a3299, a3299pr, a3299pr2, cal15567, dra1212, f000bl0800, f000bl08a0, f000bl08j7, f000bl08j8, f032115898, f032116359, tg14c043, tg14c051, tg14c095, 03h903023e, 03l903023k, 03l903023l, 03l903023lx, 03l903024d, 04l903021a, 04l903024s, 1986a01092, 115898, 116359, 200238, 209287, 209287a, 285797, 439791, 440428, 440864, 443152, 747137, 2612004, 2612004e, 2616269, 2715269, 2715269c, 9090704, 305922140, 0986083130, 0986083160, 65261016003, 65261016009
