HC-Cargo Alternator

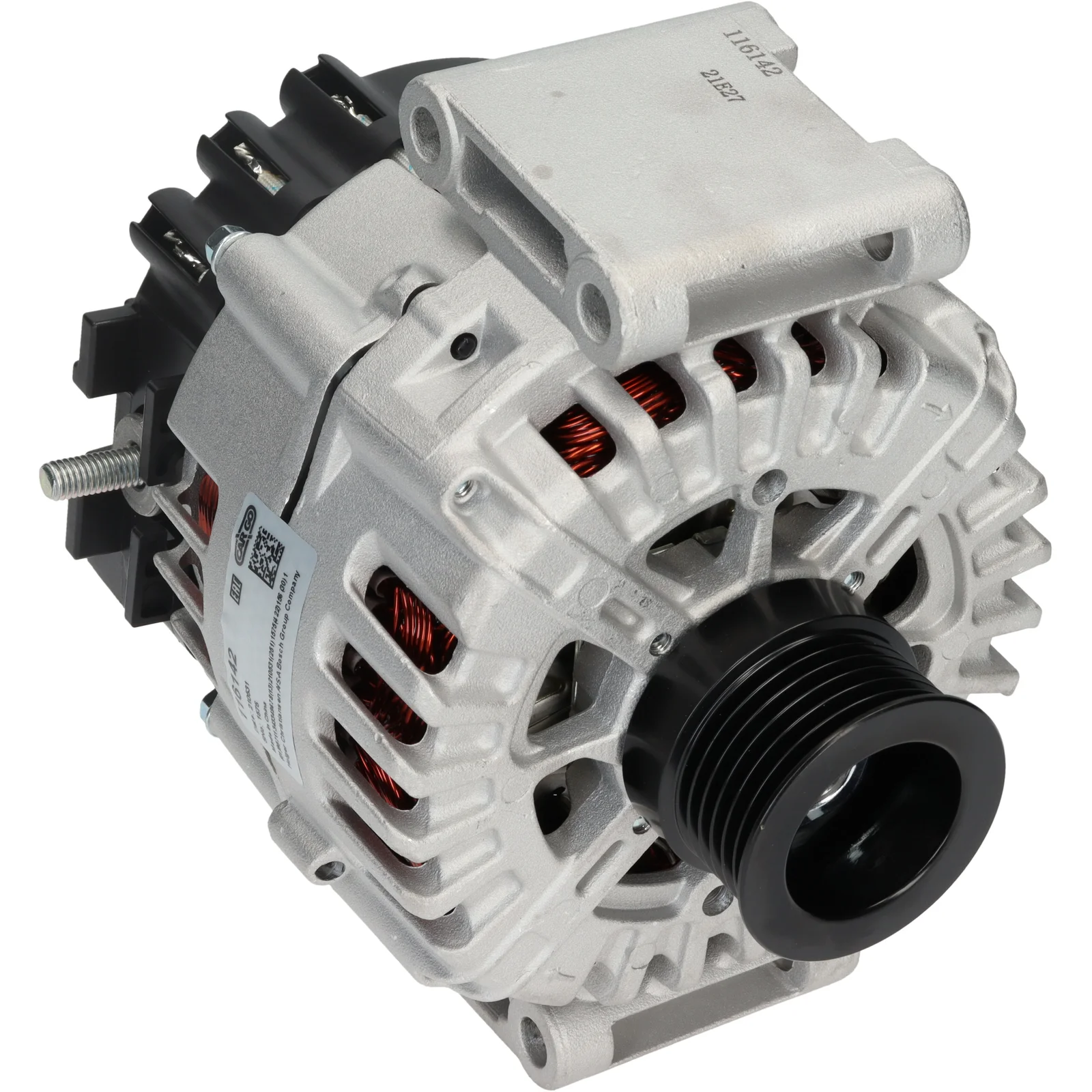

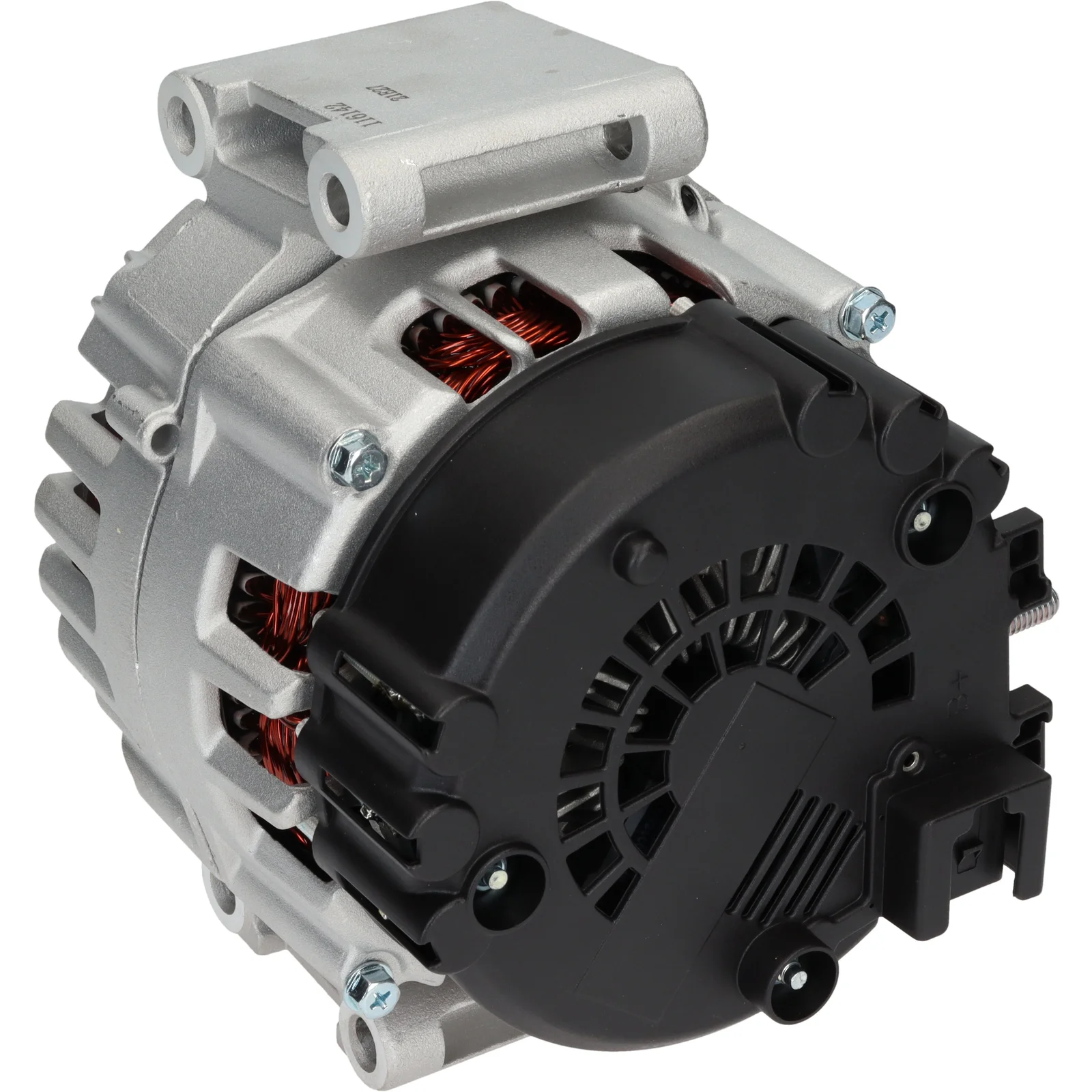

HC-Cargo Alternator
Article no.: F032116142

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 200, Rotation: CW, Mounting bracket distributor: 56.00

Description

Alternator 12V-200A (MB) 12V - 200A, 6 grooves, (LIN) For Yourex product order 90-365-2822

Voltage: 14
Amp: 200
Pulley diameter: 31.50
Width/holder arm: 70.00
Mounting bracket diameter: 56.00
Bracket hole: 9.00
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 9.00
Belt adjustment bracket hole 2: 9.00
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 81.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug number: PL181
Total length mm: 188.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    000 906 2822, A000906 2822, A0009062822, CG20U 015, CG20U015, F032116142, 1986A00630, 116142, 439849, 440572, 2613000, 2613000A, 2613000B, 2613000C, 0009062822

  • Normalised article numbler
    a0009062822, a3361s, a3361valeo, cal15579, cg20u015, dra1393, f032116142, lra03818, 8el011713761, 1986a00630, 20563, 20563n, 116142, 286928, 439849, 440572, 554277ri, 2613000, 2613000a, 2613000b, 2613000c, 0009062822, 12090583, 555934200, 0986084980, 2253162002
  • Description
    Alternator 12V-200A (MB) 12V - 200A, 6 grooves, (LIN) For Yourex product order 90-365-2822

    Voltage: 14
    Amp: 200
    Pulley diameter: 31.50
    Width/holder arm: 70.00
    Mounting bracket diameter: 56.00
    Bracket hole: 9.00
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 9.00
    Belt adjustment bracket hole 2: 9.00
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 81.00
    Radius 2: 81.00
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug number: PL181
    Total length mm: 188.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      000 906 2822, A000906 2822, A0009062822, CG20U 015, CG20U015, F032116142, 1986A00630, 116142, 439849, 440572, 2613000, 2613000A, 2613000B, 2613000C, 0009062822

    • Normalised article numbler
      a0009062822, a3361s, a3361valeo, cal15579, cg20u015, dra1393, f032116142, lra03818, 8el011713761, 1986a00630, 20563, 20563n, 116142, 286928, 439849, 440572, 554277ri, 2613000, 2613000a, 2613000b, 2613000c, 0009062822, 12090583, 555934200, 0986084980, 2253162002
