HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116038

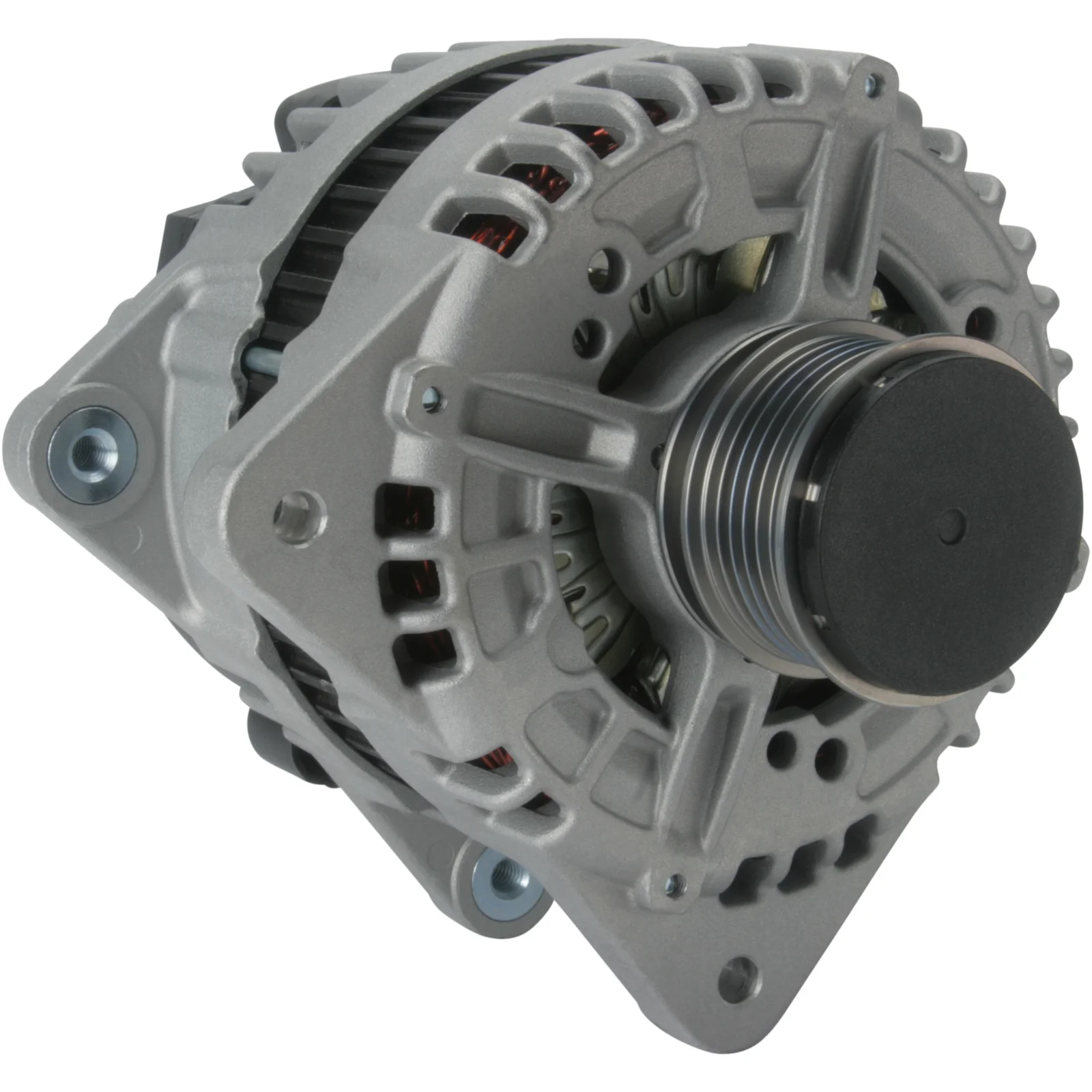

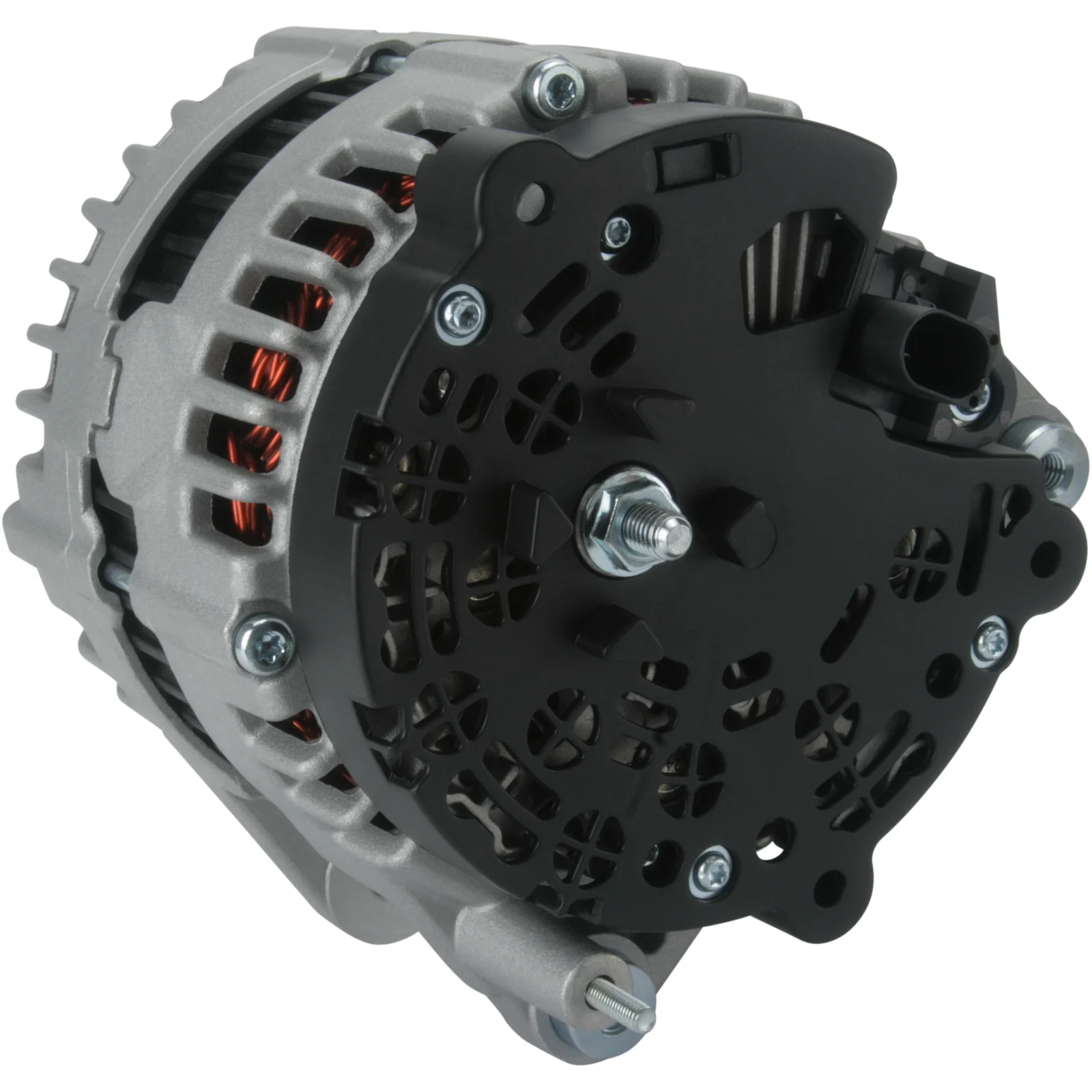

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

VW Alternator 12V-180A 12V - 180A, 6 grooves, (L, DFM) For vehicles without start-stop function! For Yourex product order 90-620-4535

Voltage: 14
Amp: 180
Pulley diameter: 39.50
Width/holder arm: 14.20
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Belt adjustment bracket hole 2: M8
Pulley diameter: 55.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 46
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 193.00
Terminal type: L-DFM
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F00E100027, F032114109, F032116038, FG18T 033, HVW0001540202, TG17C 019, TG17C019, 03G 903 023, 03g903023, 03L 903 023E, 021 903 026G, 021 903 026L, 022 903 028B, 0121 715 003, 0121 715 103, 0124 625 010, 0124 625 028, 0986 045 350, 0986 081 230, 1986A00764, 114109, 116038, 437555, 2542783, 2542783C, 2542783D, 2605717, 04801715AA, 4801715AA, 021903026l, 0121715003, 0121715047, 0121715103

  • Normalised article numbler
    a0321, a0331, a3203, a3203pr, cal15325, f00e100027, f032114109, f032116038, fg18t033, hvw0001540202, lra02931, tg17c019, 03g903023, 03l903023e, 1986a00764, 4656, 11221n, 114109, 116038, 200199, 210898, 210898a, 285545, 437555, 439558, 2542783, 2542783c, 2542783d, 2605717, 04801715aa, 4801715aa, 12090344, 021903026g, 021903026l, 022903028b, 32081230, 0121715003, 0121715047, 0121715103, 0124625010, 0124625028, 0986045350, 0986081230
  • Description
    VW Alternator 12V-180A 12V - 180A, 6 grooves, (L, DFM) For vehicles without start-stop function! For Yourex product order 90-620-4535

    Voltage: 14
    Amp: 180
    Pulley diameter: 39.50
    Width/holder arm: 14.20
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Belt adjustment bracket hole 2: M8
    Pulley diameter: 55.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 46
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 193.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F00E100027, F032114109, F032116038, FG18T 033, HVW0001540202, TG17C 019, TG17C019, 03G 903 023, 03g903023, 03L 903 023E, 021 903 026G, 021 903 026L, 022 903 028B, 0121 715 003, 0121 715 103, 0124 625 010, 0124 625 028, 0986 045 350, 0986 081 230, 1986A00764, 114109, 116038, 437555, 2542783, 2542783C, 2542783D, 2605717, 04801715AA, 4801715AA, 021903026l, 0121715003, 0121715047, 0121715103

    • Normalised article numbler
      a0321, a0331, a3203, a3203pr, cal15325, f00e100027, f032114109, f032116038, fg18t033, hvw0001540202, lra02931, tg17c019, 03g903023, 03l903023e, 1986a00764, 4656, 11221n, 114109, 116038, 200199, 210898, 210898a, 285545, 437555, 439558, 2542783, 2542783c, 2542783d, 2605717, 04801715aa, 4801715aa, 12090344, 021903026g, 021903026l, 022903028b, 32081230, 0121715003, 0121715047, 0121715103, 0124625010, 0124625028, 0986045350, 0986081230
