HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114509

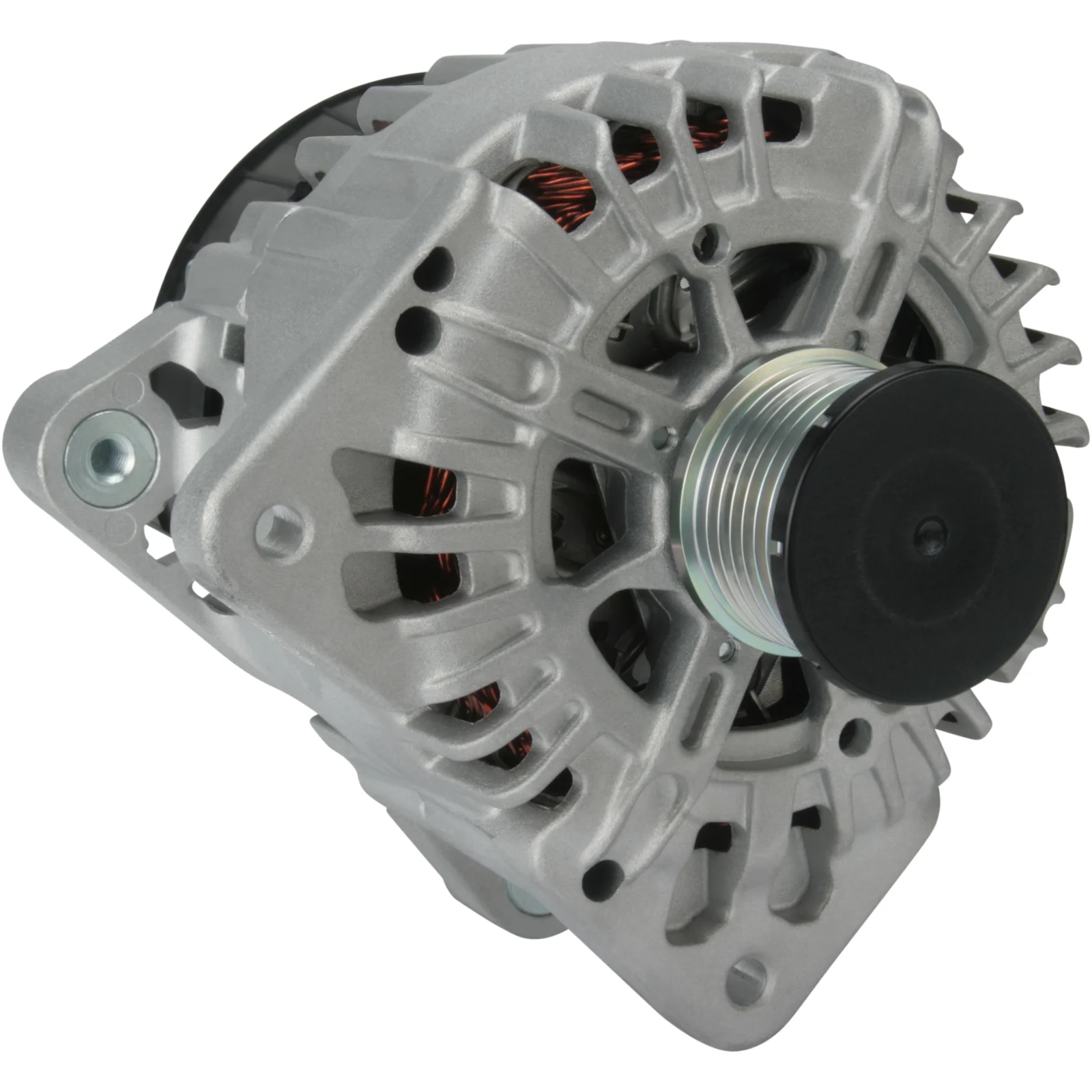

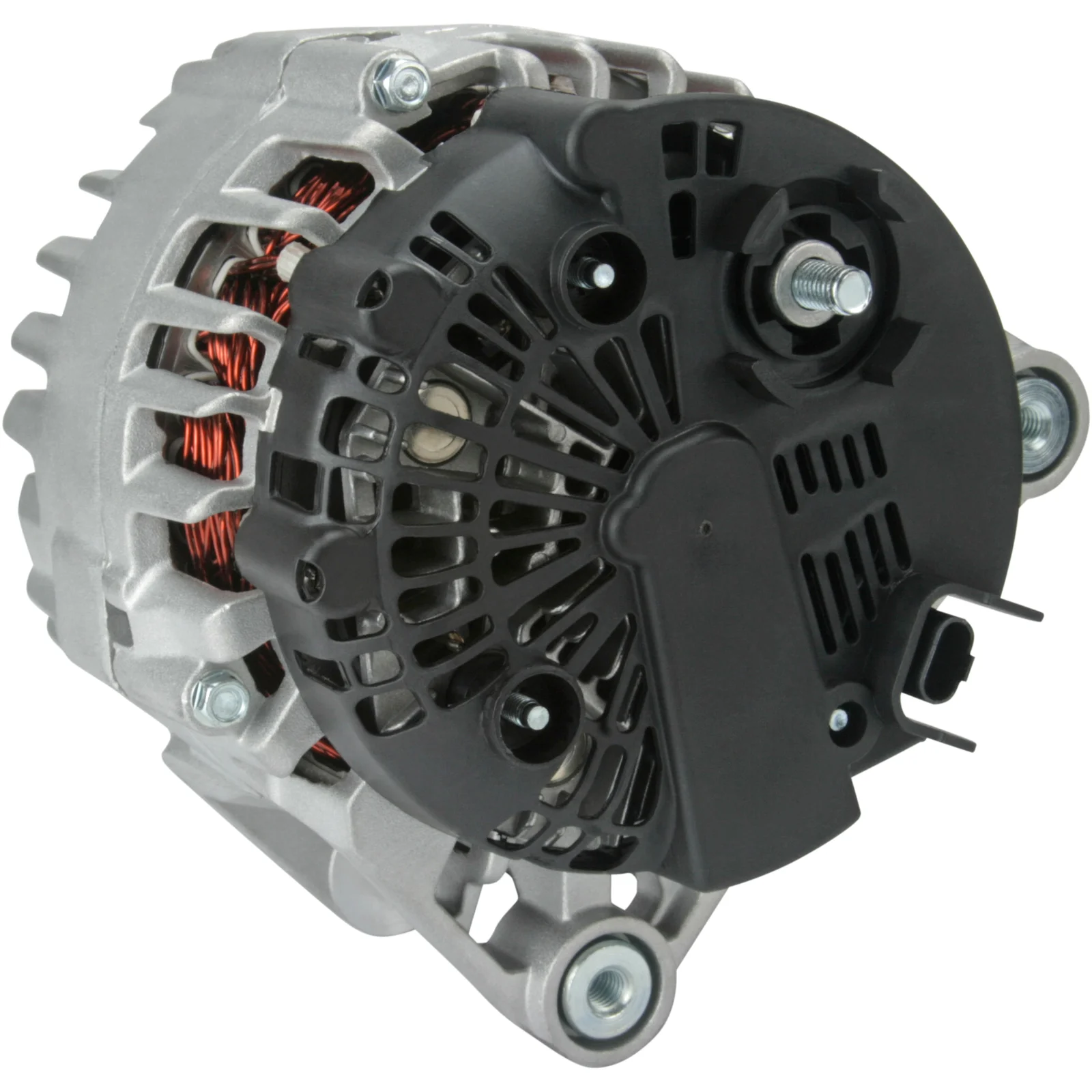

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 150, Rotation: clockwise, Mounting bracket distributor: 61.00

Description

Renault Diesel Alternator 12V-150A 12V - 150A, 7 grooves, (L, DF) 7 grooves, (L, DFM) For Yourex product order 90-480-4459

Voltage: 14
Amp: 150
Pulley distance: 32.70
Width/holder arm: 14.00
Mounting bracket distance: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 48.50
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 5
Rotation: CW
Plug number: PL72
Terminal type: L-DFM
Pulley: SP/FW
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032114509, TG15C 058, TG15C058, 1959ir, 1986A01339, 8200 404 459, 23100-00Q0J, 23100-00q0j, 114509, 439576, 440034, 2542966, 2542966B, 2542966D, 2542966E, 2542966F, 2542966G, 93161735, 8200404459

  • Normalised article numbler
    a3120, a3120pr, a3120sr, a3120valeo, cal15340, dra0339, f032114509, tg15c058, 8el012426051, 8el738212091, 1959ir, 1986a01339, 4698, 23370n, 112920, 114509, 200183, 210509, 210509a, 285648, 301959ri, 439576, 440034, 2310000q0j, 2542966, 2542966b, 2542966d, 2542966e, 2542966f, 2542966g, 9213662, 12090225, 32080420, 93161735, 0986080420, 2303361502, 8200404459
  • Description
    Renault Diesel Alternator 12V-150A 12V - 150A, 7 grooves, (L, DF) 7 grooves, (L, DFM) For Yourex product order 90-480-4459

    Voltage: 14
    Amp: 150
    Pulley distance: 32.70
    Width/holder arm: 14.00
    Mounting bracket distance: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 48.50
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 5
    Rotation: CW
    Plug number: PL72
    Terminal type: L-DFM
    Pulley: SP/FW
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114509, TG15C 058, TG15C058, 1959ir, 1986A01339, 8200 404 459, 23100-00Q0J, 23100-00q0j, 114509, 439576, 440034, 2542966, 2542966B, 2542966D, 2542966E, 2542966F, 2542966G, 93161735, 8200404459

    • Normalised article numbler
      a3120, a3120pr, a3120sr, a3120valeo, cal15340, dra0339, f032114509, tg15c058, 8el012426051, 8el738212091, 1959ir, 1986a01339, 4698, 23370n, 112920, 114509, 200183, 210509, 210509a, 285648, 301959ri, 439576, 440034, 2310000q0j, 2542966, 2542966b, 2542966d, 2542966e, 2542966f, 2542966g, 9213662, 12090225, 32080420, 93161735, 0986080420, 2303361502, 8200404459
