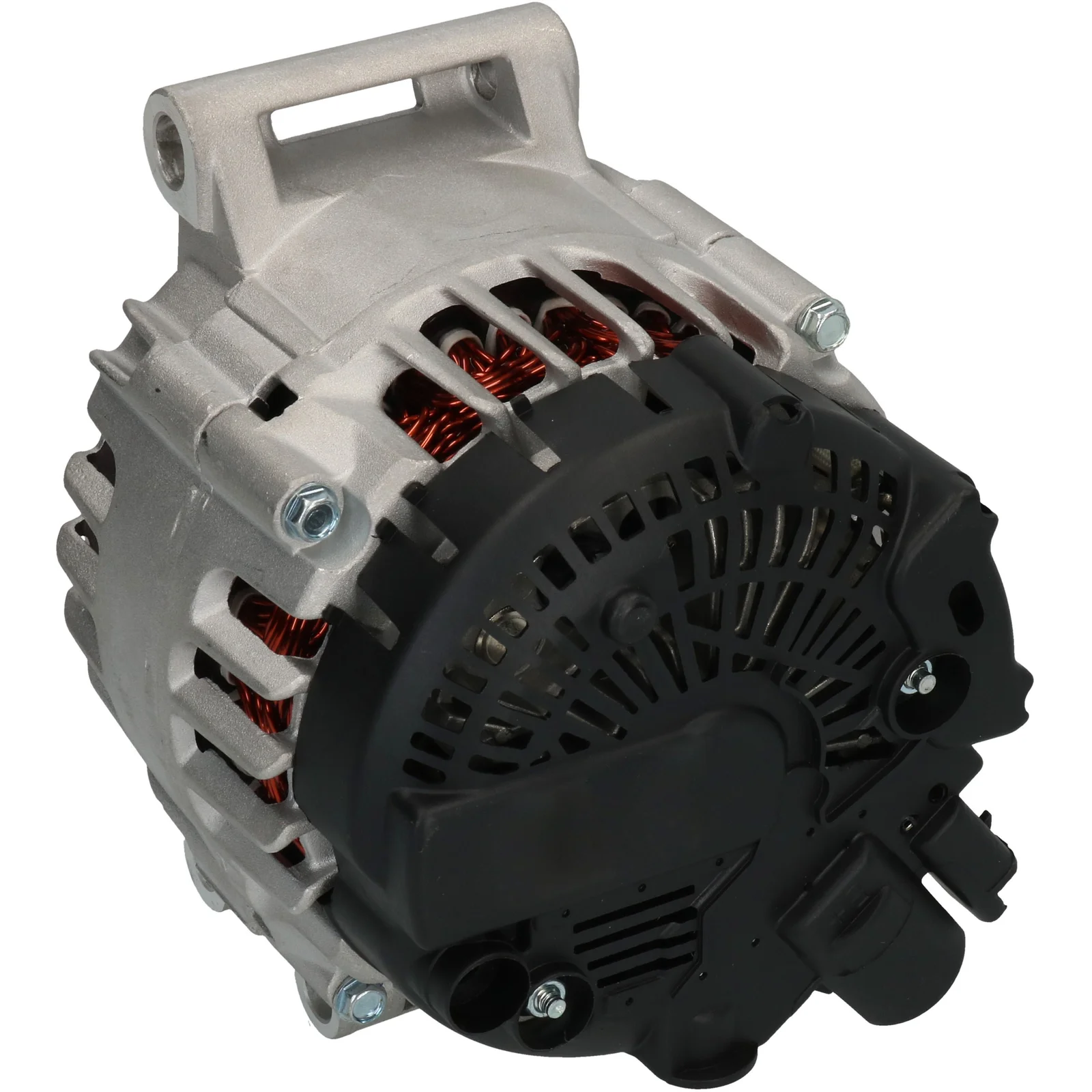

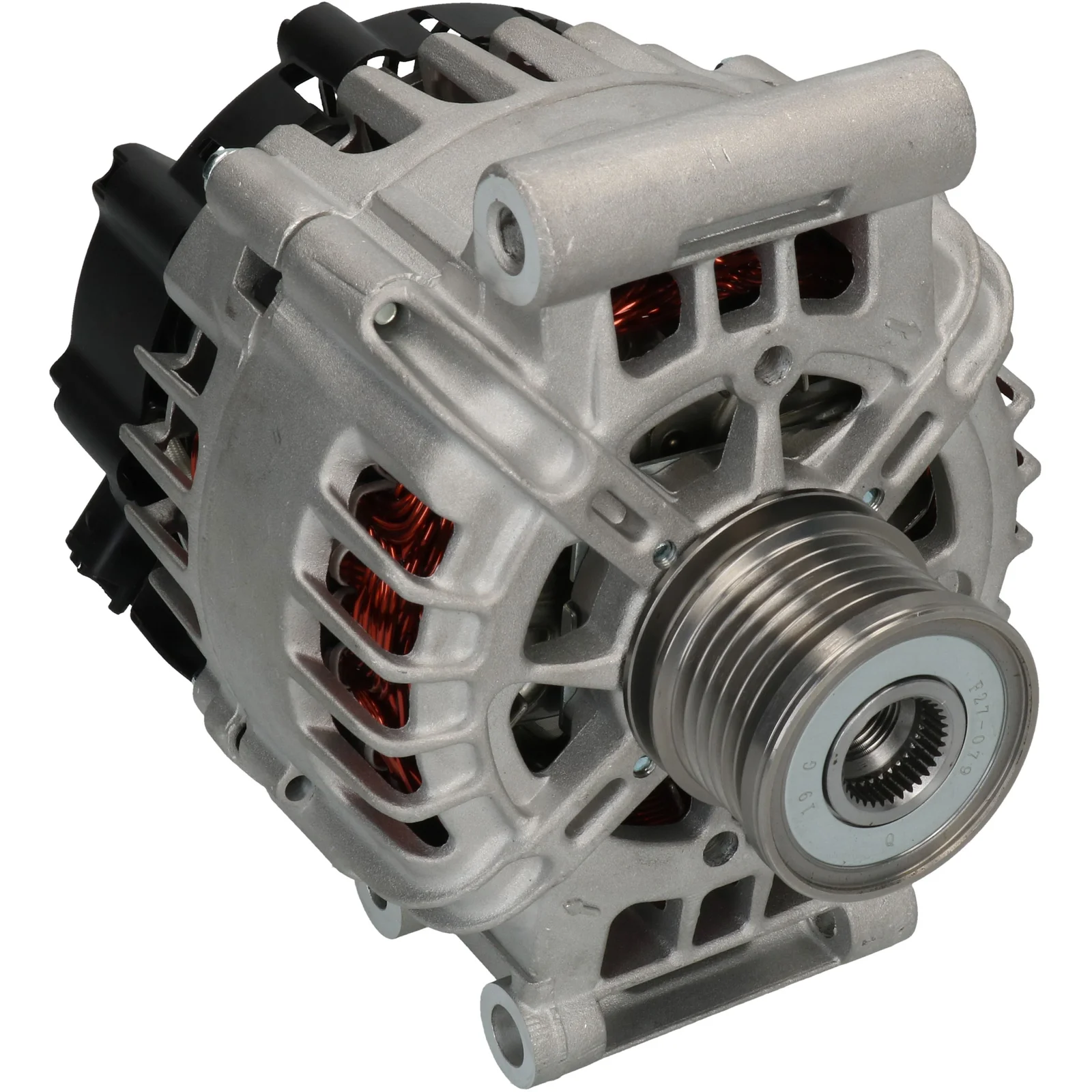

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116353

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Pulley diameter: 49.50

Description

Voltage: 14
Amps: 150
Pulley dist.: 26.70
Width/holder arm: 80.00
Bracket hole: 8.00
Bracket hole 2: 9.00x11.00
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 49.50
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 25
Rotation: CW
Plug no.: PL129
Total length mm: 181.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116353, fg15t044, FG15T072, FGN15T072, 1986A01455, 2610715B, 9666998080

  • Normalised article numbler
    cal10360, f032116353, fg15t044, fg15t072, fgn15t072, 1986a01455, 5702l3, 5705nr, 210828, 210828a, 439759, 440351, 440801, 443043, 2610715b, 12090483, 0986086390, 9666998080
  • Description
    Voltage: 14
    Amps: 150
    Pulley dist.: 26.70
    Width/holder arm: 80.00
    Bracket hole: 8.00
    Bracket hole 2: 9.00x11.00
    Belt. adj. brackethole pos.: 55
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 49.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 25
    Rotation: CW
    Plug no.: PL129
    Total length mm: 181.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116353, fg15t044, FG15T072, FGN15T072, 1986A01455, 2610715B, 9666998080

    • Normalised article numbler
      cal10360, f032116353, fg15t044, fg15t072, fgn15t072, 1986a01455, 5702l3, 5705nr, 210828, 210828a, 439759, 440351, 440801, 443043, 2610715b, 12090483, 0986086390, 9666998080
