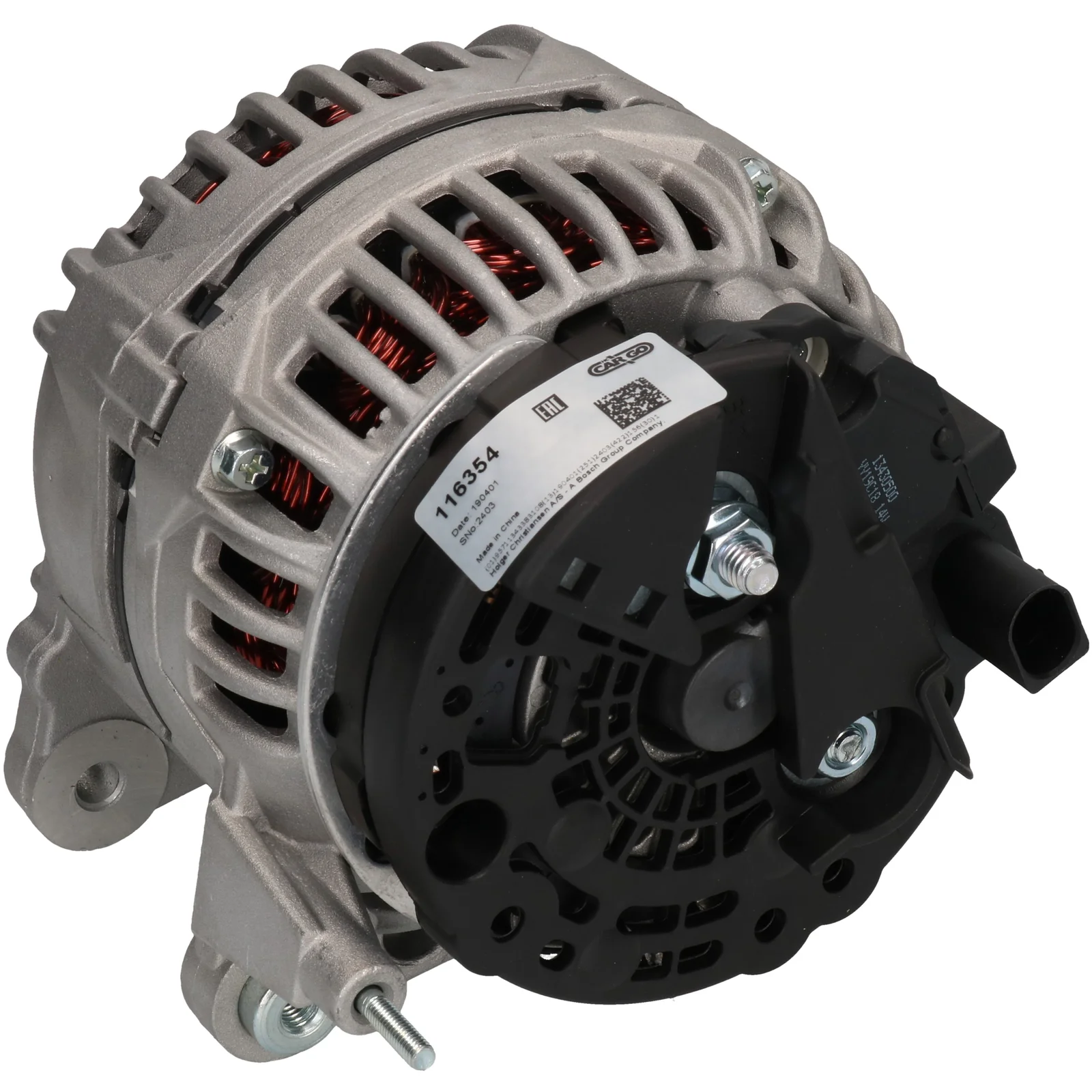

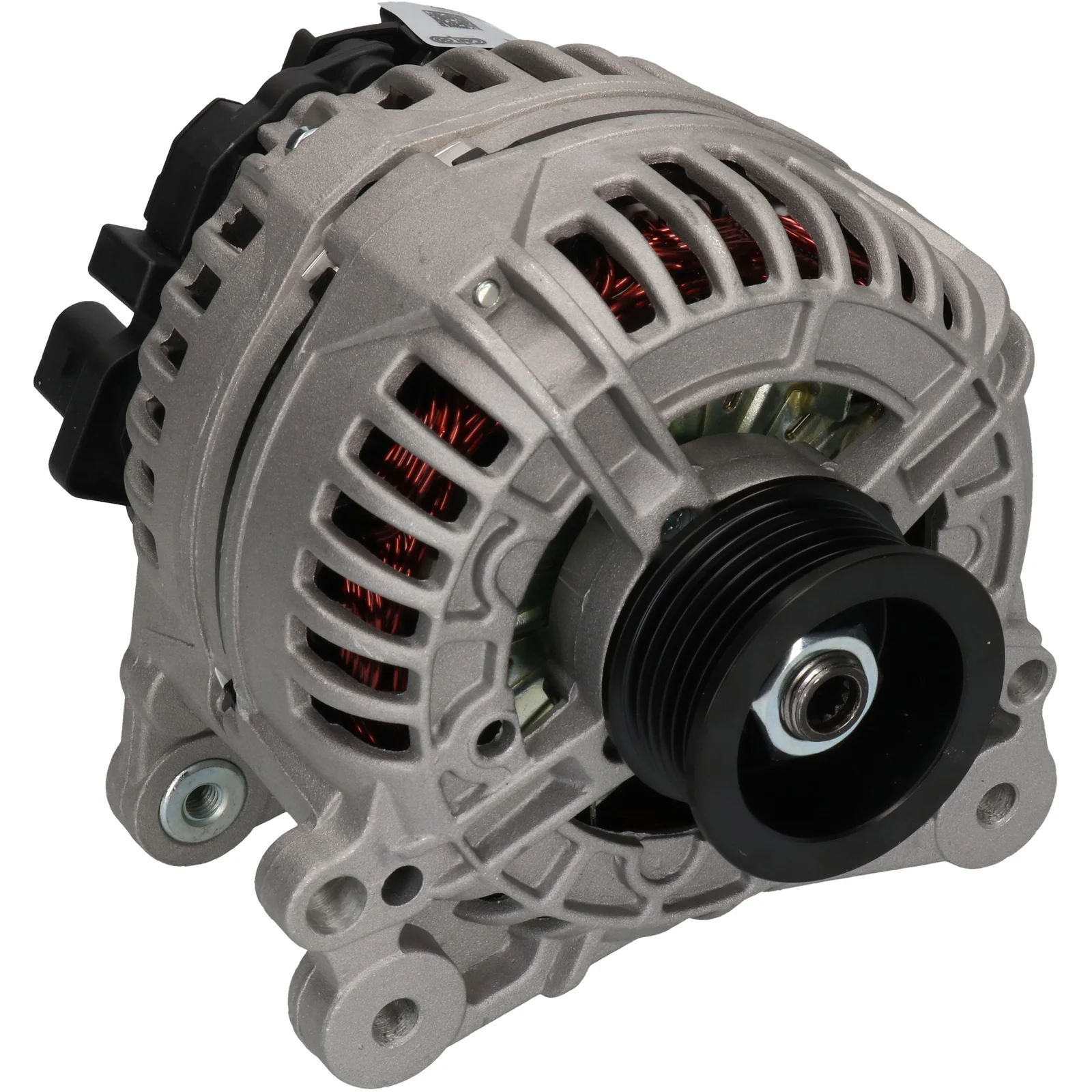

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116354

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distance: 62.00

Description

Voltage: 14
Amp: 140
Pulley dis. → Pulley diameter: 30.30
Width/holder arm: 14.50
Mounting bracket dis. → Mounting bracket distance: 62.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 56.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL86
Total length mm: 180.00
Terminal type: COM
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116354, tg14c022, TG14C042, 1986A00897, 2543400, 2543400A, 059903016E, 059903016EX, 059903016g, 059903016GX, 0124525116, 0124525531

  • Normalised article numbler
    a0568s, a0823s, a3481s, cal10381, dra0315, f032116354, tg14c022, tg14c042, 1986a00897, 113098, 200299, 209208, 209208a, 210737, 210737a, 285832, 301992ri, 439643, 439776, 440209, 747074, 2543400, 2543400a, 9090605, 12090348, 32081180, 059903016e, 059903016ex, 059903016g, 059903016gx, 0124525116, 0124525531, 2113551402
  • Description
    Voltage: 14
    Amp: 140
    Pulley dis. → Pulley diameter: 30.30
    Width/holder arm: 14.50
    Mounting bracket dis. → Mounting bracket distance: 62.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 56.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL86
    Total length mm: 180.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116354, tg14c022, TG14C042, 1986A00897, 2543400, 2543400A, 059903016E, 059903016EX, 059903016g, 059903016GX, 0124525116, 0124525531

    • Normalised article numbler
      a0568s, a0823s, a3481s, cal10381, dra0315, f032116354, tg14c022, tg14c042, 1986a00897, 113098, 200299, 209208, 209208a, 210737, 210737a, 285832, 301992ri, 439643, 439776, 440209, 747074, 2543400, 2543400a, 9090605, 12090348, 32081180, 059903016e, 059903016ex, 059903016g, 059903016gx, 0124525116, 0124525531, 2113551402
