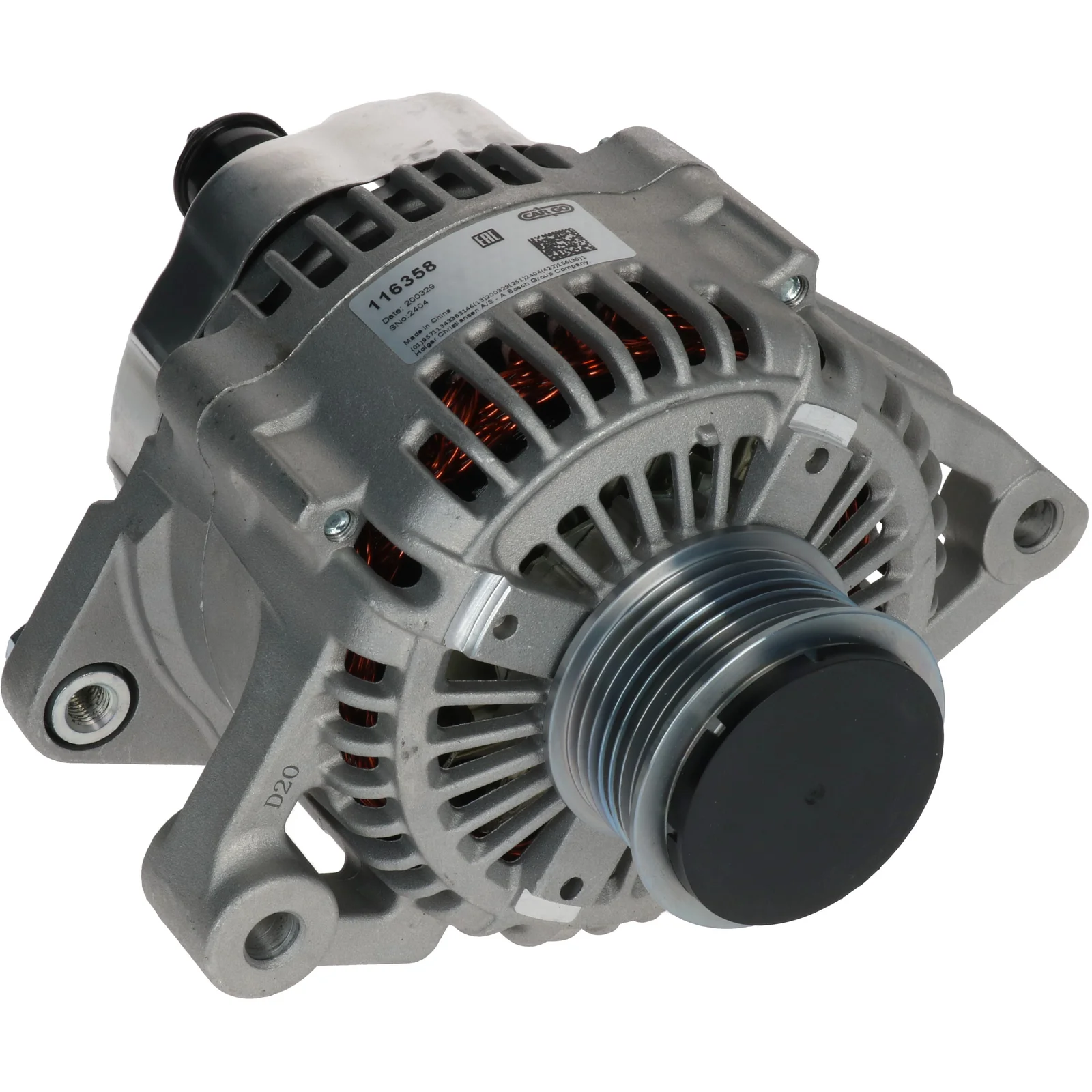

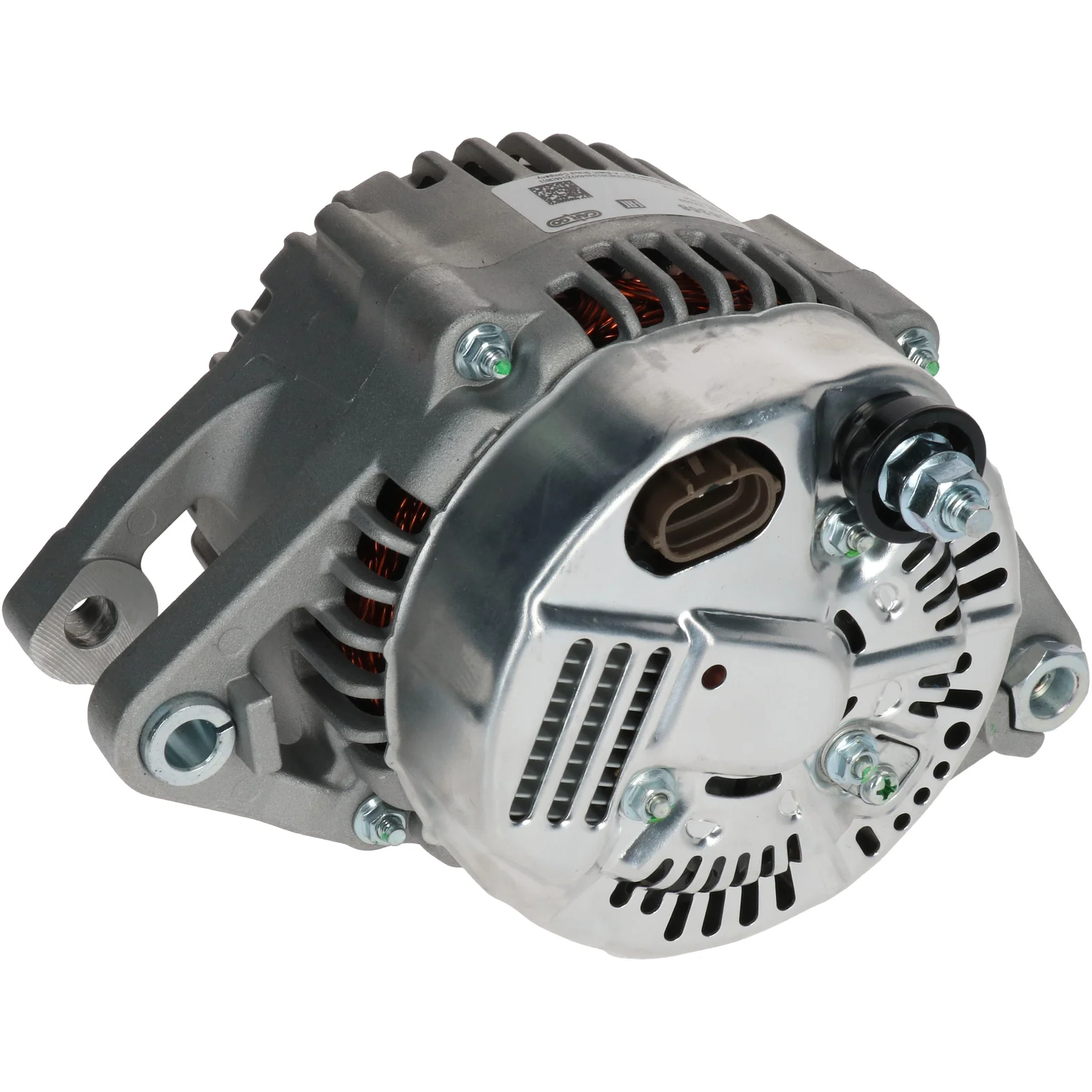

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116358

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 54.50

Description

Voltage: 14
Amp: 110
Pulley diameter: 43.60
Width/holder arm: 28.00
Mounting bracket distance: 54.50
Bracket hole: 11.00
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 60.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 97.00
B+: M8
Position/B+ in minutes: 15
Rotation: CW
Plug number: PL173
Terminal type: L
One wire hookup (Self exciting): Yes
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032116358, 02131-9212, 37300-4a300

  • Normalised article numbler
    a6526s, cal32135, dra0781, f032116358, lra03554, 210678, 210678a, 286664, 373004a300, 553426ri, 9214856, 12060985, 021319212, 255508110
  • Description
    Voltage: 14
    Amp: 110
    Pulley diameter: 43.60
    Width/holder arm: 28.00
    Mounting bracket distance: 54.50
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 60.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 97.00
    B+: M8
    Position/B+ in minutes: 15
    Rotation: CW
    Plug number: PL173
    Terminal type: L
    One wire hookup (Self exciting): Yes
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116358, 02131-9212, 37300-4a300

    • Normalised article numbler
      a6526s, cal32135, dra0781, f032116358, lra03554, 210678, 210678a, 286664, 373004a300, 553426ri, 9214856, 12060985, 021319212, 255508110
