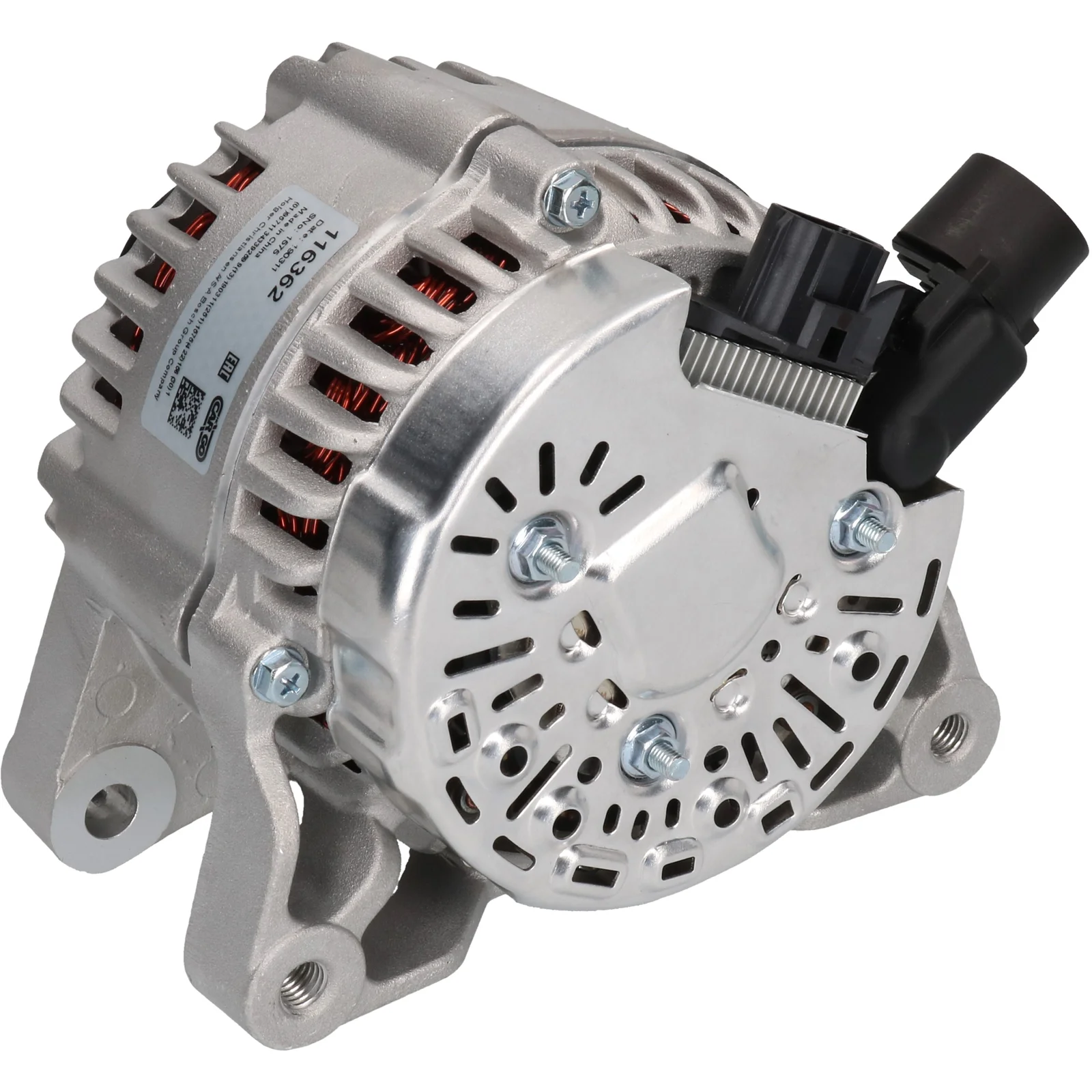

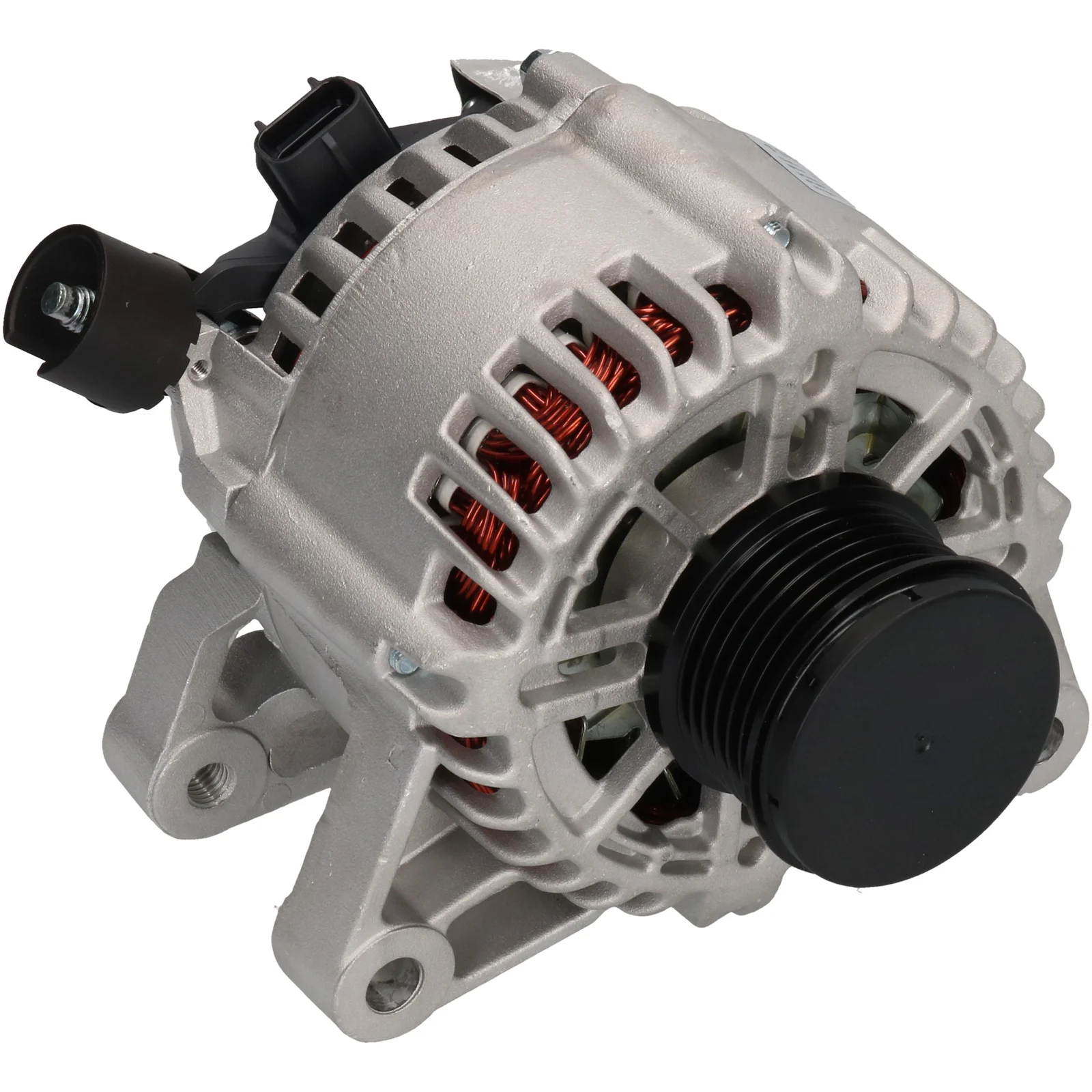

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116362

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 45.80

Description

Voltage: 14
Amp: 80
Pulley dist.: 42.50
Width/holder arm: 21.50
Mount. bracket dist.: 45.80
Bracket hole: 10.50
Belt. adj. brackethole pos.: 12
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 12
Rotation: CW
Plug no.: PL57
Total length mm: 159.00
Terminal type: FR-SIG-A
Communication: PWM1-128
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032116362, Y401-18-300, 2S6T-AA, 2s6t10300aa, 2S6T10300AB, 2S6T10300AC, 2S6T10300AD, 3S6T-AC, 3S6T10300AA, 3S6T10300AB, 3S6T10300AC, 3S6T10300AD, 3S6TAA, 20-150-01002, 1986A01122, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138

  • Normalised article numbler
    a9020, a9020pr, a9020sr, alth174, cal14105, cal14114, dra0178, dra0178n, dra4247, dra4247n, f032116362, f042a0h174, lra02338, lra02562, y40118300, 2s6t10300aa, 2s6t10300ab, 2s6t10300ac, 2s6t10300ad, 2s6taa, 3s6t10300aa, 3s6t10300ab, 3s6t10300ac, 3s6t10300ad, 3s6taa, 3s6tac, 8el011360631, 8el011710771, 8el738187001, 1986a01122, 4714, 112186, 200317, 274838, 274916, 301777ri, 440699, 443104, 443127, 443159, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138, 9213257, 12049150, 063380002, 219171802, 0986049151, 2015001002, 2015001034, 063380002010, 944390902400
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 42.50
    Width/holder arm: 21.50
    Mount. bracket dist.: 45.80
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 12
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 12
    Rotation: CW
    Plug no.: PL57
    Total length mm: 159.00
    Terminal type: FR-SIG-A
    Communication: PWM1-128
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032116362, Y401-18-300, 2S6T-AA, 2s6t10300aa, 2S6T10300AB, 2S6T10300AC, 2S6T10300AD, 3S6T-AC, 3S6T10300AA, 3S6T10300AB, 3S6T10300AC, 3S6T10300AD, 3S6TAA, 20-150-01002, 1986A01122, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138

    • Normalised article numbler
      a9020, a9020pr, a9020sr, alth174, cal14105, cal14114, dra0178, dra0178n, dra4247, dra4247n, f032116362, f042a0h174, lra02338, lra02562, y40118300, 2s6t10300aa, 2s6t10300ab, 2s6t10300ac, 2s6t10300ad, 2s6taa, 3s6t10300aa, 3s6t10300ab, 3s6t10300ac, 3s6t10300ad, 3s6taa, 3s6tac, 8el011360631, 8el011710771, 8el738187001, 1986a01122, 4714, 112186, 200317, 274838, 274916, 301777ri, 440699, 443104, 443127, 443159, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138, 9213257, 12049150, 063380002, 219171802, 0986049151, 2015001002, 2015001034, 063380002010, 944390902400
