HC-Cargo Alternator

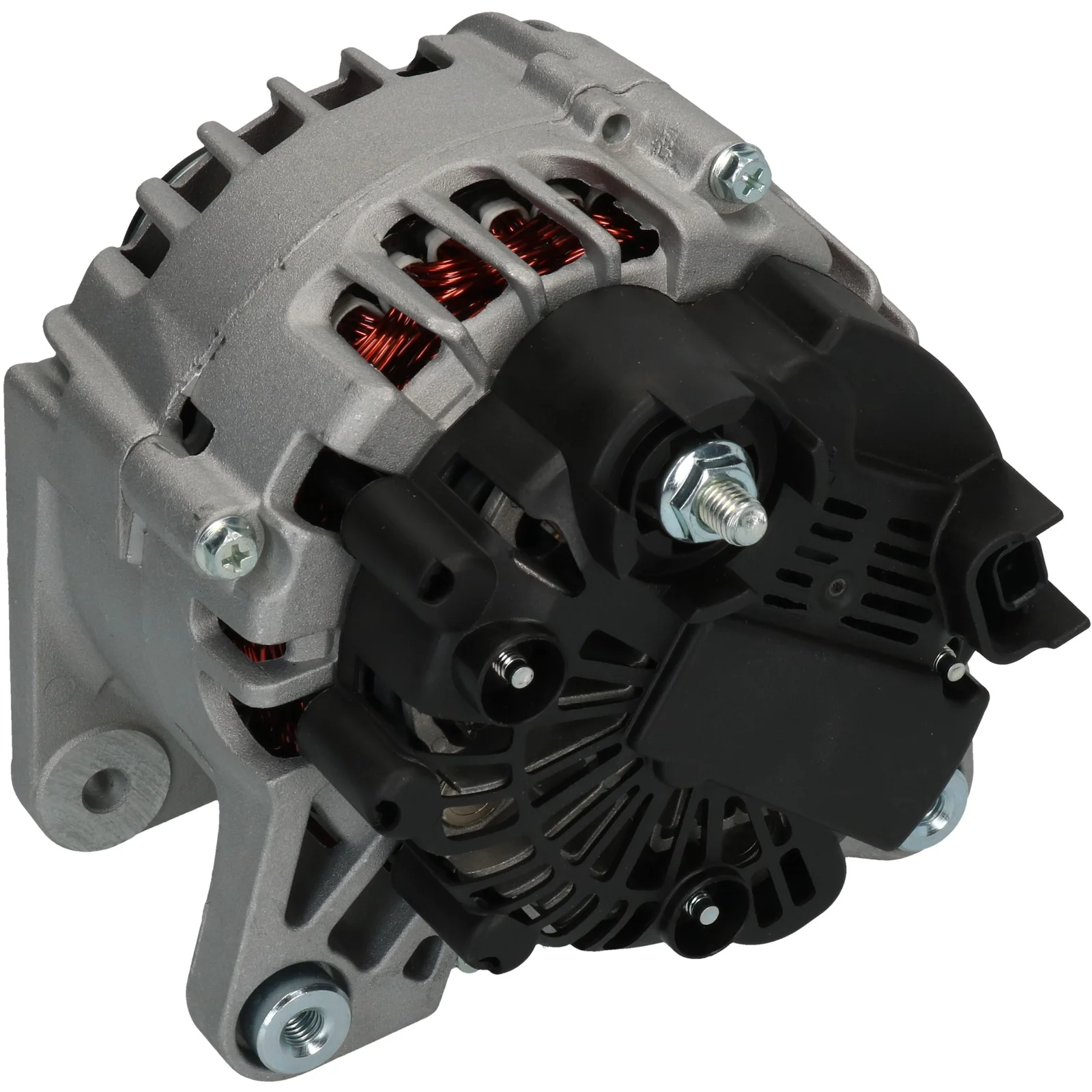

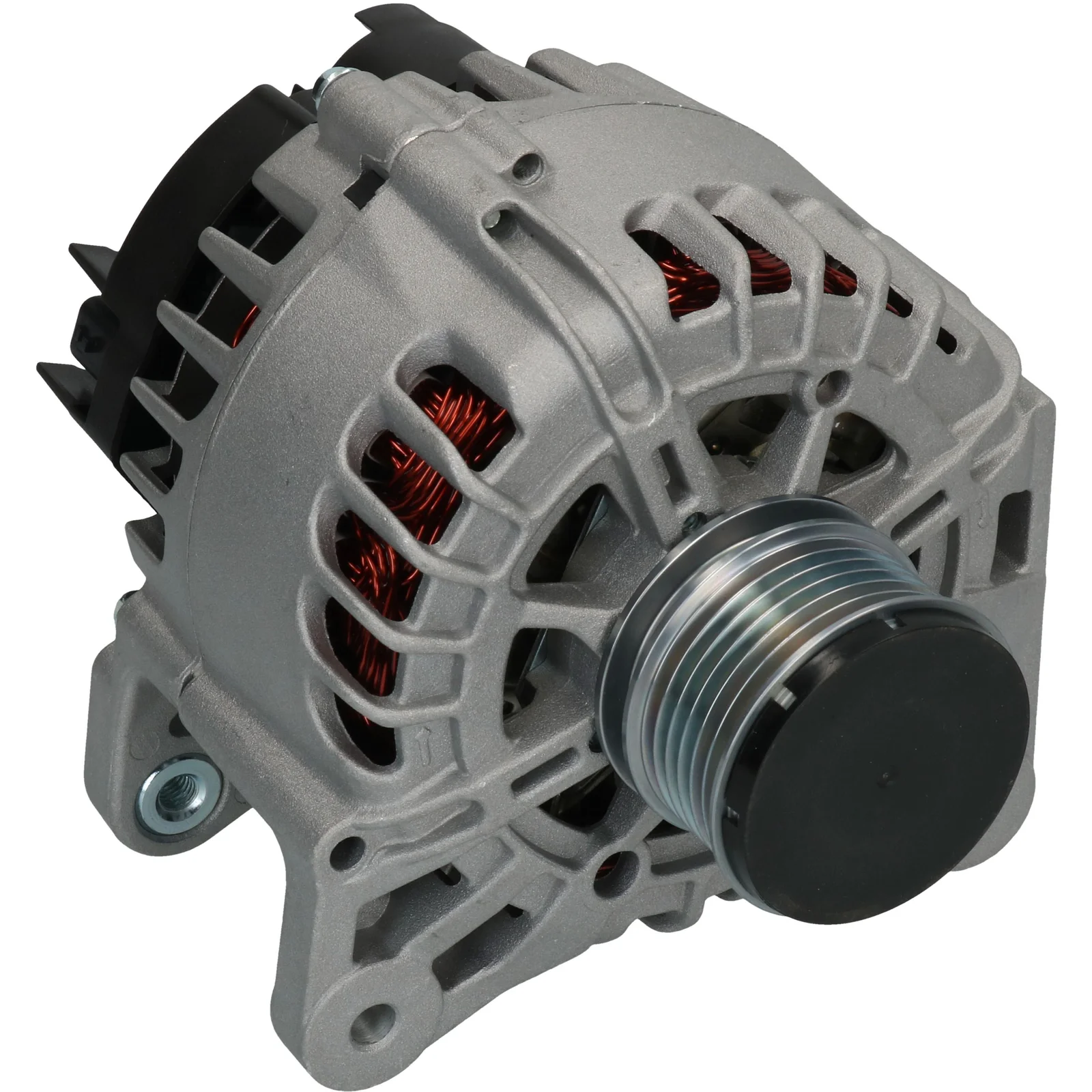

HC-Cargo Alternator
Article no.: F032116363

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Description

Voltage: 14
Amp: 120
Pulley dist.: 38.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.50
Bracket hole: 8.70
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.70
Alternator dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116363, tg12c241, 23100-1318R, 2627732A, 231001318R, 231008918r

  • Normalised article numbler
    a3215s, f032116363, tg12c241, 20610n, 200271, 439983, 440755, 554409ri, 2627732a, 231001318r, 231008918r, 575962120
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 38.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 60.50
    Bracket hole: 8.70
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.70
    Alternator dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL131
    Total length mm: 195.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116363, tg12c241, 23100-1318R, 2627732A, 231001318R, 231008918r

    • Normalised article numbler
      a3215s, f032116363, tg12c241, 20610n, 200271, 439983, 440755, 554409ri, 2627732a, 231001318r, 231008918r, 575962120
