Article no.: F032111989

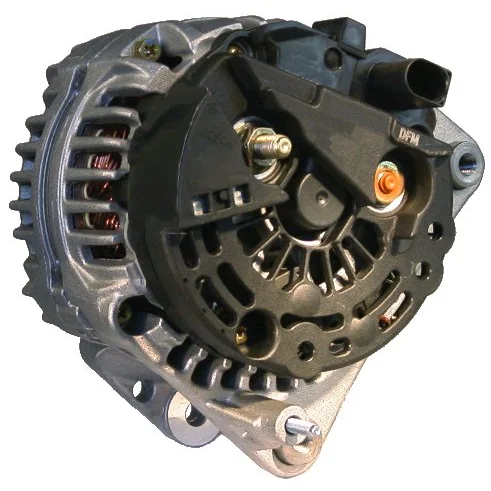

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

VAG Alternator 12V-90A 12V - 90A, 6-pole (L, DFM) oval connector. (L, DFM) Seat/Volkswagen car models 1.4 16V/1.6 16V and New Beetle 1.4 and 1.8T: for vehicles with air conditioning! For Yourex product order 90-620-4150 Voltage: 14 Amp: 90 Pulley distance: 39.60 Width/holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.60 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.60 Belt adjustment bracket hole 2: M8 Pulley diameter: 56.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 53 D+ Size: Plug Rotation: CW Plug number: PL61 Total length mm: 186.50 Pulley: Standard Profile Regulator type: IR Product information: BN Servicing: Audi

Files

  • OEM
    A0027, A0027PR, A0027SR, A0037PR, A3333PR, aak5544, AAK5544, ALT-2057, ALT10286, BAO3296, CAL10114, CAL15419, drb1500, DRB1500, DRB1500N, DRB1500X, F032111989, F042203000, F042205193, F042208003, F042A01180, ia1147, IA1147, LRB00486, MG556, SG9B 013, sg9b013, sg9b049, SG9B049, SG9B059, SG9B087, SG9B088, 1-2520-01BO, 3M2110300AA, 06A903023, 06A903023X, 06a903026, 06A903026, 06A903026A, 06A903026AX, 06A903026C, 06A903026CX, 06B903018HX, 06B903018KX, 06B903018SX, 06B903018TX, 6A903023, 6A903023X, 6A903026, 6A903026A, 6M2110346BA, 8EL011360-591, 8EL011710-311, 8el737554-001, 8EL737554001, 11.203.313, 028 903 028D, 28-2979, 030 903 023J, 037 903 025 F, 037 903 025 M, 037 903 025 T, 038 903 018 A, 038 903 024 E, 047 903 015 H, 047 903 018 A, 047 903 018 AX, 98VW10300CA, 0124 325 003, 211.183.902, 0986 041 500, 1378ir, 1986A00779, 1986A00804, 4969, 6016, 13851N, 13852N-6G, 13946, 13946N, 111989, 118962, 200014, 210045, 210045A, 210203, 210203A, 301378RI, 437316, 439311, 442022, 746042, 746842, 839015, 1253623, 1516485R, 1580264, 2542241, 2542241A, 2542241B, 2542241C, 2542241E, 2542571, 2542767, 2543320, 2543320A, 2543328, 2543328B, 9517213, 12041500, 021903025J, 028903018P, 028903023N, 028903028C, 028903028d, 028903028DX, 28903028D, 28903028DX, 030903023H, 030903023HX, 030903023j, 030903023JX, 030903023L, 030903023M, 030903023MX, 030903023N, 30903023J, 30903023JX, 30903023MX, 30903023N, 030903029A, 32041500, 036903026A, 036903026B, 036903026C, 036903028A, 036903028AX, 36903028A, 037903018DX, 037903025E, 037903025FX, 037903026C, 037903026CX, 038903018AX, 038903018L, 038903018LX, 038903018P, 038903018PX, 038903018R, 038903018RX, 038903018S, 038903018SX, 038903018X, 38903018A, 38903018AX, 038903023A, 038903023L, 038903023N, 038903023R, 038903024A, 038903024D, 038903028D, 045903023E, 045903023EX, 45903023, 045903026C, 0124325003, 0124325135, 0124325137, 0986041500, 0986041507, 943355061010, 944390415000

  • Normalised article numbler
    a0027, a0027pr, a0027sr, a0037pr, a3333pr, aak5544, alt10286, alt2057, bao3296, cal10114, cal15419, drb1500, drb1500n, drb1500x, f032111989, f042203000, f042205193, f042208003, f042a01180, ia1147, lrb00486, mg556, sg9b013, sg9b049, sg9b059, sg9b087, sg9b088, 3m2110300aa, 06a903023, 06a903023x, 06a903026, 06a903026a, 06a903026ax, 06a903026c, 06a903026cx, 06b903018hx, 06b903018kx, 06b903018sx, 06b903018tx, 6a903023, 6a903023x, 6a903026, 6a903026a, 6m2110346ba, 8el011360591, 8el011710311, 8el737554001, 98vw10300ca, 1378ir, 1986a00779, 1986a00804, 4969, 6016, 13851n, 13852n6g, 13946, 13946n, 111989, 118962, 200014, 210045, 210045a, 210203, 210203a, 282979, 301378ri, 437316, 439311, 442022, 746042, 746842, 839015, 1252001bo, 1253623, 1516485r, 1580264, 2542241, 2542241a, 2542241b, 2542241c, 2542241e, 2542571, 2542767, 2543320, 2543320a, 2543328, 2543328b, 9517213, 11203313, 12041500, 021903025j, 028903018p, 028903023n, 028903028c, 028903028d, 028903028dx, 28903028d, 28903028dx, 030903023h, 030903023hx, 030903023j, 030903023jx, 030903023l, 030903023m, 030903023mx, 030903023n, 30903023j, 30903023jx, 30903023mx, 30903023n, 030903029a, 32041500, 036903026a, 036903026b, 036903026c, 036903028a, 036903028ax, 36903028a, 037903018dx, 037903025e, 037903025f, 037903025fx, 037903025m, 037903025t, 037903026c, 037903026cx, 038903018a, 038903018ax, 038903018l, 038903018lx, 038903018p, 038903018px, 038903018r, 038903018rx, 038903018s, 038903018sx, 038903018x, 38903018a, 38903018ax, 038903023a, 038903023l, 038903023n, 038903023r, 038903024a, 038903024d, 038903024e, 038903028d, 045903023e, 045903023ex, 45903023, 045903026c, 047903015h, 047903018a, 047903018ax, 0124325003, 0124325135, 0124325137, 211183902, 0986041500, 0986041507, 943355061010, 944390415000
  • Description
    VAG Alternator 12V-90A 12V - 90A, 6-pole (L, DFM) oval connector. (L, DFM) Seat/Volkswagen car models 1.4 16V/1.6 16V and New Beetle 1.4 and 1.8T: for vehicles with air conditioning! For Yourex product order 90-620-4150 Voltage: 14 Amp: 90 Pulley distance: 39.60 Width/holder arm: 14.00 Mounting bracket distance: 61.00 Bracket hole: 8.60 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.60 Belt adjustment bracket hole 2: M8 Pulley diameter: 56.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 53 D+ Size: Plug Rotation: CW Plug number: PL61 Total length mm: 186.50 Pulley: Standard Profile Regulator type: IR Product information: BN Servicing: Audi

    Files

  • Suitable for these vehicles

    • OEM
      A0027, A0027PR, A0027SR, A0037PR, A3333PR, aak5544, AAK5544, ALT-2057, ALT10286, BAO3296, CAL10114, CAL15419, drb1500, DRB1500, DRB1500N, DRB1500X, F032111989, F042203000, F042205193, F042208003, F042A01180, ia1147, IA1147, LRB00486, MG556, SG9B 013, sg9b013, sg9b049, SG9B049, SG9B059, SG9B087, SG9B088, 1-2520-01BO, 3M2110300AA, 06A903023, 06A903023X, 06a903026, 06A903026, 06A903026A, 06A903026AX, 06A903026C, 06A903026CX, 06B903018HX, 06B903018KX, 06B903018SX, 06B903018TX, 6A903023, 6A903023X, 6A903026, 6A903026A, 6M2110346BA, 8EL011360-591, 8EL011710-311, 8el737554-001, 8EL737554001, 11.203.313, 028 903 028D, 28-2979, 030 903 023J, 037 903 025 F, 037 903 025 M, 037 903 025 T, 038 903 018 A, 038 903 024 E, 047 903 015 H, 047 903 018 A, 047 903 018 AX, 98VW10300CA, 0124 325 003, 211.183.902, 0986 041 500, 1378ir, 1986A00779, 1986A00804, 4969, 6016, 13851N, 13852N-6G, 13946, 13946N, 111989, 118962, 200014, 210045, 210045A, 210203, 210203A, 301378RI, 437316, 439311, 442022, 746042, 746842, 839015, 1253623, 1516485R, 1580264, 2542241, 2542241A, 2542241B, 2542241C, 2542241E, 2542571, 2542767, 2543320, 2543320A, 2543328, 2543328B, 9517213, 12041500, 021903025J, 028903018P, 028903023N, 028903028C, 028903028d, 028903028DX, 28903028D, 28903028DX, 030903023H, 030903023HX, 030903023j, 030903023JX, 030903023L, 030903023M, 030903023MX, 030903023N, 30903023J, 30903023JX, 30903023MX, 30903023N, 030903029A, 32041500, 036903026A, 036903026B, 036903026C, 036903028A, 036903028AX, 36903028A, 037903018DX, 037903025E, 037903025FX, 037903026C, 037903026CX, 038903018AX, 038903018L, 038903018LX, 038903018P, 038903018PX, 038903018R, 038903018RX, 038903018S, 038903018SX, 038903018X, 38903018A, 38903018AX, 038903023A, 038903023L, 038903023N, 038903023R, 038903024A, 038903024D, 038903028D, 045903023E, 045903023EX, 45903023, 045903026C, 0124325003, 0124325135, 0124325137, 0986041500, 0986041507, 943355061010, 944390415000

    • Normalised article numbler
      a0027, a0027pr, a0027sr, a0037pr, a3333pr, aak5544, alt10286, alt2057, bao3296, cal10114, cal15419, drb1500, drb1500n, drb1500x, f032111989, f042203000, f042205193, f042208003, f042a01180, ia1147, lrb00486, mg556, sg9b013, sg9b049, sg9b059, sg9b087, sg9b088, 3m2110300aa, 06a903023, 06a903023x, 06a903026, 06a903026a, 06a903026ax, 06a903026c, 06a903026cx, 06b903018hx, 06b903018kx, 06b903018sx, 06b903018tx, 6a903023, 6a903023x, 6a903026, 6a903026a, 6m2110346ba, 8el011360591, 8el011710311, 8el737554001, 98vw10300ca, 1378ir, 1986a00779, 1986a00804, 4969, 6016, 13851n, 13852n6g, 13946, 13946n, 111989, 118962, 200014, 210045, 210045a, 210203, 210203a, 282979, 301378ri, 437316, 439311, 442022, 746042, 746842, 839015, 1252001bo, 1253623, 1516485r, 1580264, 2542241, 2542241a, 2542241b, 2542241c, 2542241e, 2542571, 2542767, 2543320, 2543320a, 2543328, 2543328b, 9517213, 11203313, 12041500, 021903025j, 028903018p, 028903023n, 028903028c, 028903028d, 028903028dx, 28903028d, 28903028dx, 030903023h, 030903023hx, 030903023j, 030903023jx, 030903023l, 030903023m, 030903023mx, 030903023n, 30903023j, 30903023jx, 30903023mx, 30903023n, 030903029a, 32041500, 036903026a, 036903026b, 036903026c, 036903028a, 036903028ax, 36903028a, 037903018dx, 037903025e, 037903025f, 037903025fx, 037903025m, 037903025t, 037903026c, 037903026cx, 038903018a, 038903018ax, 038903018l, 038903018lx, 038903018p, 038903018px, 038903018r, 038903018rx, 038903018s, 038903018sx, 038903018x, 38903018a, 38903018ax, 038903023a, 038903023l, 038903023n, 038903023r, 038903024a, 038903024d, 038903024e, 038903028d, 045903023e, 045903023ex, 45903023, 045903026c, 047903015h, 047903018a, 047903018ax, 0124325003, 0124325135, 0124325137, 211183902, 0986041500, 0986041507, 943355061010, 944390415000
