HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113922

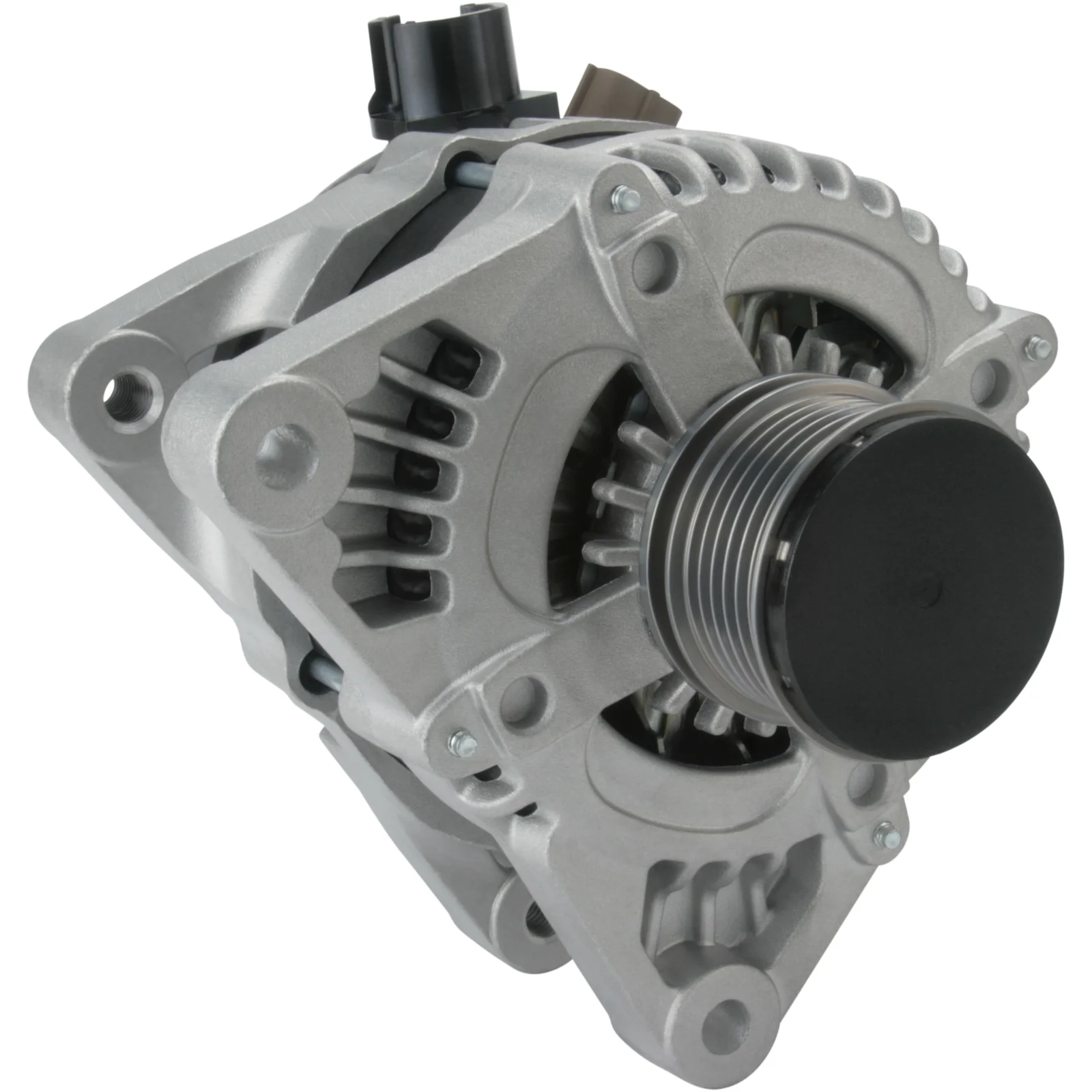

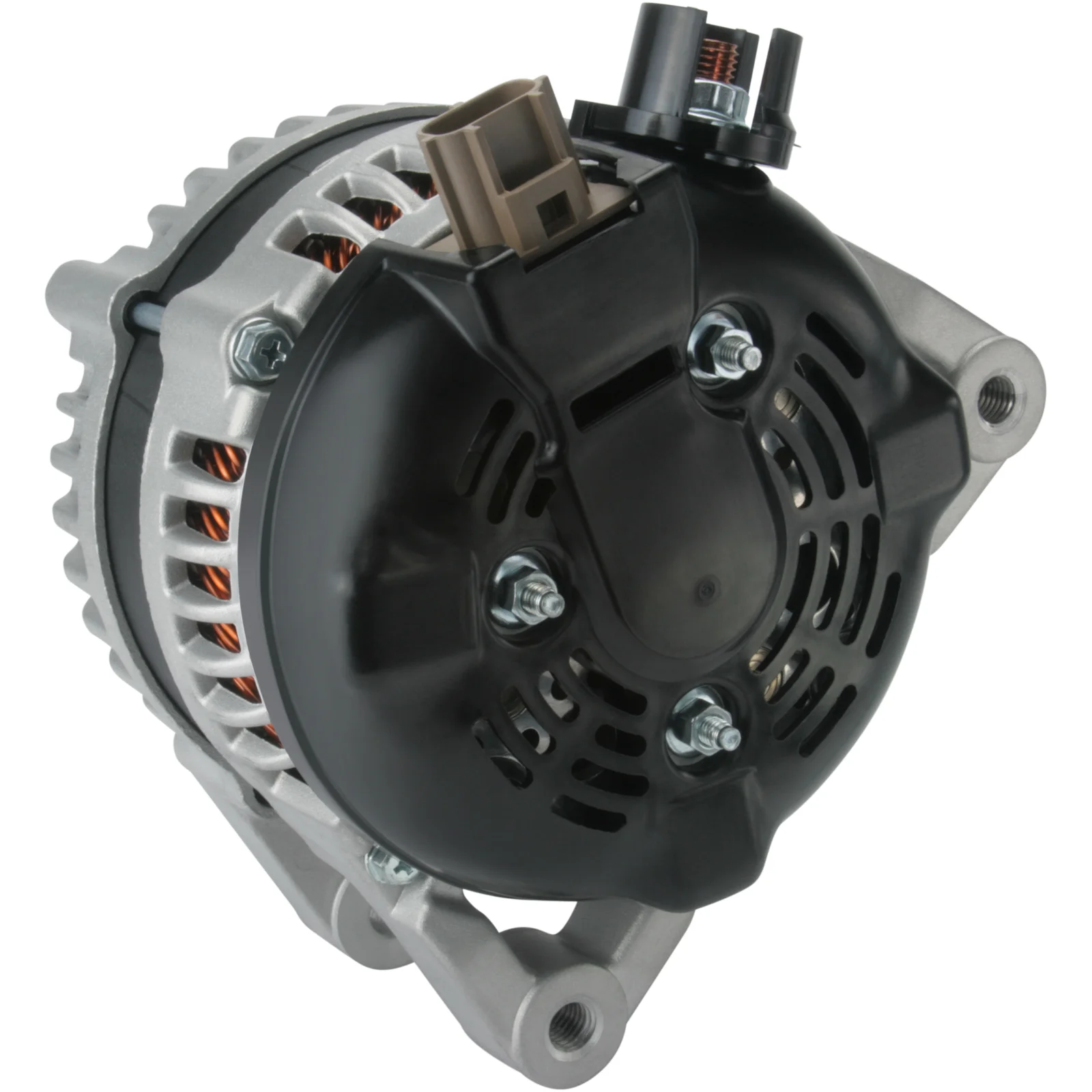

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 120, Rotation: CW, Mounting bracket distributor: 45.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 43.00
Width/holder arm: 22.00
Mount. bracket dist.: 45.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 13
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 53.70
Grooves/pulley: 6
Radius: 87.50
Radius 2: 90.50
B+: M8
Position/B+ in min.: 7
Rotation: CW
Plug no.: PL57
Total length mm: 170.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032113922, RM3M5T10300PD, y601-18-300, Y601-18-300A, Y601-18-300B, 3M5T10300PA, 3m5t10300pb, 3M5T10300PC, 3m5t10300pd, 3M5T10300PE, 8M5T10300PA, 8M5T10300PB, 1865ir, 1986A00579, 104210-3510, 104210-3511, 104210-3512, 104210-3513, 104210-3514, 104210-5700, 1229258, 1255712, 1477737, 1676842, 1692417, 1707062, 8603182, 8666579, 30667067, 30795422, 31285594, 31288154, 36000598

  • Normalised article numbler
    a6010, a6010denso, a6010pr, a6655denso, alt6103, cal40164, dan1119, dan1139, dra4236, dra4236x, f032113922, f042208043, f042a02168, lea0684, lra02814, rm3m5t10300pd, y60118300, y60118300a, y60118300b, 3m5t10300pa, 3m5t10300pb, 3m5t10300pc, 3m5t10300pd, 3m5t10300pe, 8el011360161, 8el011710851, 8el738211501, 8m5t10300pa, 8m5t10300pb, 1865ir, 1986a00579, 4716, 23820n, 23820r, 112388, 200001, 210323, 210323a, 274932, 301865ri, 440348, 443038, 446537, 747088, 747888, 1229258, 1255712, 1477737, 1676842, 1692417, 1707062, 8603182, 8666579, 9212316, 12049170, 30667067, 30795422, 31285594, 31288154, 32118712, 36000598, 0986049171, 1042103510, 1042103511, 1042103512, 1042103513, 1042103514, 1042105700, 2191641202, 944390903590
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 43.00
    Width/holder arm: 22.00
    Mount. bracket dist.: 45.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 13
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 53.70
    Grooves/pulley: 6
    Radius: 87.50
    Radius 2: 90.50
    B+: M8
    Position/B+ in min.: 7
    Rotation: CW
    Plug no.: PL57
    Total length mm: 170.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files
