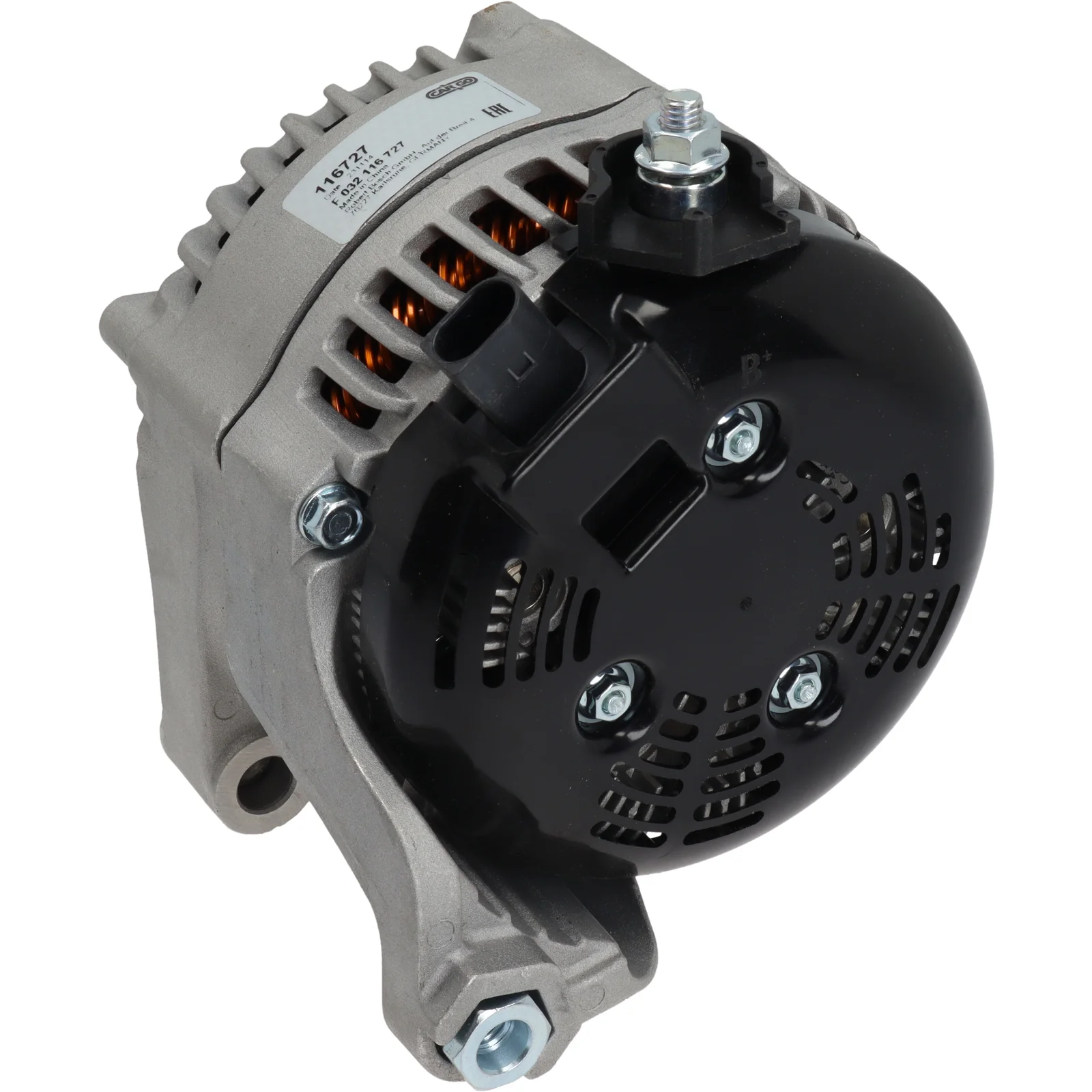

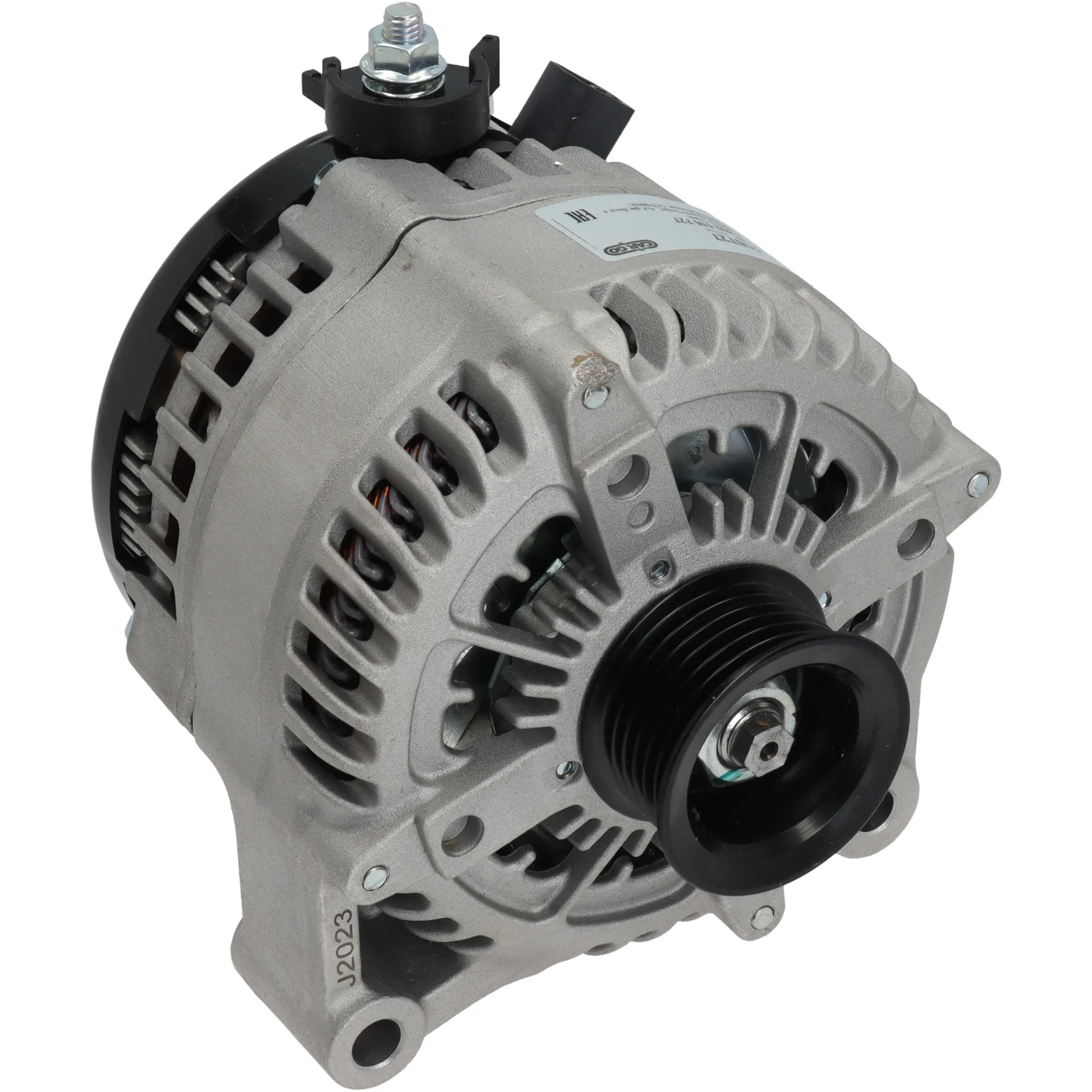

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116727

HC-Cargo Alternator

Technical info:

Voltage: 14, A. m. p.: 210, Rotation: CW, Mounting bracket distributor: 75.50

Description

Generator 12V-210A till BMW 12V - 210A, 6gr, (LIN) För Yourex produkt order 90-040-8555

Voltage: 14
Amp: 210
Pulley dist.: 57.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.50
Bracket hole: 10.00
Belt. adj. brackethole pos.: 44
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 48.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL181
Total length mm: 180.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116727, 1986A01491, 104210-6980, 104210-6981, 104210-6982, 104210-6983, 116727, 7646814, 12317646814, 12317646815

  • Normalised article numbler
    a6590s, cal40519, dan1469, f032116727, lra03910, 1986a01491, 40023, 116727, 287520, 440960, 554984rid, 7646814, 12090854, 32118812, 89216079, 215913210, 0986085550, 1042106980, 1042106981, 1042106982, 1042106983, 12317646814, 12317646815
  • Description
    Generator 12V-210A till BMW 12V - 210A, 6gr, (LIN) För Yourex produkt order 90-040-8555

    Voltage: 14
    Amp: 210
    Pulley dist.: 57.00
    Width/holder arm: 28.00
    Mount. bracket dist.: 75.50
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 44
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 48.50
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL181
    Total length mm: 180.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116727, 1986A01491, 104210-6980, 104210-6981, 104210-6982, 104210-6983, 116727, 7646814, 12317646814, 12317646815

    • Normalised article numbler
      a6590s, cal40519, dan1469, f032116727, lra03910, 1986a01491, 40023, 116727, 287520, 440960, 554984rid, 7646814, 12090854, 32118812, 89216079, 215913210, 0986085550, 1042106980, 1042106981, 1042106982, 1042106983, 12317646814, 12317646815
