HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113978

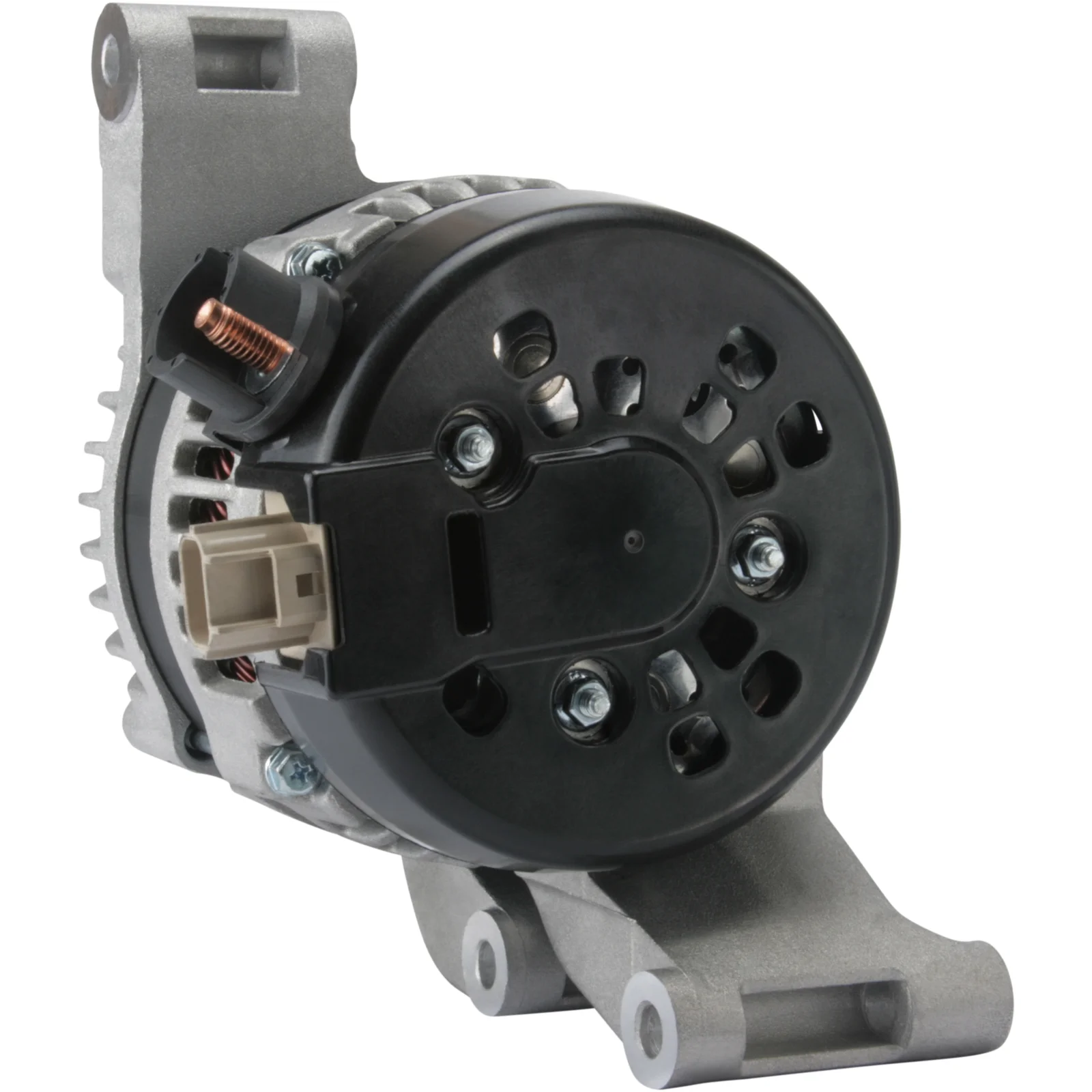

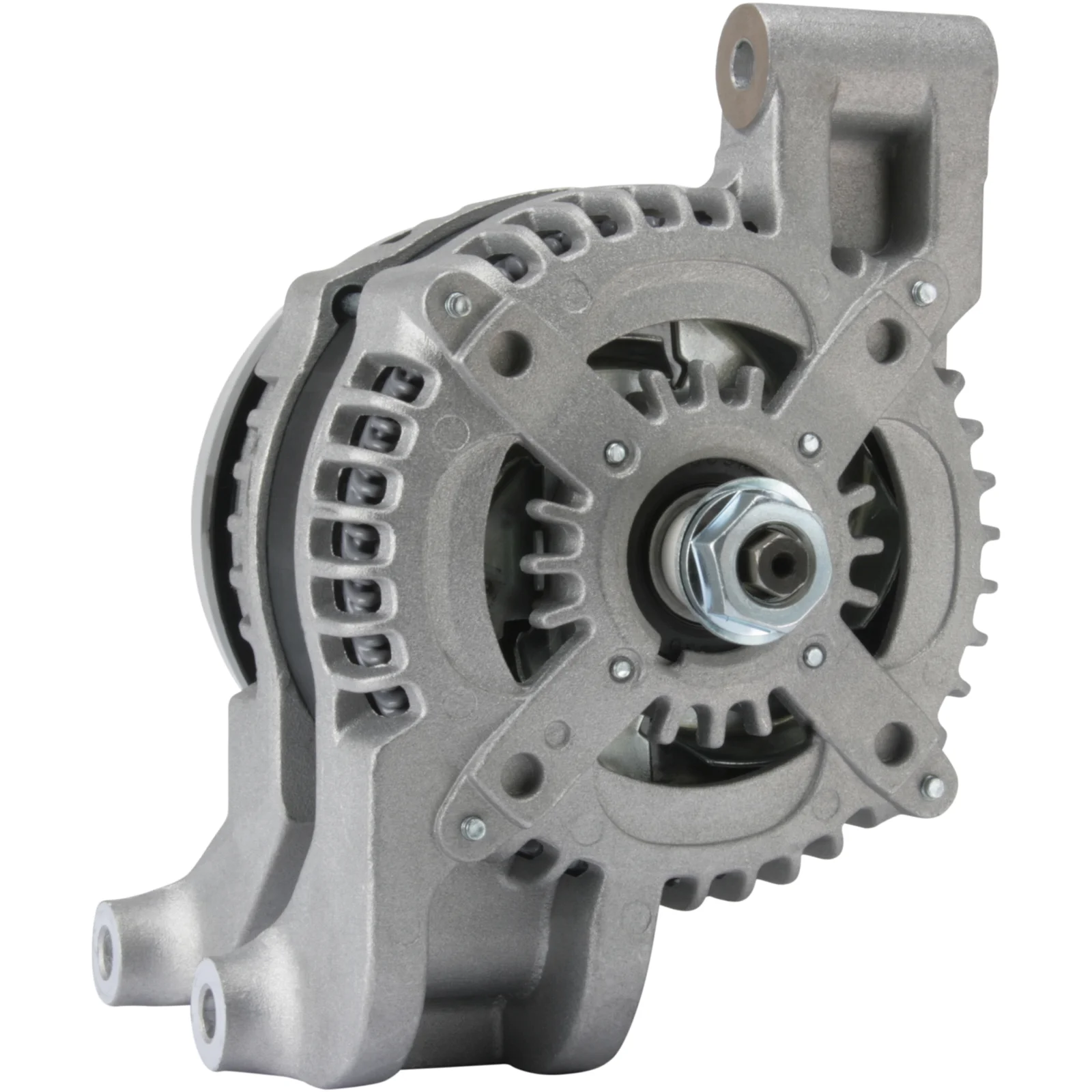

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 120, Rotation: CW, Mounting bracket distance: 68.80

Description

Alternator 12V-120A fits Volvo and others 12V - 120A, 6-pole, with Clutch pulley for Ford Focus with (A/T), for test use test box 89-8219 Connector/Repair Lead : 54-101-0111 For Yourex product order 90-180-3051

Voltage: 14
Amperage: 120
Pulley diameter: 75.00
Width/arm holder: 72.00
Mounting bracket distance: 68.80
Bracket hole: 9.40x8.50
Belt adjustment bracket hole 1: 8.80
Pulley diameter: 49.50
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Pulley: SP/FW
Fan: IF
Regulator type: IR
Product info: BN

Files

  • OEM
    F032113978, R98AB10300GG1, 3M5T-10300VB, 3M5T-10300VC, 3M5T-10300VD, 3M5T10300VA, 3M5T10300VB, 3M5T10300VC, 3M5T10300VD, 1864ir, 1986A01338, 104210-3760, 104210-3761, 104210-3762, 104210-5790, 113978, 1256552, 1406100, 1530299, 1748625, 8603271, 8688170, 30667071, 30755494, 30795494, 36002574

  • Normalised article numbler
    a6011, a6011denso, a6151, cal40336, dan1016, dendan1016, dra0119, f032113978, lra02839, r98ab10300gg1, 3m5t10300va, 3m5t10300vb, 3m5t10300vc, 3m5t10300vd, 8el011711621, 8el738211491, 1864ir, 1986a01338, 4729, 23839r, 112485, 113978, 200022, 210328, 210328a, 274956, 301864ri, 446521, 746991, 747033, 747911, 1256552, 1406100, 1530299, 1748625, 8603271, 8688170, 12090187, 30667071, 30755494, 30795494, 36002574, 0986049670, 0986087100, 1042103760, 1042103761, 1042103762, 1042105790, 5190291202, 063377537010, 944390904670
  • Description
    Alternator 12V-120A fits Volvo and others 12V - 120A, 6-pole, with Clutch pulley for Ford Focus with (A/T), for test use test box 89-8219 Connector/Repair Lead : 54-101-0111 For Yourex product order 90-180-3051

    Voltage: 14
    Amperage: 120
    Pulley diameter: 75.00
    Width/arm holder: 72.00
    Mounting bracket distance: 68.80
    Bracket hole: 9.40x8.50
    Belt adjustment bracket hole 1: 8.80
    Pulley diameter: 49.50
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113978, R98AB10300GG1, 3M5T-10300VB, 3M5T-10300VC, 3M5T-10300VD, 3M5T10300VA, 3M5T10300VB, 3M5T10300VC, 3M5T10300VD, 1864ir, 1986A01338, 104210-3760, 104210-3761, 104210-3762, 104210-5790, 113978, 1256552, 1406100, 1530299, 1748625, 8603271, 8688170, 30667071, 30755494, 30795494, 36002574

    • Normalised article numbler
      a6011, a6011denso, a6151, cal40336, dan1016, dendan1016, dra0119, f032113978, lra02839, r98ab10300gg1, 3m5t10300va, 3m5t10300vb, 3m5t10300vc, 3m5t10300vd, 8el011711621, 8el738211491, 1864ir, 1986a01338, 4729, 23839r, 112485, 113978, 200022, 210328, 210328a, 274956, 301864ri, 446521, 746991, 747033, 747911, 1256552, 1406100, 1530299, 1748625, 8603271, 8688170, 12090187, 30667071, 30755494, 30795494, 36002574, 0986049670, 0986087100, 1042103760, 1042103761, 1042103762, 1042105790, 5190291202, 063377537010, 944390904670
