HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113273

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Pulley dia.: 52.00

Description

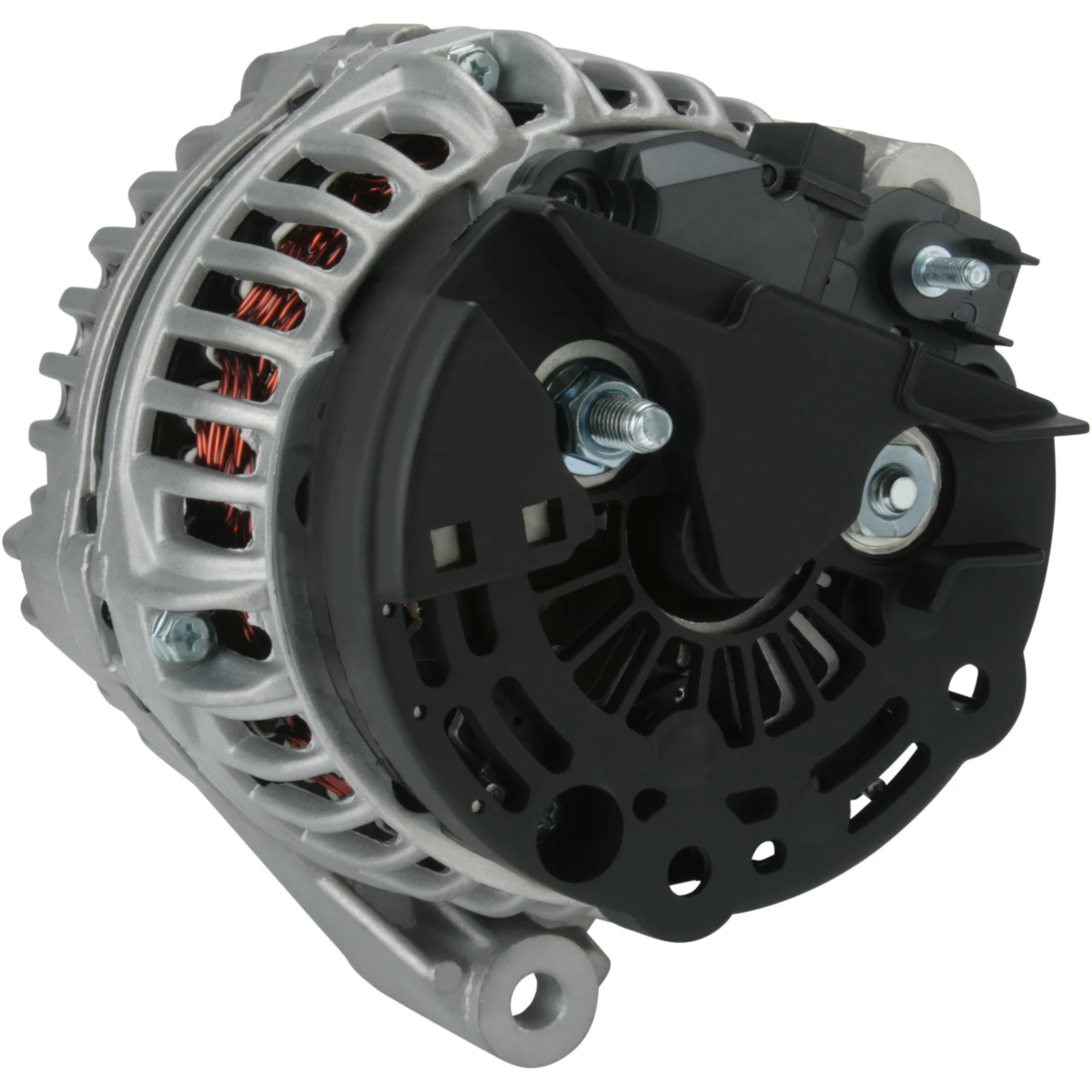

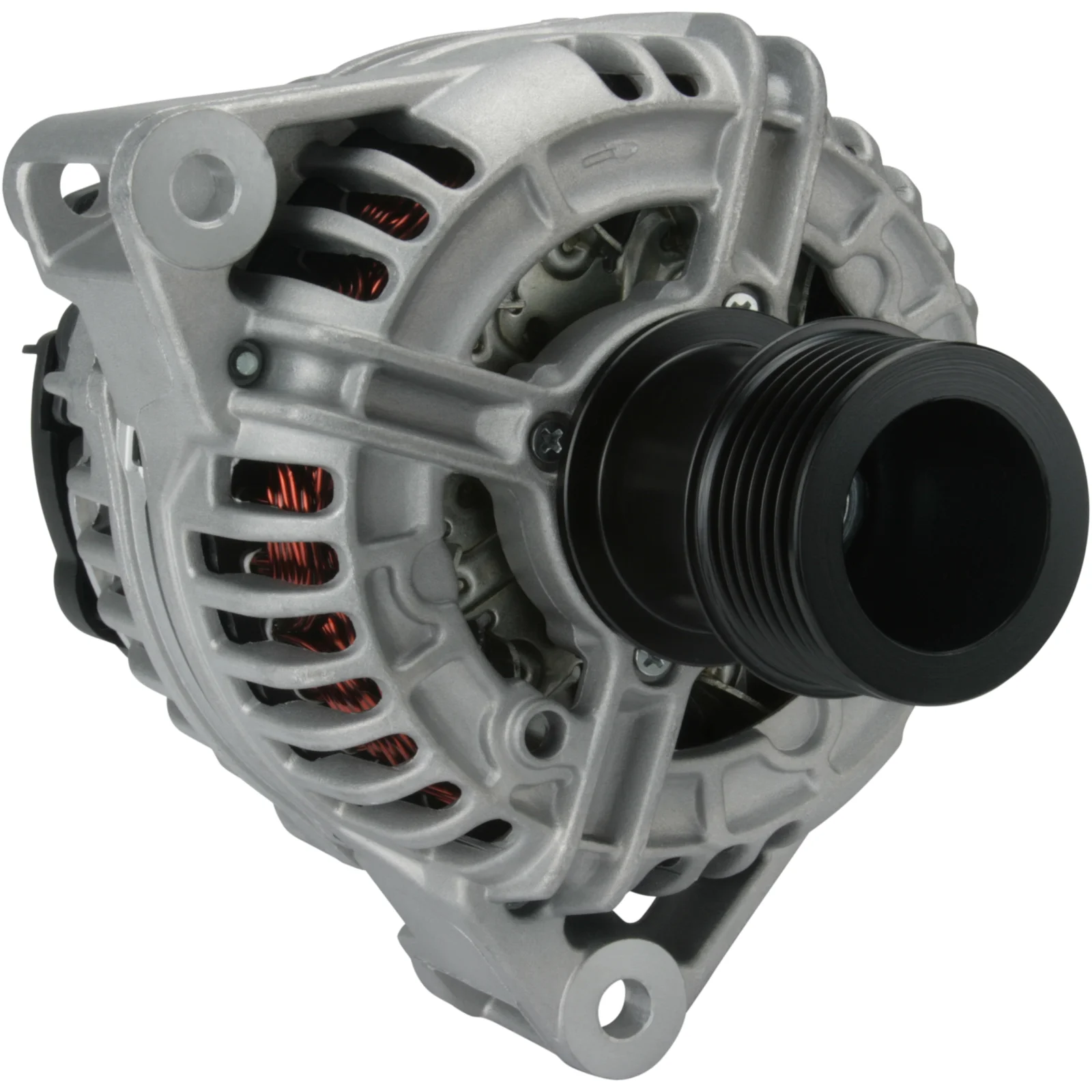

Saab 9-5 Alternator 12V-140A 12V - 140A, 6-rib pulley Alternatively: 90-485-5143 freewheel pulley / clutch pulley For Yourex product order 90-485-4619

Voltage: 14
Amp: 140
Pulley diameter: 118.00
Width/holder arm: 56.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: 10.50
Belt adjustment bracket hole 2: 9.50
Pulley diameter: 52.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
Total length mm: 217.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Saab

Files

  • OEM
    F032113273, SAAB 5248372, 0124 525 016, 0986 046 190, 1683ir, 1986A00882, 113273, 5248372, 93184940, 93184941, 0124525016

  • Normalised article numbler
    a0196, cal10329, dra0585, drb6190, f032113273, lra02343, saab5248372, 8el011712181, 8el738019001, 1683ir, 1986a00882, 4889, 13952, 13952n, 13952r, 111563, 113273, 209045, 209045a, 284843, 301683ri, 440840, 443022, 5248372, 9046190, 12046190, 32046190, 93184940, 93184941, 0124525016, 0986045977, 0986046190, 0986046193, 2311131402
  • Description
    Saab 9-5 Alternator 12V-140A 12V - 140A, 6-rib pulley Alternatively: 90-485-5143 freewheel pulley / clutch pulley For Yourex product order 90-485-4619

    Voltage: 14
    Amp: 140
    Pulley diameter: 118.00
    Width/holder arm: 56.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: 10.50
    Belt adjustment bracket hole 2: 9.50
    Pulley diameter: 52.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    Total length mm: 217.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Saab

    Files

  • Suitable for these vehicles

    • OEM
      F032113273, SAAB 5248372, 0124 525 016, 0986 046 190, 1683ir, 1986A00882, 113273, 5248372, 93184940, 93184941, 0124525016

    • Normalised article numbler
      a0196, cal10329, dra0585, drb6190, f032113273, lra02343, saab5248372, 8el011712181, 8el738019001, 1683ir, 1986a00882, 4889, 13952, 13952n, 13952r, 111563, 113273, 209045, 209045a, 284843, 301683ri, 440840, 443022, 5248372, 9046190, 12046190, 32046190, 93184940, 93184941, 0124525016, 0986045977, 0986046190, 0986046193, 2311131402
