HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116323

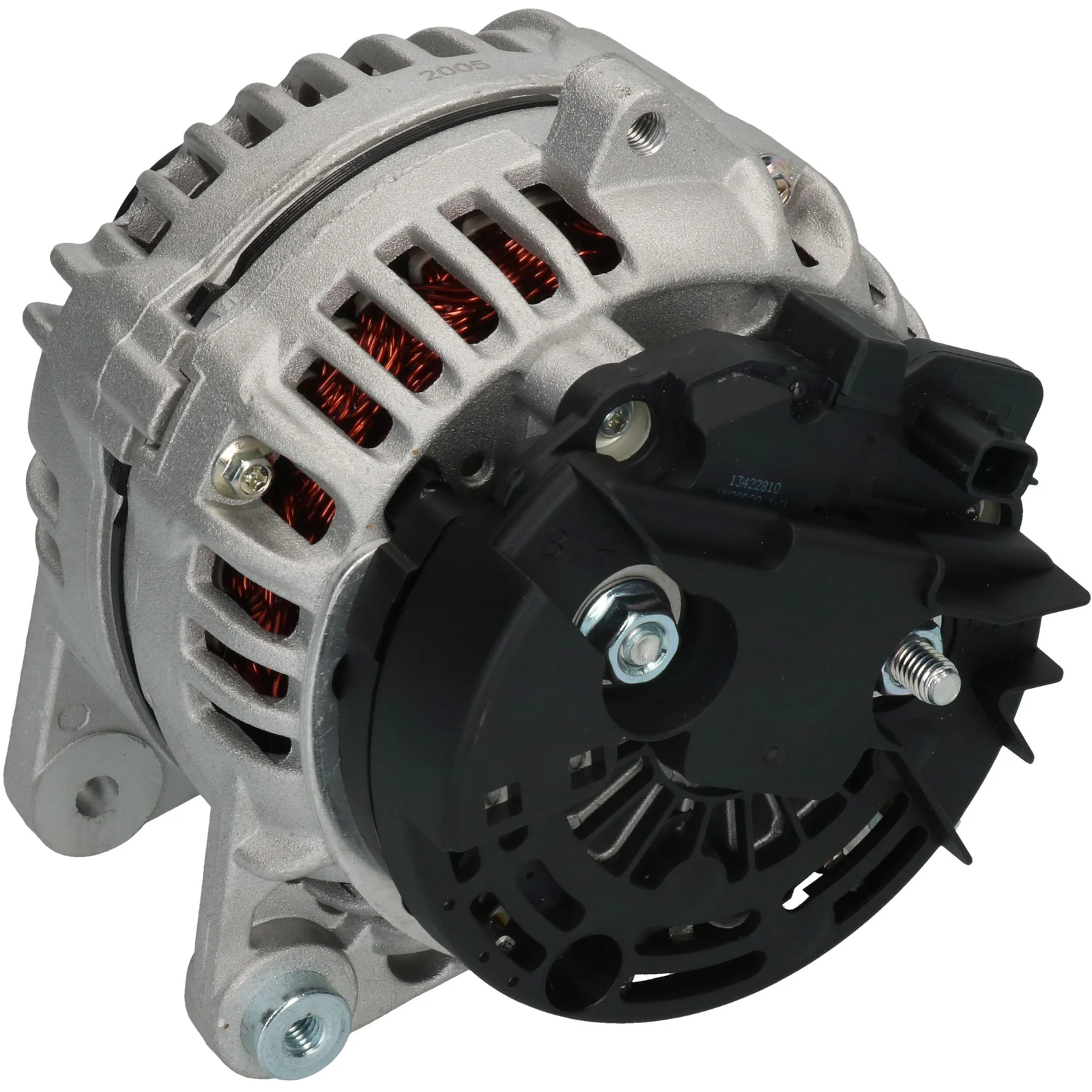

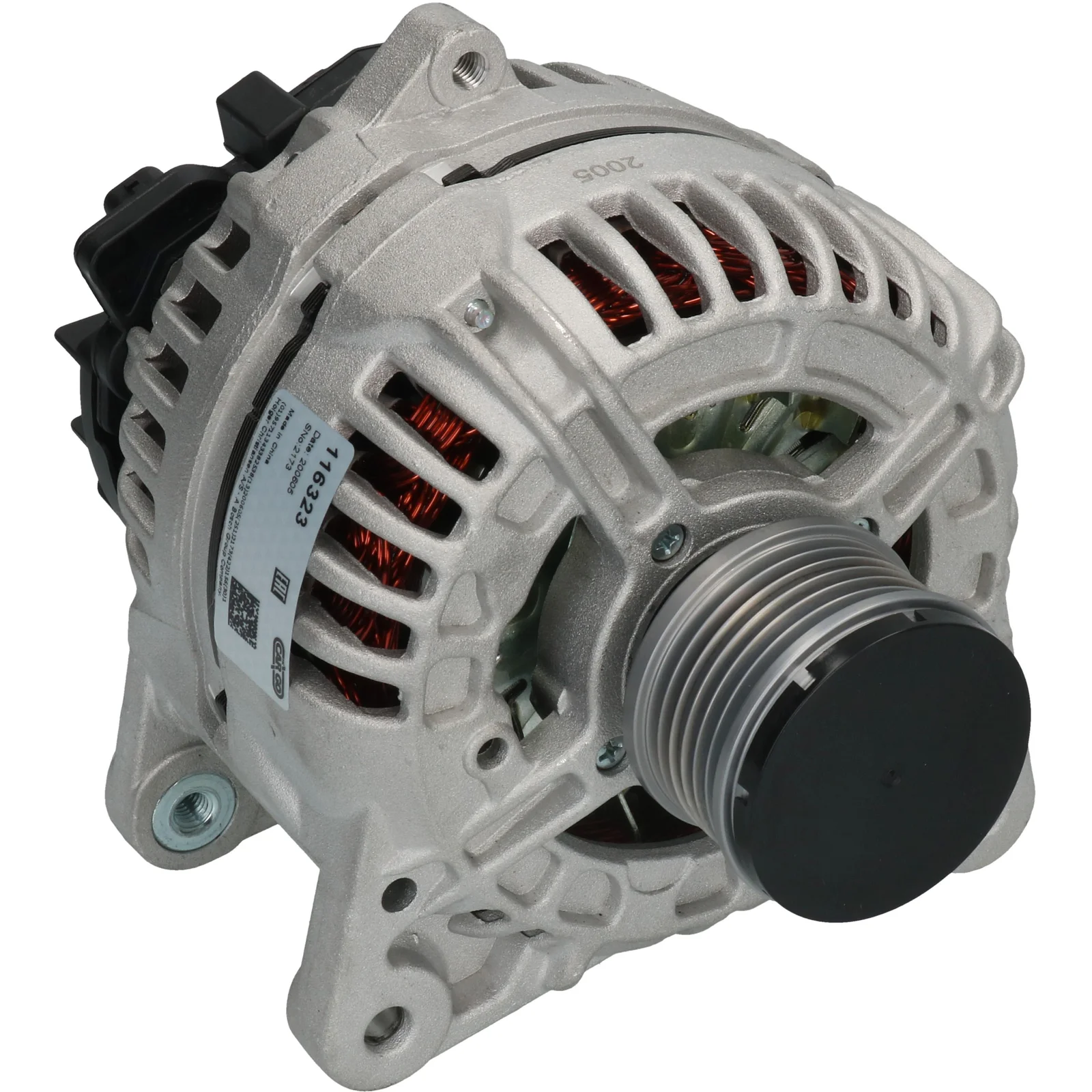

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 60.50

Description

Renault Alternator 12V-150A (COM) 12V - 150A, 6 grooves, (BSS) ID code: 22 for vehicles with air conditioning. For Yourrex product order 90-480-8041

Voltage: 14
Amp: 150
Pulley distance: 39.40
Width/holder arm: 14.40
Mounting bracket distance: 60.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 45
Rotation: CW
Plug number: PL124
Total length mm: 197.00
Terminal type: COM
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116323, TG15C 146, 0124 525 139, 0986 080 410, 1986A00899, 7711 497 409, 23100-0026R, 116323, 440216, 2606272, 2606272a, 0124525081, 0124525139, 0124525534, 8200390676, 8200660034

  • Normalised article numbler
    cal10a51, cal15381, dra0008, f032116323, lea0783, tg15c146, 8el012429391, 1986a00899, 4695, 4893, 112631, 112767, 116323, 210705, 210705a, 285796, 285801, 301974ri, 440216, 2606272, 2606272a, 9212955, 12090883, 32080410, 0124525081, 0124525139, 0124525534, 231000026r, 0986080410, 2303301502, 2303371602, 7711497409, 8200390676, 8200660034
  • Description
    Renault Alternator 12V-150A (COM) 12V - 150A, 6 grooves, (BSS) ID code: 22 for vehicles with air conditioning. For Yourrex product order 90-480-8041

    Voltage: 14
    Amp: 150
    Pulley distance: 39.40
    Width/holder arm: 14.40
    Mounting bracket distance: 60.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 54.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 45
    Rotation: CW
    Plug number: PL124
    Total length mm: 197.00
    Terminal type: COM
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116323, TG15C 146, 0124 525 139, 0986 080 410, 1986A00899, 7711 497 409, 23100-0026R, 116323, 440216, 2606272, 2606272a, 0124525081, 0124525139, 0124525534, 8200390676, 8200660034

    • Normalised article numbler
      cal10a51, cal15381, dra0008, f032116323, lea0783, tg15c146, 8el012429391, 1986a00899, 4695, 4893, 112631, 112767, 116323, 210705, 210705a, 285796, 285801, 301974ri, 440216, 2606272, 2606272a, 9212955, 12090883, 32080410, 0124525081, 0124525139, 0124525534, 231000026r, 0986080410, 2303301502, 2303371602, 7711497409, 8200390676, 8200660034
