HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116561

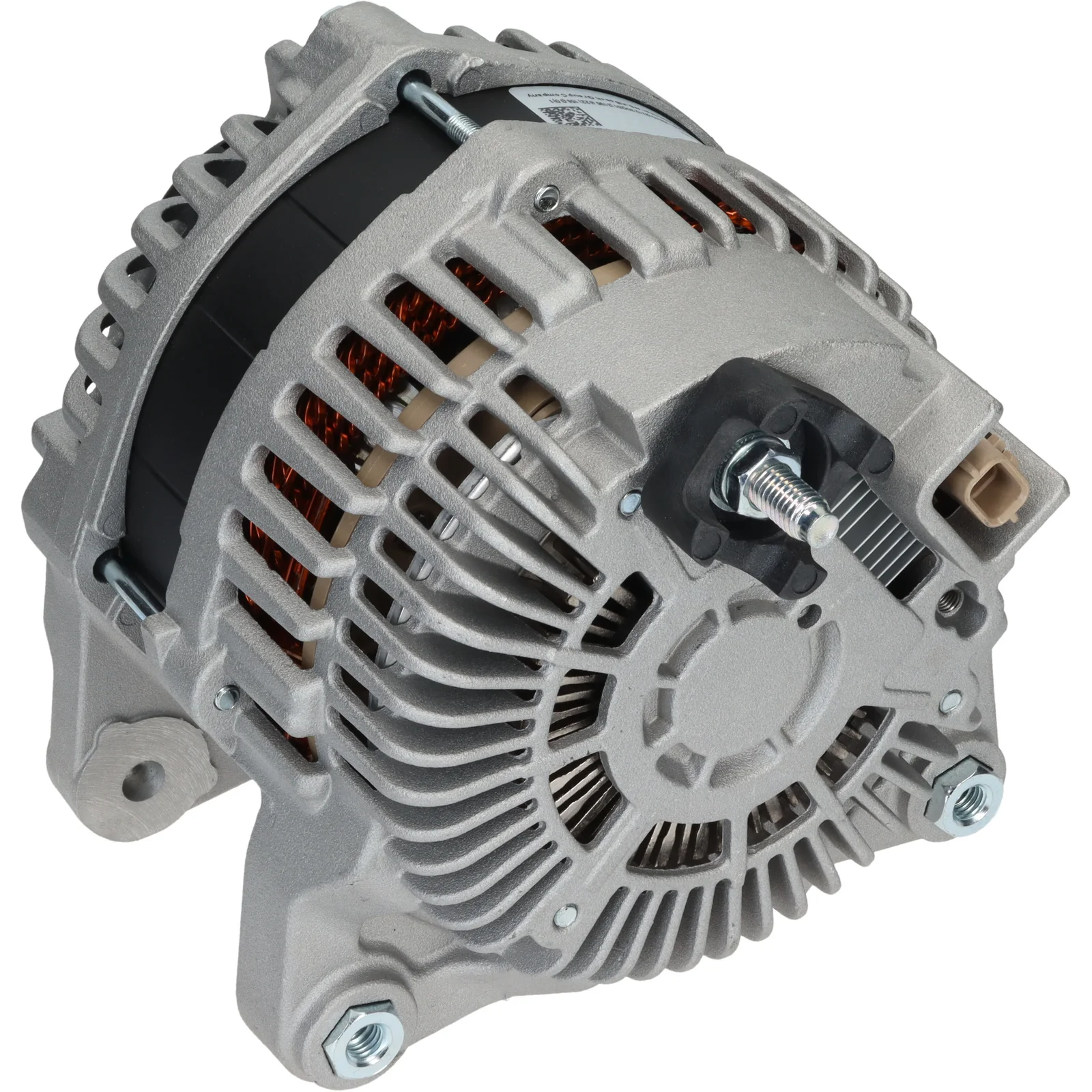

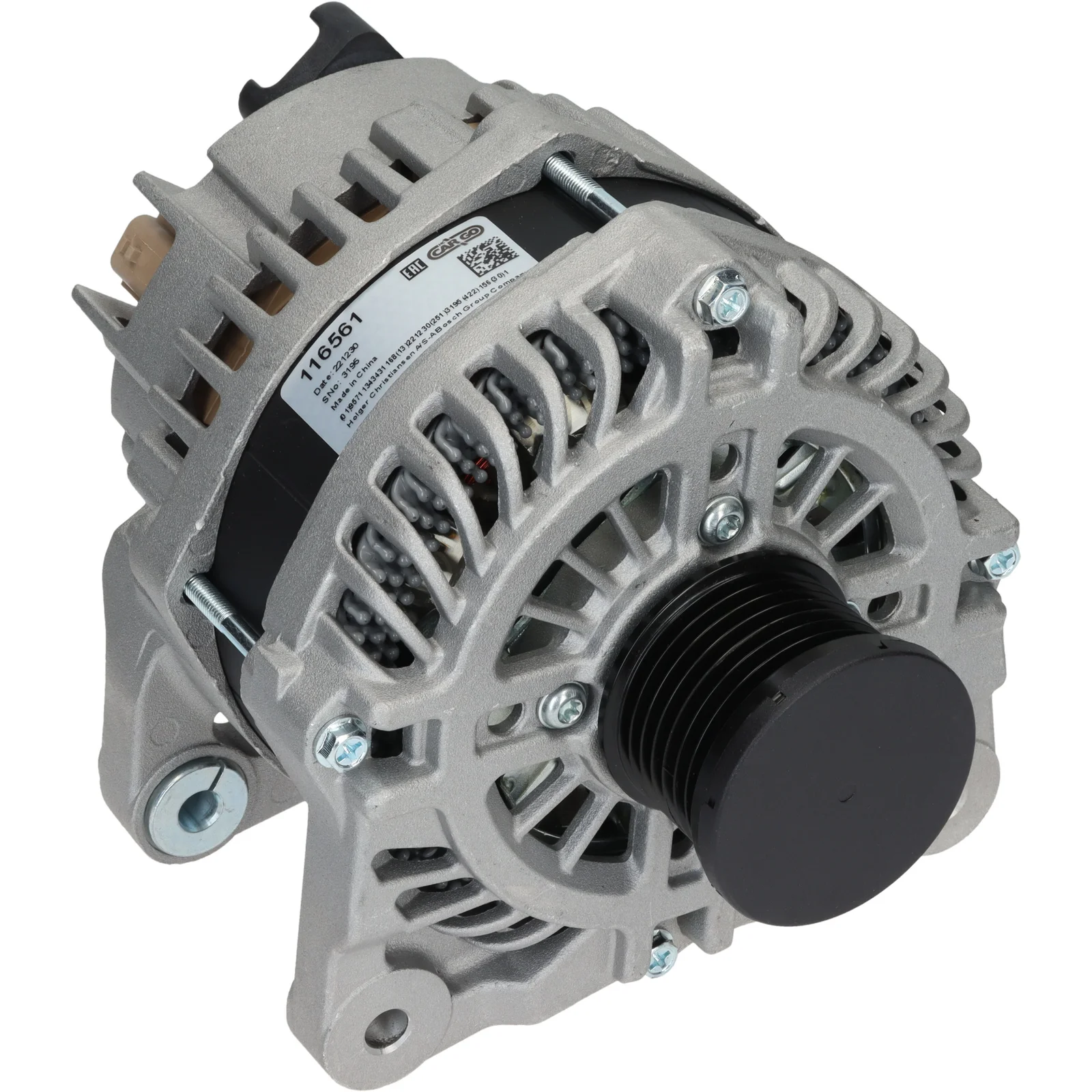

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 185, Rotation: CW, Mount. bracket dist.: 62.50

Description

Voltage: 14
Amp: 185
Pulley dist.: 33.00
Width/holder arm: 14.50
Mount. bracket dist.: 62.50
Bracket hole: 8.70
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.70
Pulley dia.: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL131
Total length mm: 200.00
Terminal type: COM
ID Code: 141
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A003TX1781, A003TX1781ZE, A003TX2581, A3TX1781, A3TX1781ZE, A3TX2581AM, F032116561, 1986A00570, 1986A00688, 23100-00Q5G, 23100-2065R, 23100-4028, 23100-4028R, 23100-9096R, 1202451, 4407988, 93458107, 93461046, 93868640, 95519887, 95521355, 95526588, 231004028R, 231006729, 231009096, 231009096R, 6000616552, 6000620578

  • Normalised article numbler
    a003tx1781, a003tx1781ze, a003tx2581, a3tx1781, a3tx1781ze, a3tx2581am, a5412s, cal35382, dra1475, f032116561, lra04021, 8el015630801, 1986a00570, 1986a00688, 4493, 20535r, 287630, 443437, 444257, 554283ri, 1202451, 2310000q5g, 4407988, 12090846, 82216717, 93458107, 93461046, 93868640, 95519887, 95521355, 95526588, 165903185, 231002065r, 231004028, 231004028r, 231006729, 231009096, 231009096r, 0986085200, 2303591852, 6000616552, 6000620578
  • Description
    Voltage: 14
    Amp: 185
    Pulley dist.: 33.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 62.50
    Bracket hole: 8.70
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.70
    Pulley dia.: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 52
    Rotation: CW
    Plug no.: PL131
    Total length mm: 200.00
    Terminal type: COM
    ID Code: 141
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A003TX1781, A003TX1781ZE, A003TX2581, A3TX1781, A3TX1781ZE, A3TX2581AM, F032116561, 1986A00570, 1986A00688, 23100-00Q5G, 23100-2065R, 23100-4028, 23100-4028R, 23100-9096R, 1202451, 4407988, 93458107, 93461046, 93868640, 95519887, 95521355, 95526588, 231004028R, 231006729, 231009096, 231009096R, 6000616552, 6000620578

    • Normalised article numbler
      a003tx1781, a003tx1781ze, a003tx2581, a3tx1781, a3tx1781ze, a3tx2581am, a5412s, cal35382, dra1475, f032116561, lra04021, 8el015630801, 1986a00570, 1986a00688, 4493, 20535r, 287630, 443437, 444257, 554283ri, 1202451, 2310000q5g, 4407988, 12090846, 82216717, 93458107, 93461046, 93868640, 95519887, 95521355, 95526588, 165903185, 231002065r, 231004028, 231004028r, 231006729, 231009096, 231009096r, 0986085200, 2303591852, 6000616552, 6000620578
