HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116224

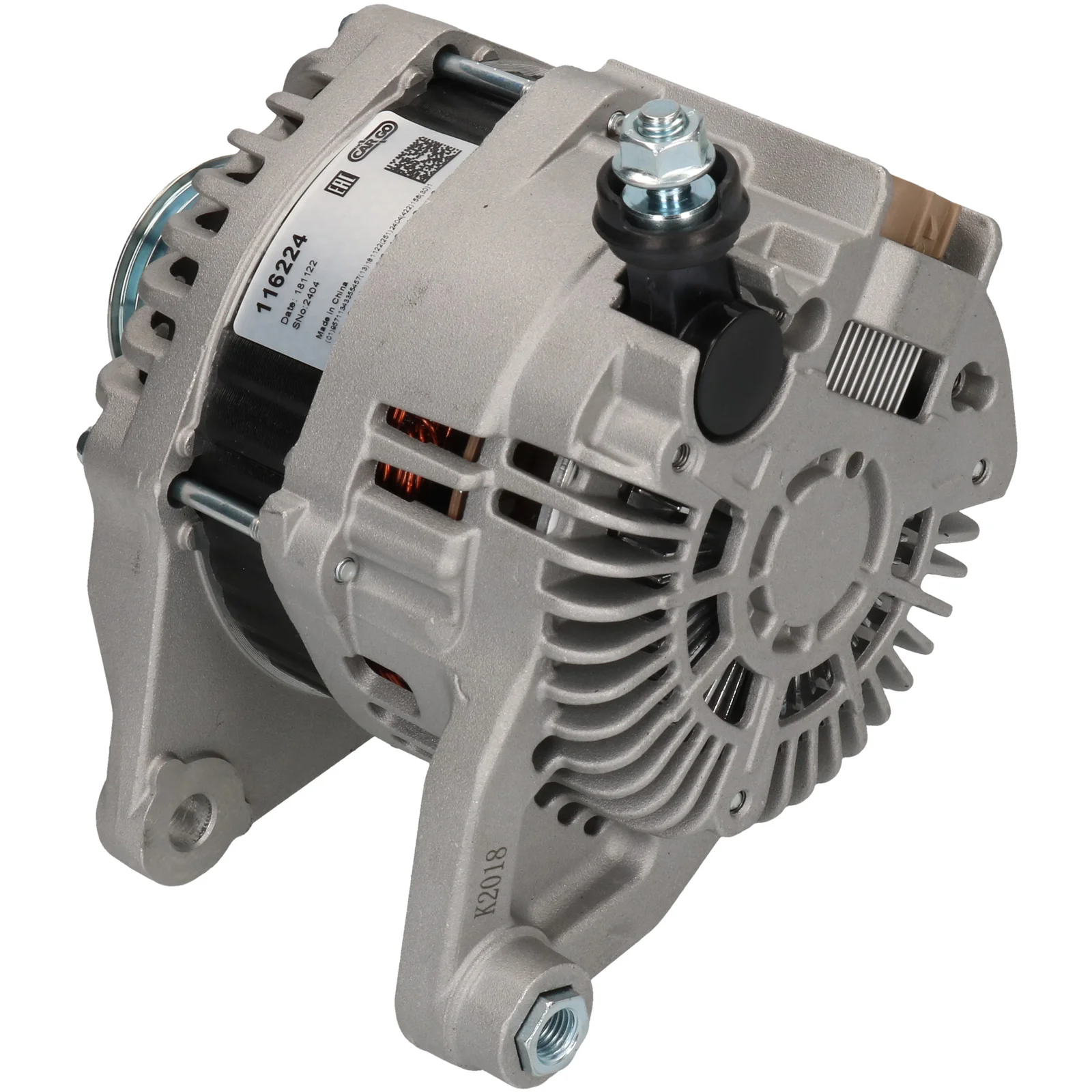

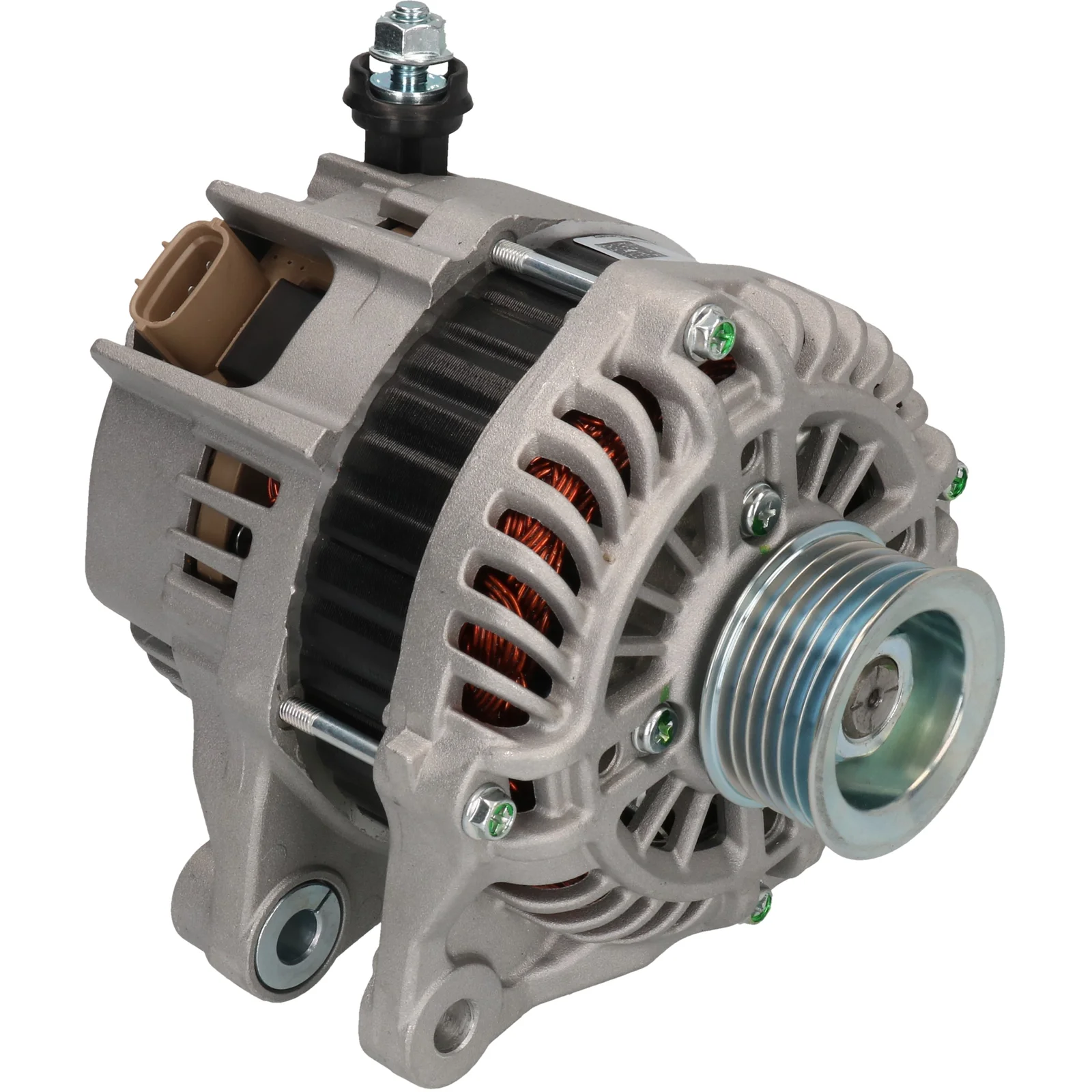

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 66.20

Description

Alternator 12V-100A 12V - 100A, 6 grooves, (- D P) Cars WITHOUT Brake energy recuperation (I-ELOOP)! For Yourex product order 90-360-2004

Voltage: 14
Amperage: 100
Pulley diameter: 44.30
Width/holder arm: 13.00
Mounting bracket distance: 66.20
Bracket hole: 10.50
Belt adjustment bracket hole position: 46
Belt adjustment bracket hole 1: 10.50
Belt adjustment bracket hole 2: M10
Pulley diameter: 51.00
Grooves/pulley: 6
Radius: 93.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug number: PL139
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    A005TJ0591ZT, A005TJ0591ZX, A005TL0491, A5T-J0591, A5T-J0591ZT, A5T-J0591ZX, A5T-L0491, A5TJ0591ZT, A5TJ0591ZX, A5TJ0991, A5TJA091, A5TL0491, F032116224, P31H-18-300B, P51X-18-300, P51X-18-300B, P53N-18-300, P53N-18-300B, PE01-18-300, PEDD-18-300, PEDD-18-400, PSKJ-18-300, 5J-18-300, 1986A00631, 1986A00654, 1986A01904, 116224

  • Normalised article numbler
    a005tj0591zt, a005tj0591zx, a005tl0491, a5337, a5tj0591, a5tj0591zt, a5tj0591zx, a5tj0991, a5tja091, a5tl0491, cal35414, dra1308, dra1368, f032116224, p31h18300b, p51x18300, p51x18300b, p53n18300, p53n18300b, pe0118300, pedd18300, pedd18400, pskj18300, 5j18300, 1986a00631, 1986a00654, 1986a01904, 20288n, 116224, 276985, 12061052, 0986084990
  • Description
    Alternator 12V-100A 12V - 100A, 6 grooves, (- D P) Cars WITHOUT Brake energy recuperation (I-ELOOP)! For Yourex product order 90-360-2004

    Voltage: 14
    Amperage: 100
    Pulley diameter: 44.30
    Width/holder arm: 13.00
    Mounting bracket distance: 66.20
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 46
    Belt adjustment bracket hole 1: 10.50
    Belt adjustment bracket hole 2: M10
    Pulley diameter: 51.00
    Grooves/pulley: 6
    Radius: 93.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug number: PL139
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A005TJ0591ZT, A005TJ0591ZX, A005TL0491, A5T-J0591, A5T-J0591ZT, A5T-J0591ZX, A5T-L0491, A5TJ0591ZT, A5TJ0591ZX, A5TJ0991, A5TJA091, A5TL0491, F032116224, P31H-18-300B, P51X-18-300, P51X-18-300B, P53N-18-300, P53N-18-300B, PE01-18-300, PEDD-18-300, PEDD-18-400, PSKJ-18-300, 5J-18-300, 1986A00631, 1986A00654, 1986A01904, 116224

    • Normalised article numbler
      a005tj0591zt, a005tj0591zx, a005tl0491, a5337, a5tj0591, a5tj0591zt, a5tj0591zx, a5tj0991, a5tja091, a5tl0491, cal35414, dra1308, dra1368, f032116224, p31h18300b, p51x18300, p51x18300b, p53n18300, p53n18300b, pe0118300, pedd18300, pedd18400, pskj18300, 5j18300, 1986a00631, 1986a00654, 1986a01904, 20288n, 116224, 276985, 12061052, 0986084990
