HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115438

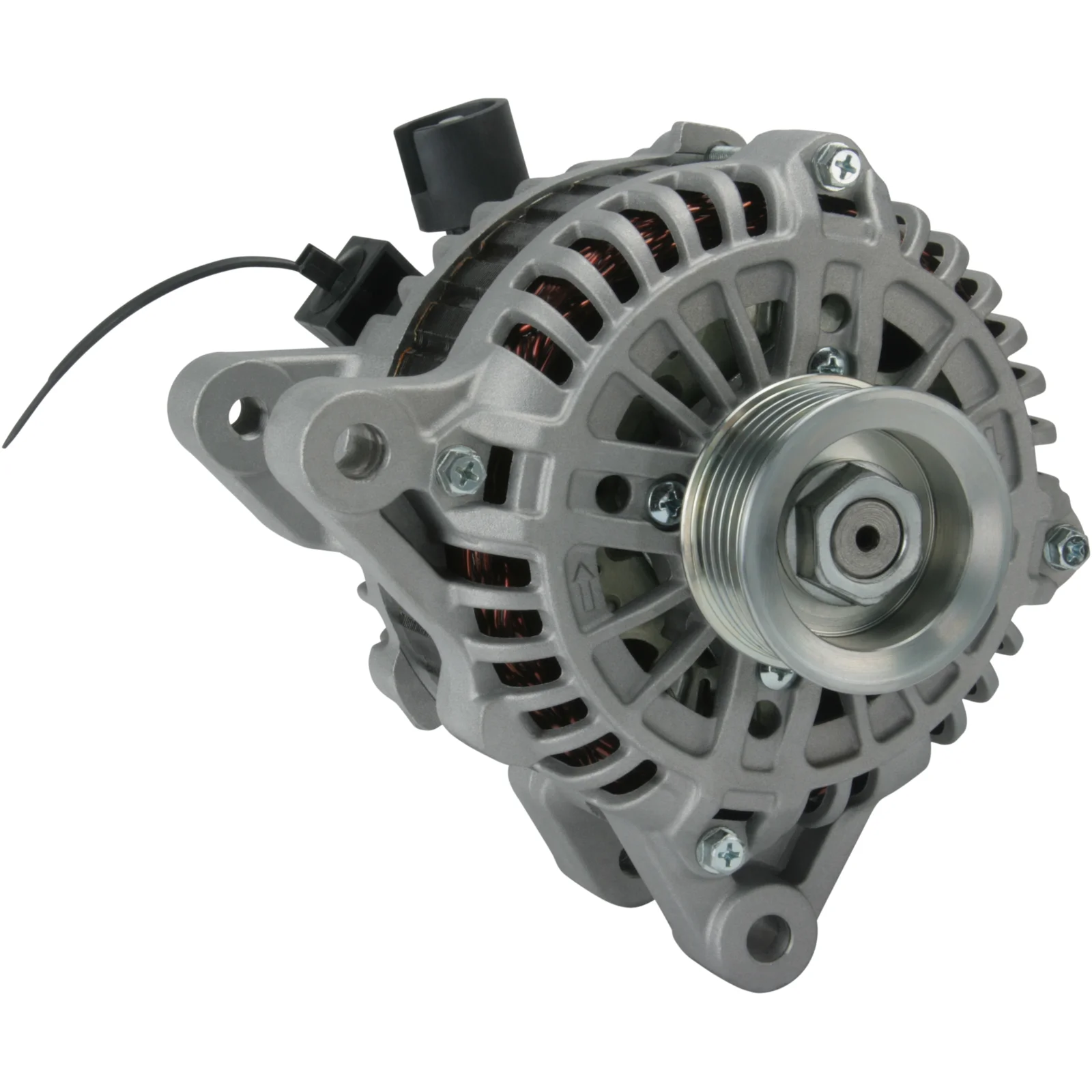

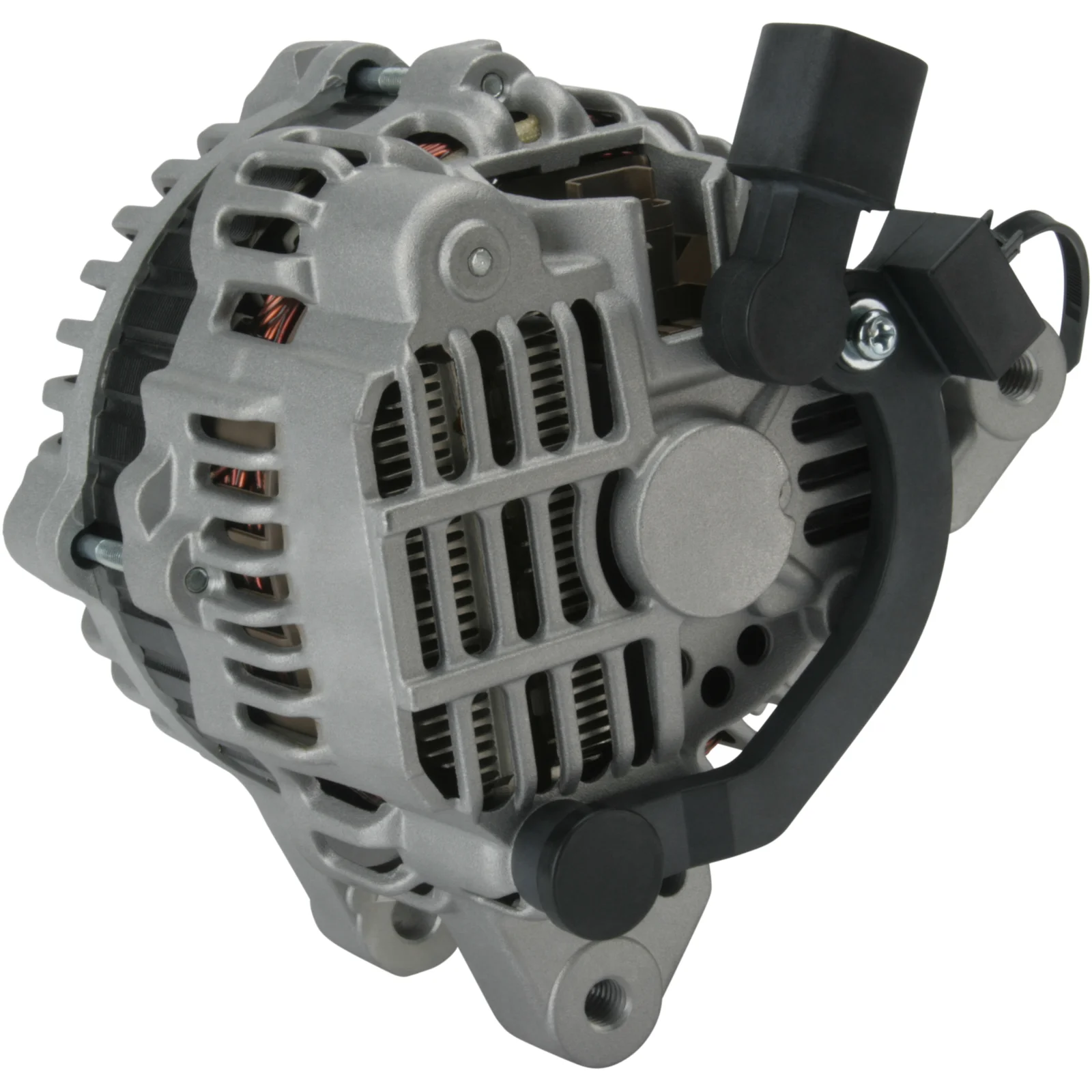

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 45.50

Description

PSA Generator 12V-120A 12V - 120A, 6 grooves, (L, DFM) 6 grooves, (L, DFM) For Yourrex product order 90-450-2691

Voltage: 14
Amp: 120
Pulley distance: 42.50
Width/holder arm: 22.00
Mounting bracket distance: 45.50
Bracket hole: 10.20
Belt adjustment bracket hole position: 14
Belt adjustment bracket hole 1: 10.20
Pulley diameter: 53.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug number: PL72
Total length mm: 180.00
Pulley: SP
Product info: BN

Files

  • OEM
    A003TB2691, A003TB2691B, A003TB2691C, A003TB2691D, A003TB2691E, A003TB2691F, A003TB2691G, A003TB2691H, A003TB2691J, A003TB2691K, A3T-B2691C, A3T-B2691D, A3T-B2691E, A3T-B2691F, A3T-B2691J, A3TB2691, A3TB2691B, A3TB2691C, A3TB2691D, A3TB2691E, A3TB2691F, A3TB2691G, A3TB2691H, A3TB2691J, A3TB2691K, A3TB2691M, A5023, CAL15404, CAL35105, DRA0105, F032115438, F042303118, F042A03118, GA10091, GA15691, SG12S051, SG12S077, 8EL012426-151, 28-4801, 0986 049 091, 1986A00561, 4707, 5702A5, 5705CF, 5705EC, 5705EF, 5705HA, 23311N, 23311R, 57056N, 57058F, 57058H, 112377, 115438, 200231, 210604, 210604A, 301741RI, 439521, 442041, 494714, 747017, 2542526, 2542742, 8400224, 9212865, 12049090, 32002311, 0986049091, 1608881080, 9639396580, 9640088080, 9641214980, 9642124980, 9801895380, 9807344880

  • Normalised article numbler
    a003tb2691, a003tb2691b, a003tb2691c, a003tb2691d, a003tb2691e, a003tb2691f, a003tb2691g, a003tb2691h, a003tb2691j, a003tb2691k, a3tb2691, a3tb2691b, a3tb2691c, a3tb2691d, a3tb2691e, a3tb2691f, a3tb2691g, a3tb2691h, a3tb2691j, a3tb2691k, a3tb2691m, a5023, cal15404, cal35105, dra0105, f032115438, f042303118, f042a03118, ga10091, ga15691, sg12s051, sg12s077, 8el012426151, 1986a00561, 4707, 5702a5, 5705cf, 5705ec, 5705ef, 5705ha, 23311n, 23311r, 57056n, 57058f, 57058h, 112377, 115438, 200231, 210604, 210604a, 284801, 301741ri, 439521, 442041, 494714, 747017, 2542526, 2542742, 8400224, 9212865, 12049090, 32002311, 0986049091, 1608881080, 9639396580, 9640088080, 9641214980, 9642124980, 9801895380, 9807344880
  • Description
    PSA Generator 12V-120A 12V - 120A, 6 grooves, (L, DFM) 6 grooves, (L, DFM) For Yourrex product order 90-450-2691

    Voltage: 14
    Amp: 120
    Pulley distance: 42.50
    Width/holder arm: 22.00
    Mounting bracket distance: 45.50
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 14
    Belt adjustment bracket hole 1: 10.20
    Pulley diameter: 53.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug number: PL72
    Total length mm: 180.00
    Pulley: SP
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TB2691, A003TB2691B, A003TB2691C, A003TB2691D, A003TB2691E, A003TB2691F, A003TB2691G, A003TB2691H, A003TB2691J, A003TB2691K, A3T-B2691C, A3T-B2691D, A3T-B2691E, A3T-B2691F, A3T-B2691J, A3TB2691, A3TB2691B, A3TB2691C, A3TB2691D, A3TB2691E, A3TB2691F, A3TB2691G, A3TB2691H, A3TB2691J, A3TB2691K, A3TB2691M, A5023, CAL15404, CAL35105, DRA0105, F032115438, F042303118, F042A03118, GA10091, GA15691, SG12S051, SG12S077, 8EL012426-151, 28-4801, 0986 049 091, 1986A00561, 4707, 5702A5, 5705CF, 5705EC, 5705EF, 5705HA, 23311N, 23311R, 57056N, 57058F, 57058H, 112377, 115438, 200231, 210604, 210604A, 301741RI, 439521, 442041, 494714, 747017, 2542526, 2542742, 8400224, 9212865, 12049090, 32002311, 0986049091, 1608881080, 9639396580, 9640088080, 9641214980, 9642124980, 9801895380, 9807344880

    • Normalised article numbler
      a003tb2691, a003tb2691b, a003tb2691c, a003tb2691d, a003tb2691e, a003tb2691f, a003tb2691g, a003tb2691h, a003tb2691j, a003tb2691k, a3tb2691, a3tb2691b, a3tb2691c, a3tb2691d, a3tb2691e, a3tb2691f, a3tb2691g, a3tb2691h, a3tb2691j, a3tb2691k, a3tb2691m, a5023, cal15404, cal35105, dra0105, f032115438, f042303118, f042a03118, ga10091, ga15691, sg12s051, sg12s077, 8el012426151, 1986a00561, 4707, 5702a5, 5705cf, 5705ec, 5705ef, 5705ha, 23311n, 23311r, 57056n, 57058f, 57058h, 112377, 115438, 200231, 210604, 210604a, 284801, 301741ri, 439521, 442041, 494714, 747017, 2542526, 2542742, 8400224, 9212865, 12049090, 32002311, 0986049091, 1608881080, 9639396580, 9640088080, 9641214980, 9642124980, 9801895380, 9807344880
