HC-Cargo Alternator
HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113657

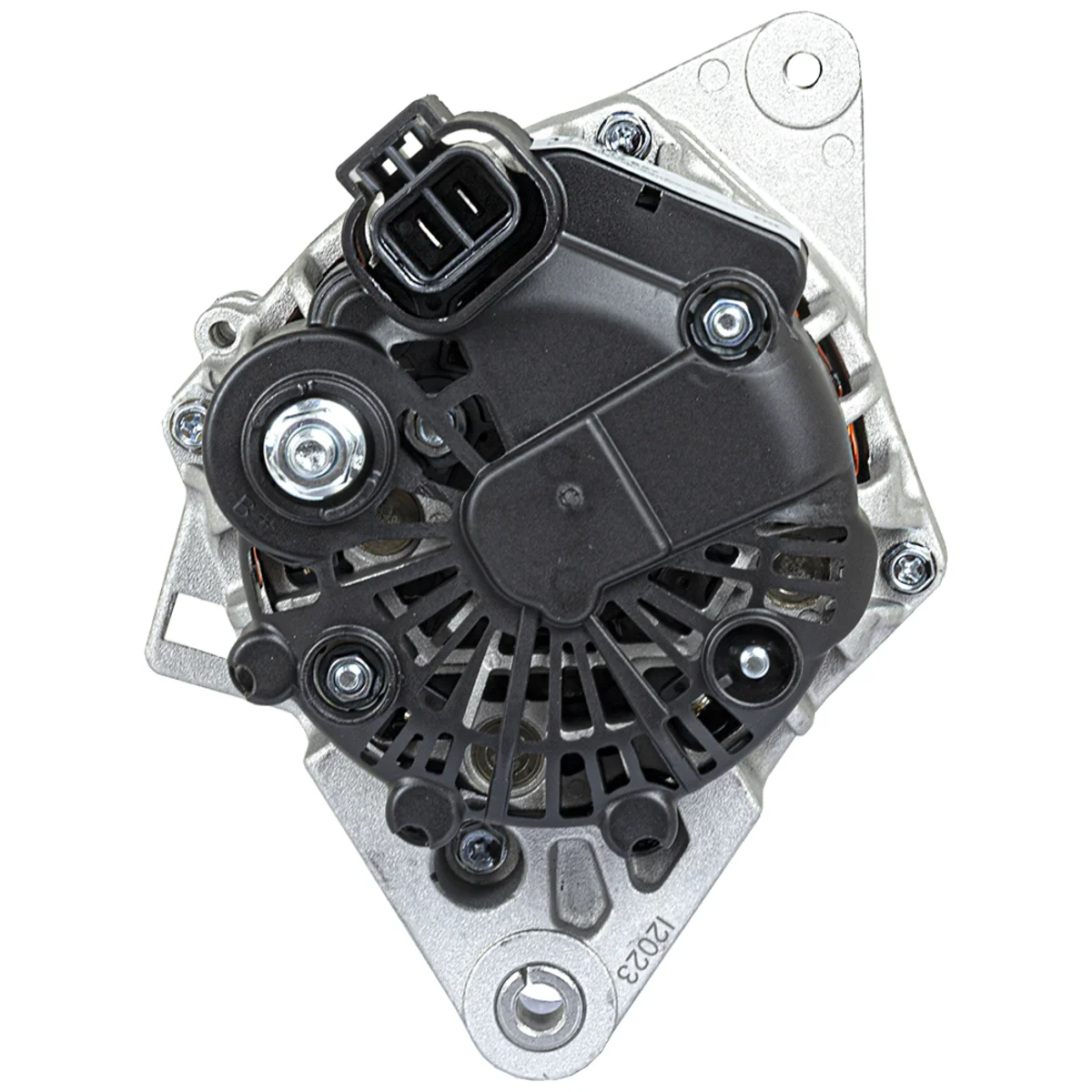

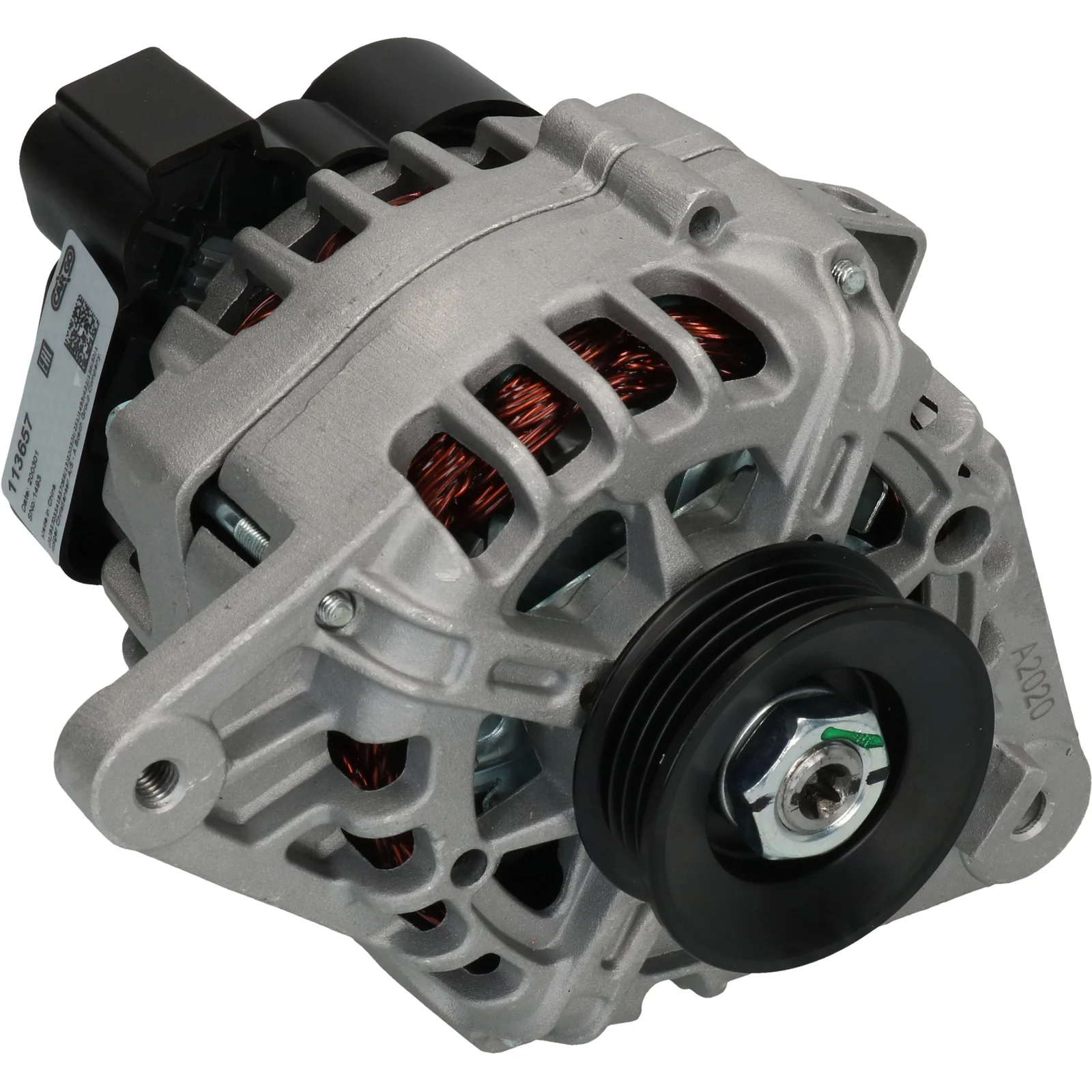

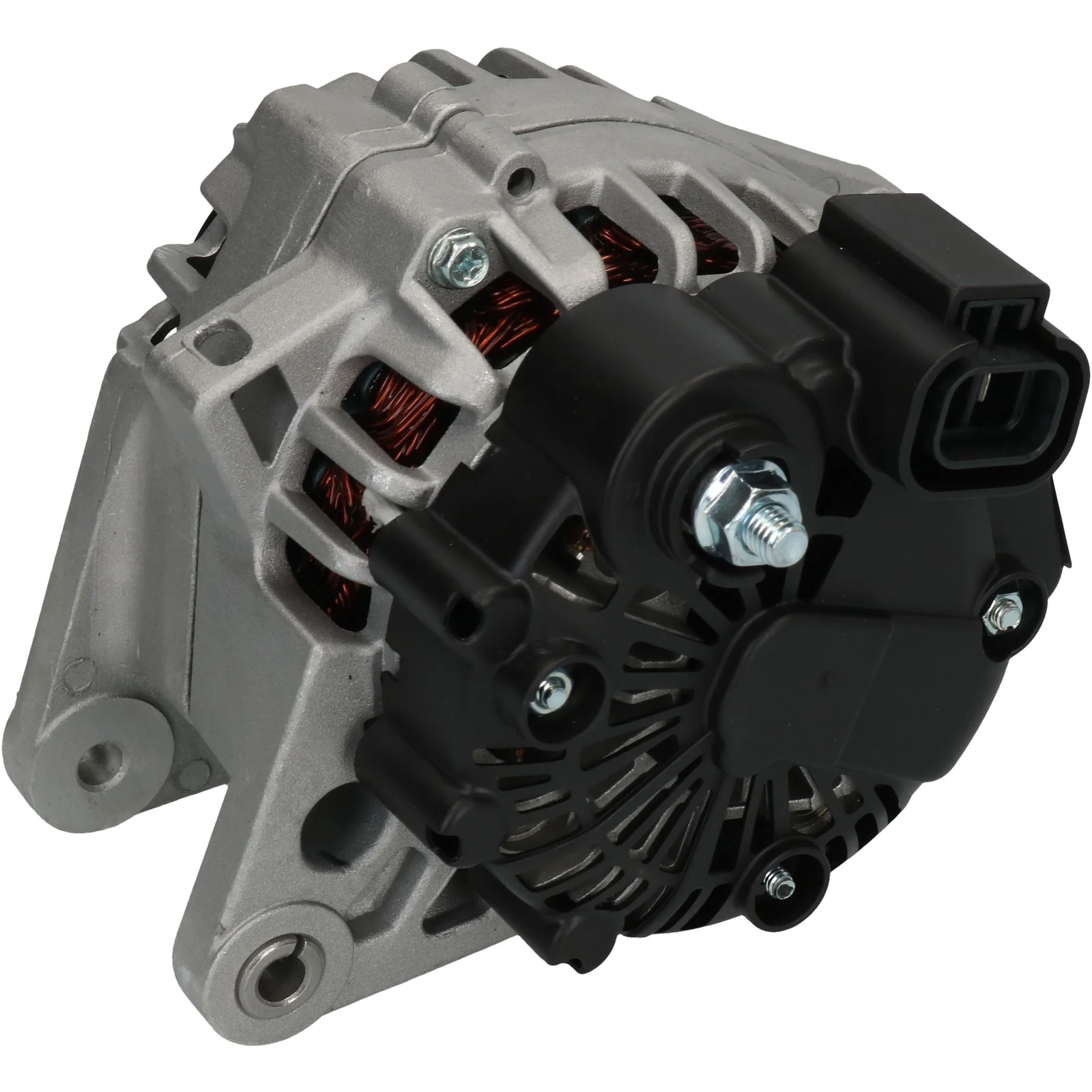

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket of the distributor: 55.20

Description

HC-Cargo Alternator 12V-90A 12V - 90A, 4 grooves, (L, -) 4 grooves, (L, -) For Yourex product order 90-228-2265 Voltage: 14 Amperage: 90 Pulley distance: 34.60 Width/holder arm: 13.00 Mounting bracket distance: 55.20 Bracket hole: 8.20 Belt adjustment bracket hole position: 55 Belt adjustment bracket hole 1: M8 Pulley diameter: 57.70 Grooves/pulley: 4 Radius: 90.00 Radius 2: 89.00 B+: M8 Position/B+ in min.: 46 D+ size: Plug Rotation: CW Plug number: PL100 Total length mm: 174.00 Pulley: SP Regulator type: IR Product info: BN Servicing: Hyundai

Files

  • OEM
    A000 2655023, A0002655023, AB 190147, AB190147, F032113657, ja1789ir, TG9S018, 90-228-2265, 1986A01255, 37300-22650, 37300-23600, 113657, 440103, 2455023, 2655023

  • Normalised article numbler
    a0002655023, a3369pr, a80040, a9008, a9008mando, ab190147, alt3022, cal32110, dra4178, f032113657, f042200048, f042205099, f042206002, f042206017, f042303002, f042a03002, j5110517, ja1789ir, lea0553, lra02320, tg9s018, 8el011711311, 1986a01255, 11011, 11011n, 11011r, 13973, 13973n, 13973r, 113657, 119357, 210022, 210022a, 284814, 401789ri, 439651, 440103, 440104, 442056, 600242, 600712, 600713, 600737, 746161, 746961, 2455023, 2655023, 9213498, 12060857, 063532602, 226170902, 902282265, 0986049191, 3730022650, 3730023600, 063532602010
  • Description
    HC-Cargo Alternator 12V-90A 12V - 90A, 4 grooves, (L, -) 4 grooves, (L, -) For Yourex product order 90-228-2265 Voltage: 14 Amperage: 90 Pulley distance: 34.60 Width/holder arm: 13.00 Mounting bracket distance: 55.20 Bracket hole: 8.20 Belt adjustment bracket hole position: 55 Belt adjustment bracket hole 1: M8 Pulley diameter: 57.70 Grooves/pulley: 4 Radius: 90.00 Radius 2: 89.00 B+: M8 Position/B+ in min.: 46 D+ size: Plug Rotation: CW Plug number: PL100 Total length mm: 174.00 Pulley: SP Regulator type: IR Product info: BN Servicing: Hyundai

    Files

  • Suitable for these vehicles

    • OEM
      A000 2655023, A0002655023, AB 190147, AB190147, F032113657, ja1789ir, TG9S018, 90-228-2265, 1986A01255, 37300-22650, 37300-23600, 113657, 440103, 2455023, 2655023

    • Normalised article numbler
      a0002655023, a3369pr, a80040, a9008, a9008mando, ab190147, alt3022, cal32110, dra4178, f032113657, f042200048, f042205099, f042206002, f042206017, f042303002, f042a03002, j5110517, ja1789ir, lea0553, lra02320, tg9s018, 8el011711311, 1986a01255, 11011, 11011n, 11011r, 13973, 13973n, 13973r, 113657, 119357, 210022, 210022a, 284814, 401789ri, 439651, 440103, 440104, 442056, 600242, 600712, 600713, 600737, 746161, 746961, 2455023, 2655023, 9213498, 12060857, 063532602, 226170902, 902282265, 0986049191, 3730022650, 3730023600, 063532602010
