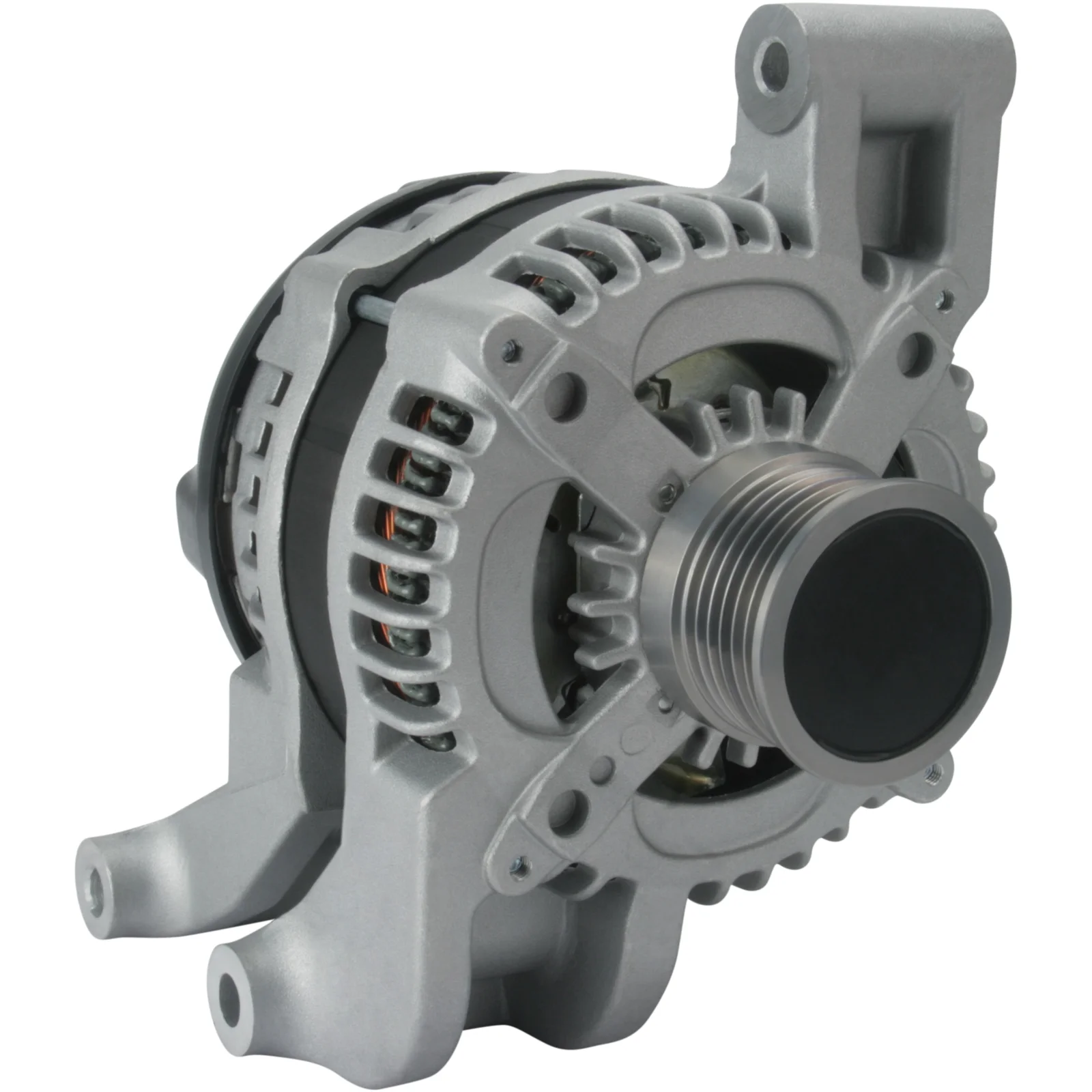

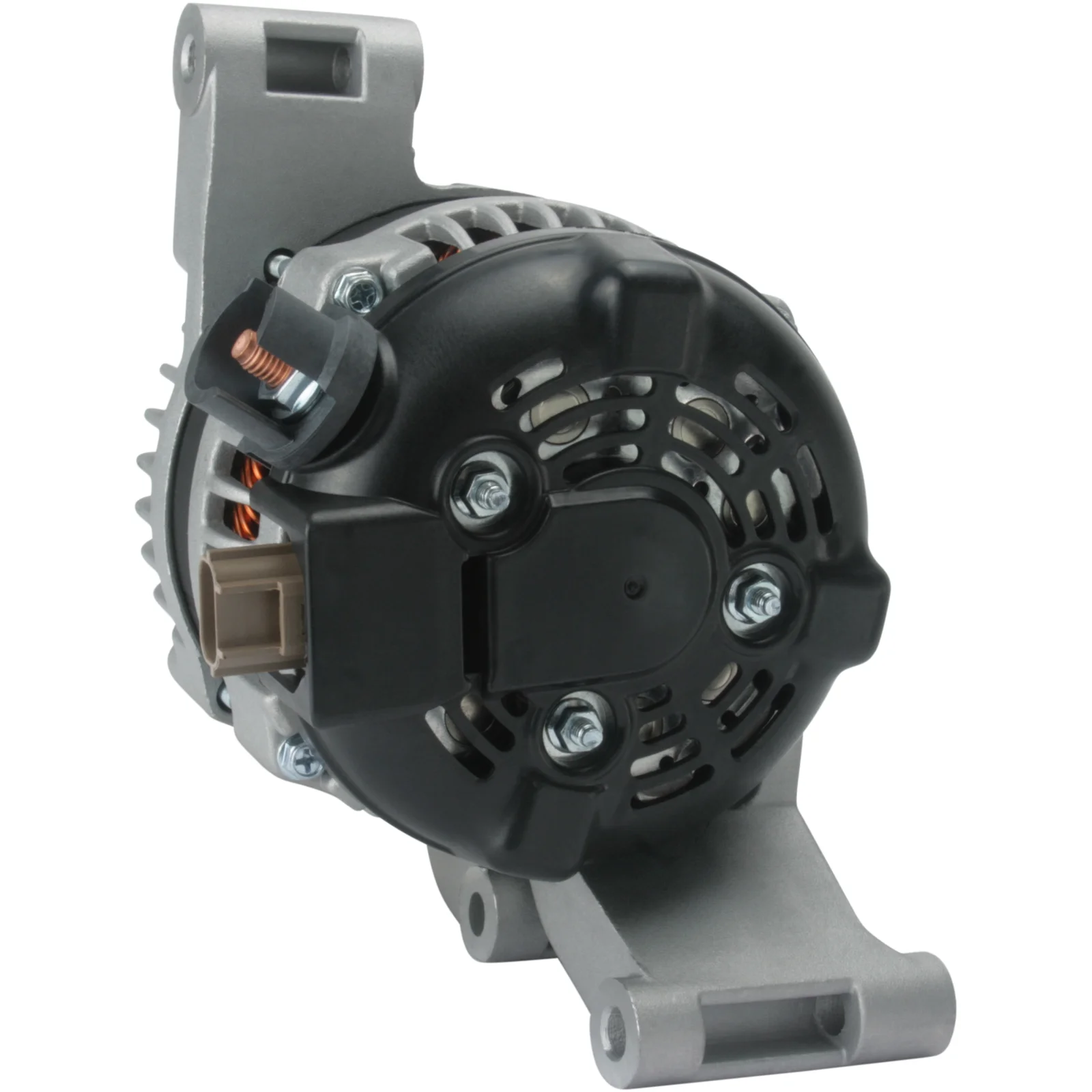

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114083

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 68.00

Description

Generator 12V-150A fits Volvo 12V - 150A, (LI, RC, BVS), 6-pin contact piece / Repair Lead: 54-101-0111 For Yourex product order 90-600-7072 Voltage: 14 Amp: 150 Pulley distance: 75.00 Width / holder arm: 72.00 Mounting bracket distance: 68.00 Bracket hole: 8.60x9.60 Bracket hole 2: 9.40 Belt adjustment bracket hole position: 5 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.50 Grooves / pulley: 6 Radius: 89.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 50 D+ size: Plug Rotation: clockwise Plug number: PL57 Total length mm: 180.00 Pulley: SP / FW Regulator type: IR Product info: BN

Files

  • OEM
    F032114083, 3M5T-10300NB, 3M5T-10300NC, 3M5T10300NB, 3M5T10300NC, 1931ir, 1986A01207, 104210-1190, 104210-2750, 104210-3821, 104210-5770, 104211-8480, 114083, 1633079, 8603272, 30667072, 30795495, 36002575, 63377420

  • Normalised article numbler
    a6049, a6049denso, cal40269, dan934, dendan934, dra0086, f032114083, lra03069, 3m5t10300nb, 3m5t10300nc, 8el011712001, 0986ur6381, 1931ir, 1986a01207, 24070n, 24070r, 112960, 114083, 210441, 210441a, 275681, 301931ri, 440975, 1633079, 8603272, 9090693, 12090208, 30667072, 30795495, 32118750, 36002575, 063377420, 63377420, 105512150, 0986082590, 1042101190, 1042102750, 1042103821, 1042105770, 1042118480, 5190291502, 063377420010, 944390904320
  • Description
    Generator 12V-150A fits Volvo 12V - 150A, (LI, RC, BVS), 6-pin contact piece / Repair Lead: 54-101-0111 For Yourex product order 90-600-7072 Voltage: 14 Amp: 150 Pulley distance: 75.00 Width / holder arm: 72.00 Mounting bracket distance: 68.00 Bracket hole: 8.60x9.60 Bracket hole 2: 9.40 Belt adjustment bracket hole position: 5 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 49.50 Grooves / pulley: 6 Radius: 89.00 Radius 2: 90.00 B+: M8 Position / B+ in min.: 50 D+ size: Plug Rotation: clockwise Plug number: PL57 Total length mm: 180.00 Pulley: SP / FW Regulator type: IR Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114083, 3M5T-10300NB, 3M5T-10300NC, 3M5T10300NB, 3M5T10300NC, 1931ir, 1986A01207, 104210-1190, 104210-2750, 104210-3821, 104210-5770, 104211-8480, 114083, 1633079, 8603272, 30667072, 30795495, 36002575, 63377420

    • Normalised article numbler
      a6049, a6049denso, cal40269, dan934, dendan934, dra0086, f032114083, lra03069, 3m5t10300nb, 3m5t10300nc, 8el011712001, 0986ur6381, 1931ir, 1986a01207, 24070n, 24070r, 112960, 114083, 210441, 210441a, 275681, 301931ri, 440975, 1633079, 8603272, 9090693, 12090208, 30667072, 30795495, 32118750, 36002575, 063377420, 63377420, 105512150, 0986082590, 1042101190, 1042102750, 1042103821, 1042105770, 1042118480, 5190291502, 063377420010, 944390904320
