HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115356

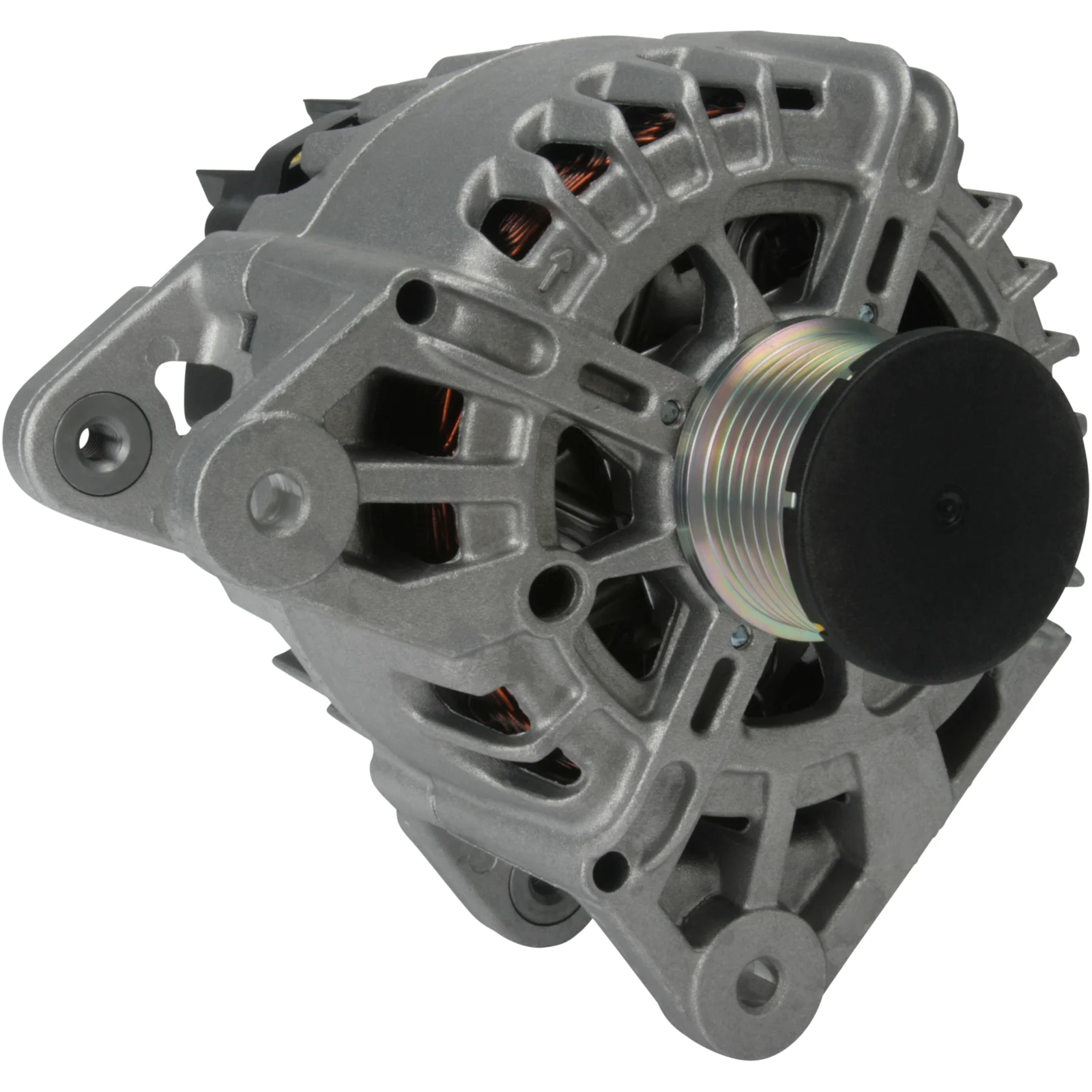

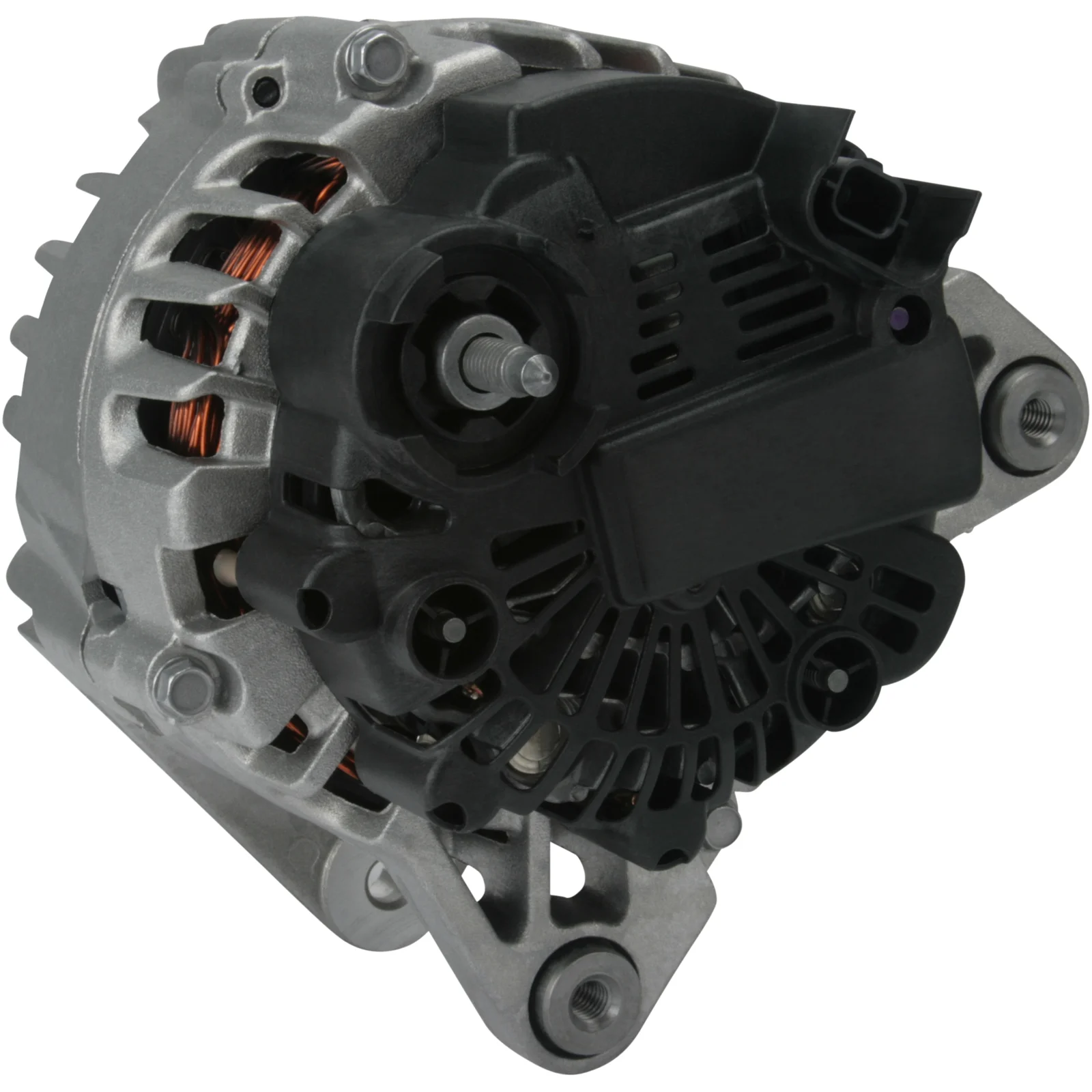

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 150, Rotation: CW, Mounting bracket distributor: 60.80

Description

HC-Cargo alternator Alternative=90-480-8125 Voltage: 14 Amp: 150 Pulley distance: 33.00 Width/holder arm: 14.00 Mounting bracket distance: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 48.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 50 Rotation: CW Plug no.: PL131 Total length mm: 192.00 Terminal type: COM Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A606523A, F000BL080N, F032115356, FG15T030, 1986A01503, 23100-7033R, 2606523B, 95519362, 231007033R, 231008125R

  • Normalised article numbler
    a3224, a3224valeo, a606523a, cal15420, dra0807, f000bl080n, f032115356, fg15t030, 8el011713751, 1986a01503, 24045n, 200212, 209165, 209165a, 285929, 439766, 440358, 554164ri, 2606523b, 12090507, 32005001, 95519362, 231007033r, 231008125r, 575933150, 0986085800, 2303471502
  • Description
    HC-Cargo alternator Alternative=90-480-8125 Voltage: 14 Amp: 150 Pulley distance: 33.00 Width/holder arm: 14.00 Mounting bracket distance: 60.80 Bracket hole: 8.50 Belt adjustment bracket hole position: 45 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 48.50 Grooves/pulley: 7 Radius: 90.00 Radius 2: 90.00 B+: M8 Position/B+ in minutes: 50 Rotation: CW Plug no.: PL131 Total length mm: 192.00 Terminal type: COM Pulley: SP/FW Regulator type: IR Product info: BN Remarks: This alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A606523A, F000BL080N, F032115356, FG15T030, 1986A01503, 23100-7033R, 2606523B, 95519362, 231007033R, 231008125R

    • Normalised article numbler
      a3224, a3224valeo, a606523a, cal15420, dra0807, f000bl080n, f032115356, fg15t030, 8el011713751, 1986a01503, 24045n, 200212, 209165, 209165a, 285929, 439766, 440358, 554164ri, 2606523b, 12090507, 32005001, 95519362, 231007033r, 231008125r, 575933150, 0986085800, 2303471502
