HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112274

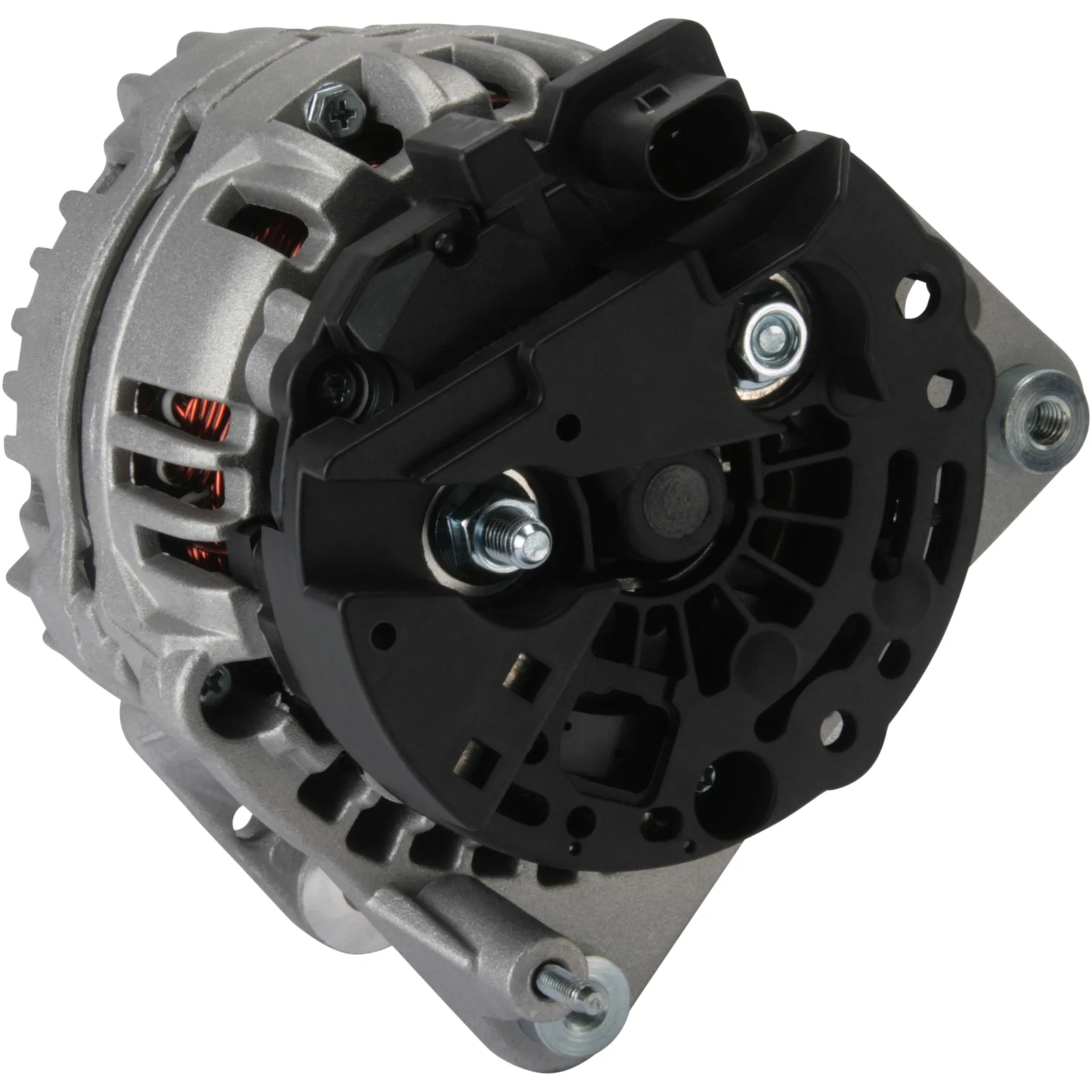

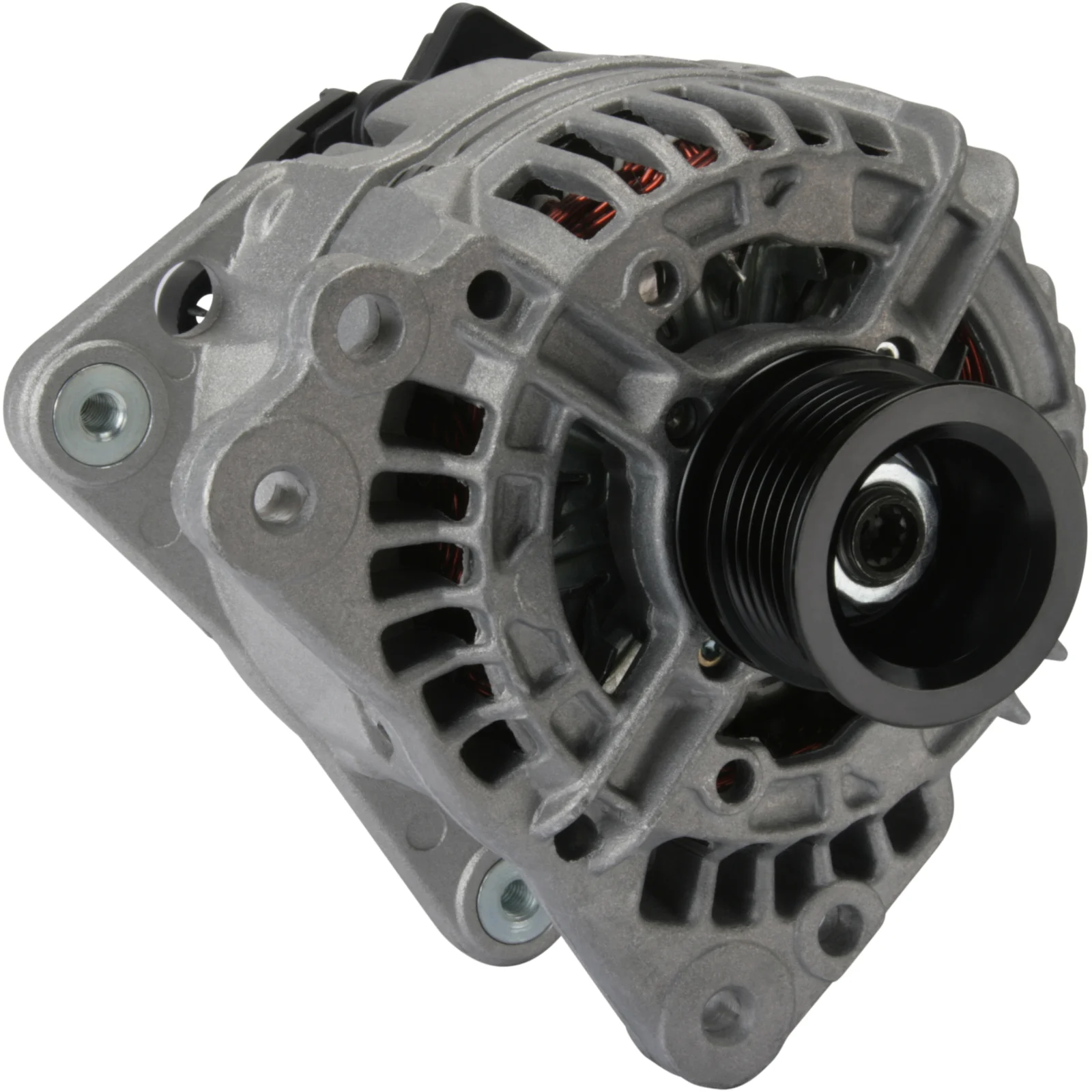

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Mounting bracket distributor: 61.40

Description

VW Alternator 12V-90A 12V - 90A, 6gr, (L, DFM) 12V - 90A, 6gr (L, DFM), 70A typ = 90-513-4264 For Yourex product order 90-620-4192

Voltage: 14
Amp: 90
Pulley distance: 39.50
Width / holder arm: 14.00
Mounting bracket distance: 61.40
Bracket hole: 8.50
Belt tension bracket hole position: 45
Belt tension bracket hole 1: 8.50
Pulley diameter: 49.60
Grooves / pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position / B+ in min.: 45
D+ size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 185.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: VW

Files

  • OEM
    a13vi223, aak5545, F032112274, SG9B 024, sg9b024, 11.203.314, 0124 325 013, 0124 325 032, 0986 041 920, 1542ir, 1986A00773, 1986A00782, 1986A01103, 1986A01135, 112274, 1516485R, 2541998, 2542282, 2542282C, 9517212, 037903025G, 037903025m, 037903025N, 037903025t, 038903018a, 038903018R, 038903018RX, 047903015h, 0124325013, 0124325032, 0124325150

  • Normalised article numbler
    a0027sr, a0037pr, a0042, a0042bosch, a0042pr, a13vi223, a3197pr, a3197valeo, a3333pr, a3388s, aak5545, alt10286, alt10347, alth088, cal10229, cal15376, drb1920, drb1920n, drb1920x, f032112274, f042206000, f042a0h088, ia1148, lea0635, lrb00481, mg557, sg9b024, 8el011360871, 8el011710481, 1542ir, 1986a00773, 1986a00782, 1986a01103, 1986a01135, 4061, 4561, 13852n6g, 21478r, 21491n, 21491r, 112274, 119798, 200015, 210045, 210045a, 283784, 301542ri, 437169, 437404, 439445, 442023, 443124, 494709, 746873, 839023, 1516485r, 2541998, 2542282, 2542282c, 9041920, 9517212, 11203314, 12041920, 12042620, 32041920, 037903025g, 037903025m, 037903025n, 037903025t, 038903018a, 038903018r, 038903018rx, 047903015h, 0124325013, 0124325032, 0124325150, 211183902, 211302902, 0986041920, 063533250130, 063533250320, 944390419200
  • Description
    VW Alternator 12V-90A 12V - 90A, 6gr, (L, DFM) 12V - 90A, 6gr (L, DFM), 70A typ = 90-513-4264 For Yourex product order 90-620-4192

    Voltage: 14
    Amp: 90
    Pulley distance: 39.50
    Width / holder arm: 14.00
    Mounting bracket distance: 61.40
    Bracket hole: 8.50
    Belt tension bracket hole position: 45
    Belt tension bracket hole 1: 8.50
    Pulley diameter: 49.60
    Grooves / pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position / B+ in min.: 45
    D+ size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 185.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: VW

    Files

  • Suitable for these vehicles

    • OEM
      a13vi223, aak5545, F032112274, SG9B 024, sg9b024, 11.203.314, 0124 325 013, 0124 325 032, 0986 041 920, 1542ir, 1986A00773, 1986A00782, 1986A01103, 1986A01135, 112274, 1516485R, 2541998, 2542282, 2542282C, 9517212, 037903025G, 037903025m, 037903025N, 037903025t, 038903018a, 038903018R, 038903018RX, 047903015h, 0124325013, 0124325032, 0124325150

    • Normalised article numbler
      a0027sr, a0037pr, a0042, a0042bosch, a0042pr, a13vi223, a3197pr, a3197valeo, a3333pr, a3388s, aak5545, alt10286, alt10347, alth088, cal10229, cal15376, drb1920, drb1920n, drb1920x, f032112274, f042206000, f042a0h088, ia1148, lea0635, lrb00481, mg557, sg9b024, 8el011360871, 8el011710481, 1542ir, 1986a00773, 1986a00782, 1986a01103, 1986a01135, 4061, 4561, 13852n6g, 21478r, 21491n, 21491r, 112274, 119798, 200015, 210045, 210045a, 283784, 301542ri, 437169, 437404, 439445, 442023, 443124, 494709, 746873, 839023, 1516485r, 2541998, 2542282, 2542282c, 9041920, 9517212, 11203314, 12041920, 12042620, 32041920, 037903025g, 037903025m, 037903025n, 037903025t, 038903018a, 038903018r, 038903018rx, 047903015h, 0124325013, 0124325032, 0124325150, 211183902, 211302902, 0986041920, 063533250130, 063533250320, 944390419200
