HC-Cargo Alternator

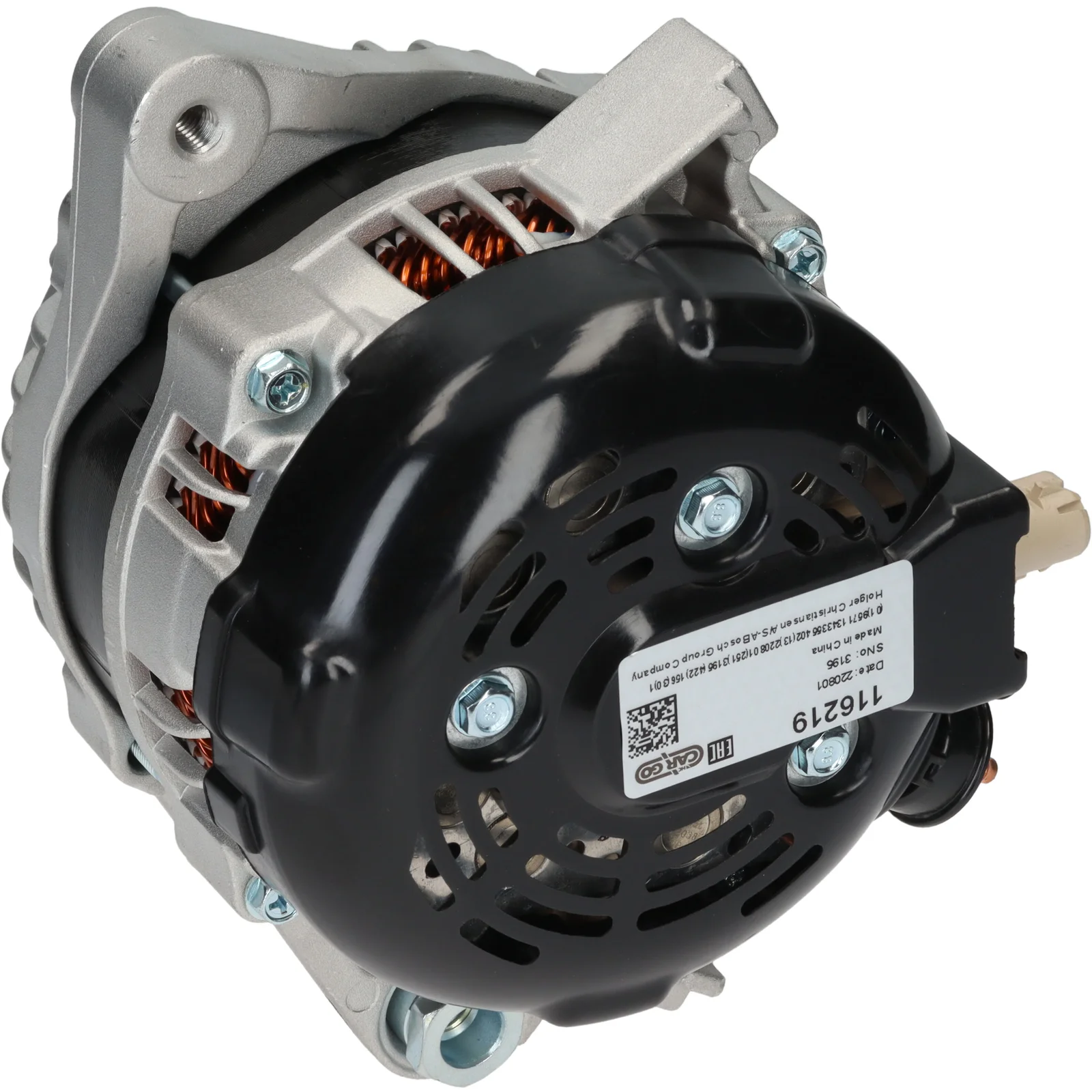

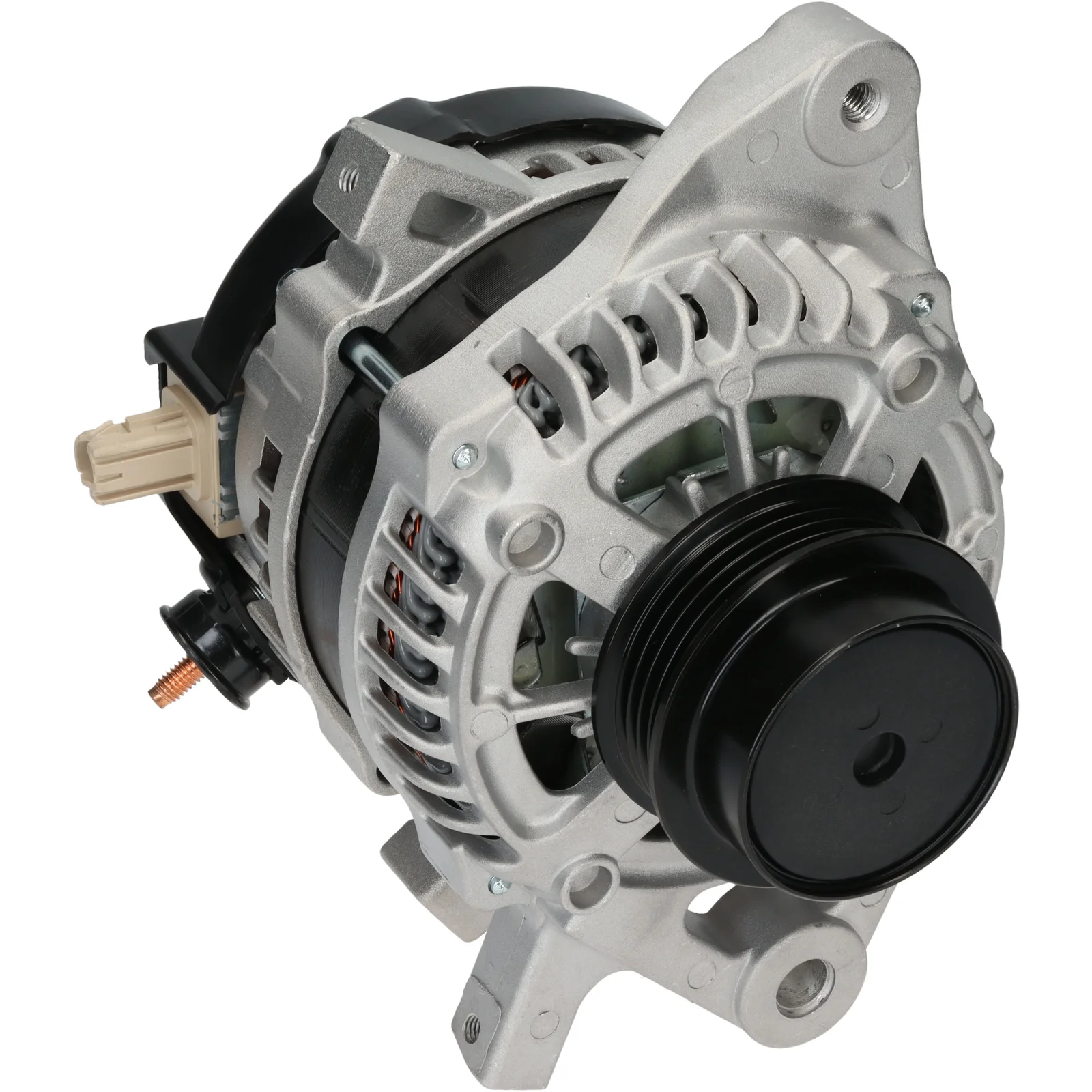

HC-Cargo Alternator
Article no.: F032116219

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 37.50

Description

Voltage: 14
Amp: 100
Pulley dist.: 29.70
Width/holder arm: 19.20
Mount. bracket dist.: 37.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.50
Grooves/pulley: 4
Radius: 83.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL204
Total length mm: 163.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116219, 1986A00637, 1986A00740, 27060-0Y130, 27060-0Y160, 27060-47150, 27060-47260, 104210-1350, 104210-3020, 104211-3020, 104211-3021, 104211-3022, 104211-3090, 104211-3340, 63377572

  • Normalised article numbler
    a6250denso, a6250s, a6357, dan1093, dra1094, dra1118, f032116219, 1986a00637, 1986a00740, 20947os, 209107, 209107a, 270600y130, 270600y160, 286929, 12061146, 63377572, 0986085080, 1042101350, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 2353481002, 2706047150, 2706047260
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 29.70
    Width/holder arm: 19.20
    Mount. bracket dist.: 37.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.50
    Grooves/pulley: 4
    Radius: 83.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL204
    Total length mm: 163.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116219, 1986A00637, 1986A00740, 27060-0Y130, 27060-0Y160, 27060-47150, 27060-47260, 104210-1350, 104210-3020, 104211-3020, 104211-3021, 104211-3022, 104211-3090, 104211-3340, 63377572

    • Normalised article numbler
      a6250denso, a6250s, a6357, dan1093, dra1094, dra1118, f032116219, 1986a00637, 1986a00740, 20947os, 209107, 209107a, 270600y130, 270600y160, 286929, 12061146, 63377572, 0986085080, 1042101350, 1042103020, 1042113020, 1042113021, 1042113022, 1042113090, 1042113340, 2353481002, 2706047150, 2706047260
