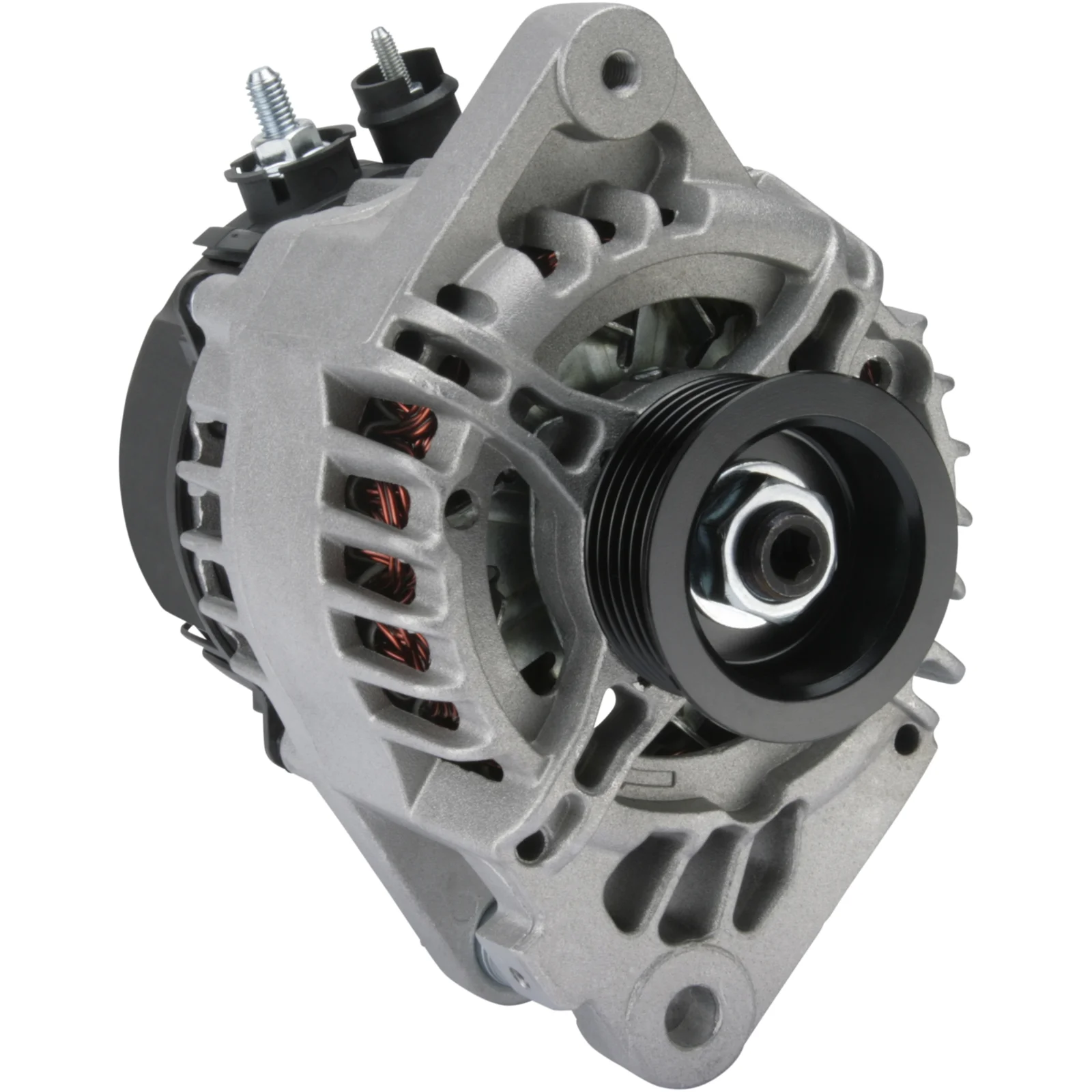

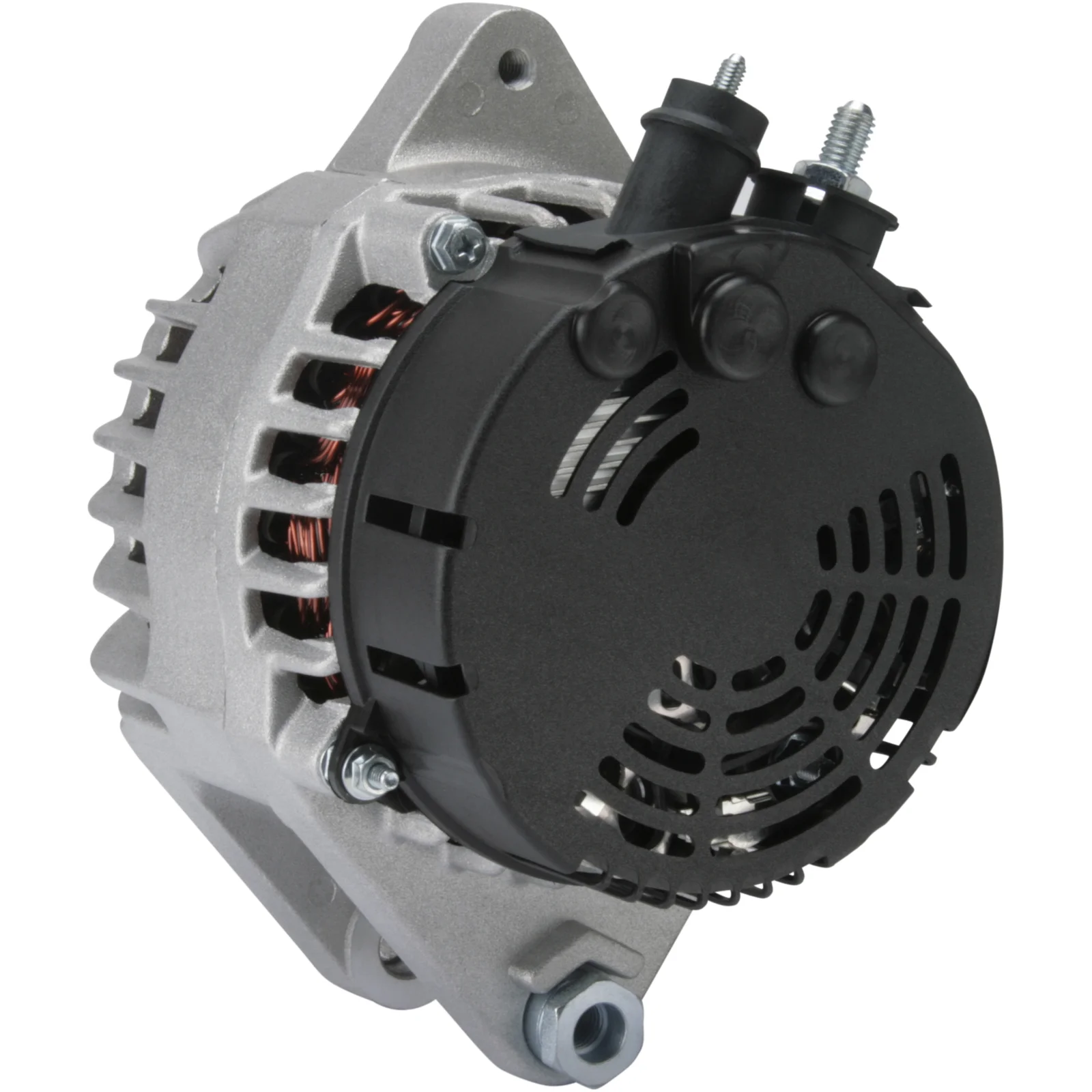

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114099

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 42.00

Description

Toyota/PSA Alternator 12V-80A 12V - 80A For Yourex product order 90-450-2874

Voltage: 14
Amp: 80
Pulley diameter: 29.00
Width/holder arm: 20.00
Mounting bracket diameter: 42.00
Bracket hole: 11.00
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: M8
Pulley diameter: 57.50
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 167.00
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F032114099, F042A0H192, PEU 5705 KJ, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 1949ir, 1986A01573, 5702 L0, 5702CQ, 5702H2, 5702J1, 5702J2, 5702L1, 5705-CR, 5705CP, 5705KH, 5705KJ, 5705NN, 5705NP, 20332N, 23966N, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q120, 27060-0Q130, 57050KJ, 101210-1410, 102211-8740, 102211-8741, 112781, 114099, 200279, 210830, 210830A, 270600Q010, 270600Q011, 270600Q050, 270600Q10000, 270600Q13084, 301949RI, 440445, 443269, 747026, 6095319, 12090259, 0986081000, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010

  • Normalised article numbler
    a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702cq, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 20332n, 23966n, 57050kj, 112781, 114099, 200279, 210830, 210830a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q10000, 270600q120, 270600q130, 270600q13084, 285623, 301949ri, 440445, 443269, 747026, 6095319, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010
  • Description
    Toyota/PSA Alternator 12V-80A 12V - 80A For Yourex product order 90-450-2874

    Voltage: 14
    Amp: 80
    Pulley diameter: 29.00
    Width/holder arm: 20.00
    Mounting bracket diameter: 42.00
    Bracket hole: 11.00
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 57.50
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: M5
    Rotation: CW
    Total length mm: 167.00
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F032114099, F042A0H192, PEU 5705 KJ, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 1949ir, 1986A01573, 5702 L0, 5702CQ, 5702H2, 5702J1, 5702J2, 5702L1, 5705-CR, 5705CP, 5705KH, 5705KJ, 5705NN, 5705NP, 20332N, 23966N, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q120, 27060-0Q130, 57050KJ, 101210-1410, 102211-8740, 102211-8741, 112781, 114099, 200279, 210830, 210830A, 270600Q010, 270600Q011, 270600Q050, 270600Q10000, 270600Q13084, 301949RI, 440445, 443269, 747026, 6095319, 12090259, 0986081000, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010

    • Normalised article numbler
      a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702cq, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 20332n, 23966n, 57050kj, 112781, 114099, 200279, 210830, 210830a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q10000, 270600q120, 270600q130, 270600q13084, 285623, 301949ri, 440445, 443269, 747026, 6095319, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010
