HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116309

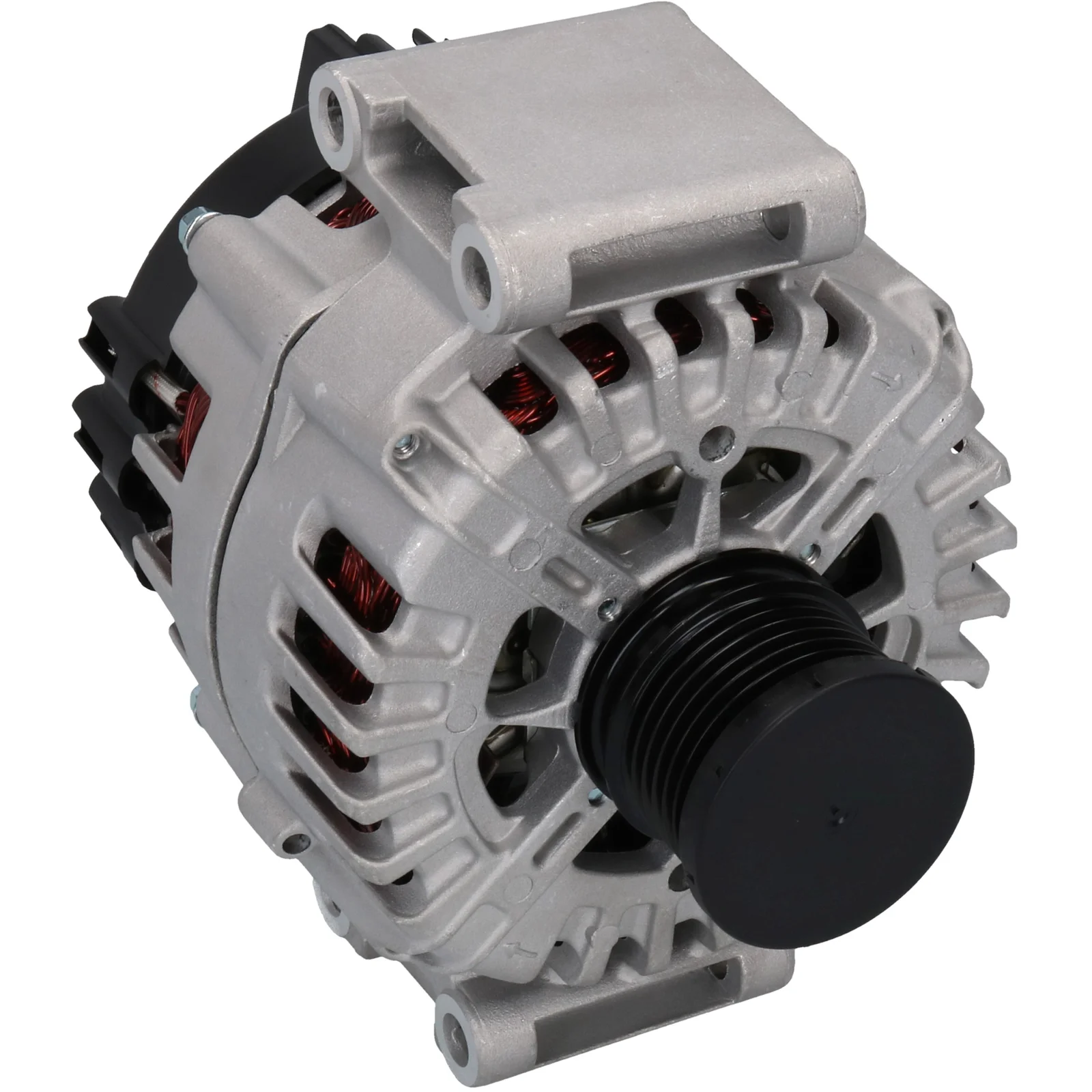

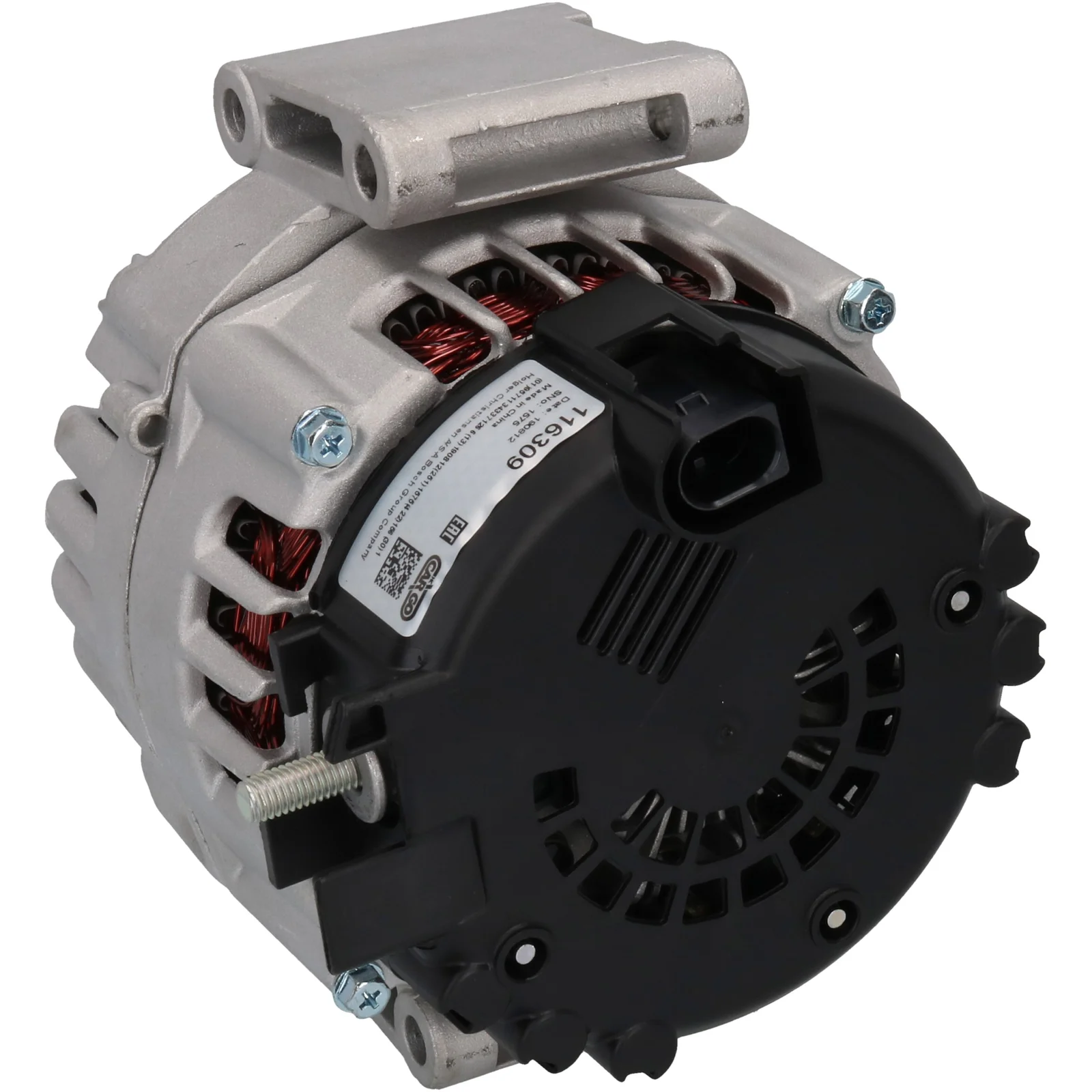

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Pulley diameter: 49.60

Description

Mercedes Alternator 12V-180A, COM 12V - 180A, 6-cylinder, (COM) For Yourex product order 90-365-6802

Voltage: 14
Amp: 180
Pulley dist.: 31.50
Width/holder arm: 70.00
Bracket hole: 8.00
Bracket hole 2: 9.00
Belt. adj. bracket hole position: 55
Belt. adj. bracket hole 1: 8.00x9.20
Pulley dia.: 49.60
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL86
Total length mm: 186.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Voltage regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    000 906 8802, A 012 154 04 02 80, A 013 154 29 02, A0009063622, A00090636220080, A0009068802, A000906880280, A0009093622, A0111548602, A0121540402, A0121546802, A012154680280, A013 1546802, A0131542802, A013154290280, A0131546802, A01315468020080, A0131546802080, A013154680280, A0131547802, A013154780280, A0141544902, A0141545302, A014154530280, A2251981802, A3145PR, ALT14466, CAL15470, DAY3-26-48Z, DAY3-26-48ZA, DAY3-26-48ZB, DRA0568, DRA0569, DRB2380, F032114876, F032116309, FG18S 012, FG18S012, FG18S098, FGN18S012, K0Y1-26-48Z, K0Y1-26-48ZA, K0Y1-26-48ZC, K0Y1-26-48ZC 9C, 6G9N10300JB, 6G9N10300JD, 8EL011713-951, 012 154 04 02 80, 013 154 6802, 28-6520, 90-365-8216, 1986A01335, 2072ir, 22721, 113390, 114876, 116309, 200188, 210897, 210897A, 440238, 553695RI, 726202, 747114, 1516515R, 2543406, 2543406A, 07804800, 0009063622, 9063622, 9068802, 9090790, 12090360, 0111542802, 0111548602, 0121540402, 0121546802, 0131542802, 0131542902, 0131546802, 131546802, 0131547802, 0141544902, 0141545302, 000906880280, 906880280, 0986082500, 01315468020, 012154680280, 013154290280, 013154680280, 013154780280, 014154530280, 00090636220080, 01315468020080

  • Normalised article numbler
    a0009063622, a00090636220080, a0009068802, a000906880280, a0009093622, a0111548602, a0121540402, a012154040280, a0121546802, a012154680280, a0131542802, a0131542902, a013154290280, a0131546802, a01315468020080, a0131546802080, a013154680280, a0131547802, a013154780280, a0141544902, a0141545302, a014154530280, a2251981802, a3145pr, alt14466, cal15470, day32648z, day32648za, day32648zb, dra0568, dra0569, drb2380, f032114876, f032116309, fg18s012, fg18s098, fgn18s012, k0y12648z, k0y12648za, k0y12648zc, k0y12648zc9c, 6g9n10300jb, 6g9n10300jd, 8el011713951, 1986a01335, 2072ir, 22721, 113390, 114876, 116309, 200188, 210897, 210897a, 286520, 440238, 553695ri, 726202, 747114, 1516515r, 2543406, 2543406a, 07804800, 0009063622, 9063622, 0009068802, 9068802, 9090790, 12090360, 0111542802, 0111548602, 0121540402, 0121546802, 0131542802, 0131542902, 0131546802, 131546802, 0131547802, 0141544902, 0141545302, 903658216, 000906880280, 906880280, 0986082500, 01315468020, 012154040280, 012154680280, 013154290280, 013154680280, 013154780280, 014154530280, 00090636220080, 01315468020080
  • Description

    Mercedes Alternator 12V-180A, COM 12V - 180A, 6-cylinder, (COM) For Yourex product order 90-365-6802

    Voltage: 14
    Amp: 180
    Pulley dist.: 31.50
    Width/holder arm: 70.00
    Bracket hole: 8.00
    Bracket hole 2: 9.00
    Belt. adj. bracket hole position: 55
    Belt. adj. bracket hole 1: 8.00x9.20
    Pulley dia.: 49.60
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL86
    Total length mm: 186.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Voltage regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      000 906 8802, A 012 154 04 02 80, A 013 154 29 02, A0009063622, A00090636220080, A0009068802, A000906880280, A0009093622, A0111548602, A0121540402, A0121546802, A012154680280, A013 1546802, A0131542802, A013154290280, A0131546802, A01315468020080, A0131546802080, A013154680280, A0131547802, A013154780280, A0141544902, A0141545302, A014154530280, A2251981802, A3145PR, ALT14466, CAL15470, DAY3-26-48Z, DAY3-26-48ZA, DAY3-26-48ZB, DRA0568, DRA0569, DRB2380, F032114876, F032116309, FG18S 012, FG18S012, FG18S098, FGN18S012, K0Y1-26-48Z, K0Y1-26-48ZA, K0Y1-26-48ZC, K0Y1-26-48ZC 9C, 6G9N10300JB, 6G9N10300JD, 8EL011713-951, 012 154 04 02 80, 013 154 6802, 28-6520, 90-365-8216, 1986A01335, 2072ir, 22721, 113390, 114876, 116309, 200188, 210897, 210897A, 440238, 553695RI, 726202, 747114, 1516515R, 2543406, 2543406A, 07804800, 0009063622, 9063622, 9068802, 9090790, 12090360, 0111542802, 0111548602, 0121540402, 0121546802, 0131542802, 0131542902, 0131546802, 131546802, 0131547802, 0141544902, 0141545302, 000906880280, 906880280, 0986082500, 01315468020, 012154680280, 013154290280, 013154680280, 013154780280, 014154530280, 00090636220080, 01315468020080

    • Normalised article numbler
      a0009063622, a00090636220080, a0009068802, a000906880280, a0009093622, a0111548602, a0121540402, a012154040280, a0121546802, a012154680280, a0131542802, a0131542902, a013154290280, a0131546802, a01315468020080, a0131546802080, a013154680280, a0131547802, a013154780280, a0141544902, a0141545302, a014154530280, a2251981802, a3145pr, alt14466, cal15470, day32648z, day32648za, day32648zb, dra0568, dra0569, drb2380, f032114876, f032116309, fg18s012, fg18s098, fgn18s012, k0y12648z, k0y12648za, k0y12648zc, k0y12648zc9c, 6g9n10300jb, 6g9n10300jd, 8el011713951, 1986a01335, 2072ir, 22721, 113390, 114876, 116309, 200188, 210897, 210897a, 286520, 440238, 553695ri, 726202, 747114, 1516515r, 2543406, 2543406a, 07804800, 0009063622, 9063622, 0009068802, 9068802, 9090790, 12090360, 0111542802, 0111548602, 0121540402, 0121546802, 0131542802, 0131542902, 0131546802, 131546802, 0131547802, 0141544902, 0141545302, 903658216, 000906880280, 906880280, 0986082500, 01315468020, 012154040280, 012154680280, 013154290280, 013154680280, 013154780280, 014154530280, 00090636220080, 01315468020080
