HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116390

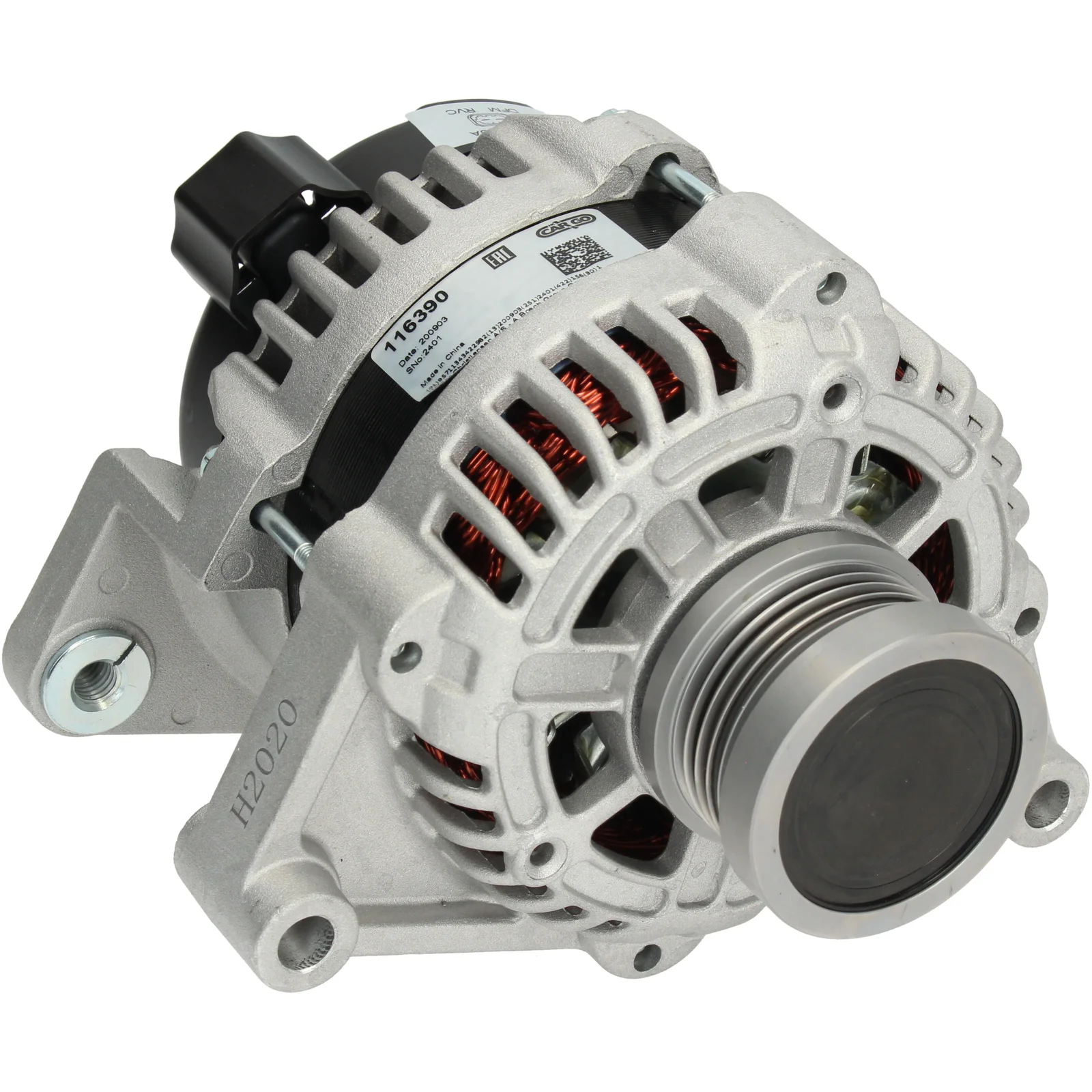

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distance: 58.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 54.50
Width/holder arm: 33.70
Mount. bracket dist.: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 53.50
Grooves/pulley: 5
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL180
Total length mm: 189.00
Terminal type: L-F
Lamp type: Inactive
Communication: PWM
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 54.50
    Width/holder arm: 33.70
    Mount. bracket dist.: 58.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 53.50
    Grooves/pulley: 5
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL180
    Total length mm: 189.00
    Terminal type: L-F
    Lamp type: Inactive
    Communication: PWM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles
