HC-Cargo Alternator

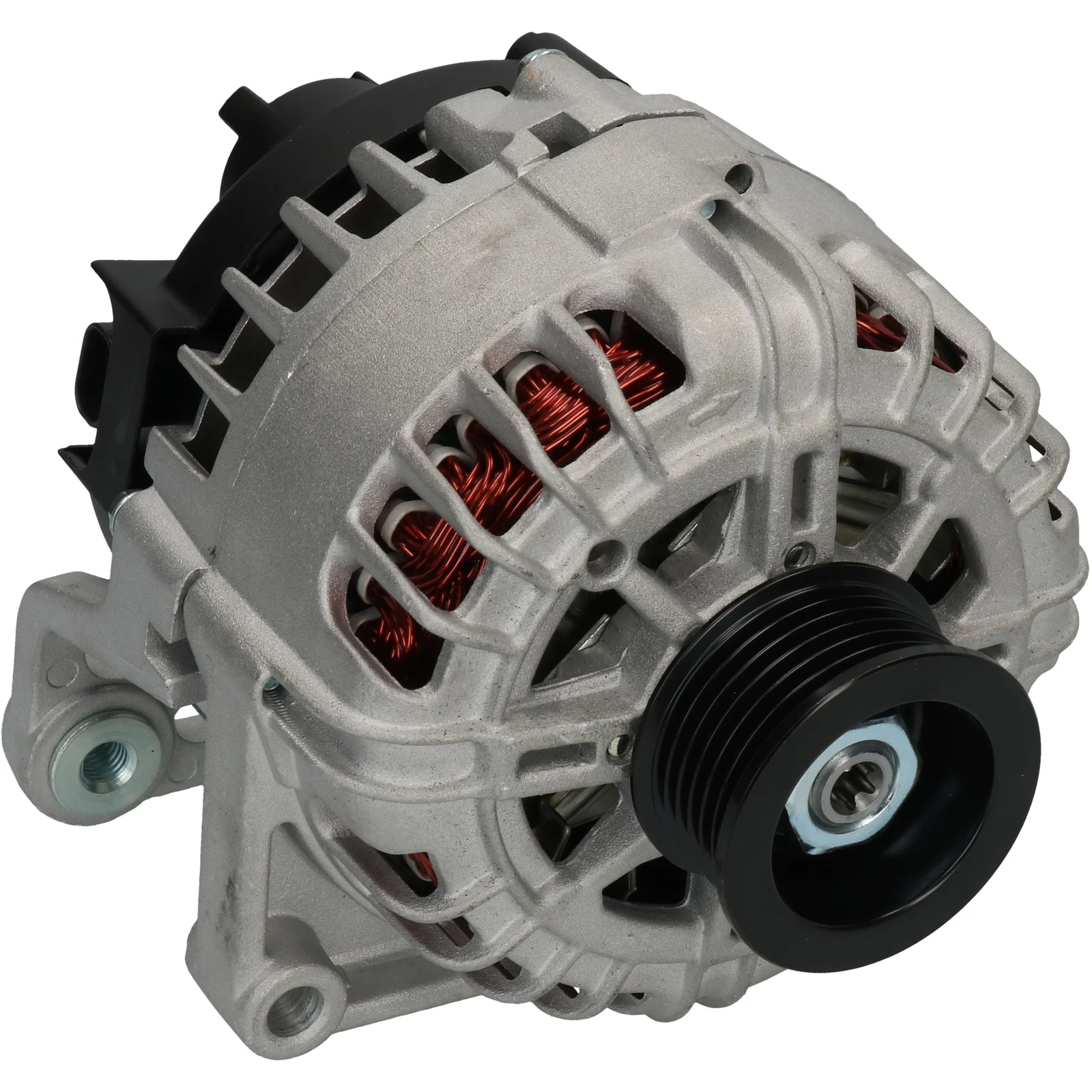

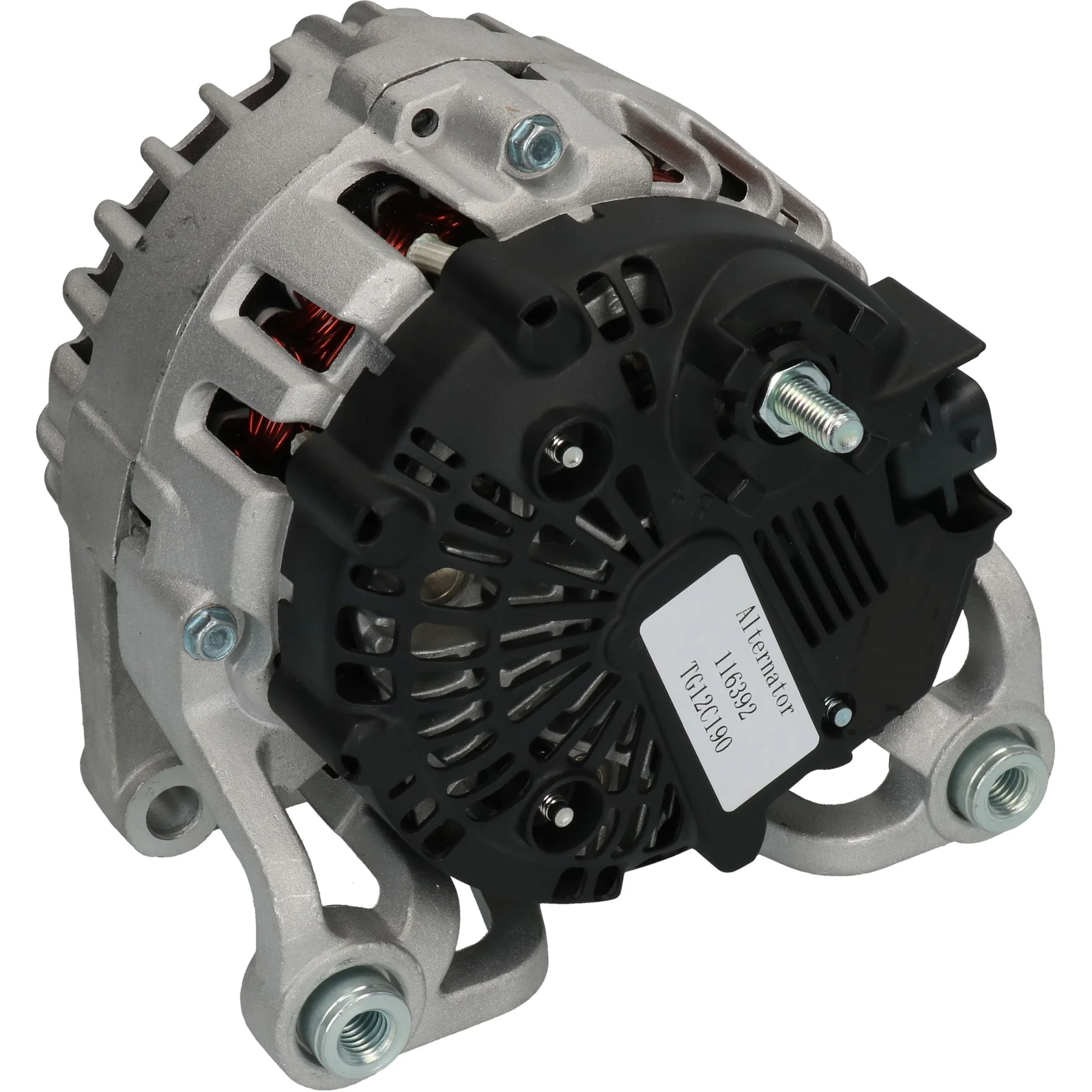

HC-Cargo Alternator
Article no.: F032116392

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Mounting bracket distributor: 59.00

Description

Voltage: 14
Amp: 120
Pulley: Pulley dist.: 63.80
Width/holder arm: 23.40
Mounting bracket dist.: 59.00
Bracket hole: 10.30
Belt adjustment bracket hole position.: 47
Belt adjustment bracket hole 1: 10.30
Belt adjustment bracket hole 2: M10
Pulley diameter: 53.00
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug number: PL180
Total length mm: 185.50
Terminal type: L-F
Communication: PWM
Pulley: SP
Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended to use the OEM number to check suitability before ordering.

Files

  • OEM
    F032116392, TG12C055, TG12C190, 1986A01643, 1202189, 1202351, 2620376A, 2650768A, 13502594, 13512749, 13588302, 95515969

  • Normalised article numbler
    cal15503, dra1369, f032116392, lra04043, tg12c055, tg12c190, 1986a01643, 209146, 209146a, 287652, 440625, 849236, 1202189, 1202351, 2620376a, 2650768a, 12090659, 13502594, 13512749, 13588302, 95515969, 135916120, 0986085810
  • Description
    Voltage: 14
    Amp: 120
    Pulley: Pulley dist.: 63.80
    Width/holder arm: 23.40
    Mounting bracket dist.: 59.00
    Bracket hole: 10.30
    Belt adjustment bracket hole position.: 47
    Belt adjustment bracket hole 1: 10.30
    Belt adjustment bracket hole 2: M10
    Pulley diameter: 53.00
    Grooves/pulley: 6
    Radius: 92.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 3
    Rotation: CW
    Plug number: PL180
    Total length mm: 185.50
    Terminal type: L-F
    Communication: PWM
    Pulley: SP
    Remarks: This Alternator has a PWM terminal on the voltage regulator. It is recommended to use the OEM number to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116392, TG12C055, TG12C190, 1986A01643, 1202189, 1202351, 2620376A, 2650768A, 13502594, 13512749, 13588302, 95515969

    • Normalised article numbler
      cal15503, dra1369, f032116392, lra04043, tg12c055, tg12c190, 1986a01643, 209146, 209146a, 287652, 440625, 849236, 1202189, 1202351, 2620376a, 2650768a, 12090659, 13502594, 13512749, 13588302, 95515969, 135916120, 0986085810
