HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116393

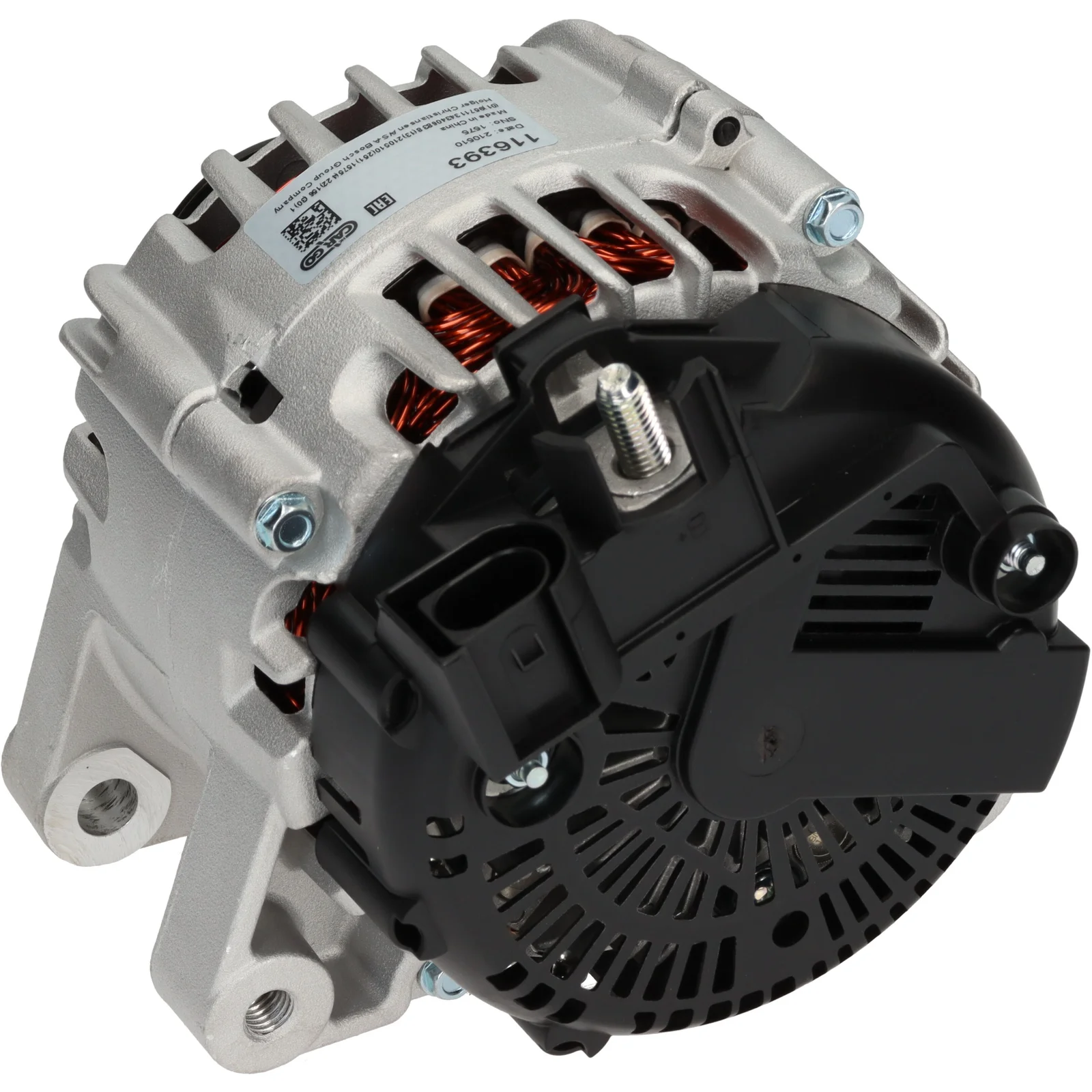

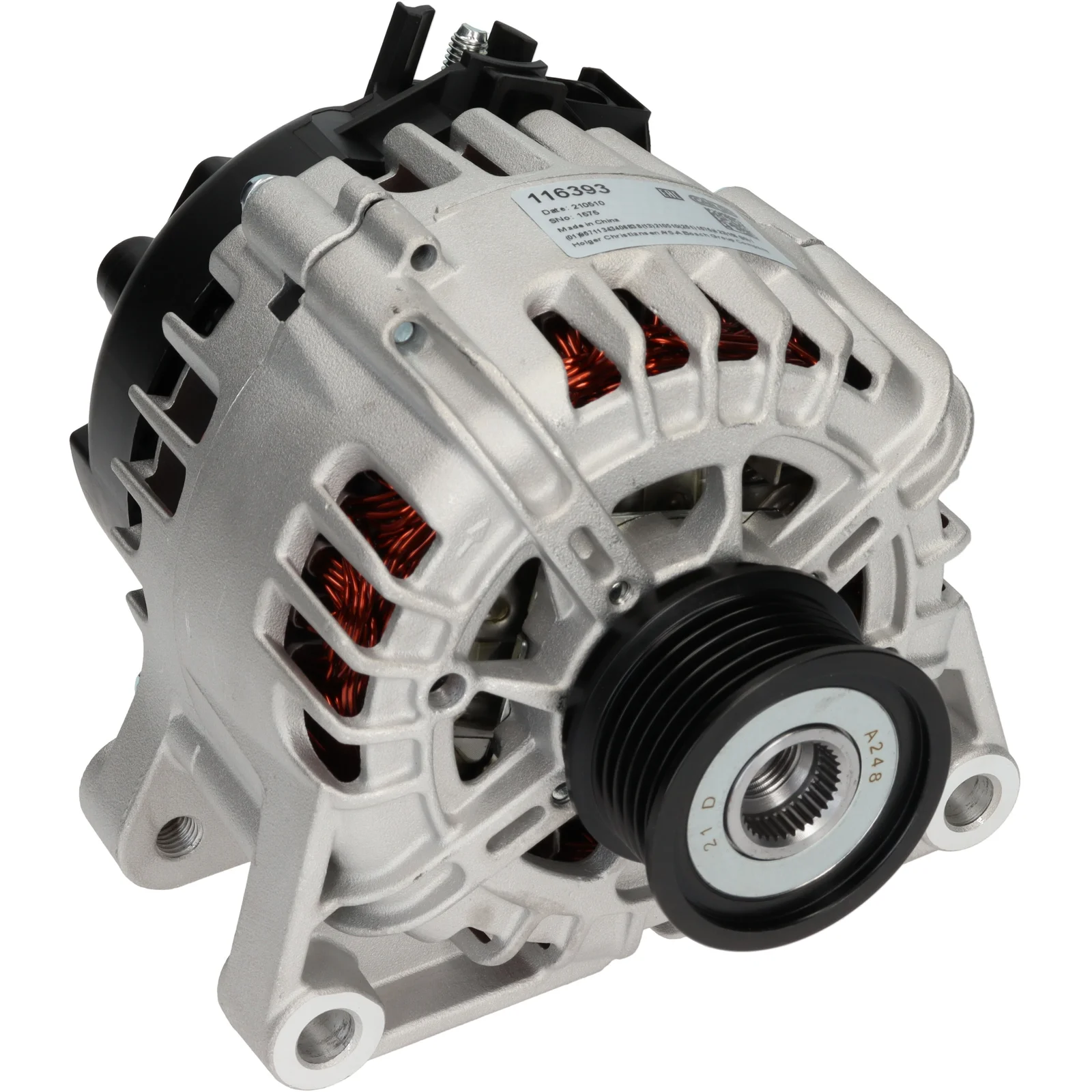

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 45.00

Description

Voltage: 14
Amp: 150
Pulley Size: 43.00
Width/holder arm: 21.00
Mounting bracket distance: 45.00
Bracket hole: 20.00
Belt adjustment bracket hole position: 46
Belt adjustment bracket hole 1: 11.20
Pulley diameter: 55.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 47
Rotation: CW
Plug no.: PL174
Total length mm: 193.50
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    AV6N10300MB, AV6N10300MD, F032116393, FG15T052, fg15t074, TG15T074, 1762377, 2612685B

  • Normalised article numbler
    a3267s, a3267valeo, a3383s, av6n10300mb, av6n10300md, f032116393, fg15t052, fg15t074, tg15t074, 210860, 210860a, 287671, 439908, 1762377, 2612685b, 12091035, 595945150
  • Description
    Voltage: 14
    Amp: 150
    Pulley Size: 43.00
    Width/holder arm: 21.00
    Mounting bracket distance: 45.00
    Bracket hole: 20.00
    Belt adjustment bracket hole position: 46
    Belt adjustment bracket hole 1: 11.20
    Pulley diameter: 55.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 47
    Rotation: CW
    Plug no.: PL174
    Total length mm: 193.50
    Terminal type: COM
    ID Code: 25
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      AV6N10300MB, AV6N10300MD, F032116393, FG15T052, fg15t074, TG15T074, 1762377, 2612685B

    • Normalised article numbler
      a3267s, a3267valeo, a3383s, av6n10300mb, av6n10300md, f032116393, fg15t052, fg15t074, tg15t074, 210860, 210860a, 287671, 439908, 1762377, 2612685b, 12091035, 595945150
