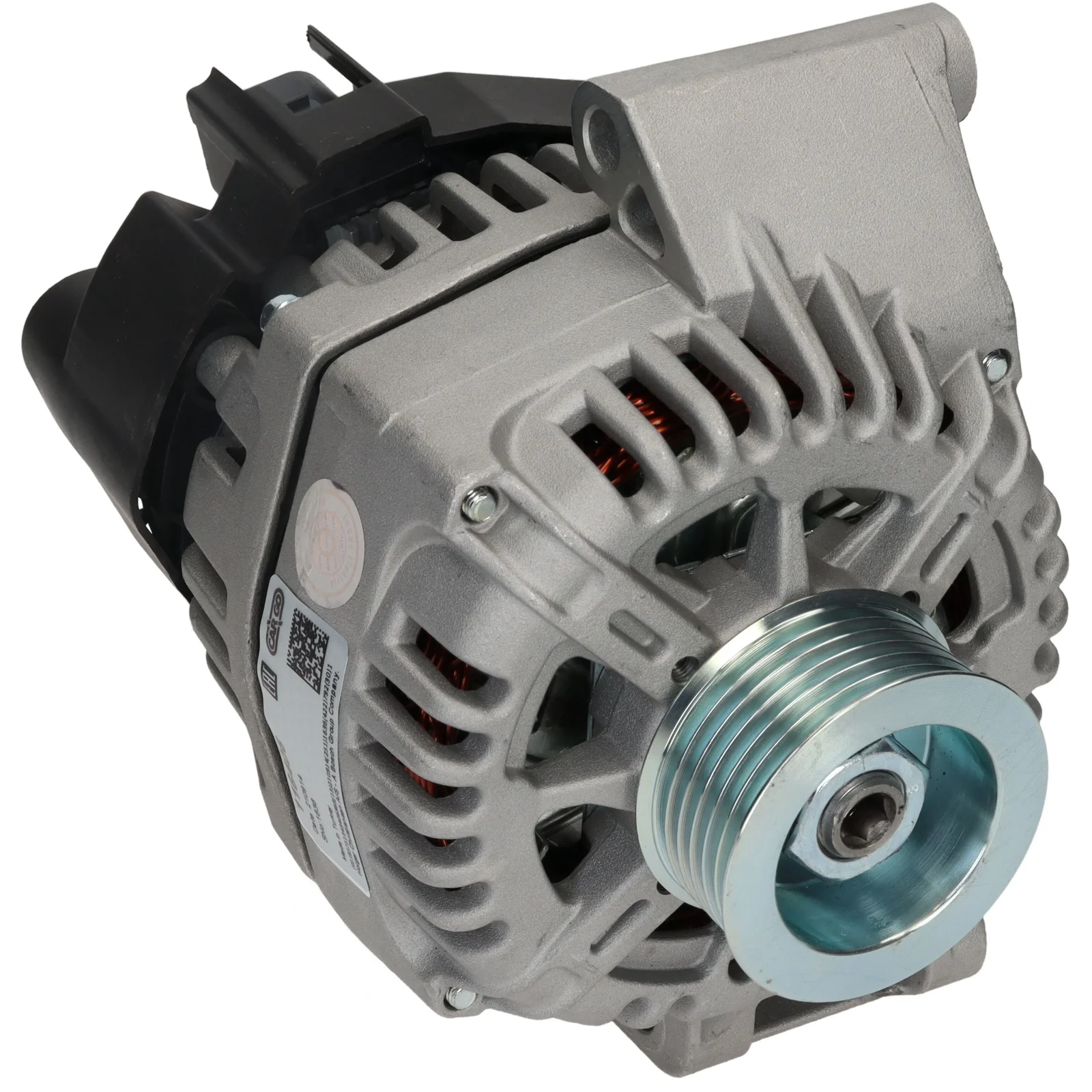

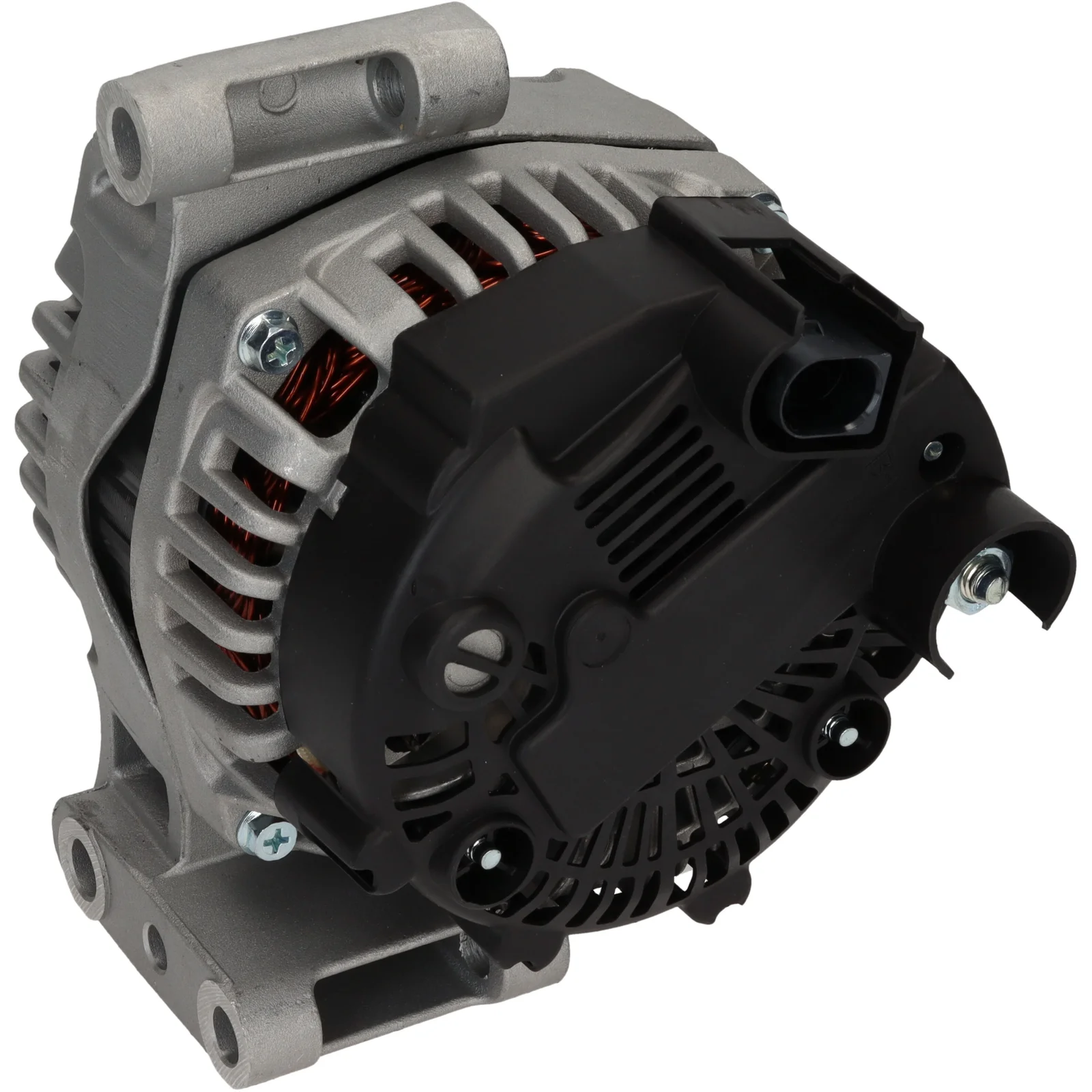

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116406

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Mount. bracket dist.: 55.30, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 41.00
Width/holder arm: 64.50
Mount. bracket dist.: 55.30
Bracket hole: 10.80
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 74.00
B+: M8
Position/B+ in min.: 14
Plug no.: PL174
Total length mm: 177.00
Terminal type: COM
ID Code: 9
Communication: LIN
Pulley: SP
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
