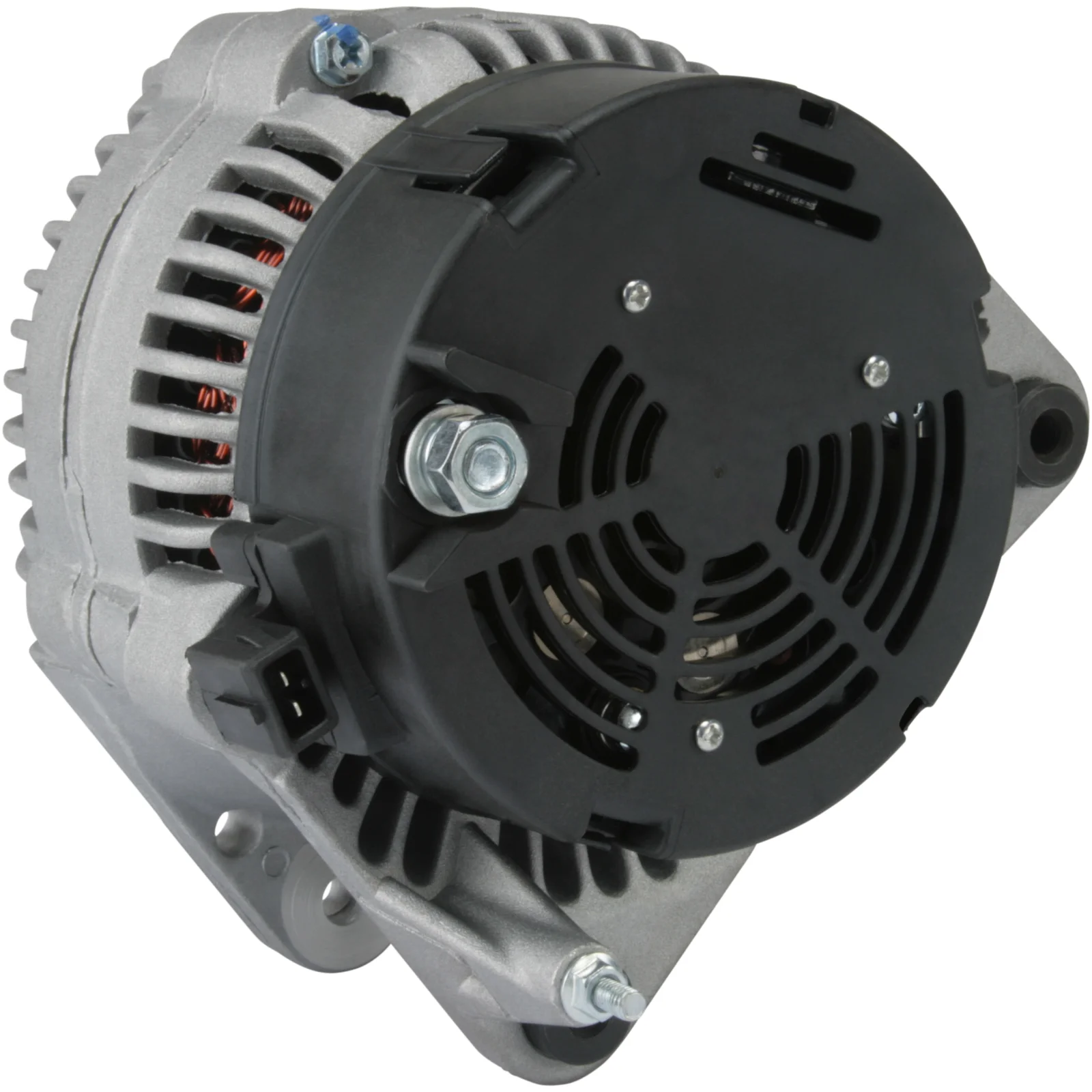

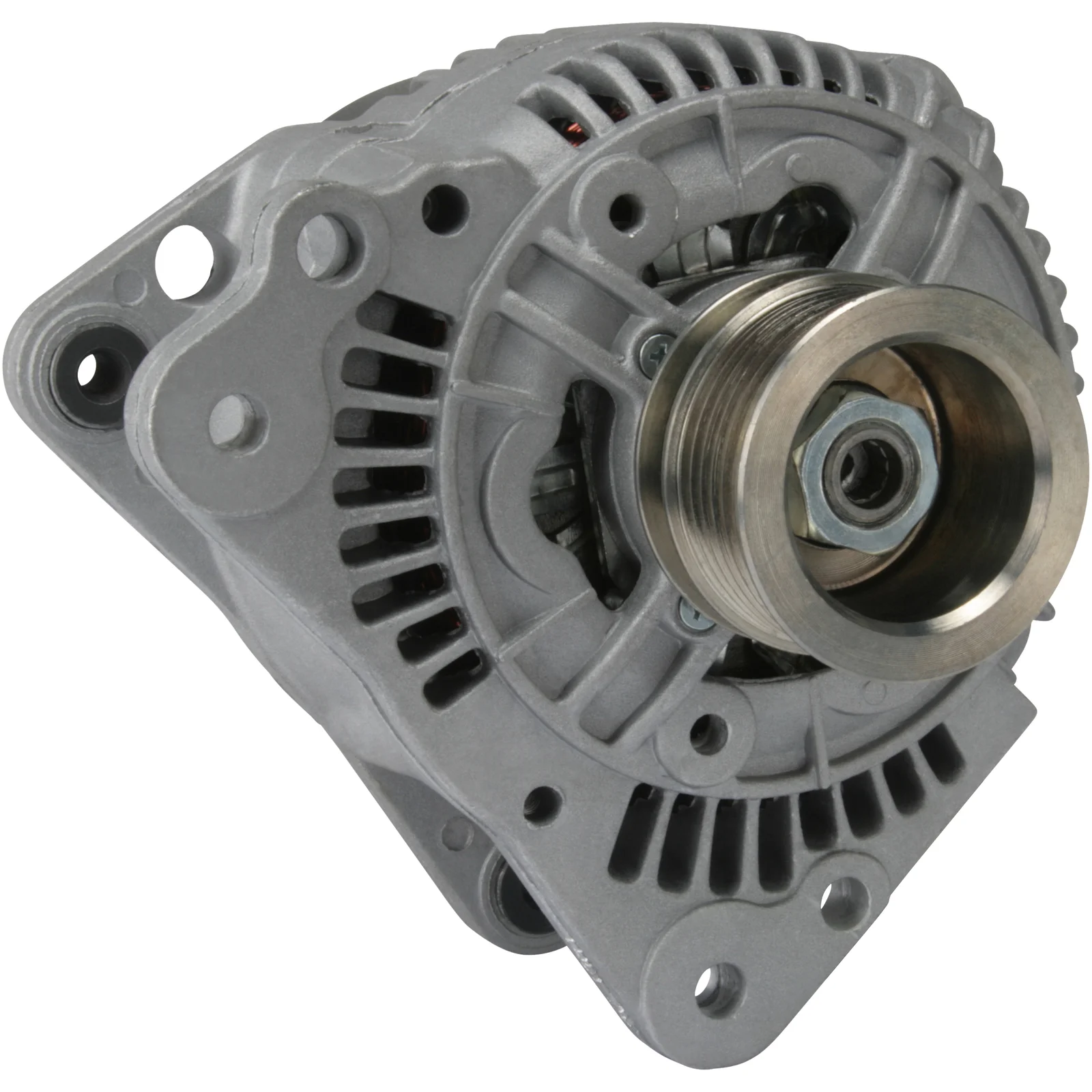

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111353

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 61.00

Description

VW Alternator 12V-70A 12V - 70A, 6 grooves, (D+, W) For Yourex product order 90-620-3901

Voltage: 14
Amp: 70
Pulley diameter: 39.50
Width/holder arm: 14.00
Mounting bracket diameter: 61.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 6
D+ Size: Plug
Rotation: CW
Plug no.: PL23
Total length mm: 187.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Seat

Files

  • OEM
    A11VI 62, a11vi36, a11vi64, aak5380, F032111353, 11.203.165, 95VW10300BAA, 95VW10300FA, 0123 310 025, 827ir, 0986 039 010, 1986A01549, 111353, 1516631R, 2541619, 2541676, 2541802, 2541819, 9517162, 021903017, 021903023j, 021903024J, 023903023, 023903023b, 028903018, 028903018x, 028903023H, 028903025h, 028903025HX, 028903027K, 028903028H, 028903028M, 037903023q, 037903023QX, 050903017A, 0120400651, 0120485043, 0123310001, 0123310019, 0123310025, 0123310032, 0123315002

  • Normalised article numbler
    a0131, a0131bosch, a0637pr, a0637sr, a11vi36, a11vi62, a11vi64, a4018, aak5380, al0186v, al0186x, alt2035, cal10338, cal48107, dra0523, dra8390, dra8390x, dra9440, f032111353, f042301058, f042a01058, fra769, ia1045, lrb00145, lrb00269, mg202, na455, qa1987, va364, 8el012427121, 8el731688001, 8el737382001, 8el737430001, 95vw10300baa, 95vw10300fa, 827ir, 1986a01549, 2654, 4394, 5701, 5930, 13380, 13380r, 13380r6g, 13381n6g, 13381n7g, 13658, 13852, 13902n, 30827ri, 56292, 56392, 111353, 118437, 200101, 282633, 282884, 283596, 301249ri, 301263ri, 436442, 436482, 439001, 746057, 746857, 839087, 1181301bo, 1181301va, 1516631r, 2541619, 2541676, 2541802, 2541819, 4138390, 9038390, 9039010, 9517162, 11203165, 12038390, 12039010, 021903017, 021903023j, 021903024j, 023903023, 023903023b, 028903018, 028903018x, 028903023h, 028903025h, 028903025hx, 028903027k, 028903028h, 028903028m, 32038390, 32039010, 35214410, 037903023q, 037903023qx, 050903017a, 0120400651, 0120485043, 0123310001, 0123310019, 0123310025, 0123310032, 0123315002, 211149702, 211150702, 211165702, 755005065, 943356530, 0986038390, 0986038397, 0986039010, 063533100190, 943356530010, 943356947010
  • Description
    VW Alternator 12V-70A 12V - 70A, 6 grooves, (D+, W) For Yourex product order 90-620-3901

    Voltage: 14
    Amp: 70
    Pulley diameter: 39.50
    Width/holder arm: 14.00
    Mounting bracket diameter: 61.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 6
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL23
    Total length mm: 187.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Seat

    Files

  • Suitable for these vehicles

    • OEM
      A11VI 62, a11vi36, a11vi64, aak5380, F032111353, 11.203.165, 95VW10300BAA, 95VW10300FA, 0123 310 025, 827ir, 0986 039 010, 1986A01549, 111353, 1516631R, 2541619, 2541676, 2541802, 2541819, 9517162, 021903017, 021903023j, 021903024J, 023903023, 023903023b, 028903018, 028903018x, 028903023H, 028903025h, 028903025HX, 028903027K, 028903028H, 028903028M, 037903023q, 037903023QX, 050903017A, 0120400651, 0120485043, 0123310001, 0123310019, 0123310025, 0123310032, 0123315002

    • Normalised article numbler
      a0131, a0131bosch, a0637pr, a0637sr, a11vi36, a11vi62, a11vi64, a4018, aak5380, al0186v, al0186x, alt2035, cal10338, cal48107, dra0523, dra8390, dra8390x, dra9440, f032111353, f042301058, f042a01058, fra769, ia1045, lrb00145, lrb00269, mg202, na455, qa1987, va364, 8el012427121, 8el731688001, 8el737382001, 8el737430001, 95vw10300baa, 95vw10300fa, 827ir, 1986a01549, 2654, 4394, 5701, 5930, 13380, 13380r, 13380r6g, 13381n6g, 13381n7g, 13658, 13852, 13902n, 30827ri, 56292, 56392, 111353, 118437, 200101, 282633, 282884, 283596, 301249ri, 301263ri, 436442, 436482, 439001, 746057, 746857, 839087, 1181301bo, 1181301va, 1516631r, 2541619, 2541676, 2541802, 2541819, 4138390, 9038390, 9039010, 9517162, 11203165, 12038390, 12039010, 021903017, 021903023j, 021903024j, 023903023, 023903023b, 028903018, 028903018x, 028903023h, 028903025h, 028903025hx, 028903027k, 028903028h, 028903028m, 32038390, 32039010, 35214410, 037903023q, 037903023qx, 050903017a, 0120400651, 0120485043, 0123310001, 0123310019, 0123310025, 0123310032, 0123315002, 211149702, 211150702, 211165702, 755005065, 943356530, 0986038390, 0986038397, 0986039010, 063533100190, 943356530010, 943356947010
