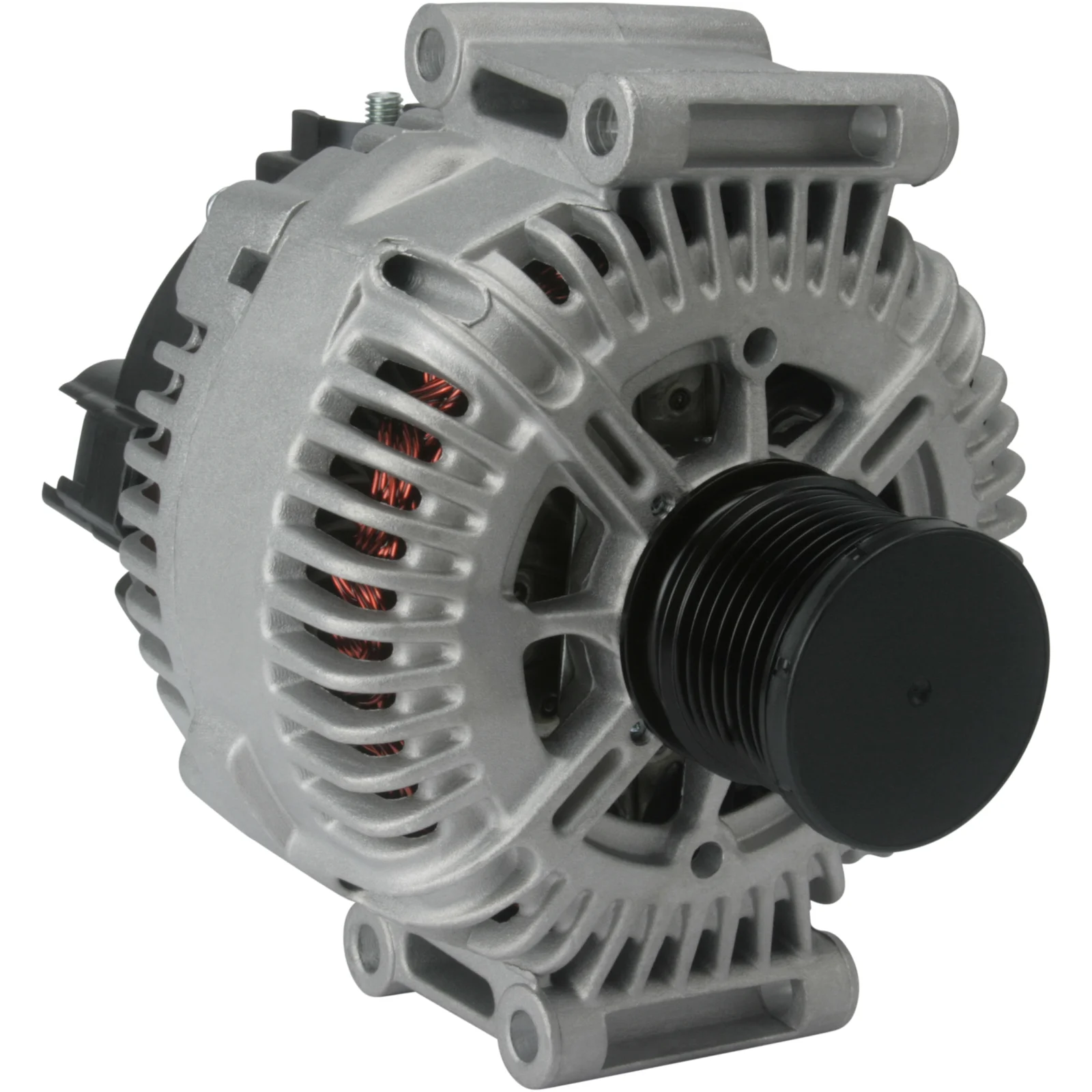

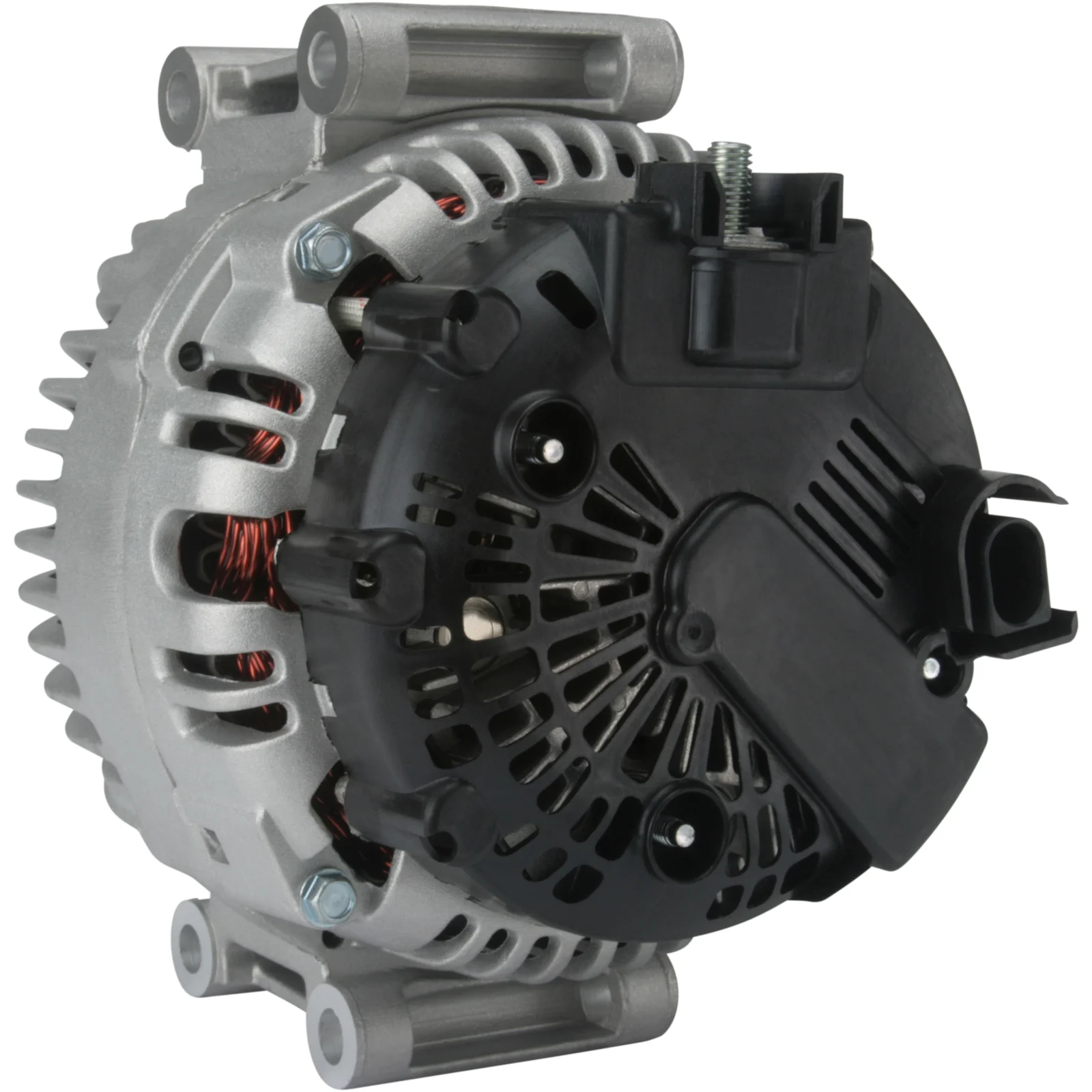

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116113

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Pulley diameter: 50.00

Description

Mercedes Alternator 12V-180A (LIN 2) 12V - 180A, 7-prong connector, ( LIN2.1 ) ID code: 33 7-prong connector for Yourex product order 90-365-7539

Voltage: 14
Amp: 180
Pulley dist.: 31.00
Width/holder arm: 70.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 50.00
Grooves/pulley: 7
Radius: 82.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 30
Rotation: CW
Plug no.: PL86
Total length mm: 187.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    000 906 2700, A6421540202, a6421540402, A642154040280, F00E100547, F032114042, F032116113, FG18S 056, FGN18S056, TG17C 028, TG17C 030, TG17C028, TG17C030, TG17C030b, TG17C030B, 642 154 0202, 642 154 0402, 0986 083 220, 1986A01209, 114042, 116113, 440334, 2542969, 2542969C, 2542989, 2542989A, 2543289, 2543289A, 2608993, 04801250 AA, 04801250 AB, 04801250 AC, 04801250 AD, 04801250AA, 04801250AB, 04801250AC, 04801250AD, 4801250AA, 6421540402, 642154040280

  • Normalised article numbler
    a3114, a3114valeo, a3610s, a6421540202, a6421540402, a642154040280, alth187, cal15331, cal15519, dra0179, dra0179n, f00e100547, f032114042, f032116113, f042a0h187, fg18s056, fgn18s056, tg17c028, tg17c030, tg17c030b, 8el012240241, 8el012241131, 1986a01209, 4806, 11306n, 11306r, 114042, 116113, 200107, 200263, 209177, 209177a, 210475, 210475a, 285531, 437539, 439546, 440334, 553070ri, 746147, 746947, 2542969, 2542969c, 2542989, 2542989a, 2543289, 2543289a, 2608993, 04801250aa, 04801250ab, 04801250ac, 04801250ad, 4801250aa, 0009062700, 12047690, 32083220, 555598180, 0986083220, 5251281802, 6421540202, 6421540402, 642154040280, 944390903130
  • Description
    Mercedes Alternator 12V-180A (LIN 2) 12V - 180A, 7-prong connector, ( LIN2.1 ) ID code: 33 7-prong connector for Yourex product order 90-365-7539

    Voltage: 14
    Amp: 180
    Pulley dist.: 31.00
    Width/holder arm: 70.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 7
    Radius: 82.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 30
    Rotation: CW
    Plug no.: PL86
    Total length mm: 187.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      000 906 2700, A6421540202, a6421540402, A642154040280, F00E100547, F032114042, F032116113, FG18S 056, FGN18S056, TG17C 028, TG17C 030, TG17C028, TG17C030, TG17C030b, TG17C030B, 642 154 0202, 642 154 0402, 0986 083 220, 1986A01209, 114042, 116113, 440334, 2542969, 2542969C, 2542989, 2542989A, 2543289, 2543289A, 2608993, 04801250 AA, 04801250 AB, 04801250 AC, 04801250 AD, 04801250AA, 04801250AB, 04801250AC, 04801250AD, 4801250AA, 6421540402, 642154040280

    • Normalised article numbler
      a3114, a3114valeo, a3610s, a6421540202, a6421540402, a642154040280, alth187, cal15331, cal15519, dra0179, dra0179n, f00e100547, f032114042, f032116113, f042a0h187, fg18s056, fgn18s056, tg17c028, tg17c030, tg17c030b, 8el012240241, 8el012241131, 1986a01209, 4806, 11306n, 11306r, 114042, 116113, 200107, 200263, 209177, 209177a, 210475, 210475a, 285531, 437539, 439546, 440334, 553070ri, 746147, 746947, 2542969, 2542969c, 2542989, 2542989a, 2543289, 2543289a, 2608993, 04801250aa, 04801250ab, 04801250ac, 04801250ad, 4801250aa, 0009062700, 12047690, 32083220, 555598180, 0986083220, 5251281802, 6421540202, 6421540402, 642154040280, 944390903130
