Article no.: F032111579

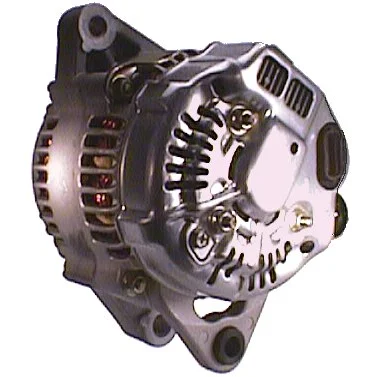

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distance: 44.00

Description

Toyota Corolla Alternator 12V-70A 12V - 70A, 5 grooves, (S, IG, L) For Yourex product order 90-555-0976 Voltage: 14 Amp: 70 Pulley distance: 53.00 Width/holder arm: 28.00 Mounting bracket distance: 44.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 4 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 54.00 Grooves/pulley: 5 Radius: 84.00 Radius 2: 84.00 B+: M6 Position/B+ in minutes: 18 D+ size: Plug Rotation: CW Plug number: PL42 Total length mm: 164.00 Pulley: SP Fan: IF Regulator type: IR Product information: BN Servicing: Toyota

Files

  • OEM
    F032111579, ja976ir, 0986 040 471, 1986A01292, 27060-02040, 27060-15060, 27060-15080, 27060-15090, 27060-15100, 27060-15110, 27060-15120, 27060-15130, 27060-15140, 27060-15150, 100211-5020, 100211-5021, 100211-8991, 101211-0060, 101211-0061, 101211-0062, 101211-0120, 101211-0180, 101211-0181, 101211-0182, 101211-4580, 101211-5020, 101211-5080, 101211-5240, 101211-9790, 111579

  • Normalised article numbler
    a6012, al3264x, alt5041, bao3097, dan1047, dra3503, f032111579, f042302025, f042a02025, fra831, ja976ir, lea0189, lrb00210, qa2524, 8el012427821, 8el732741001, 1986a01292, 5466, 13482, 13482n, 13551, 40976ri, 111579, 119541, 210266, 210266a, 281821, 282779, 437514, 1176301nd, 1198201nd, 1198201nd2, 9051286, 9213467, 12060400, 195524070, 235141702, 235185702, 0986040471, 1002115020, 1002115021, 1002118991, 1012110060, 1012110061, 1012110062, 1012110120, 1012110180, 1012110181, 1012110182, 1012114580, 1012115020, 1012115080, 1012115240, 1012119790, 2706002040, 2706015060, 2706015080, 2706015090, 2706015100, 2706015110, 2706015120, 2706015130, 2706015140, 2706015150, 943354181010
  • Description
    Toyota Corolla Alternator 12V-70A 12V - 70A, 5 grooves, (S, IG, L) For Yourex product order 90-555-0976 Voltage: 14 Amp: 70 Pulley distance: 53.00 Width/holder arm: 28.00 Mounting bracket distance: 44.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 4 Belt adjustment bracket hole 1: 8.50 Pulley diameter: 54.00 Grooves/pulley: 5 Radius: 84.00 Radius 2: 84.00 B+: M6 Position/B+ in minutes: 18 D+ size: Plug Rotation: CW Plug number: PL42 Total length mm: 164.00 Pulley: SP Fan: IF Regulator type: IR Product information: BN Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032111579, ja976ir, 0986 040 471, 1986A01292, 27060-02040, 27060-15060, 27060-15080, 27060-15090, 27060-15100, 27060-15110, 27060-15120, 27060-15130, 27060-15140, 27060-15150, 100211-5020, 100211-5021, 100211-8991, 101211-0060, 101211-0061, 101211-0062, 101211-0120, 101211-0180, 101211-0181, 101211-0182, 101211-4580, 101211-5020, 101211-5080, 101211-5240, 101211-9790, 111579

    • Normalised article numbler
      a6012, al3264x, alt5041, bao3097, dan1047, dra3503, f032111579, f042302025, f042a02025, fra831, ja976ir, lea0189, lrb00210, qa2524, 8el012427821, 8el732741001, 1986a01292, 5466, 13482, 13482n, 13551, 40976ri, 111579, 119541, 210266, 210266a, 281821, 282779, 437514, 1176301nd, 1198201nd, 1198201nd2, 9051286, 9213467, 12060400, 195524070, 235141702, 235185702, 0986040471, 1002115020, 1002115021, 1002118991, 1012110060, 1012110061, 1012110062, 1012110120, 1012110180, 1012110181, 1012110182, 1012114580, 1012115020, 1012115080, 1012115240, 1012119790, 2706002040, 2706015060, 2706015080, 2706015090, 2706015100, 2706015110, 2706015120, 2706015130, 2706015140, 2706015150, 943354181010
