HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115632

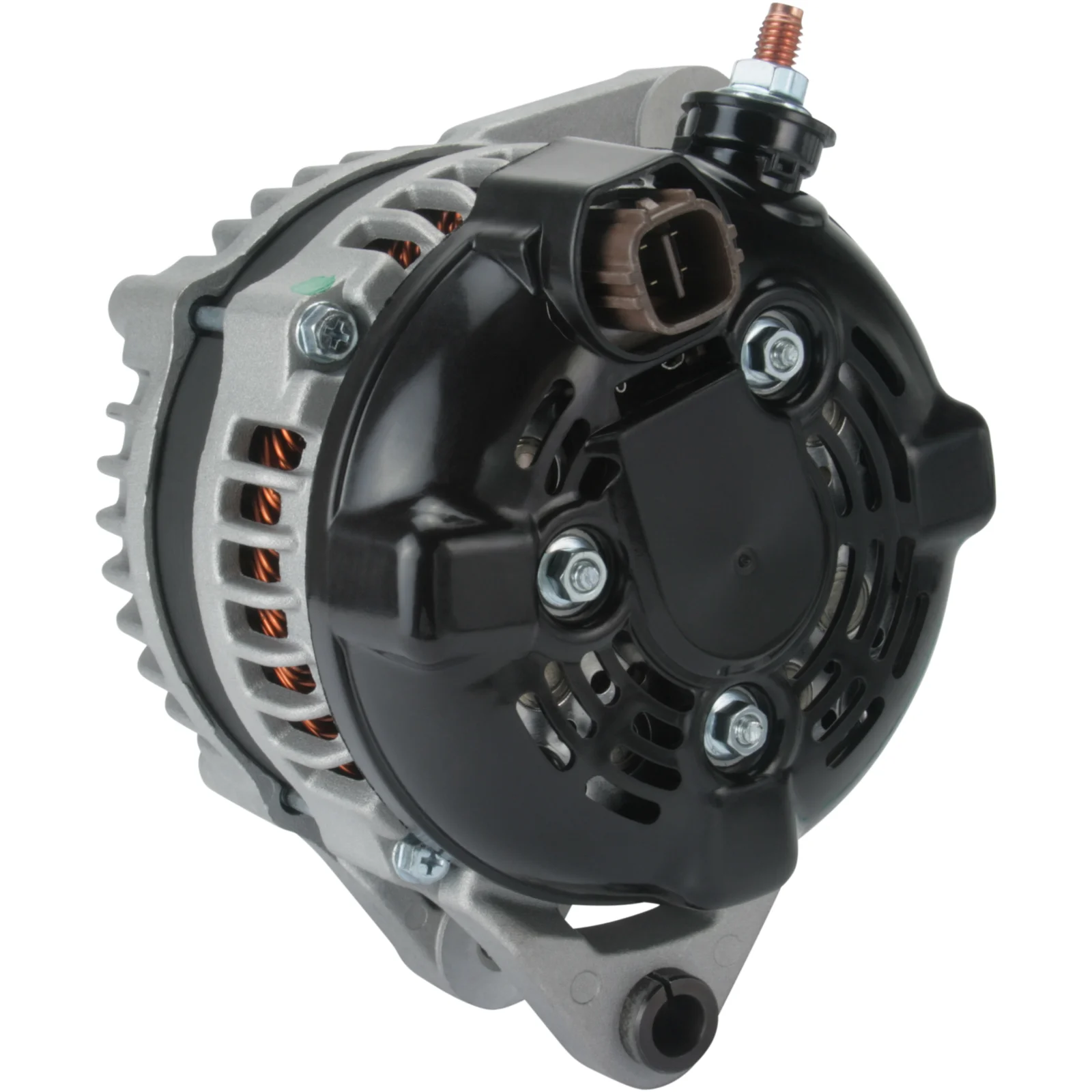

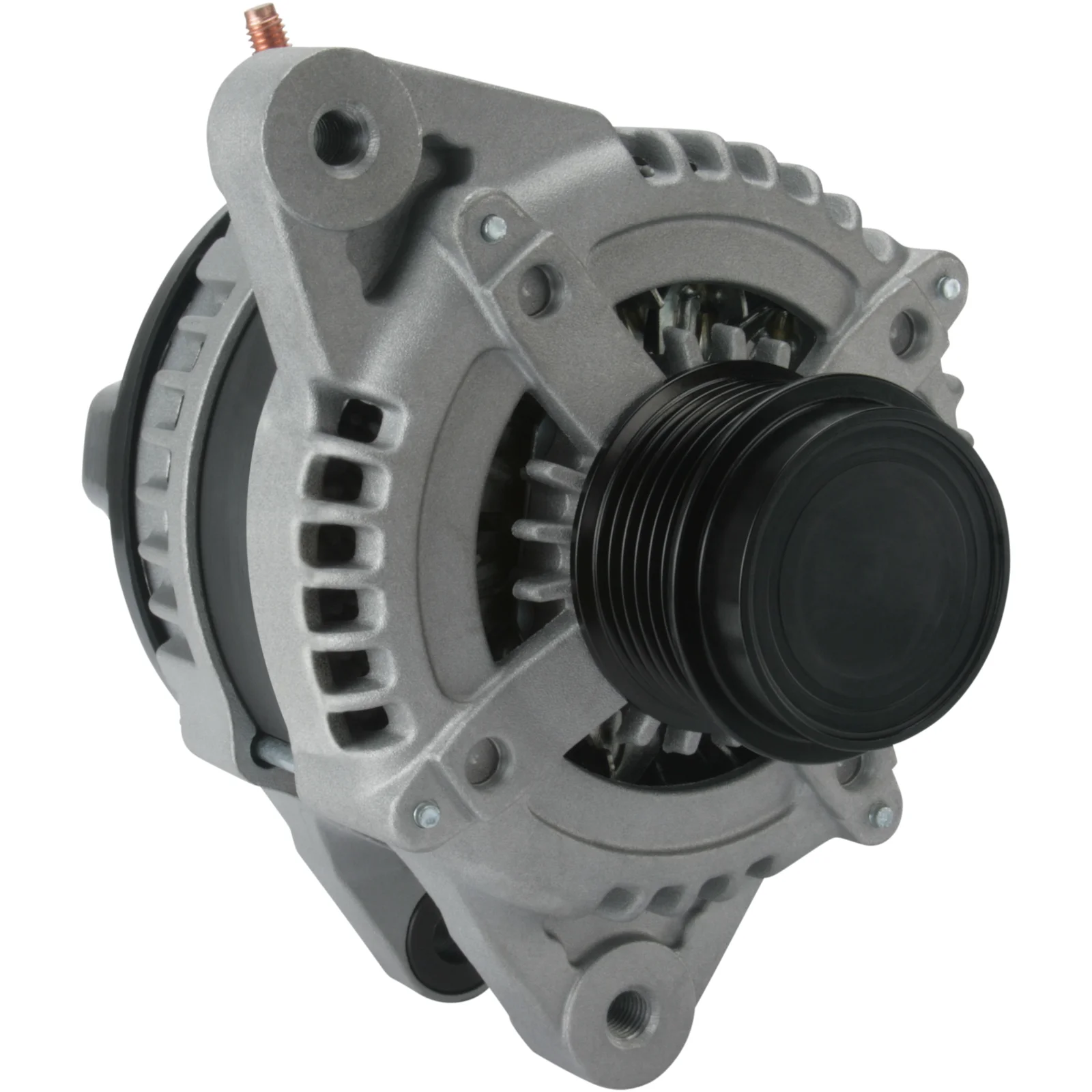

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 38.00

Description

Kia/Hyundai Alternator 12V-150A 12V - 150A, 6 grooves, (COM, L, FR) Automatic! Cars with AUTOMATIC! For Yourrex product order 90-228-1060

Voltage: 14
Amp: 150
Pulley dist.: 52.00
Width/holder arm: 20.00
Mounting bracket dist.: 38.00
Bracket hole: M10-1.25
Belt adjustment bracket hole position: 53
Belt adjustment bracket hole 1: M10-1.25
Pulley diameter: 55.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL172
Total length mm: 172.00
Communication: PWM
Pulley: SP/FW
Voltage regulator type: IR
Product info: BN

Files

  • OEM
    F032115632, 0986 082 390, 1986A01282, 2121ir, 021080-0070, 37300-2F200, 104210-1060, 115632

  • Normalised article numbler
    a6253, cal32152, dan1102, dra0998, f032115632, 8el011713211, 1986a01282, 2121ir, 20133r, 115632, 209015, 209015a, 286843, 373002f200, 444211, 12061017, 155578150, 0210800070, 0986082390, 1042101060, 2263141502
  • Description
    Kia/Hyundai Alternator 12V-150A 12V - 150A, 6 grooves, (COM, L, FR) Automatic! Cars with AUTOMATIC! For Yourrex product order 90-228-1060

    Voltage: 14
    Amp: 150
    Pulley dist.: 52.00
    Width/holder arm: 20.00
    Mounting bracket dist.: 38.00
    Bracket hole: M10-1.25
    Belt adjustment bracket hole position: 53
    Belt adjustment bracket hole 1: M10-1.25
    Pulley diameter: 55.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL172
    Total length mm: 172.00
    Communication: PWM
    Pulley: SP/FW
    Voltage regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115632, 0986 082 390, 1986A01282, 2121ir, 021080-0070, 37300-2F200, 104210-1060, 115632

    • Normalised article numbler
      a6253, cal32152, dan1102, dra0998, f032115632, 8el011713211, 1986a01282, 2121ir, 20133r, 115632, 209015, 209015a, 286843, 373002f200, 444211, 12061017, 155578150, 0210800070, 0986082390, 1042101060, 2263141502
