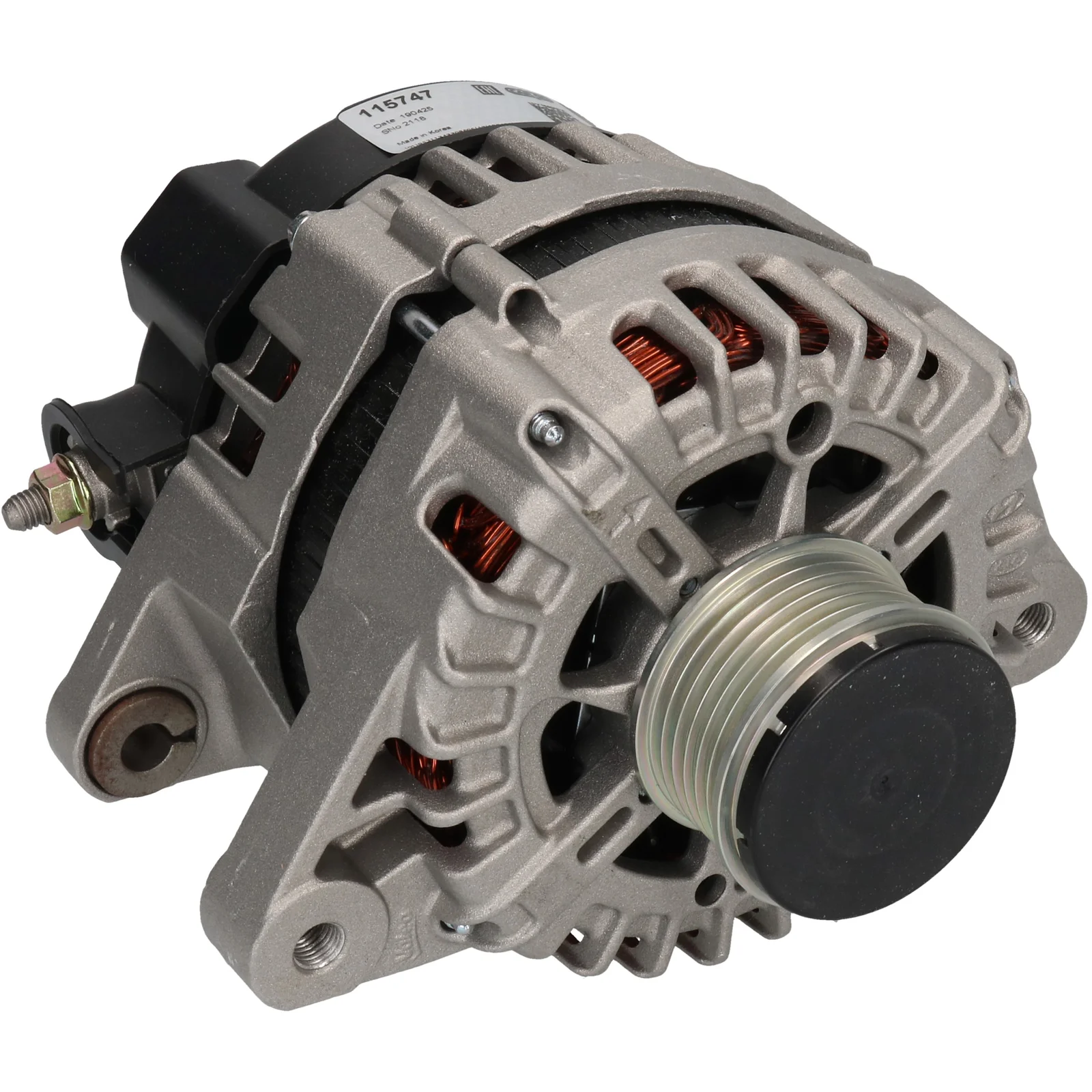

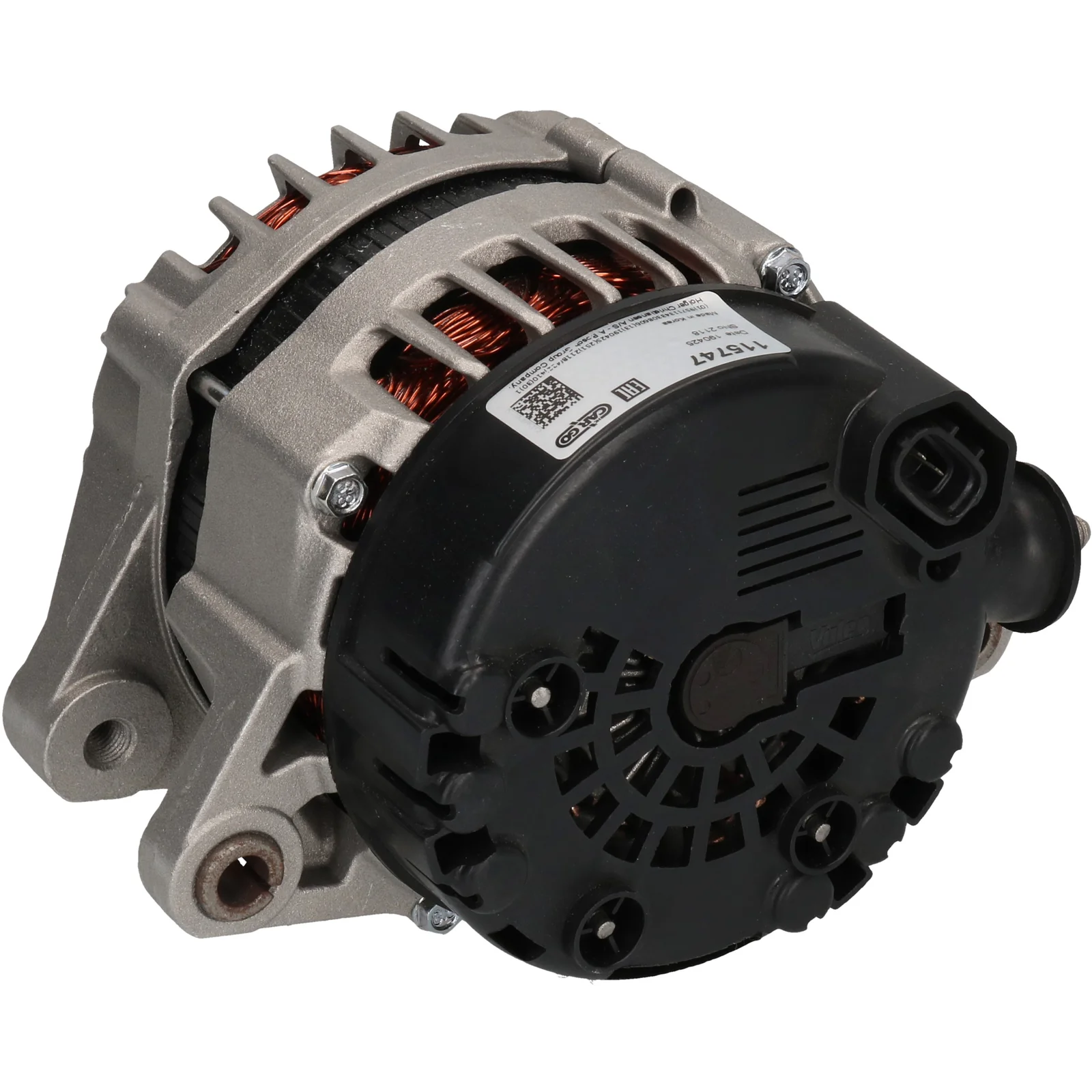

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115747

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distance: 48.50

Description

Voltage: 14
Amp: 150
Pulley dist.: 38.00
Width/holder arm: 20.00
Mount. bracket dist.: 48.50
Bracket hole: M10
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M10
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 26
D+ Size: Plug
Rotation: CW
Plug no.: PL176
Total length mm: 177.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115747, fg15s034, 1986A01711, 37300-2f100, 2606259

  • Normalised article numbler
    a3238s, a3238valeo, cal32155, dra0792, dra0792n, f032115747, fg15s034, lra03365, 8el015637121, 1986a01711, 20338n, 209009, 209009a, 285977, 373002f100, 554140ri, 600743, 608393, 2606259, 12061174, 155575150, 2263031502
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 38.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 48.50
    Bracket hole: M10
    Belt. adj. brackethole pos.: 7
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 26
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL176
    Total length mm: 177.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115747, fg15s034, 1986A01711, 37300-2f100, 2606259

    • Normalised article numbler
      a3238s, a3238valeo, cal32155, dra0792, dra0792n, f032115747, fg15s034, lra03365, 8el015637121, 1986a01711, 20338n, 209009, 209009a, 285977, 373002f100, 554140ri, 600743, 608393, 2606259, 12061174, 155575150, 2263031502
