HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115653

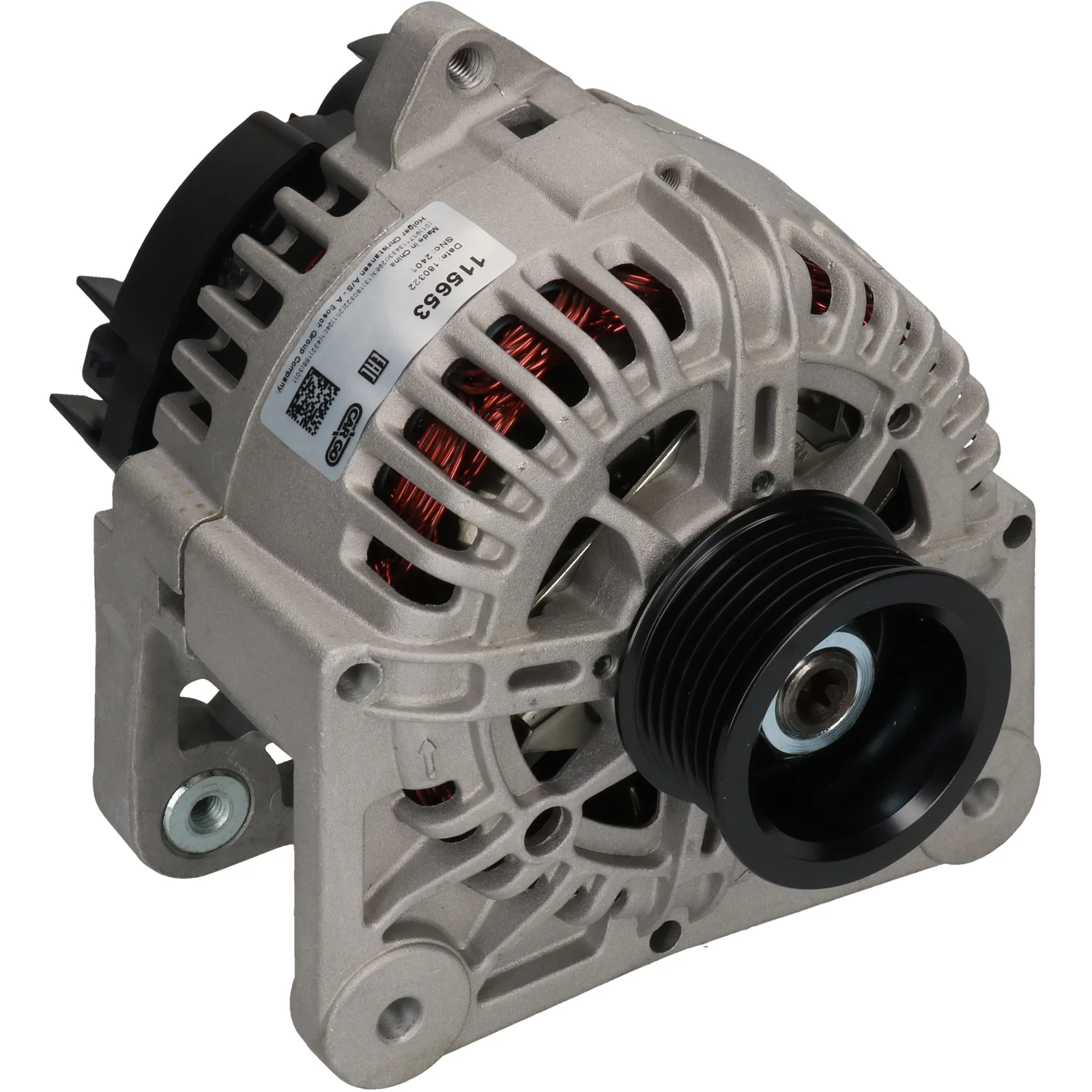

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 60.00

Description

Renault Alternator 12V-110A, 7grooves 12V - 110A, 7grooves, Pulley diameter Ø 55mm. For Yourex product order 90-480-0068

Voltage: 14
Amp: 110
Pulley distance: 33.50
Width/holder arm: 14.00
Mounting bracket distance: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 15
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 7
Rotation: CW
Plug number: PL131
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR

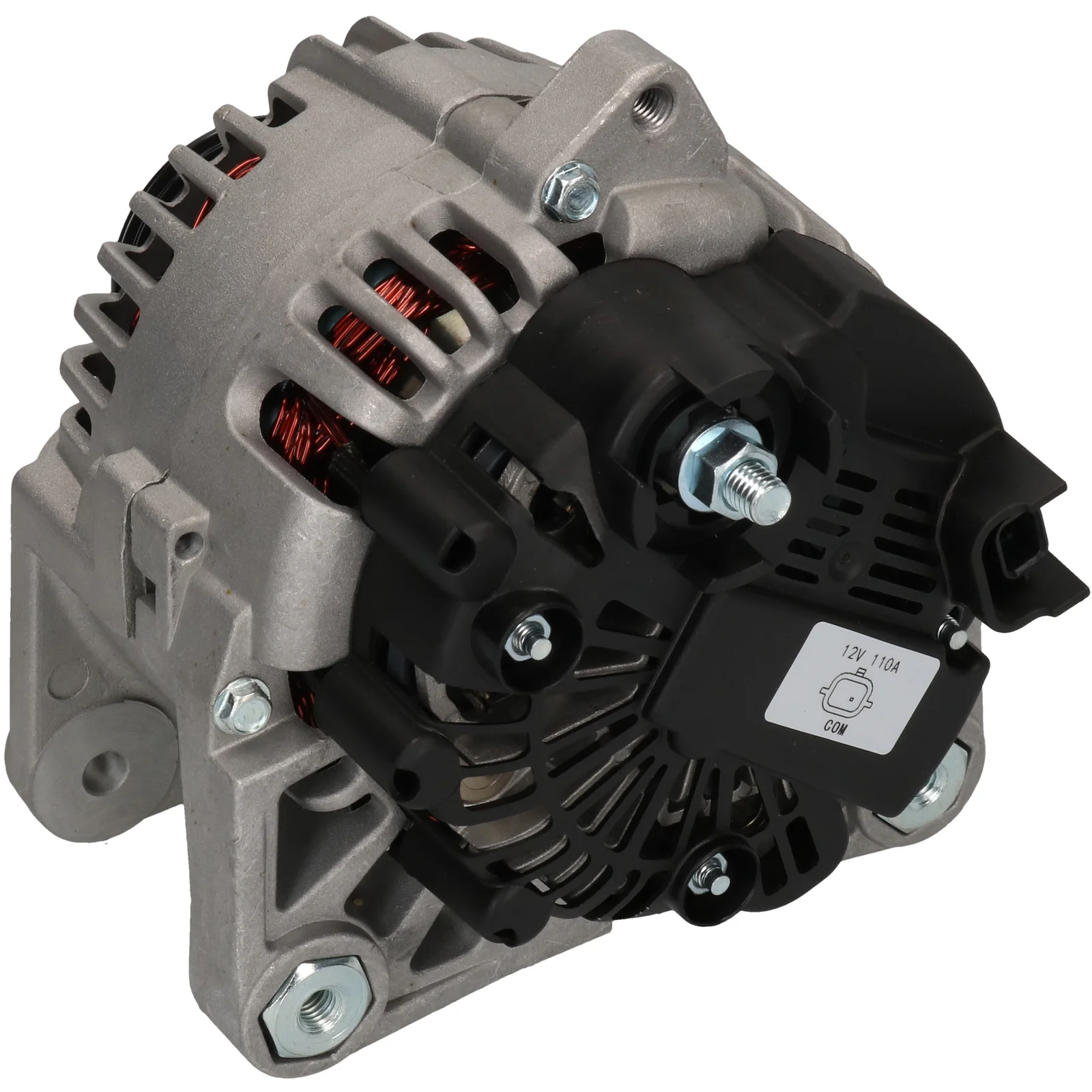

Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032115653, TG11C 052, TG11C 056, TG11C 068, TG11C052, TG11C056, tg11c068, 2054ir, 8200 538 817, 8200 623 231, 8200 718 724, 115653, 439596, 440092, 2543469, 2543469A, 2543590, 2543590A, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646R, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

  • Normalised article numbler
    a0279, cal15450, dra0698, f032115653, lra03030, tg11c052, tg11c056, tg11c068, 8el011713141, 8el012429751, 2054ir, 23777n, 24030n, 115653, 200275, 210700, 210700a, 285642, 439596, 440068, 440092, 2543469, 2543469a, 2543590, 2543590a, 9090851, 12090267, 12090296, 32081080, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646r, 575908110, 0986083980, 2303291102, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724
  • Description
    Renault Alternator 12V-110A, 7grooves 12V - 110A, 7grooves, Pulley diameter Ø 55mm. For Yourex product order 90-480-0068

    Voltage: 14
    Amp: 110
    Pulley distance: 33.50
    Width/holder arm: 14.00
    Mounting bracket distance: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 15
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 7
    Rotation: CW
    Plug number: PL131
    Total length mm: 185.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032115653, TG11C 052, TG11C 056, TG11C 068, TG11C052, TG11C056, tg11c068, 2054ir, 8200 538 817, 8200 623 231, 8200 718 724, 115653, 439596, 440092, 2543469, 2543469A, 2543590, 2543590A, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646R, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724

    • Normalised article numbler
      a0279, cal15450, dra0698, f032115653, lra03030, tg11c052, tg11c056, tg11c068, 8el011713141, 8el012429751, 2054ir, 23777n, 24030n, 115653, 200275, 210700, 210700a, 285642, 439596, 440068, 440092, 2543469, 2543469a, 2543590, 2543590a, 9090851, 12090267, 12090296, 32081080, 0124425039, 0124425069, 0124425106, 0124425107, 0124425109, 231000646r, 575908110, 0986083980, 2303291102, 7711368683, 8200429905, 8200518409, 8200538817, 8200623231, 8200660043, 8200718724
