HC-Cargo Alternator

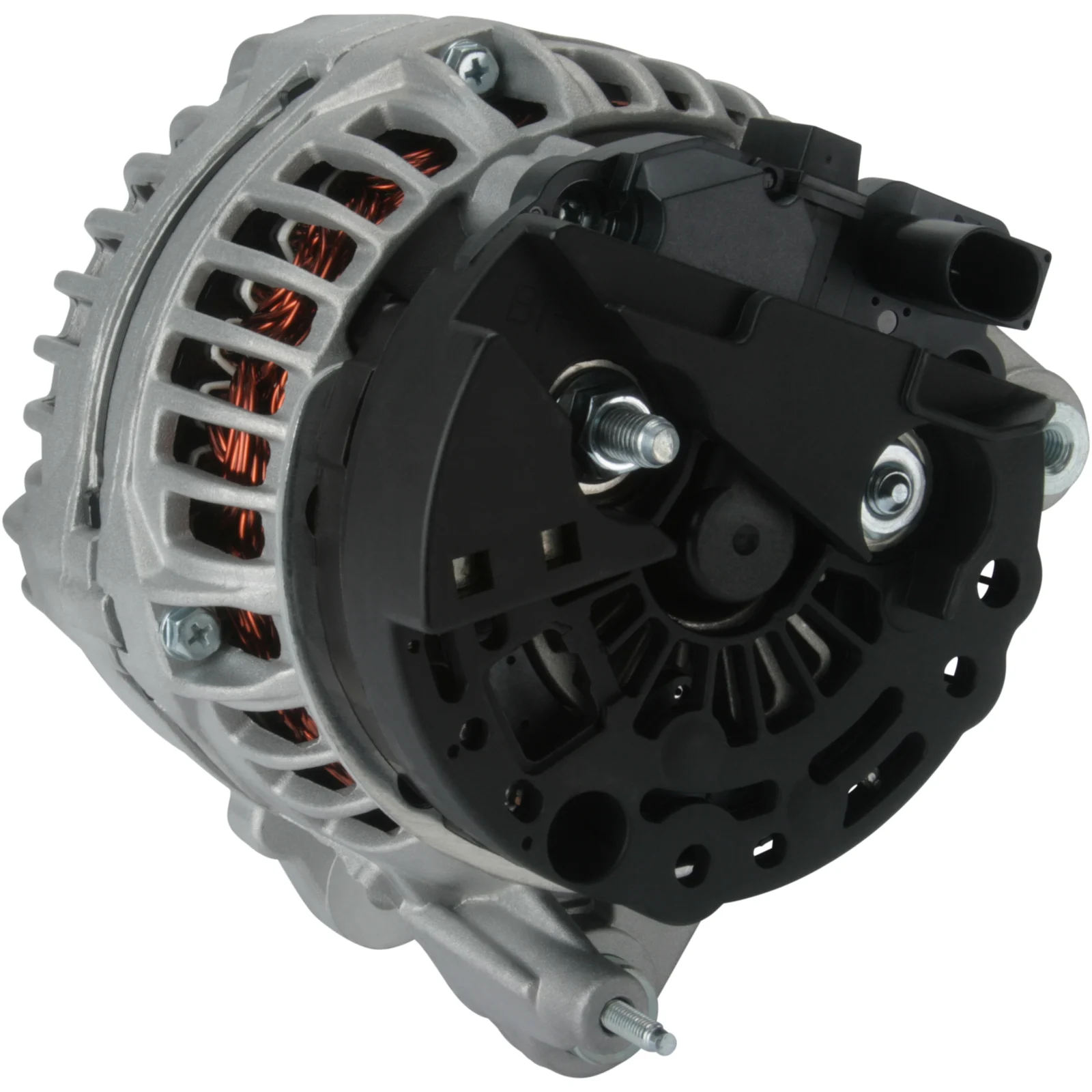

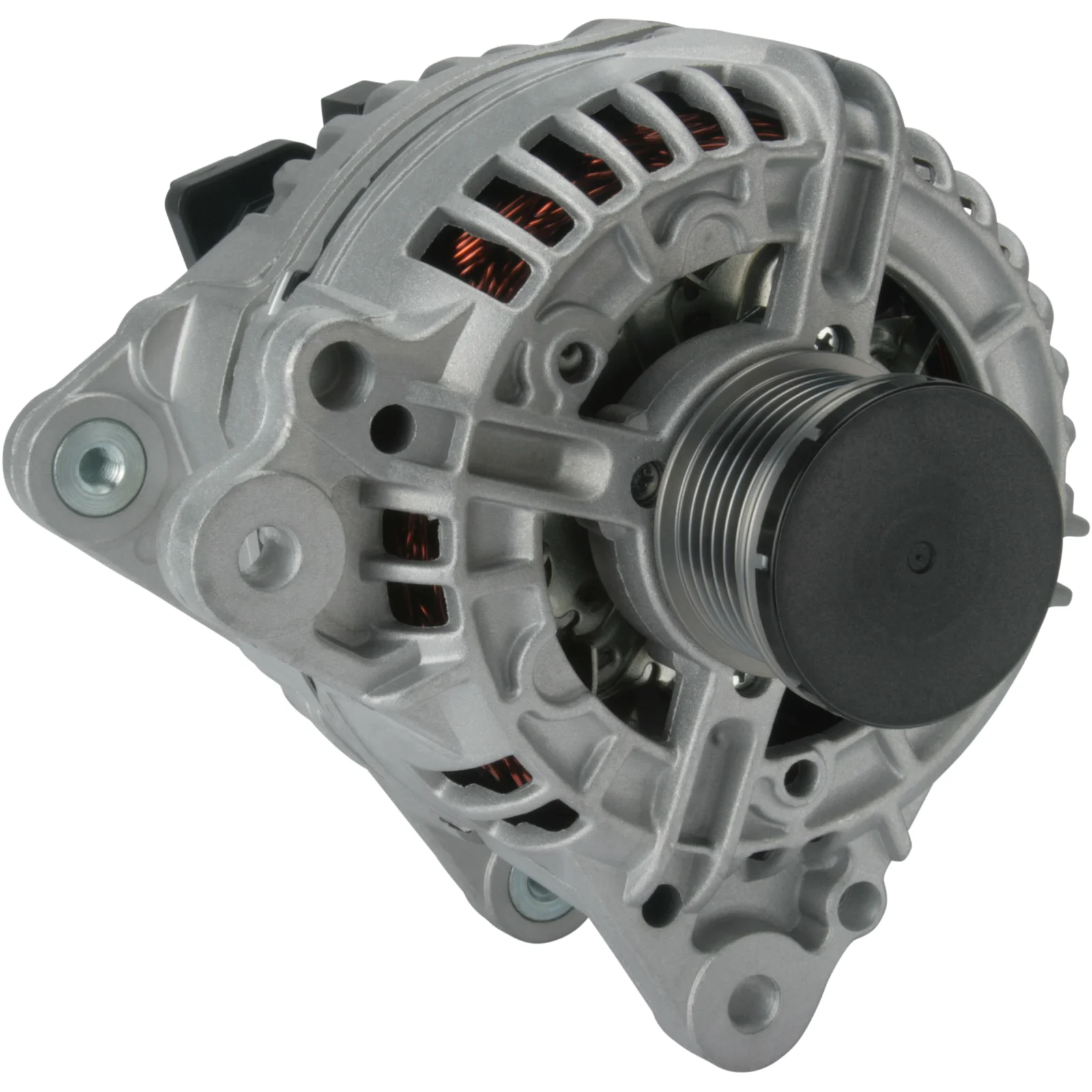

HC-Cargo Alternator
Article no.: F032115765

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 140, Rotation: CW, Mounting bracket distance: 61.20

Description

Alternator 12V-140A fits Skoda and others 12V - 140A, 6-cylinder (L, DFM) For vehicles without start-stop function! For vehicles without start-stop function! For Yourex product order 90-513-8223

Voltage: 14
Amp: 140
Pulley dist.: 30.00
Width/holder arm: 15.00
Mounting bracket dist.: 61.20
Bracket hole: 9.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 9.50
Pulley dia.: 49.70
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 41
D+ Size: Plug
Rotation: CW
Plug no.: PL61
Total length mm: 192.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032115765, 03F 903 023D, 03F 903 023F, 03f903023d, 03F903023DX, 03F903023F, 03F903023FX, 03F903023J, 0124 525 201, 0124 525 545, 0986 082 230, 1986A00908, 2118ir, 115765, 0124525201, 0124525221, 0124525222, 0124525545

  • Normalised article numbler
    a0365, a0365pr, cal10483, dra0578, dra0603, f032115765, lra3504, 03f903023d, 03f903023dx, 03f903023f, 03f903023fx, 03f903023j, 8el011713381, 1986a00908, 2118ir, 20149n, 115765, 209499, 209499a, 286614, 440895, 443085, 443474, 553975ri, 12090365, 32082230, 0124525201, 0124525221, 0124525222, 0124525545, 305907140, 0986082230, 2113771402
  • Description
    Alternator 12V-140A fits Skoda and others 12V - 140A, 6-cylinder (L, DFM) For vehicles without start-stop function! For vehicles without start-stop function! For Yourex product order 90-513-8223

    Voltage: 14
    Amp: 140
    Pulley dist.: 30.00
    Width/holder arm: 15.00
    Mounting bracket dist.: 61.20
    Bracket hole: 9.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 9.50
    Pulley dia.: 49.70
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 41
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL61
    Total length mm: 192.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032115765, 03F 903 023D, 03F 903 023F, 03f903023d, 03F903023DX, 03F903023F, 03F903023FX, 03F903023J, 0124 525 201, 0124 525 545, 0986 082 230, 1986A00908, 2118ir, 115765, 0124525201, 0124525221, 0124525222, 0124525545

    • Normalised article numbler
      a0365, a0365pr, cal10483, dra0578, dra0603, f032115765, lra3504, 03f903023d, 03f903023dx, 03f903023f, 03f903023fx, 03f903023j, 8el011713381, 1986a00908, 2118ir, 20149n, 115765, 209499, 209499a, 286614, 440895, 443085, 443474, 553975ri, 12090365, 32082230, 0124525201, 0124525221, 0124525222, 0124525545, 305907140, 0986082230, 2113771402
