HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115456

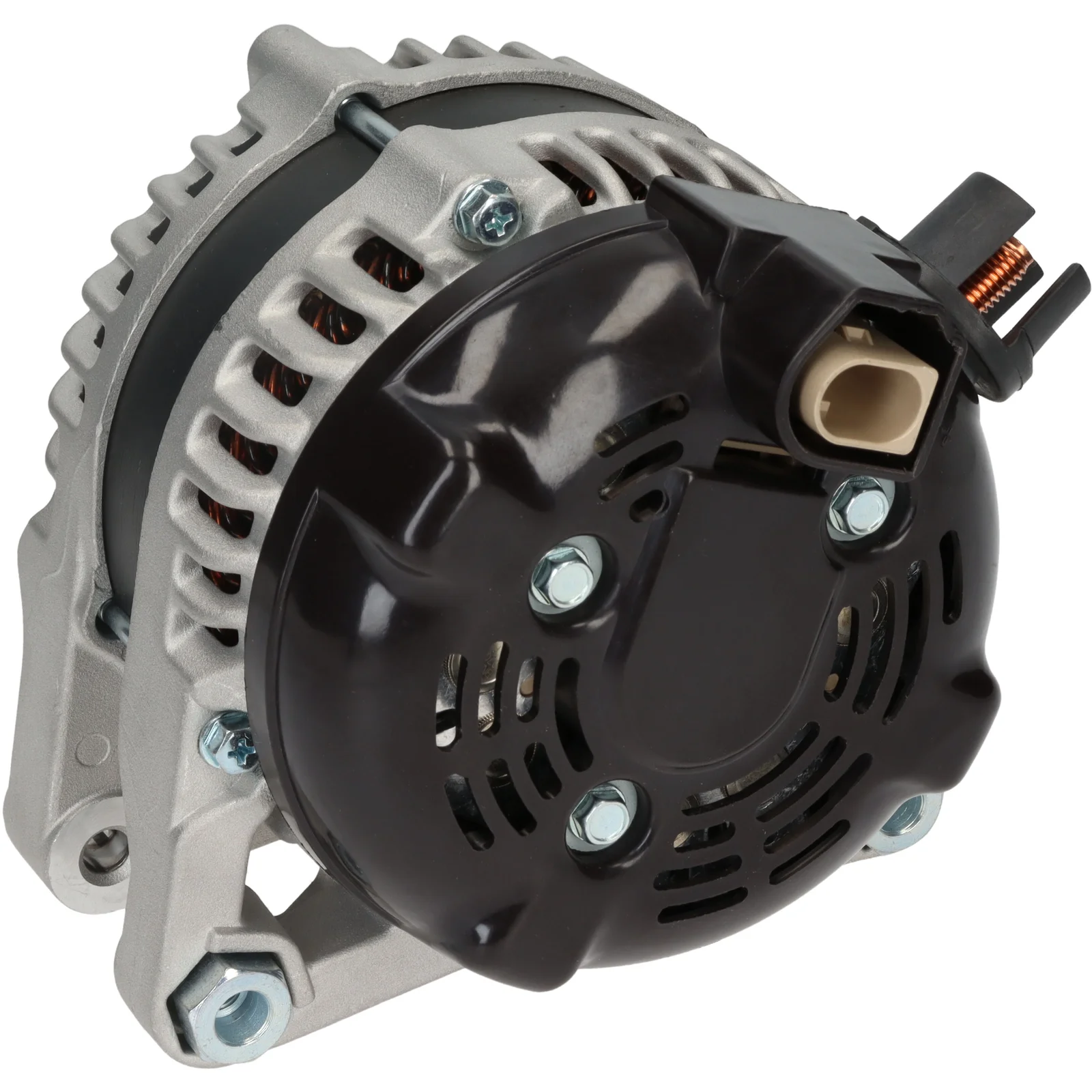

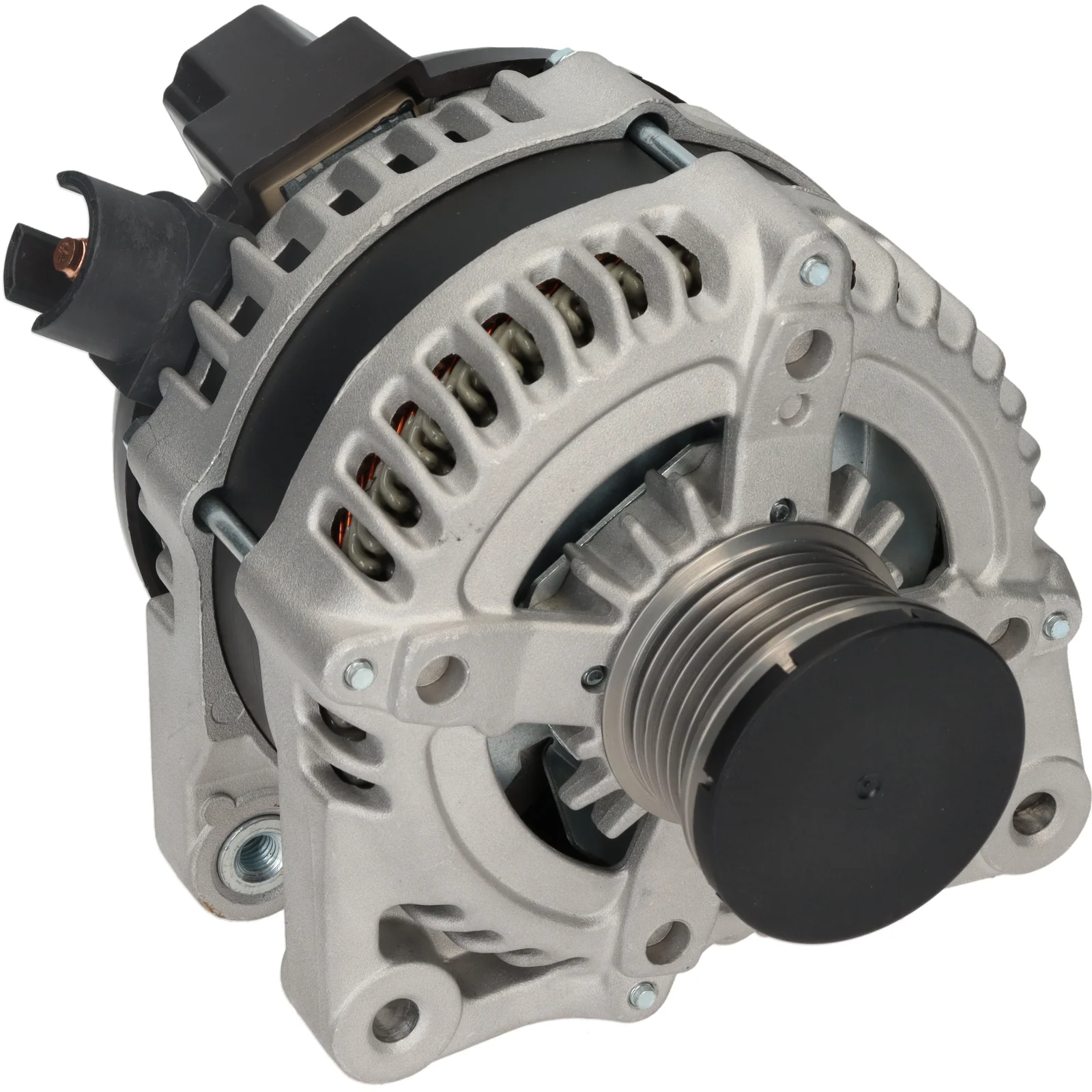

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distance: 31.00

Description

Alternator 12V-150A fits Ford 12V - 150A, 6-cylinder, (LIN) Ford Fiesta M/T for Yourex product order 90-480-4816

Voltage: 14
Amp: 150
Pulley distance: 42.50
Width/holder arm: 22.00
Mounting bracket distance: 31.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.00
Grooves/pulley: 6
Radius: 91.00
Radius 2: 81.50
B+: M8
Position/B+ in min.: 1
Rotation: CW
Plug no.: PL174
Total length mm: 177.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    CV6T-10300BC, CV6T-10300BE, CV6T10300BC, CV6T10300BE, D2BT10300AA, DAN 1073, F032115456, FO 1764816, FO 1940809, Q9K3B, 1986A00606, 104210-1730, 104210-1731, 104210-1732, 104210-1733, 104211-8850, 115456, 1764816, 1940809

  • Normalised article numbler
    a6131, a6131denso, a6131pr, a6131s, a6428s, cal40370, cv6t10300bc, cv6t10300be, d2bt10300aa, dan1073, dra1291, f032115456, fo1764816, fo1940809, lra03762, q9k3b, 8el011713631, 1986a00606, 11782, 20530n, 20530r, 115456, 210873, 210873a, 286872, 444212, 1764816, 1940809, 12090906, 32118811, 595597150, 0986084700, 1042101730, 1042101731, 1042101732, 1042101733, 1042118850, 2193181502
  • Description
    Alternator 12V-150A fits Ford 12V - 150A, 6-cylinder, (LIN) Ford Fiesta M/T for Yourex product order 90-480-4816

    Voltage: 14
    Amp: 150
    Pulley distance: 42.50
    Width/holder arm: 22.00
    Mounting bracket distance: 31.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.00
    Grooves/pulley: 6
    Radius: 91.00
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 1
    Rotation: CW
    Plug no.: PL174
    Total length mm: 177.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      CV6T-10300BC, CV6T-10300BE, CV6T10300BC, CV6T10300BE, D2BT10300AA, DAN 1073, F032115456, FO 1764816, FO 1940809, Q9K3B, 1986A00606, 104210-1730, 104210-1731, 104210-1732, 104210-1733, 104211-8850, 115456, 1764816, 1940809

    • Normalised article numbler
      a6131, a6131denso, a6131pr, a6131s, a6428s, cal40370, cv6t10300bc, cv6t10300be, d2bt10300aa, dan1073, dra1291, f032115456, fo1764816, fo1940809, lra03762, q9k3b, 8el011713631, 1986a00606, 11782, 20530n, 20530r, 115456, 210873, 210873a, 286872, 444212, 1764816, 1940809, 12090906, 32118811, 595597150, 0986084700, 1042101730, 1042101731, 1042101732, 1042101733, 1042118850, 2193181502
