HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116153

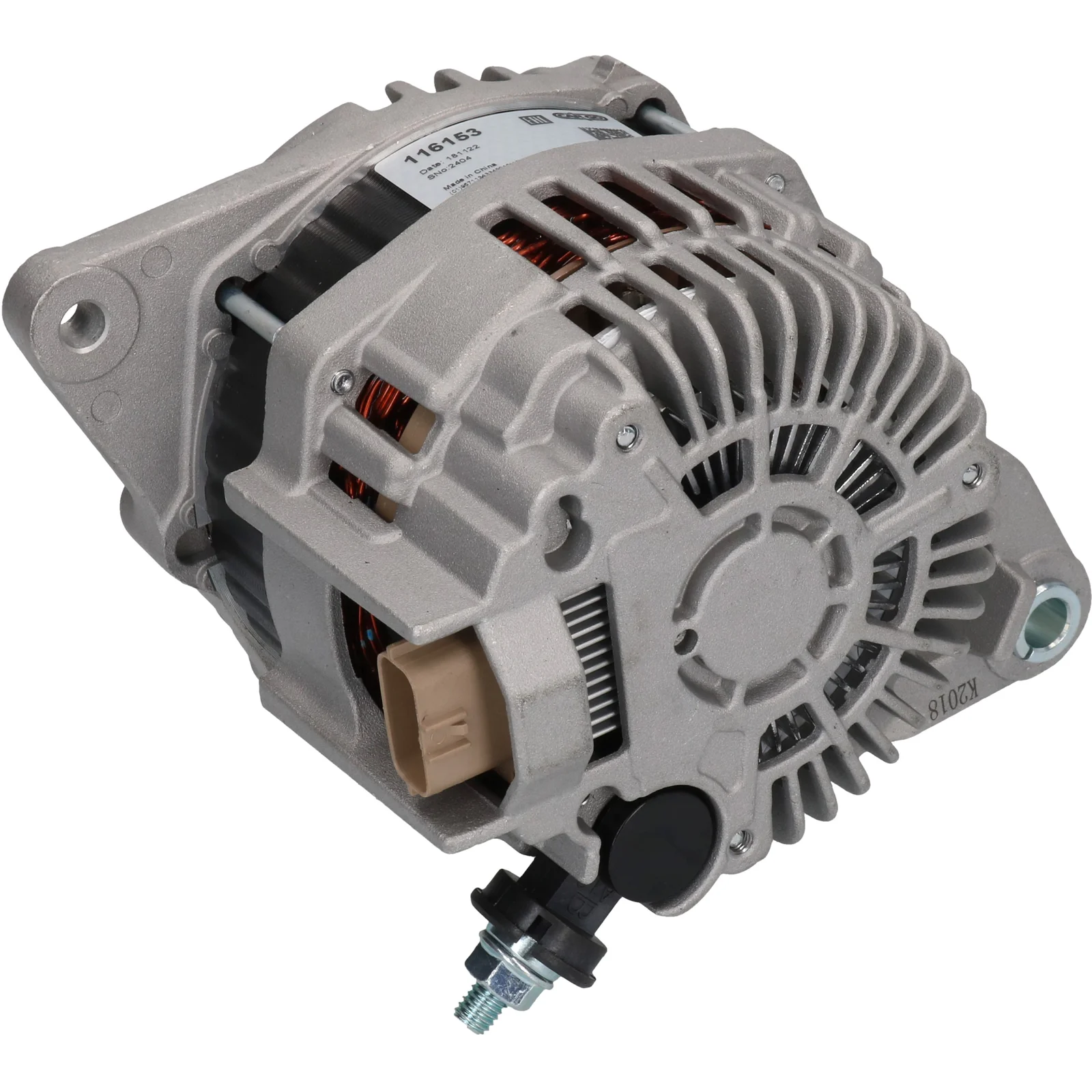

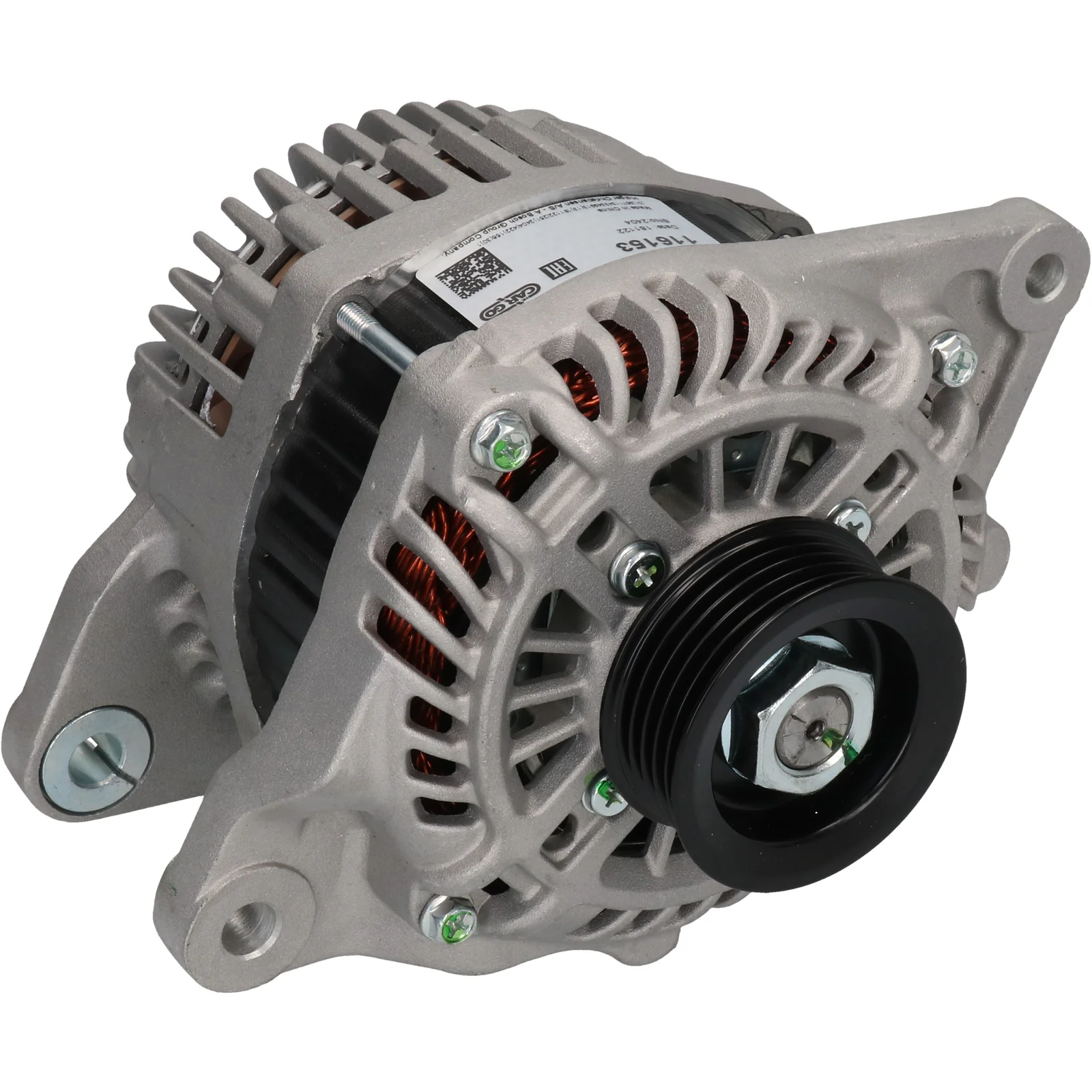

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 95, Rotation: CW, Mounting bracket distributor: 46.30

Description

Voltage: 14
Amp: 95
Pulley distance: 48.50
Width/holder arm: 13.00
Mounting bracket distance: 46.30
Bracket hole: 10.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 55.00
Grooves/pulley: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in minutes: 46
D+ Size: Plug
Rotation: CW
Plug number: PL68
Terminal type: G-S-L-F
Pulley: SP
Regulator type: IR

Files

  • OEM
    A005TL0092, A005TL0092B, A5TL0092, A5TL0092B, F032116153, 1800a287, 1986A00606, 1986A00636, 1607835680

  • Normalised article numbler
    a005tl0092, a005tl0092b, a5294, a5tl0092, a5tl0092b, cal35344, dra1243, f032116153, lra03778, 1800a287, 1986a00606, 1986a00636, 24217n, 209448, 209448a, 286888, 12061048, 155512095, 226317952, 0986085070, 1607835680
  • Description
    Voltage: 14
    Amp: 95
    Pulley distance: 48.50
    Width/holder arm: 13.00
    Mounting bracket distance: 46.30
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 55.00
    Grooves/pulley: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in minutes: 46
    D+ Size: Plug
    Rotation: CW
    Plug number: PL68
    Terminal type: G-S-L-F
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A005TL0092, A005TL0092B, A5TL0092, A5TL0092B, F032116153, 1800a287, 1986A00606, 1986A00636, 1607835680

    • Normalised article numbler
      a005tl0092, a005tl0092b, a5294, a5tl0092, a5tl0092b, cal35344, dra1243, f032116153, lra03778, 1800a287, 1986a00606, 1986a00636, 24217n, 209448, 209448a, 286888, 12061048, 155512095, 226317952, 0986085070, 1607835680
